2007.5-2018 Cummins CR Race Long Block (PDM-67RLB)

Industrial Injection
Regular price $37,801.53 CAD

Notices

This item may have additional freight costs. Learn More

This product will automatically bundle the following item:

Purchase to earn 37801  Dirty Dollars Learn More

Description

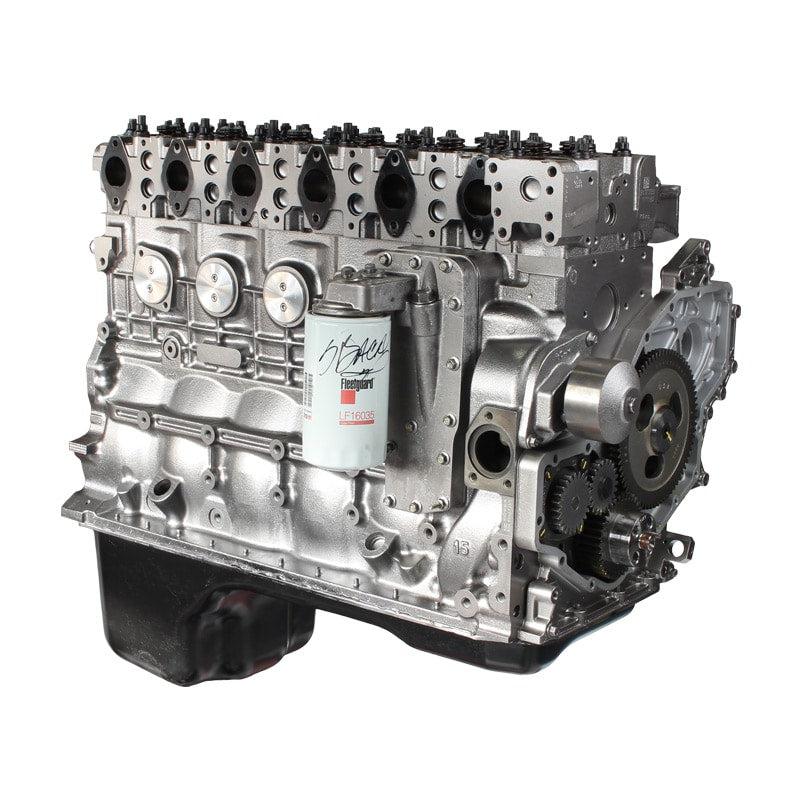

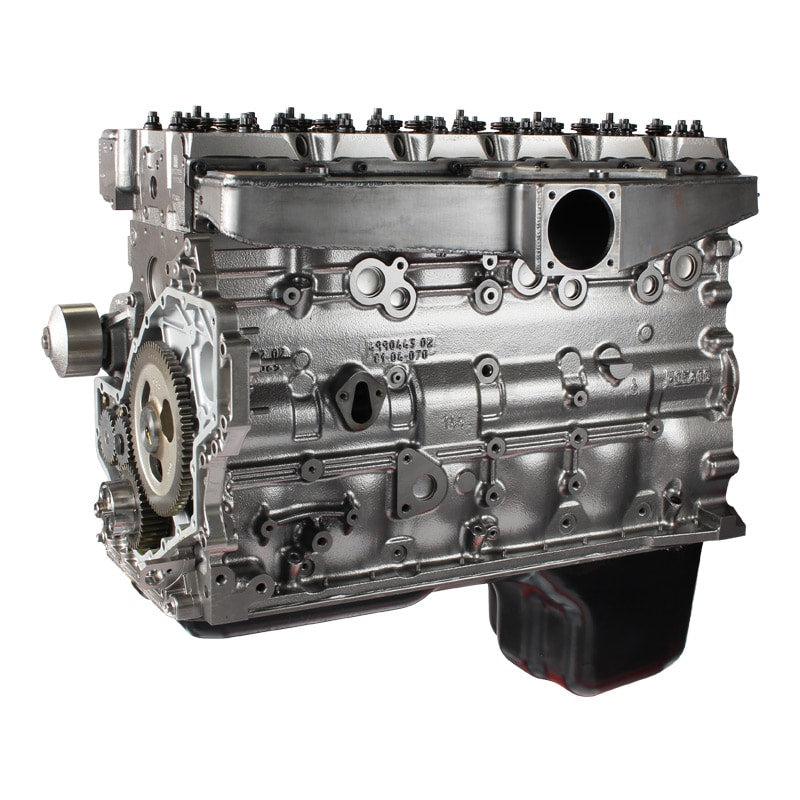

The Industrial Injection Race 6.7L Cummins long block is the top of the Industrial Injection CR engine ladder — built for competition use and the highest power levels. Carrillo billet rods, a 14mm Gorilla Girdle, fly-cut pistons with .100 valve reliefs, a Stage 2 race cam, and a Stage 1 race-ported head with ARP 625 studs and 120lb springs make up the spec.

Features

  • Bottom end: Balanced and blueprinted rotating assembly, sim-tested short block
  • Carrillo billet rods with HD bolts
  • Fly-cut, coated, chamfered pistons with .100 valve reliefs
  • 14mm Gorilla Girdle with ARP main studs
  • Balanced Cummins crank
  • Industrial Injection Stage 2 race performance cam
  • Cam bearings installed in all journals to prevent cam and block wear
  • Coated H-series main and rod bearings
  • Billet freeze plugs, new Cummins tappets
  • New oil pump, water pump, oil cooler, oil pickup tube, and Big Iron stamped oil pan
  • Head: Stage 1 race-performance ported, hand-blended CNC porting on valve bowls and intake/exhaust ports
  • Intake shelf machined off to accept ZZ Fab side runner
  • New diamond-honed valve guides, new stainless steel nitrate-coated performance valves, 120lb springs
  • Radius-cut fire ring head gasket, milled and surfaced fire-ringed head
  • ARP 625 head studs
  • Drilled and tapped coolant freeze plugs
  • Core deposit applies — return your old long block to recover the deposit.

Notes

  • Does not include valve cover, rockers, pushrods, assembly gaskets, or ZZ Fab side runner.
  • Requires Joe Gibbs Break-In Oil (not included) for the initial 300-500 miles.
