2007-2026 Mercedes Sprinter Alpha HD Pro Air Suspension Kit W/ Ride Height Sensors (HP10731-J)

Fitment

Note: This kit fits Sprinters equipped with ride height sensors, which the standard HP10395-J kit does not.

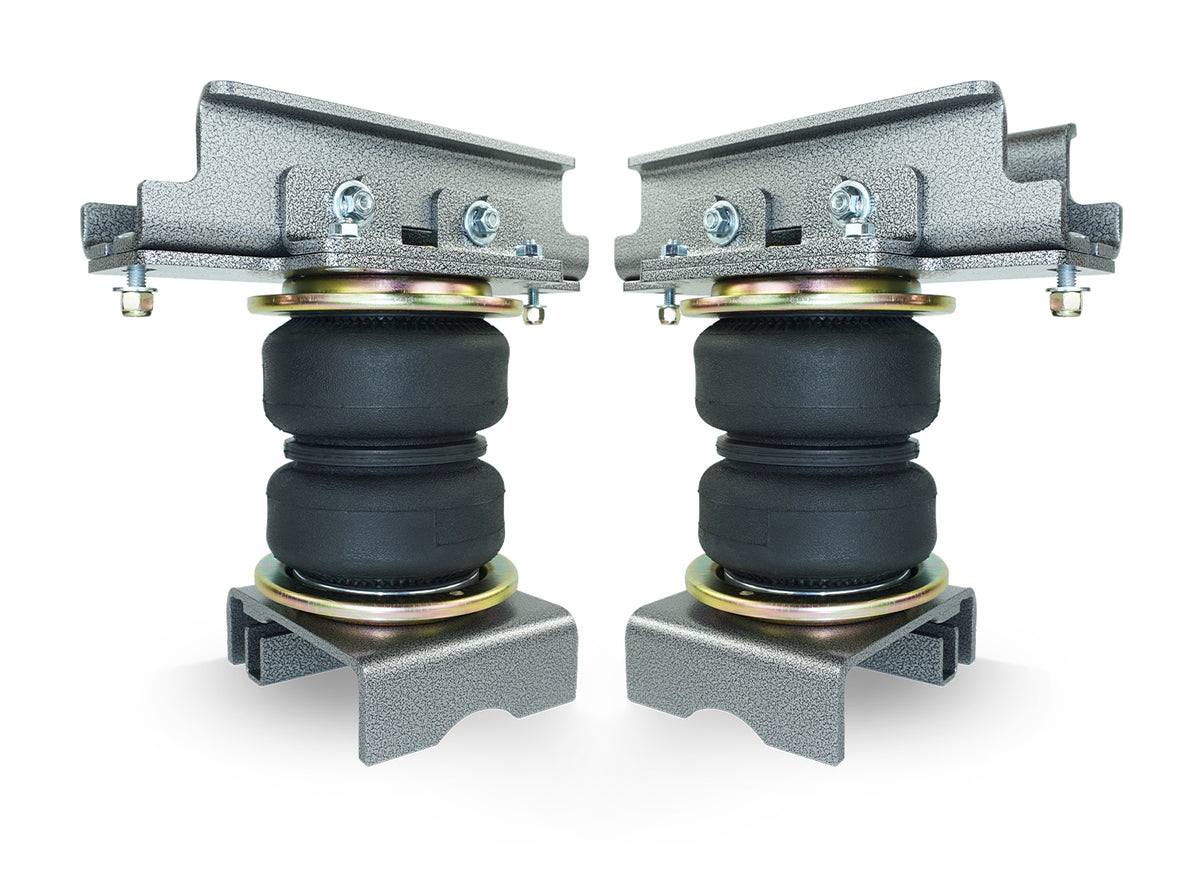

The ALPHA HD PRO pairs Pacbrake's HD air springs with internal jounce bumpers. The polyurethane bump stop sits inside the bag, so the spring cannot bottom out and damage itself, and you can run the kit at 0 psi when the van is empty for a factory feel ride.

Air up when the load goes on and you get up to 5,000 lbs of load leveling capacity, so the van sits level, tracks straight and stops squatting and bouncing under the weight.

Part Number: HP10731-J

• 5,000 lbs of load leveling capacity
• Eliminates sag, sway and bottoming out
• Distributes weight evenly across the tires
• One piece aluminum end caps, not plastic
• 20 support wires for strength and durability
• Internal jounce bumpers (bump stops) protect the springs from bottoming out
• Run at 0 psi when unloaded for a factory ride
• Grade 5 plated hardware
• Corrosion resistant roll plates
• Precision laser cut, powder coated steel brackets

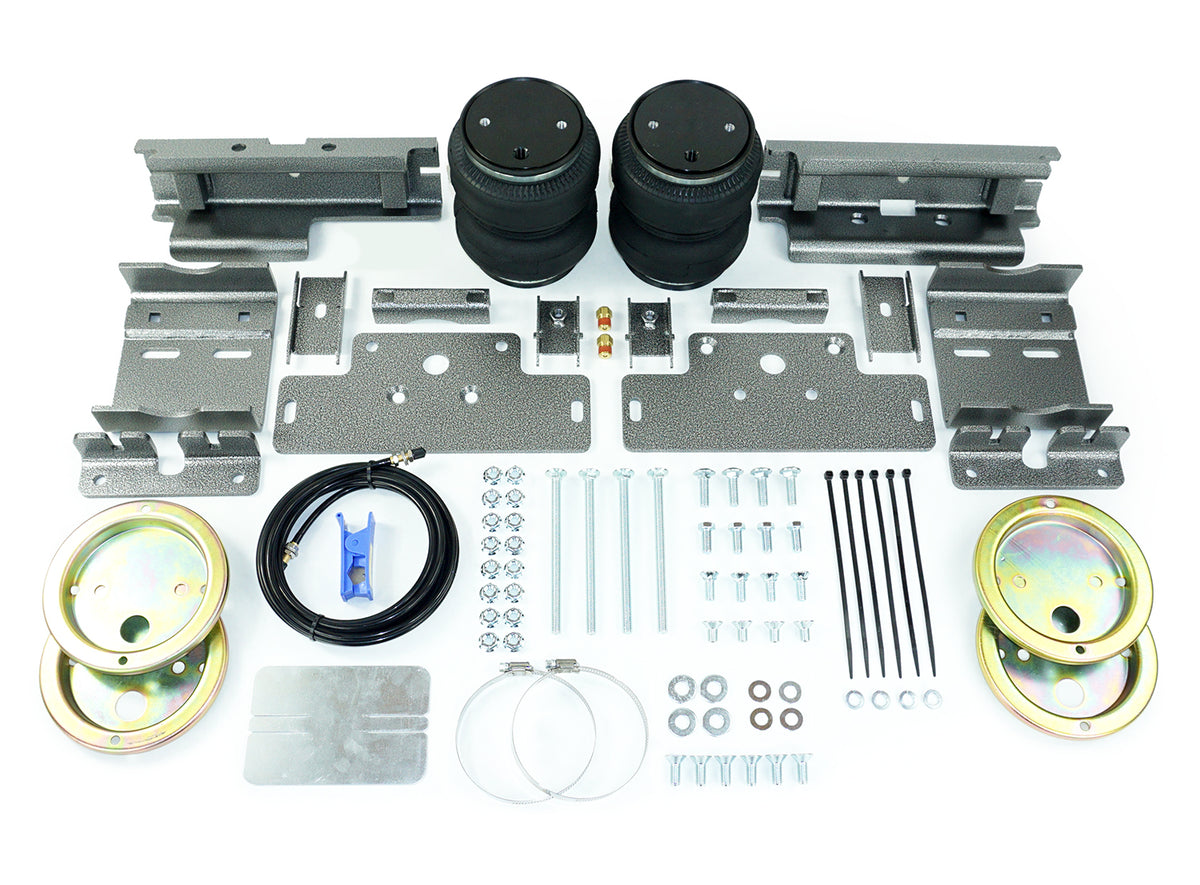

• Complete bolt on install kit

• Will not fit DRW vehicles
• Will not fit E-Sprinter models
• Jounce bumpers reduce bag travel. For maximum travel when off-roading, launching boats or lowering to hitch a trailer, choose the HP10731 kit
• Never exceed the manufacturer's recommended Gross Vehicle Weight Rating

• Installation Guide (L6663)
