2007-2024 Mercedes Sprinter Alpha HD Pro S Air Suspension Kit (HP10391-J-S)

Fits

 Note: Will NOT fit SRW vehicles/ Will NOT fit E-Sprinter models/ Will NOT fit models with ride height sensors. Will fit both Gas/Diesel applications

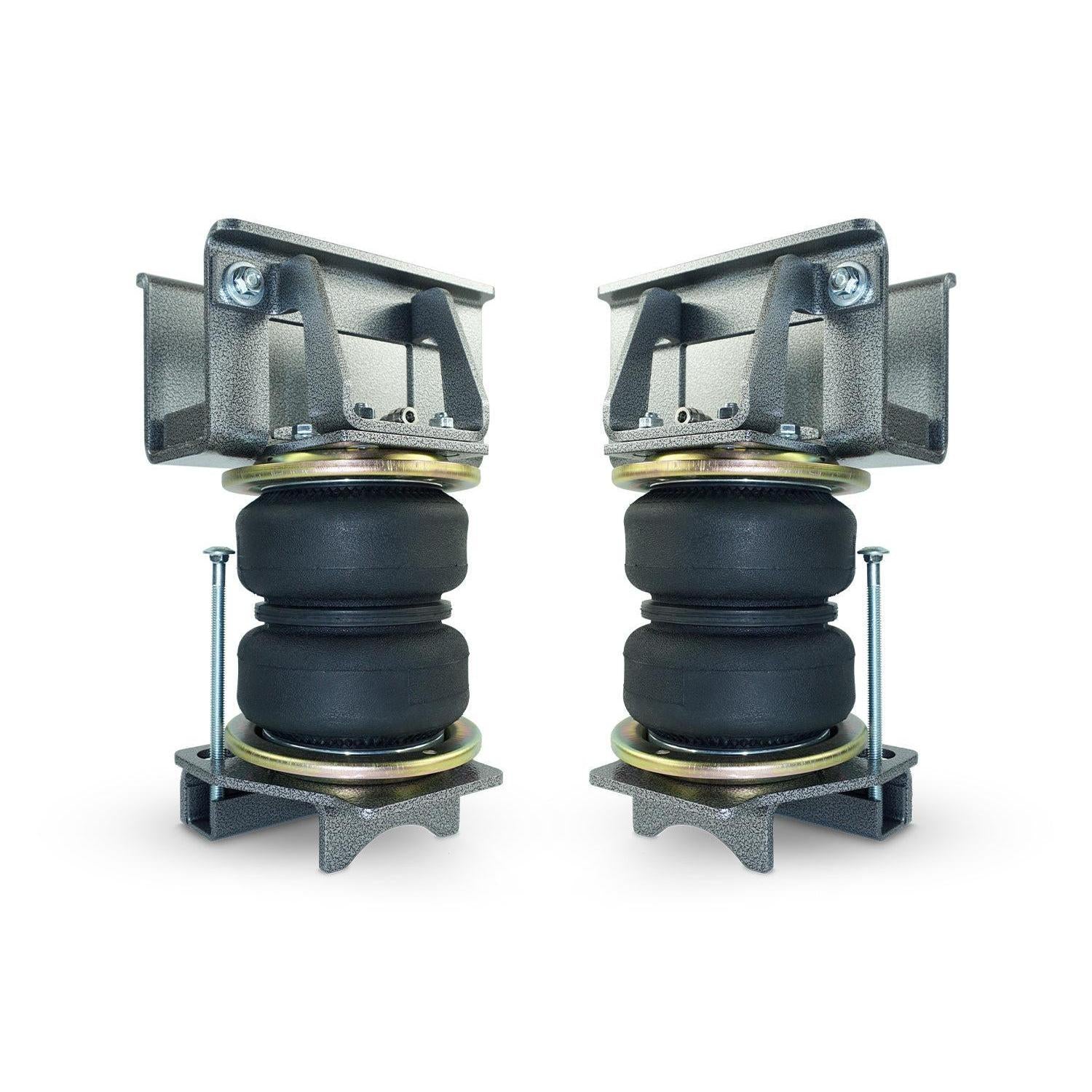

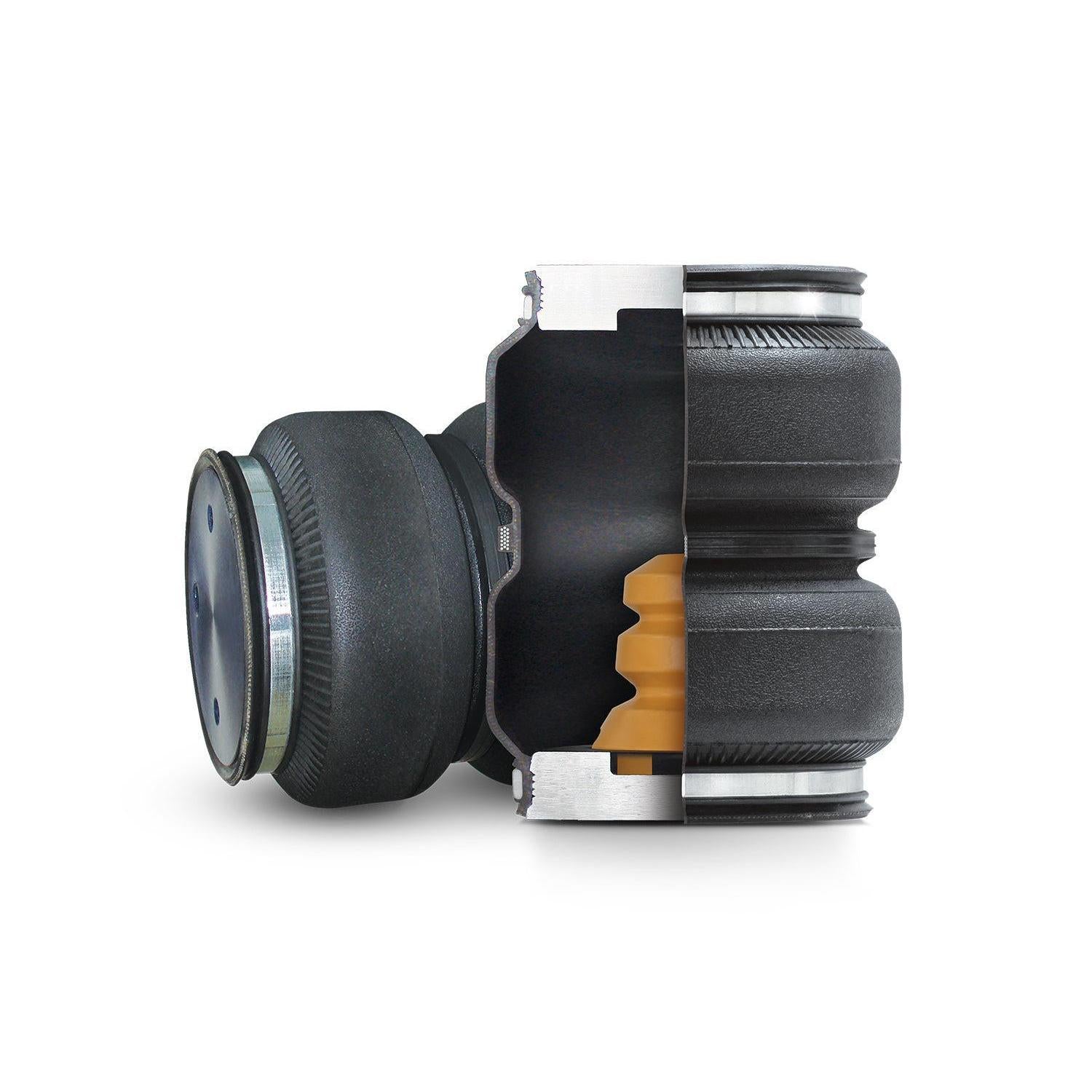

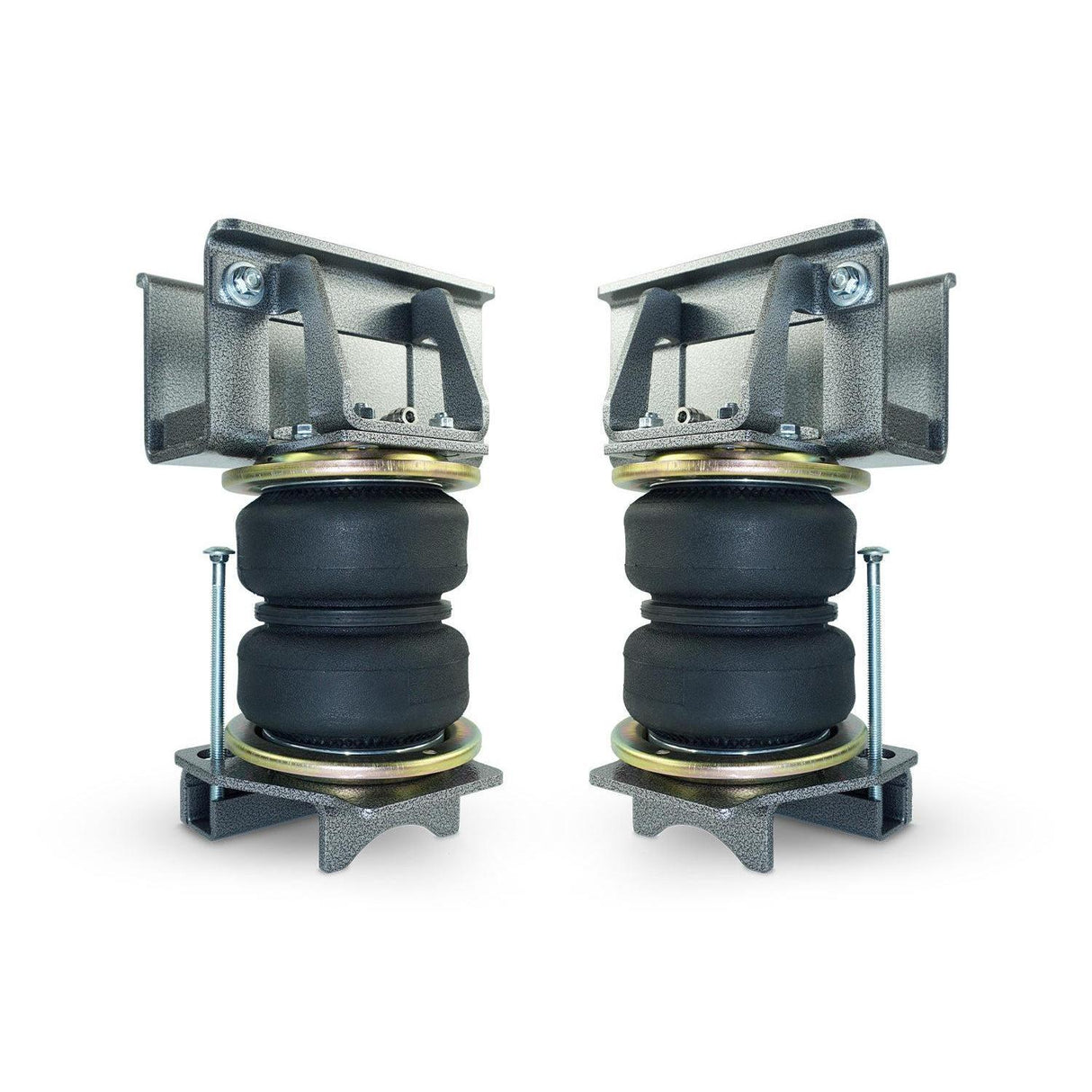

The ALPHA HD PRO S air suspension kit for 2007-2024 Mercedes Sprinter reduces sag, sway, and bottoming out. It includes corrosion-resistant end caps, stainless steel hardware, and 20 support wires for durability. An internal polyurethane bumper protects against damage and allows running without air when not towing. Available options with or without an in-bag bump stop for customized performance and ride comfort.

Part Number: HP10391-J-S

• 5,000 lbs of load leveling capacity
• 2-hour install time
• Lifetime warranty
• Can be run at 0 psi

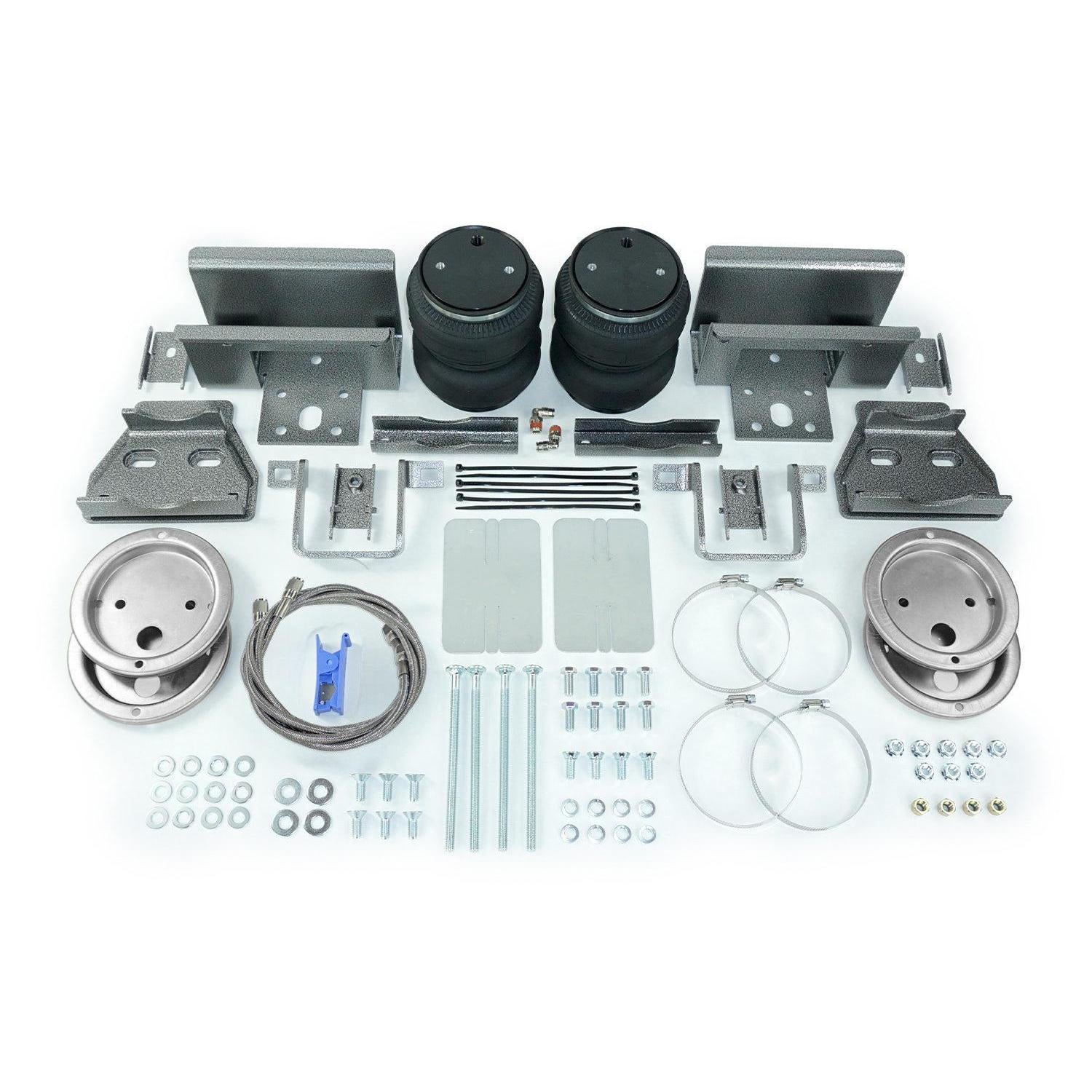

Includes:

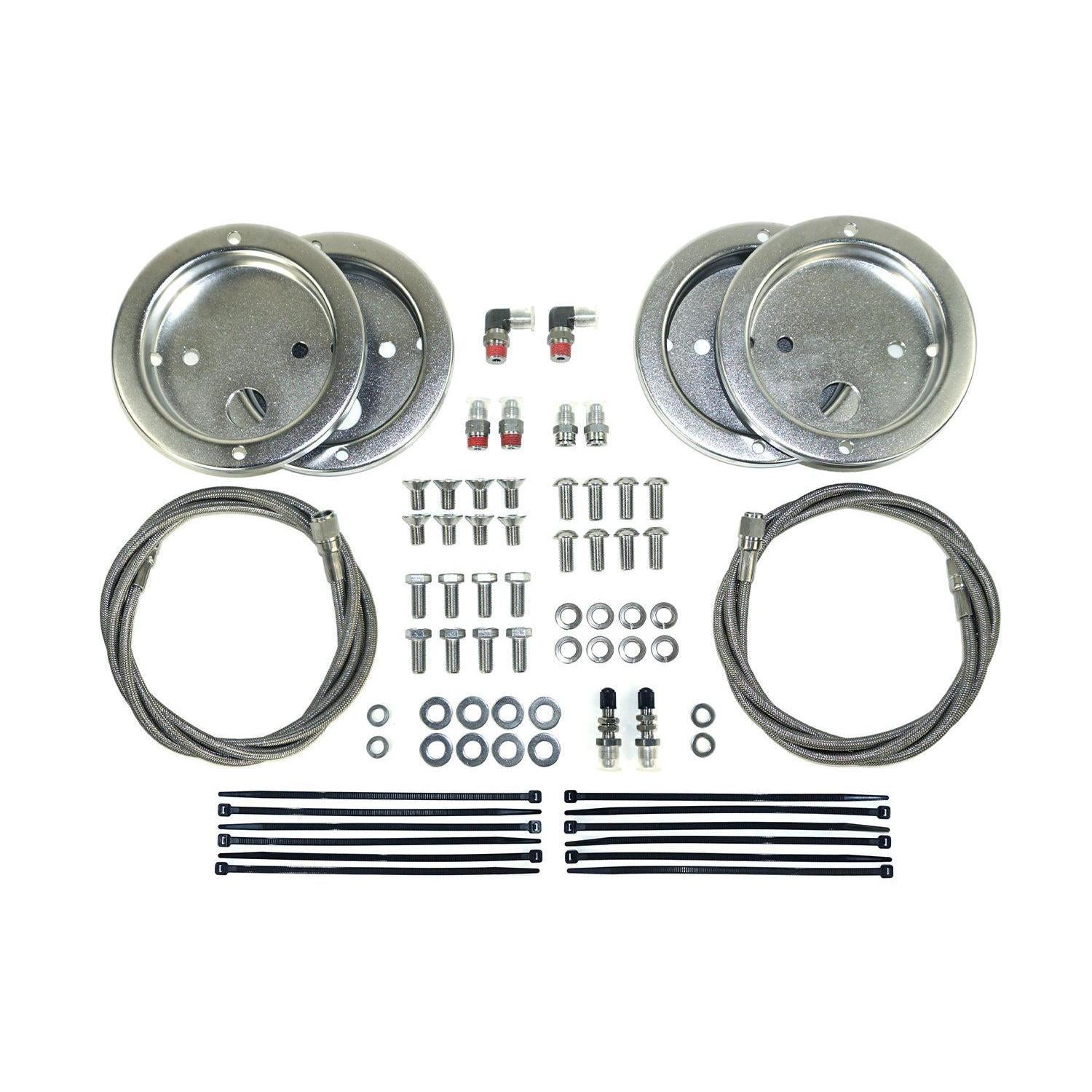

• 6ft Braided Stainless Steel Air Lines
• Stainless Steel Air Spring Fittings
• Stainless Steel Air Spring Mounting Hardware
• Stainless Steel Schrader Valves
• Stainless Steel Roll Plates
• Two Air Springs
• Everything required for install

• 2-Hours
• Stainless Steel Hardware
• Click Here
• Application Guide

• Never exceed manufacturer's recommended Gross Vehicle Weight Rating.

Why Pacbrake added a bump stop to their bags?

Peace of mind. Customers want a bump stop to prevent bottoming out from loss of air bag pressure, an extremely rare event that could damage the air bags or potentially the frame of the truck. Think of it as an "insurance policy" against bottoming out.

An additional benefit is that you can run these air bags at 0 psi when unloaded for superior ride comfort.

Are bump stops necessary?

No! For those that require max travel in their air bags, to raise and lower their rear end to pickup trailers or boats, or for those that take their trucks off roading, air bags without bump stops are recommended. Consider the HP10391 ALPHA HD air bag.

Parts Only

• Click Here
