2007.5-2024 Cummins Engine Cover w/ Revolver Billet Oil Cap - No EGR (42813)

Fits

Note: Requires a Banks Monster-Ram intake. This is the non-EGR version — the alternative mounting bracket is included.

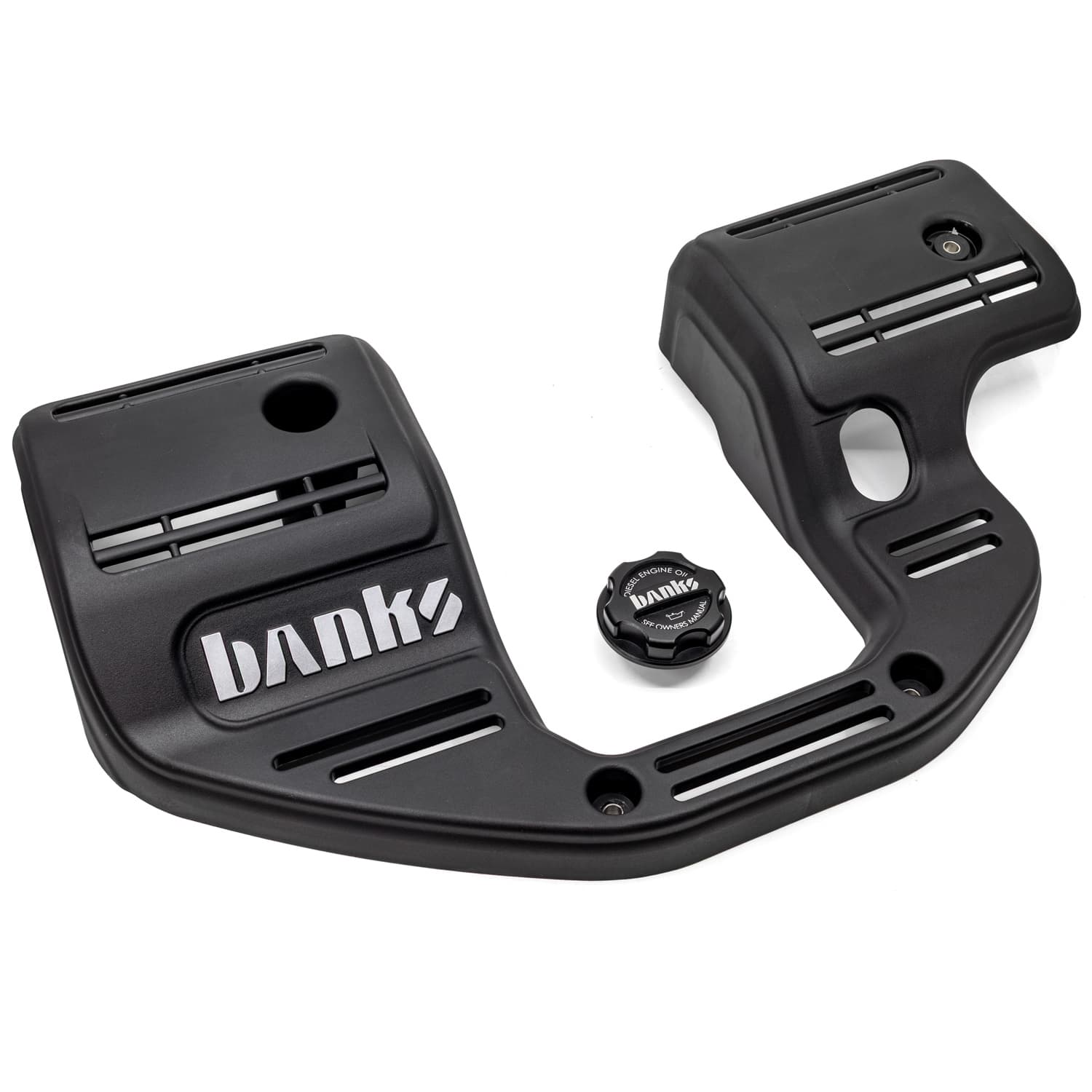

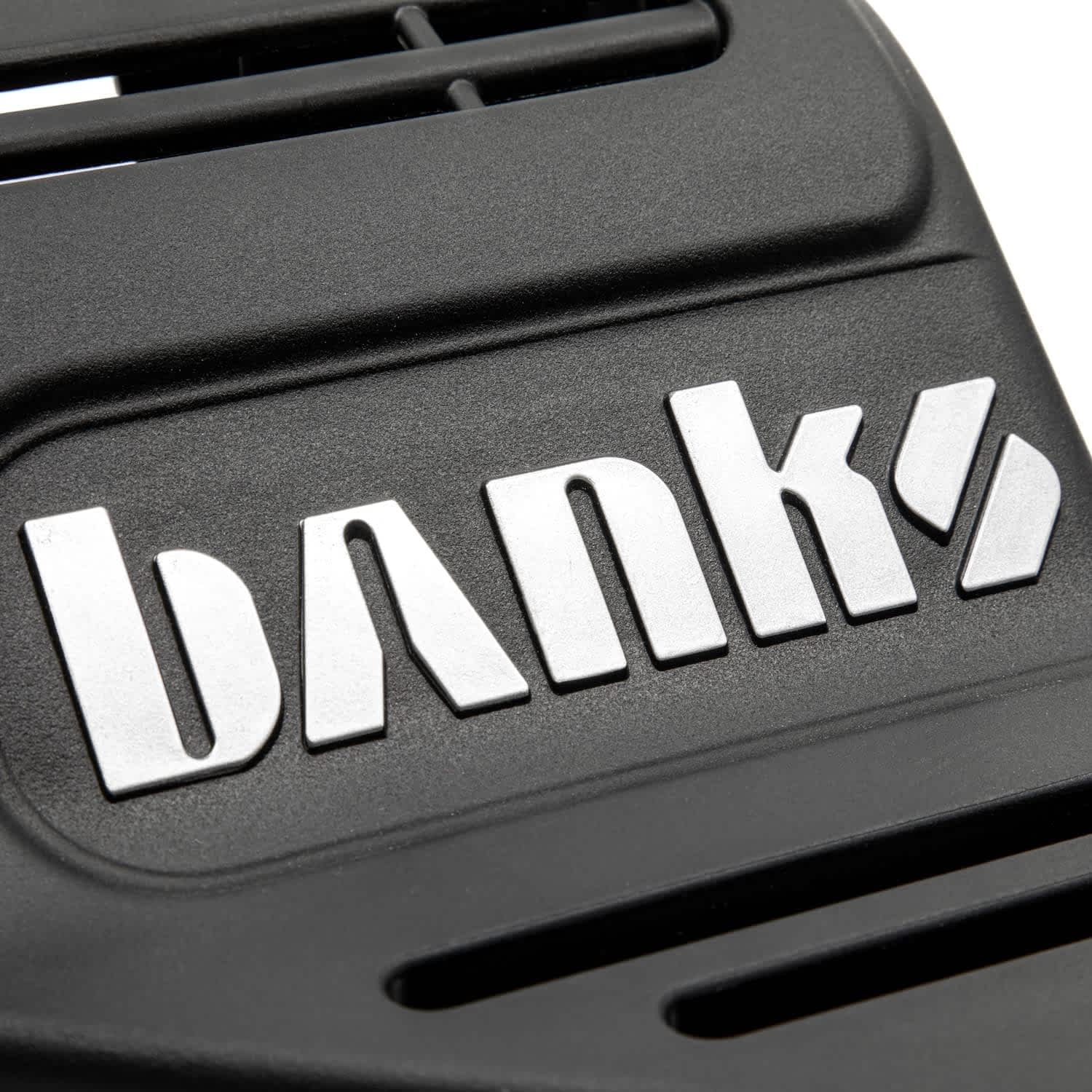

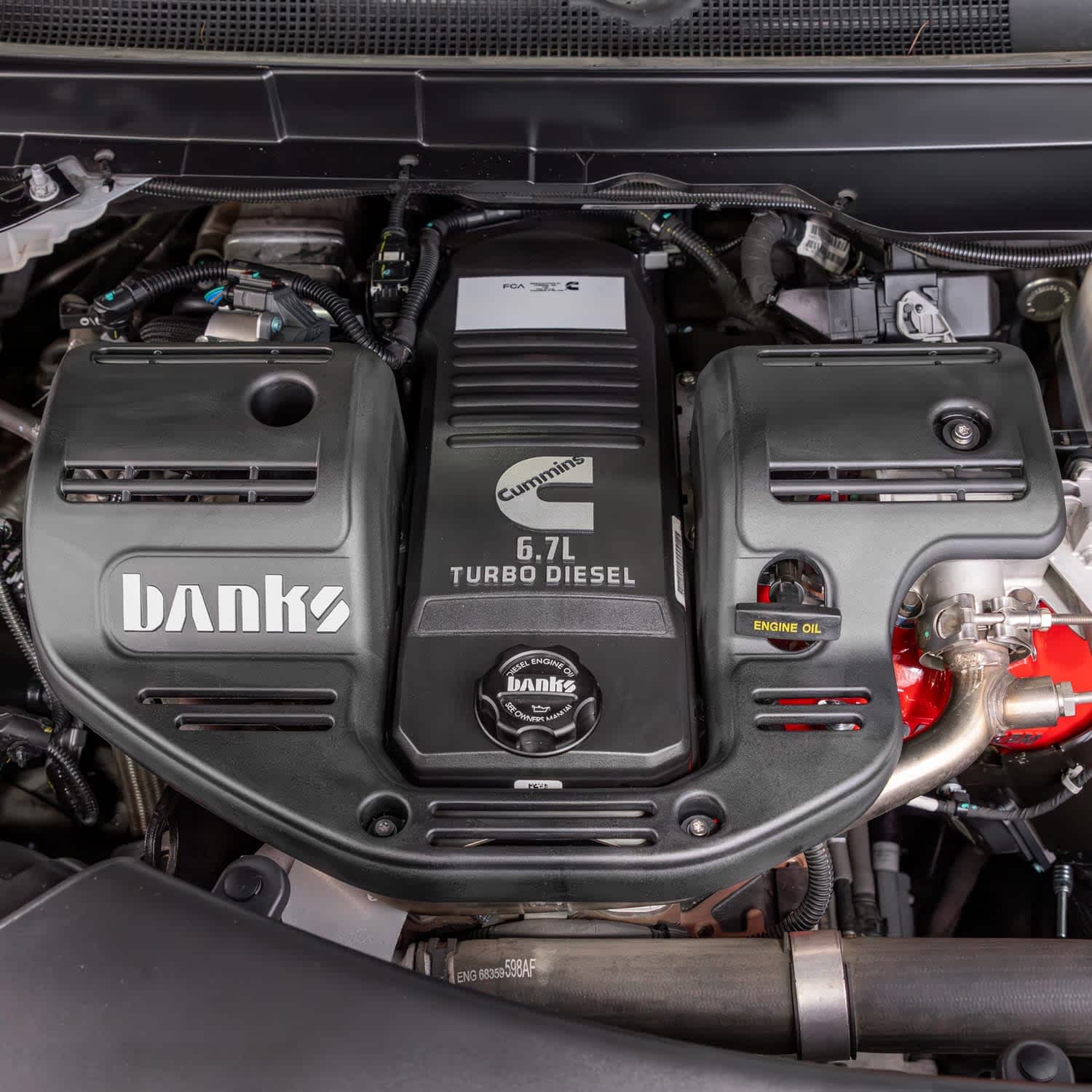

If you have already put a Banks Monster-Ram on your 6.7L Cummins, this kit finishes the job. The cover hides the crossover tube behind a clean OEM-plus panel, so the engine bay looks finished instead of half-apart. It is moulded from glass-fiber reinforced polymer rated to 482°F, roughly 50 percent more heat resistance than the factory Cummins cover sitting beside it, and it shrugs off oil, fuel and solvents with UL94 V-0 flame-retardant properties.

This is the version for engines without EGR. Deleting the EGR cooler removes the factory mounting point the standard cover uses, so this kit ships with the Banks alternative mounting bracket already in the box — nothing else to order.

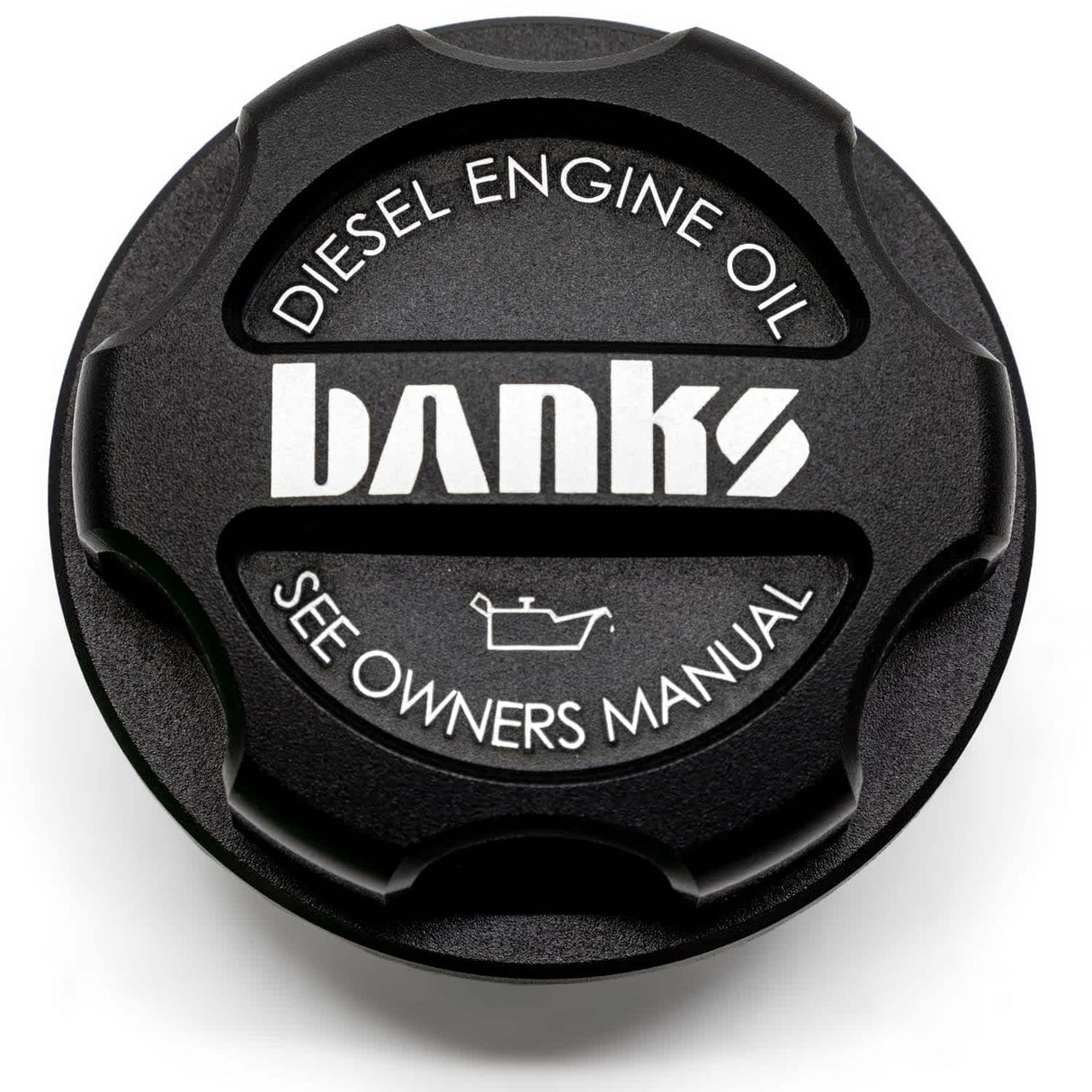

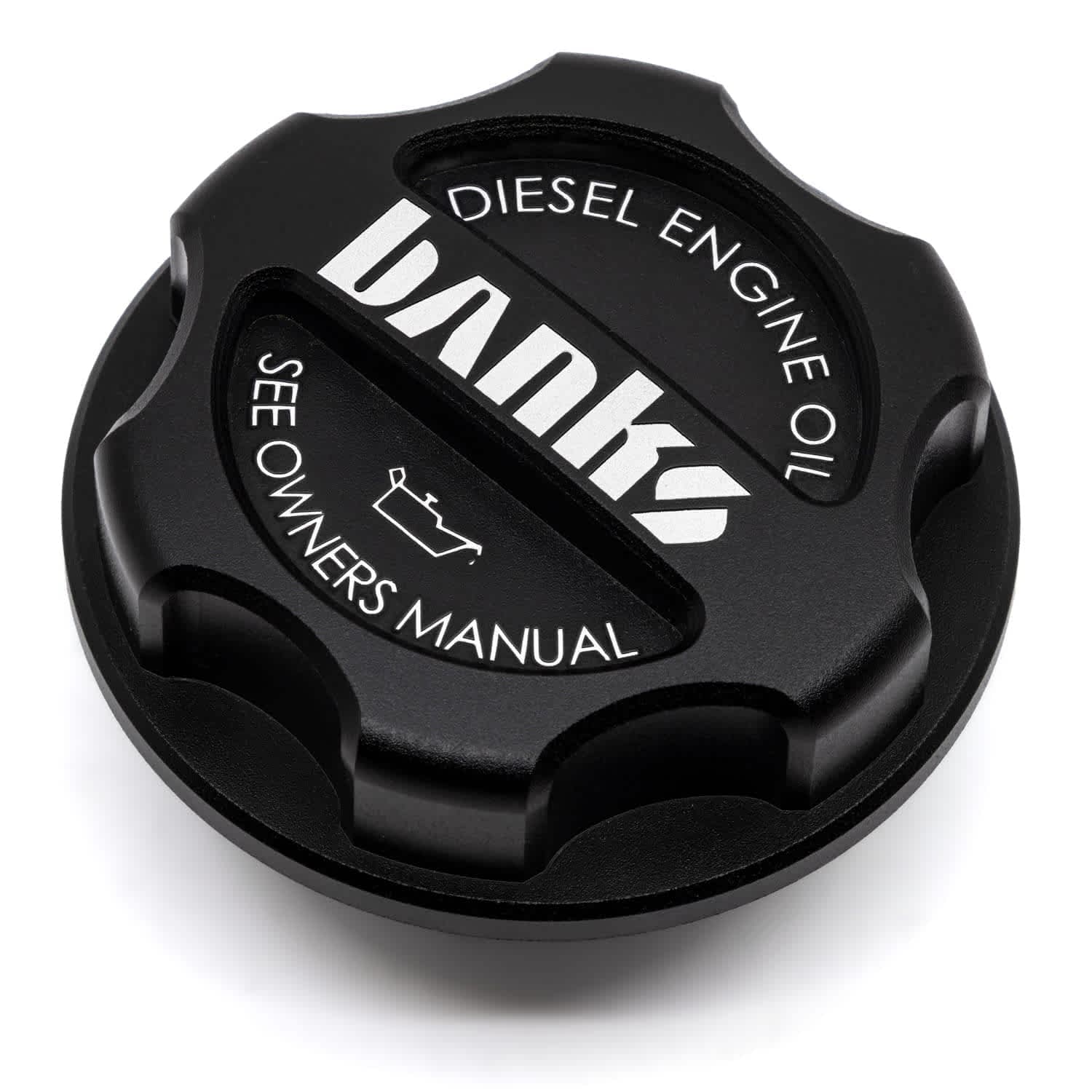

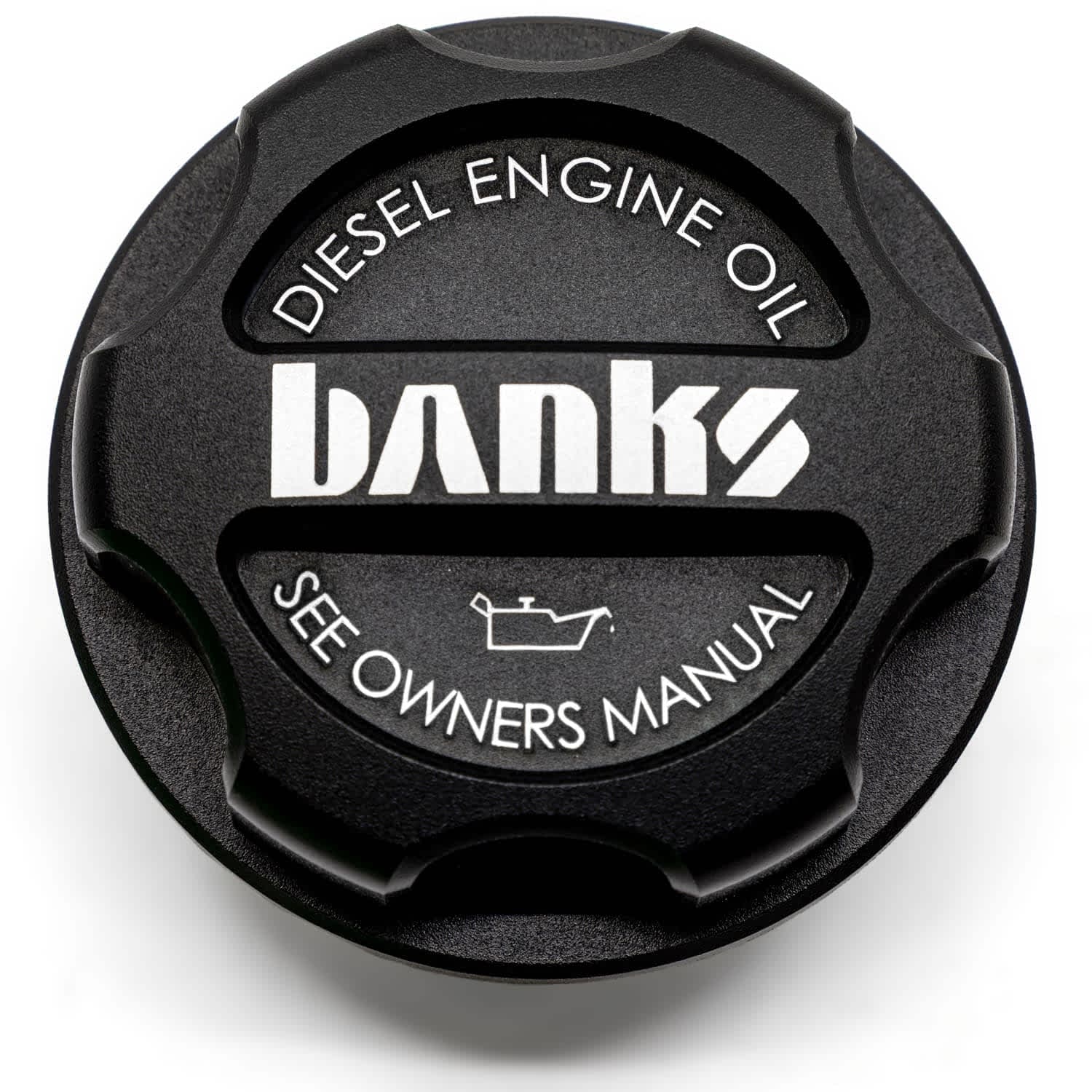

The kit also includes the Banks Revolver billet oil cap, which replaces the failure-prone factory plastic cap. It is CNC-machined from 6061-T6 aluminum and uses a 12-position spring-actuated cam-over ratchet, so it clicks at the right torque every time and is impossible to over-tighten. Plan on about an hour with basic hand tools. No CARB EO is required.

Part Number: 42813

• Non-EGR fitment — alternative mounting bracket included, no extra kit to buy
• Conceals the crossover tube for a finished, OEM-plus engine bay
• Material: glass-fiber reinforced polymer
• Heat rating: 482°F, 50% more heat resistance than the factory Cummins cover
• UL94 V-0 flame-retardant; resists heat, oil, fuel and solvents
• Oil cap: CNC-machined 6061-T6 aluminum, matte black anodized and textured finish
• 12-position spring-actuated cam-over ratchet cap, impossible to over-tighten
• Corrosion resistant with laser-etched Banks logo
• Replaces the failure-prone factory plastic oil cap
• Install time: approximately 1 hour
• CARB EO not required

• Banks Engine Cover
• Banks Revolver Billet Oil Cap

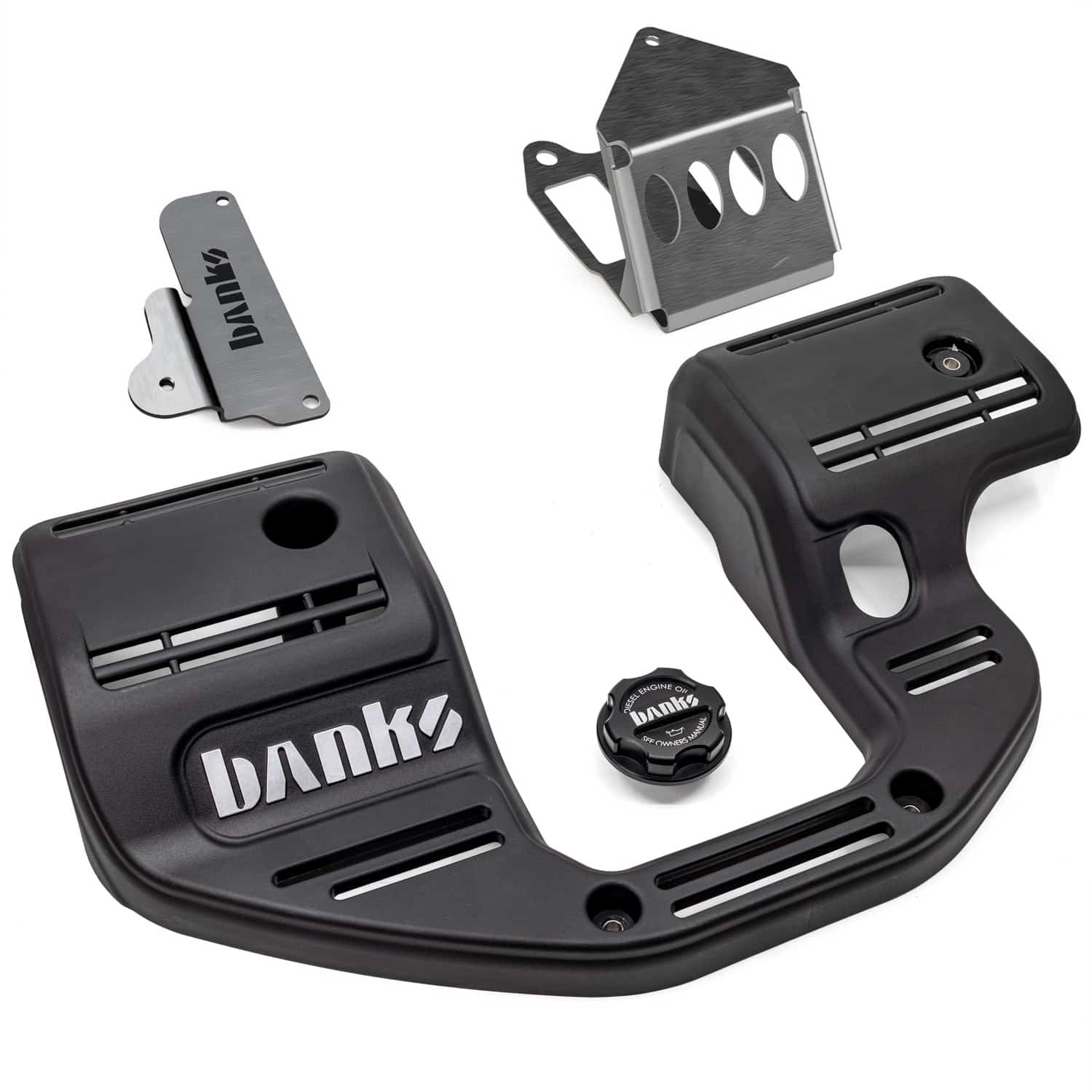

• Alternative mounting bracket for non-EGR engines
• Mounting hardware and grommets

• Requires a Banks Monster-Ram intake. This cover mounts to the Monster-Ram and will not fit a truck running the factory intake.
• For engines without EGR. If your truck still has the EGR cooler in place, order part number 42810 instead.
• Installation requires a T30 Torx bit, a 10mm socket with extension, and an 8mm wrench or deep socket.
