2007-2021 Tundra 8" Lift Kit w/ Bilstein Shocks (44-5877)

Fits

One of the best big lift kits on the market for your Tundra, packed with features and benefits to help you safely and properly install this big lift with no compromises to factory suspension components. With ultra strong laser cut, CNC bent, welded, and boxed sub-frame drop assemblies that keep your suspension geometry where it is supposed to be and increase your ground clearance to run up to 37" tires! Everything in this kit is engineered to hold up against the harshest terrains, providing maximum articulation and handling predictability for an insane off-road experience!

Part Number: 44-5877

• Retains factory turning radius and geometry
• Increases ground clearance
• CNC machining to guarantee precise fit - minor trimming required
• Retains factory tie rods
• Maintains factory ride - positions the suspension in such a way as to not increase track width
• Sway bar frame mount brackets keep the front sway bar in a factory position
• Correctly positions the differential to maintain CV axle and driveline angles

Tire Fitment:

• 37" Maximum tire diameter
• 37x12.50 for no rub on a 9" wide wheel with +25 offset

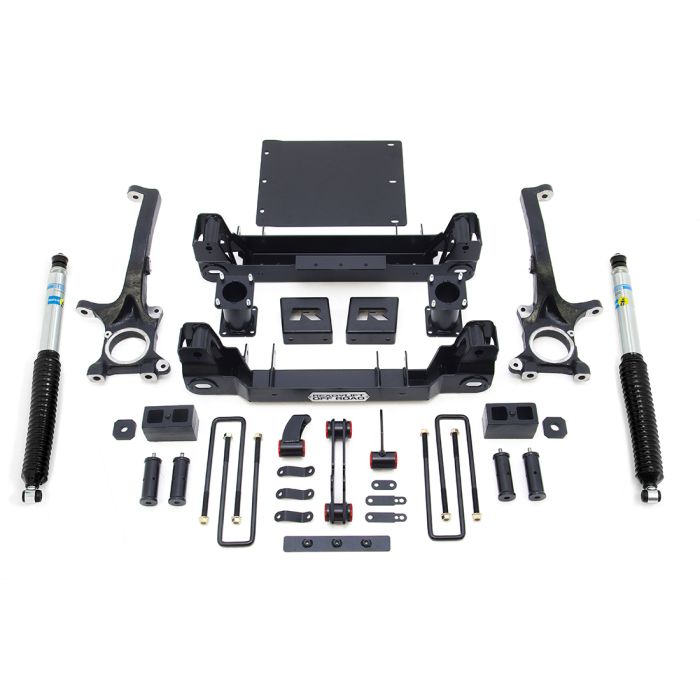

Includes:

• (2) Iron ductile knuckles engineered to allow for use of the factory tie rods
• (2) Top mount strut extensions
• (2) Upper spring compression spacers
• (2) Laser cut and boxed steel dropped crossmembers
• (2) Sway bar drop spacers
• (4) Bump stop extensions
• OEM style cast iron rear lift blocks with new u-bolts
• Complete easy-to-install differential drop mount system
• (1) Skid plate
• (2) Bilstein Shocks

• Will not work with the TRD rear sway bar option
• Factory Wheels - This system will only work with factory 20' wheels - will not work with factory 18" wheels

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click here to view Installation Instructions
