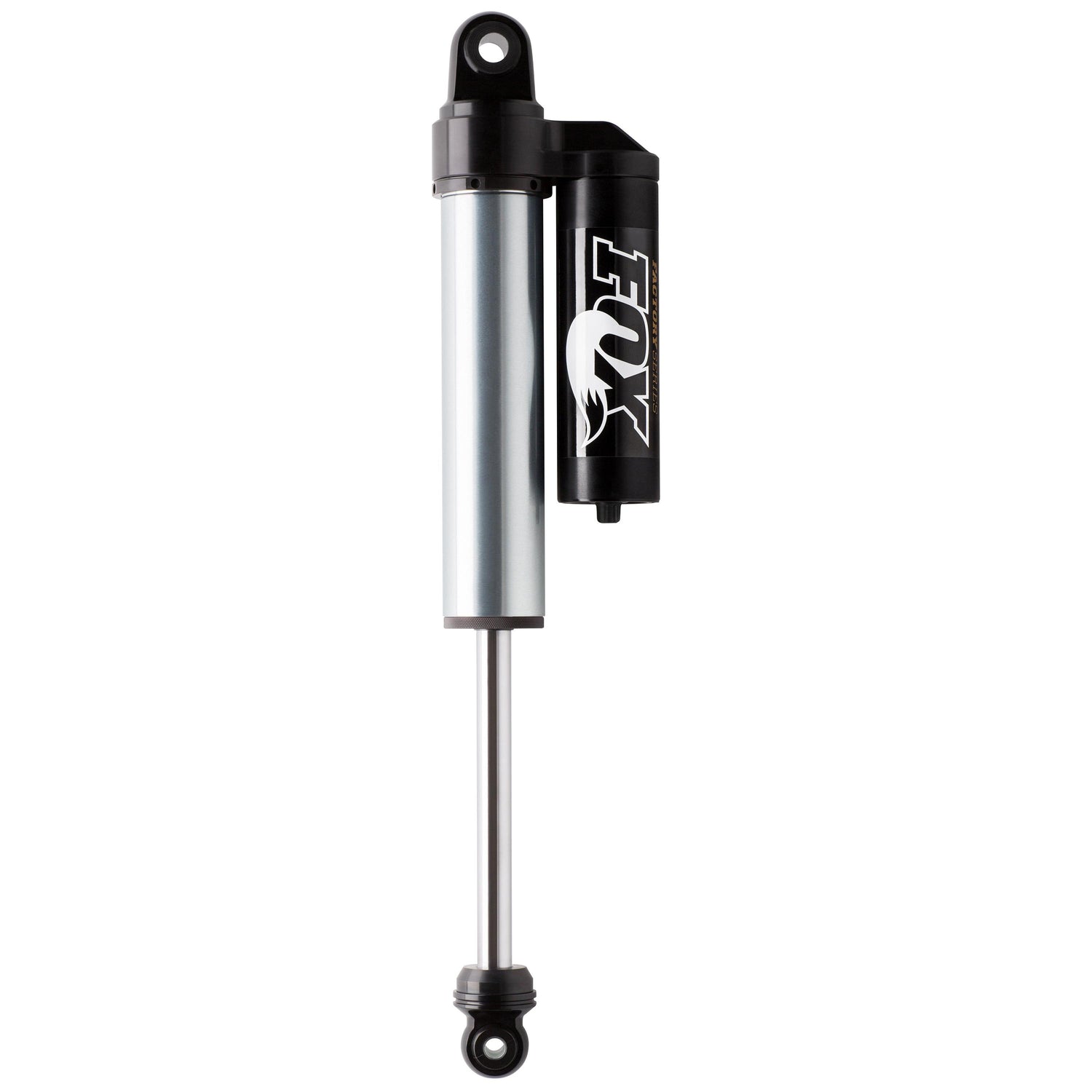

2007-2019 GMC 1500 Rear 0-1.5" Factory Race 2.5 Reservoir Shock (883-24-003)

Fits

FOX Performance Race Series 2.5 shocks improve the stock GMC half ton platform by eliminating the vehicle's forward rake, providing a level ride height, and increasing the suspension articulation of your truck.

Type III anodization prevents corrosion and wear of the 2.5" aluminum bodies, external reservoirs increase oil capacity, remove dead space from the shock Body, and decrease the harshness associated with nitrogen ramp-up. Cooler shock temperatures, more Travel, and consistent damping forces result. Each Reservoir Features a Dual Speed Compression (DSC) adjuster, strategically mounted to eliminate interference with aggressive tires at full lock.

Part Number: 883-24-003

• Finned External Reservoir System Dissipates Heat Fast
• Quick Switch Compression And Rebound Adjusters
• Live Valve Terrain Adaptive Technology,

• Zinc-plated and double-clear coated for long-lasting finish
• Black-anodized CNC-machined 6061-T6 billet aluminum
• 7/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow Piston design
• Application-specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• PTFE-lined, heat-treated, alloy steel spherical bearings

Specs:

• Extended Length: 24.85"
• Compressed Length: 15.85"
• Top Mount: ES7
• Bottom Mount: ES7

• Travel: 8.97"
• Rear Lift Height: 0-1.5"
