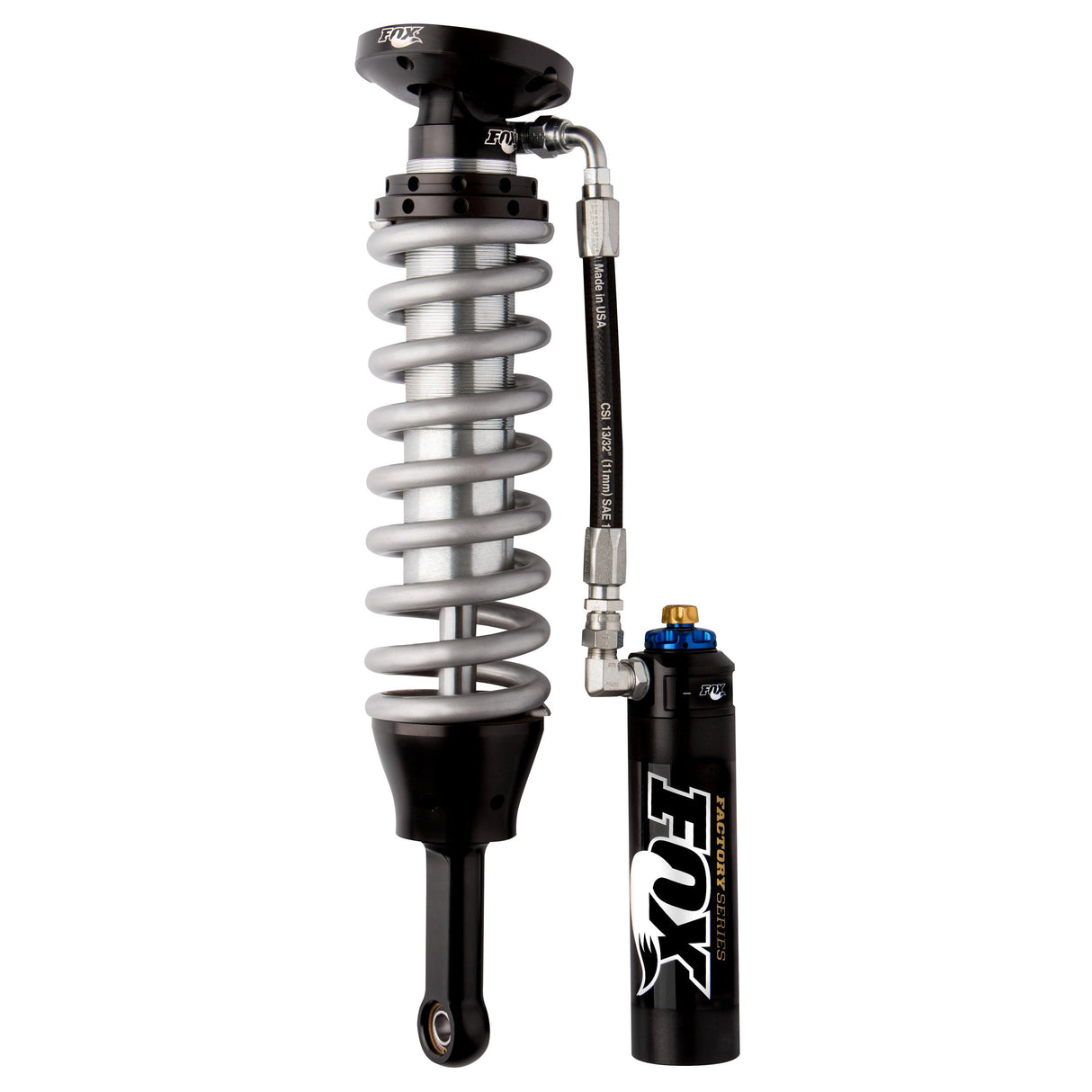

2007-2019 GMC 1500 Front 3" Factory Race 2.5 Coilover w/ DSC (880-06-525)

Notes: Requires Upper Control Arm

These bolt-on Factory Race Series Coil-over Reservoir shocks provide improved damping in any terrain. Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and comes pre-set to level your vehicle right out of the box. Experience for yourself the incredible performance and precise control that Factory Series Coil-over Reservoir shocks deliver.

Part Number: 880-06-525

• External Reservoir System Dissipates Heat Fast
• Black Anodized CNC Machined Aluminum Components

• Zinc-plated and double-clear coated for a long-lasting finish
• 2.5" Smooth bore and honed seamless alloy Reservoir
• Black-anodized CNC-machined 6061-T6 billet aluminum
• 7/8" hard chrome plated steel Shafts
• 6061-T6 hard-anodized, high-flow aluminum Piston
• Application specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• PTFE-lined, heat-treated, alloy steel spherical

Specs:

• Extended Length: 19.4"
• Compressed Length: 14.1"
• Top Mount: TM
• Bottom Mount: Bar Pin

• Travel: 5.3"
• Front Lift Height: 3"
