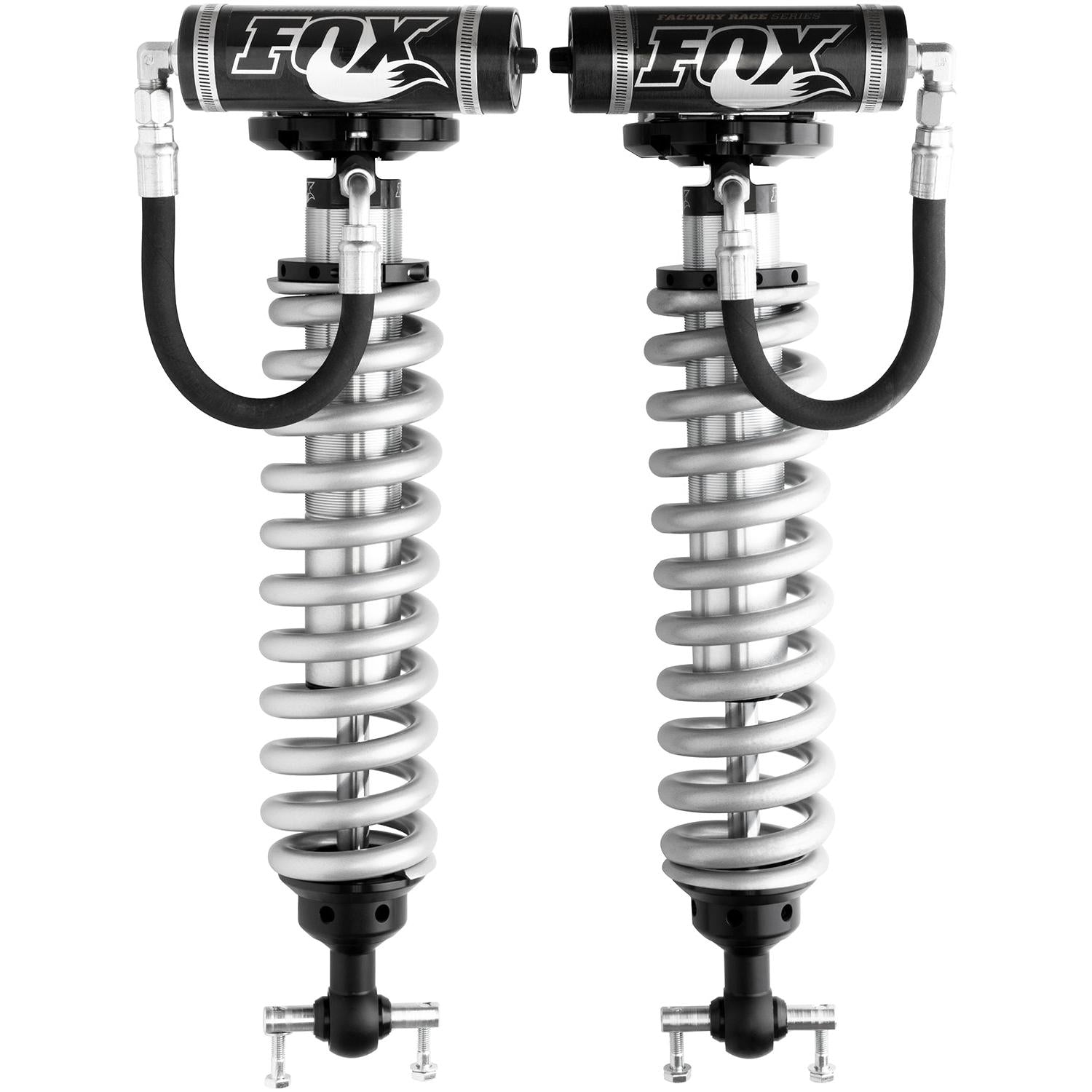

2007-2019 GM 1500 Front 0-2" Factory Race 2.5 Coilover (883-02-121)

Fits

These bolt-on Factory Race Series Coil-over Reservoir shocks provide improved damping in any terrain, this damping suspends the vehicle's weight. The integrated coil spring can be adjusted for preload and ride height and comes pre-set to level your vehicle right out of the box. Experience the incredible performance and precise control that Factory Series Coil-over Reservoir shocks deliver.

Part Number: 883-02-121

• Performance Tuned For Vehicle Specific Application
• Durable Zinc Plated Seamless Alloy Body
• External Reservoir System Dissipates Heat Fast

• 2.5" Smooth bore and honed seamless alloy Reservoir
• Black-anodized CNC-machined 6061-T6 billet aluminum
• 7/8" hard chrome plated steel Shafts
• 6061-T6 hard-anodized, high-flow aluminum Piston
• Application specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• PTFE-lined, heat-treated, alloy steel spherical

Specs:

• Extended Length: 18.46"
• Compressed Length: 14.1"
• Top Mount: OEM
• Bottom Mount: Bar Pin
• Travel: 4.36"
• Front Lift Height: 0-2"

Click here for installation instructions
