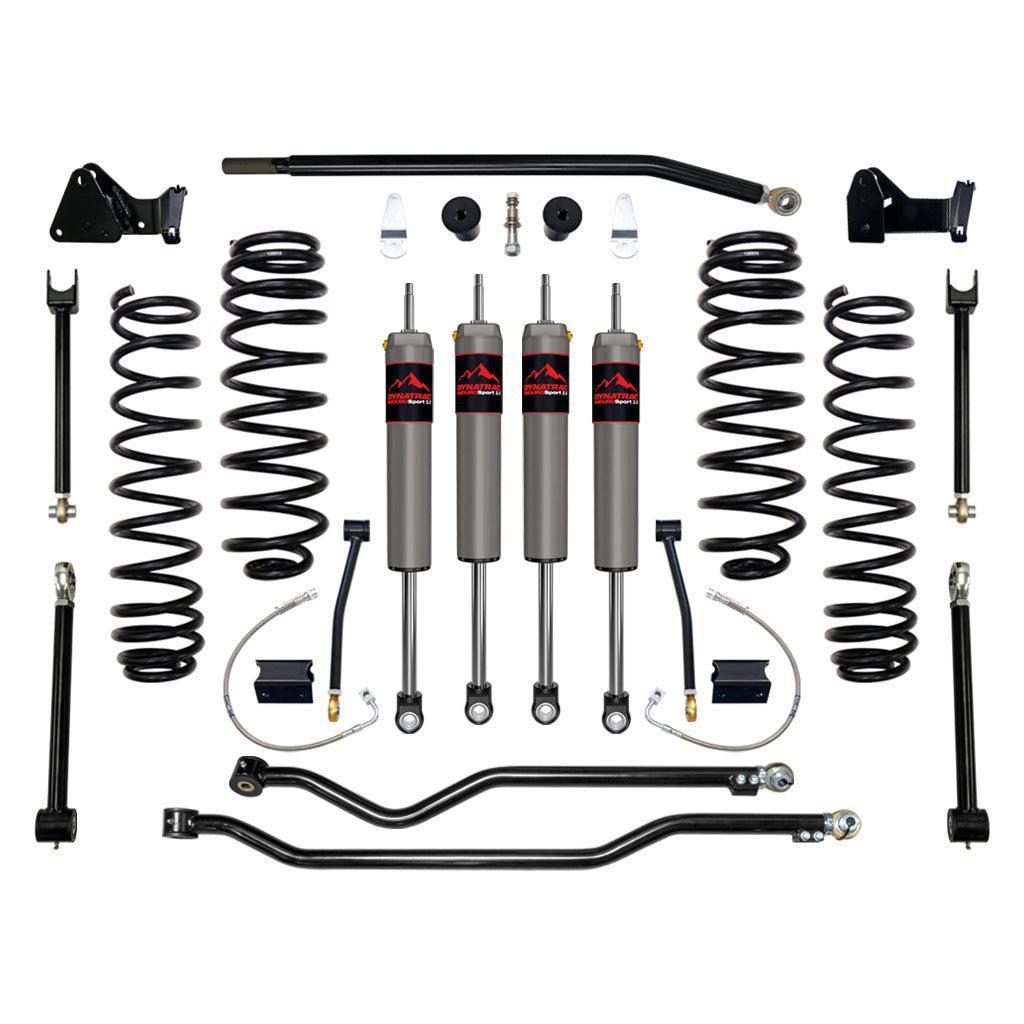

2007-2018 Wrangler EnduroSport 4.5" Lift Kit (JK45-1X5310-L4)

DynaTrac Part Number: JK45-1X5310-L4
$7,649.28 CAD

Purchase to earn 7649 Dirty Dollars Learn More

Description

Fits

Year Make Model
2007 - 2018 Jeep Wrangler



Set yourself up for success! DynaTrac's EnduroSport Lift Kits deliver the most optimal balance between wheel travel, articulation, ground clearance, and capability over any terrain without compromising on-road driving characteristics. Everything in this kit, from the 2.5 series Enduro shocks, adjustable upper and lower links, and trackbar (to name a few), provides unparalleled stability and control so you can enjoy every minute on any adventure you take your Jeep on.

Part Number: JK45-1X5310-L4

Features

  • Dual-rate coil springs front and rear are guaranteed never to sag
  • High-steer flip kit for proper steering geometry without a drop pitman arm and increased ground clearance over stock
  • Stainless steel high-steer taper adapter eliminates drilling the factory knuckle
  • All links utilize dual-rate bushings or PTFE-lined rod ends for tuned vibration isolation, controlled deflection, with maximum articulation and responsiveness
  • Includes high-performance rebuildable and revalvable 2.5 EnduroSport shocks
  • Track bars are adjustable, designed for optimizing axle position
  • Increased wheel travel and articulation over stock
  • No welding or cutting required
  • 100% returnable to stock

Additional Info

  • Bushings Included: Yes
  • Coil Spring End 1 Type: Closed
  • Coil Spring End 2 Type: Closed
  • Coils Quantity Front: 2
  • Coils Quantity Rear: 2
  • Grade Type: Performance
  • Maximum Lift Front: 4.5"
  • Maximum Lift Rear: 4.5"
  • Mounting Hardware Included: Yes
  • Shocks Included: Yes
  • Spring Color: Black
  • Spring Material: Steel

Wheel and Tire Fitment:

  • Compatible with OEM wheels
  • Recommended Aftermarket Wheels: 17x8.5" w/ 4.5” Backspace / -6mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
  • Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended

Notes

  • Dynatrac’s advertised lift heights are based around a typical Jeep JK build, which usually includes added weight of accessories such as a heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
  • Requires aftermarket front drive shaft. Dynatrac part # DT922014 [12-18] or #DT922016 [07-11]
  • 2-door models sit slightly taller than 4-door models but remain level
  • May require rear alignment cam kit, Dynatrac part # DT922013
  • The front driveshaft can hit certain model skid plates at full droop and may require trimming of the skid for full articulation
  • Spanner wrench is available to aid in track bar length adjustment. Part # DT9191014.
