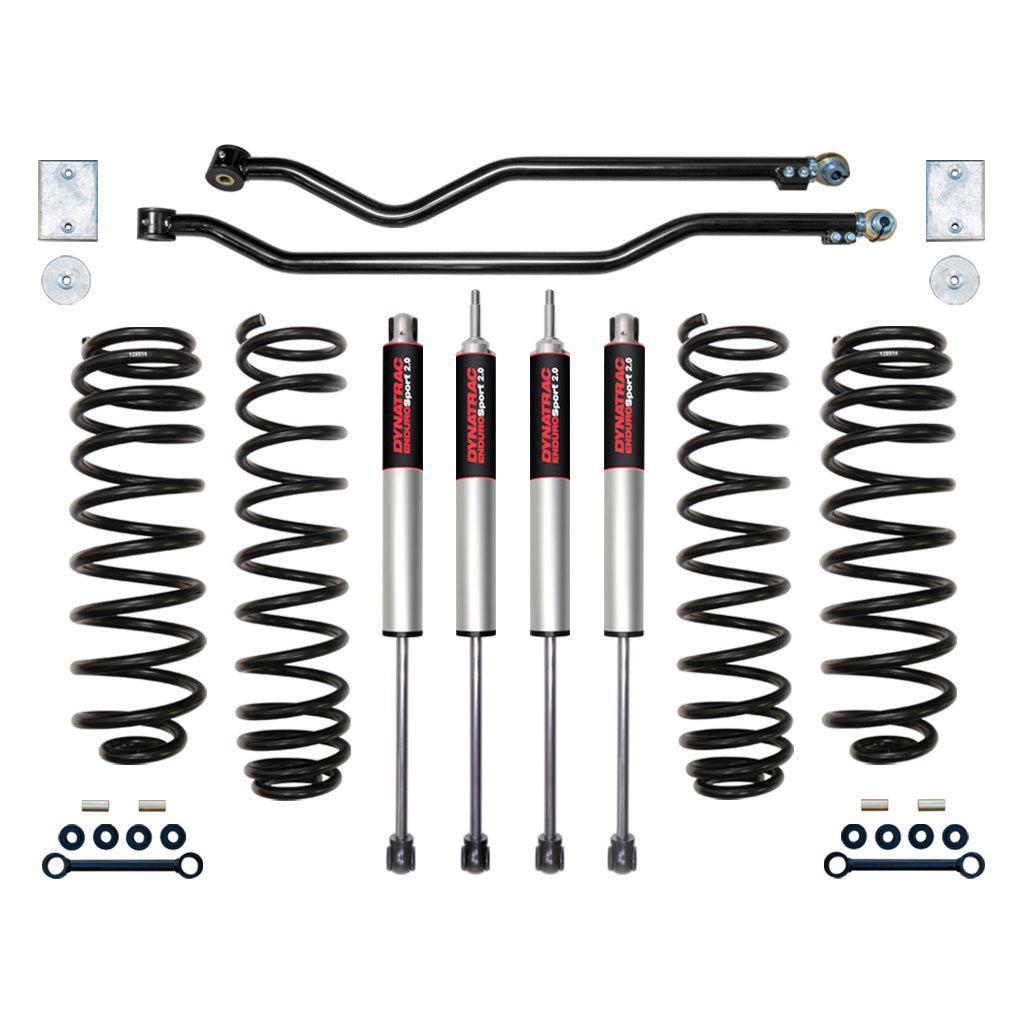

2007-2018 Wrangler EnduroSport 3" Suspension Lift System (JK30-1X5310-L2)

Fits

Upgrade your 2007-2018 Jeep Wrangler JK with this 3" EnduroSport Suspension Lift. It boosts ride comfort and off-road control using smart dual-rate springs and tough 2.0 EnduroSport shocks, giving you 30% more wheel travel. Adjustable track bars keep your axles centred, and they fit 33" tires easily (35" tall with installation of aftermarket high-clearance fenders).

Part Number: JK30-1X5310-L2

• Dual Rate Coil Springs Front & Rear
• Adds 30% More Wheel Travel over Stock
• No Welding or Cutting required
• Vehicle can be returned Back to Stock
• High Performance Rebuildable
• Re-valvable Dynatrac 2.0 EnduroSport shocks
• Level Stance Front to Rear
• Out Articulates Most Long Arm Kits of Comparable Height
• Adjustable Track Bars for Optimized Axle Positioning
• Track Bars include Dual Stage Bushing System and JM12T Rod End to minimize deflection while maximizing responsiveness
• Lifetime Guarantee that Coil Springs Won’t Sag
• Bushings Included: Yes
• Coil Spring End 1 Type: Closed
• Coil Spring End 2 Type: Closed
• Coils Quantity Front: 2
• Coils Quantity Rear: 2
• Grade Type: Performance
• Maximum Lift Front: 3
• Maximum Lift Rear: 2
• Mounting Hardware Included: Yes
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

• Dynatrac’s advertised lift heights are based around a typical Jeep JK build, which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock, weighted vehicle.
• 2012-2018 JK models require use of Dynatrac Exhaust Extension Spacer, part # DT922011 or an aftermarket front drive shaft, Dynatrac part # DT922014.
• 2-door models sit slightly taller than 4-door models but remain level when installed.
• May require front and rear alignment cam kits, Dynatrac part # DT922013.
• Spanner wrench available to aid in track bar length adjustment. Part # DT9191014.

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" w/ 4.5” Backspace / -6mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger 35" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
