2007-2018 Jeep Stage 1.5 3" Lift Kit (8025-30)

Fits

Designed for optimal steering and suspension geometry & articulation, and can fit up to 37" tires. Featuring 3" Progressive Coil Springs and takes full advantage of the Raised Rear Track Bar Bracket and Front Steering Correction Kit, your Jeep will drive better than stock & take you more places off-road!

Part Number: 8025-30/ 8045-30

• Stage 1.5 key features are front and rear track bar relocation brackets and flipped drag link
• Front and rear bump stop extension kits
• Rear sway bar links so the factory rears can be used in the front
• Front and rear brake line relocation kits
• Synergy double adjuster sleeve & pinch bolt assembly allows for adjustment of control arm, track bar, tie rod, and drag link length without removal
• Front and rear track bar relocation brackets raise track bar mounting positions increasing suspension roll center heights which improves handling on and off road
• Control arm cam bolt kit to correct caster
• Progressive wound coil spring manufactured using the latest in CNC hot winding technology keeps spring from coming unbound at full suspension droop
• Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
• 100% bolt on components assure an easy, trouble free installation with the use of basic hand tools
• Requires a maximum 4-3/4" backspace wheel or wheel spacer with factory wheel setup. 4-1/2" back spacing is recommended
• Synergy suspension systems are a modular design so all components are available separately

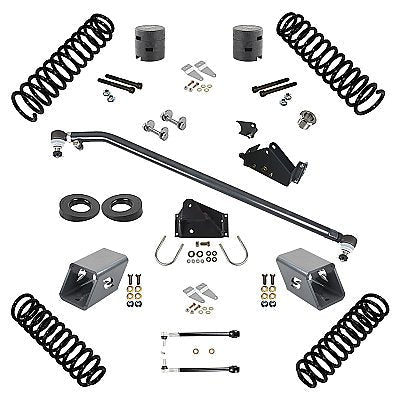

Includes:

• (1) 8063-20 3" Front Coil Springs

• (1) 8064-20 3" Rear Coil Springs

• (1) 8057-10 Snap-Lock Bump Stop Spacers

• (1) 8858-30 Rear Bumpstop Extension, 3.0 Tall

• (1) 8060-11 Rear Sway Bar Links

• (1) 8082 Brake Line Relocation Kit

• (1) 8004 Control Arm Cam Bolt Kit

• (1) 8056 Rear Track Bar Bracket

• (1) 8055 Front Track Bar Bracket

• (1) 8000-01 Drag Link

• (1) 8097 Rear Coil Wedges

Recommended Components:

• (1) 8002-15 - Synergy Chromoly Tie Rod

• (1) 8007-03 - Fox Hi-Mount Stabilizer Kit

• (1) 8000-0202 (7/8") 7/8" Drill Bit for TRE Adapter

• (1) 5017 - 2012+ Exhaust Spacer

• 2012+ JK's lifted over 2" will require exhaust spacers (5017), or a front aftermarket drive shaft to prevent interference with the exhaust.
• 3" and up lift kits, and aftermarket driveshafts are recommended
• Springs are designed to provide the advertised amount of lift using aftermarket bumpers, winches, & tire carriers. More lift will occur on vehicles in stock trim.
• Springs retain the factory rake of the vehicle where the rear is higher than the front. The vehicle should sit level when loaded. Request one size shorter rear springs to level the vehicle out when unloaded.
• Requires 16" or larger wheel diameter
