2007-2018 GM 1500 2.5" Leveling Kit Stage 1 (AXGM07STAGE1-2.5)

The Axiom Supply Stage 1 leveling system lifts the front of strut-equipped GM 1500 trucks and SUVs up to 2.5", taking out the factory rake without touching the stock spring or strut assembly. The spacers are CNC machined from aircraft-grade billet aluminum rather than cast, so lift height stays consistent and the parts hold up to years of towing, commuting, and off-road use. Because the factory spring rate and strut valving stay in place, ride quality remains stock while you gain clearance for tires up to roughly 33", depending on wheel offset and tire width.

Part Number: AXGM07STAGE1-2.5

• CNC-machined billet aluminum front strut spacers deliver up to 2.5" of front lift
• Retains the factory spring rate and strut valving for stock ride quality
• Eliminates factory rake for a level stance and improved approach angle
• Clears tires up to approximately 33" depending on wheel offset and configuration
• Durable black powder coat finish resists corrosion
• Direct bolt-on installation at factory mounting points, no cutting or welding

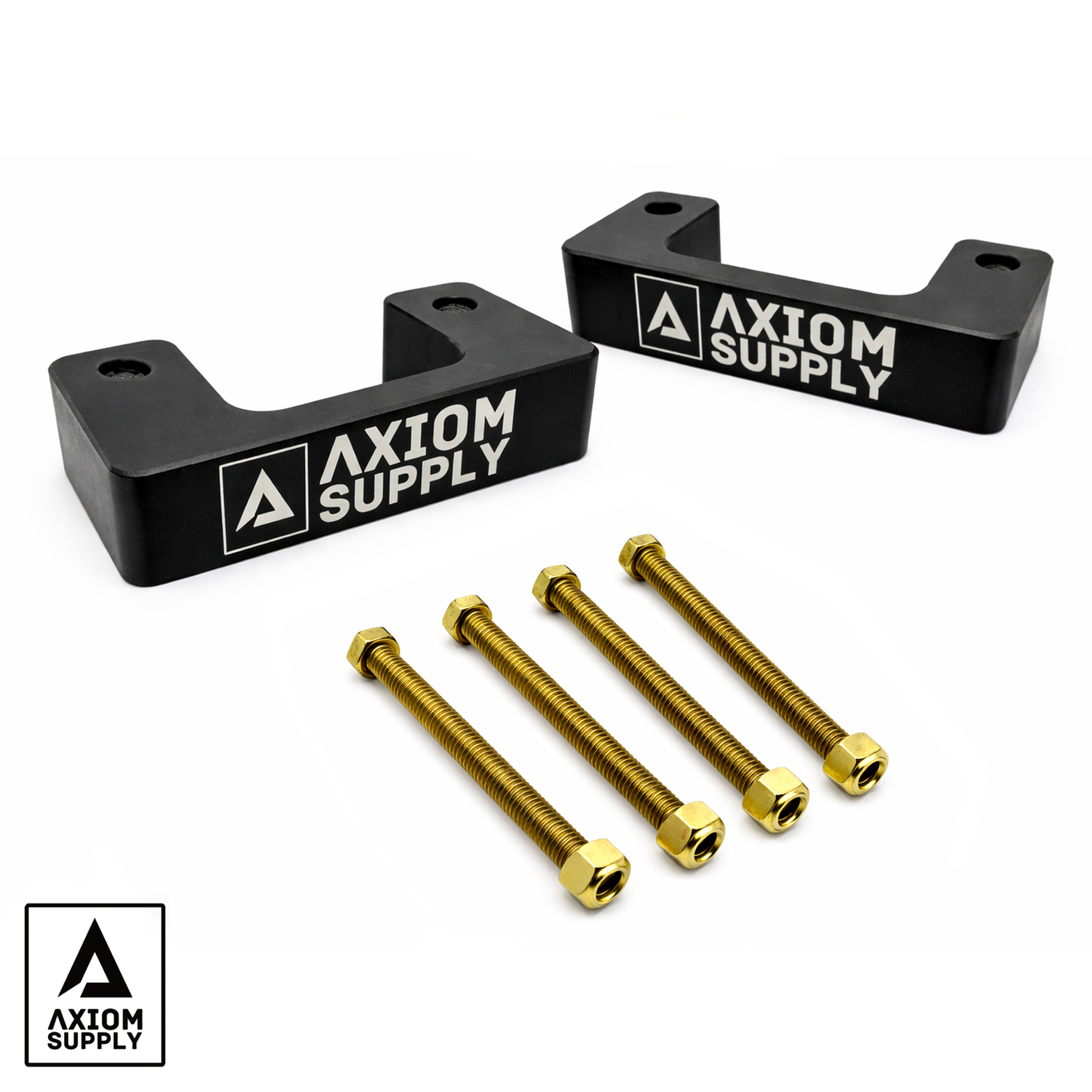

• 2 x Axiom Supply CNC-Machined Billet Aluminum Front Strut Spacers
• Complete Installation Hardware Kit
• Installation Instructions

• Fits 4WD and AWD models only
• For use with factory front struts or OE-equivalent replacements only, do not install with extended-length aftermarket struts or shocks
• Axiom Supply heavy duty upper control arms are strongly recommended for proper suspension geometry
• Vehicles with Magnetic Ride Control (MagneRide) may require custom bracket relocation or fabrication, relocation brackets are not included
• A professional alignment is recommended after installation
