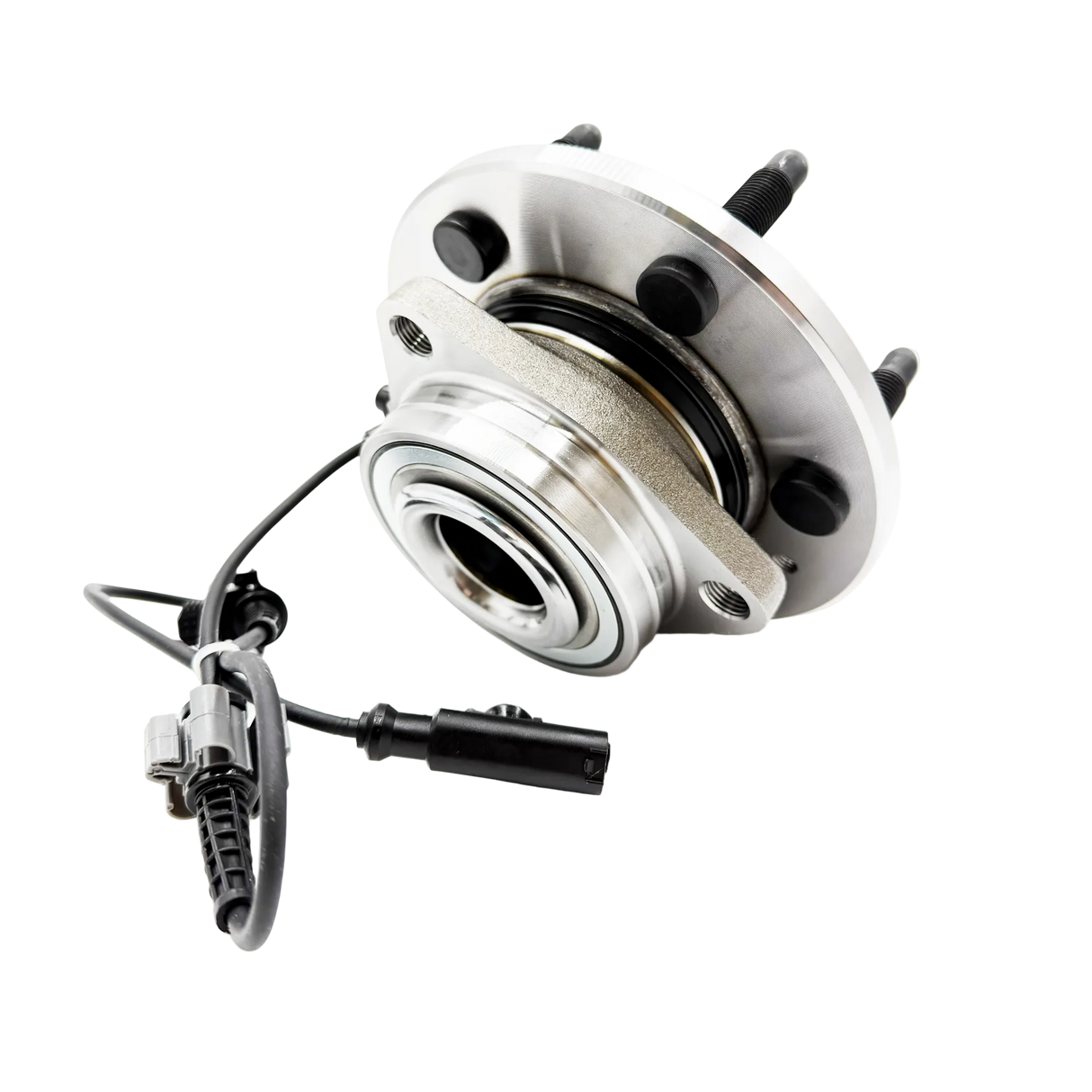

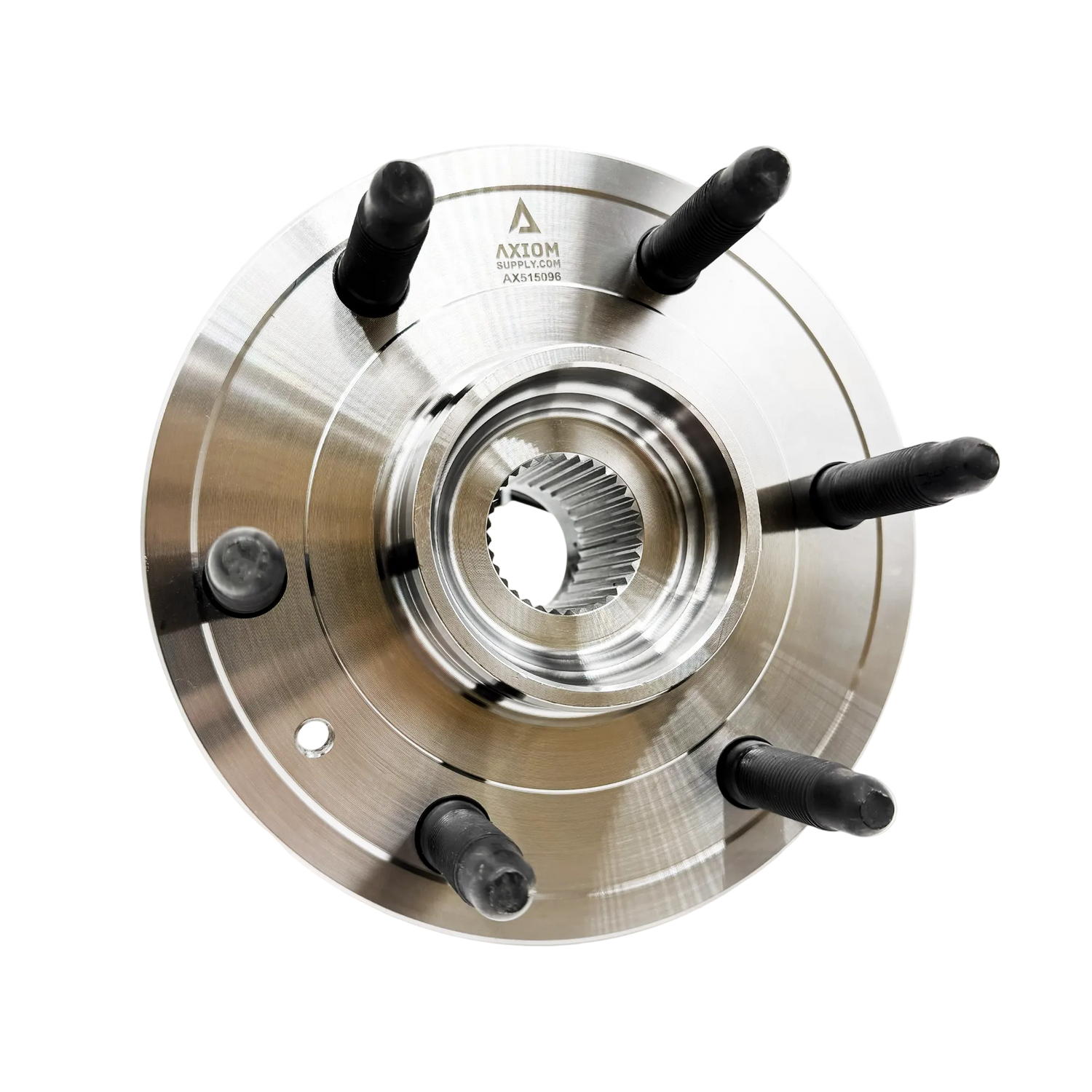

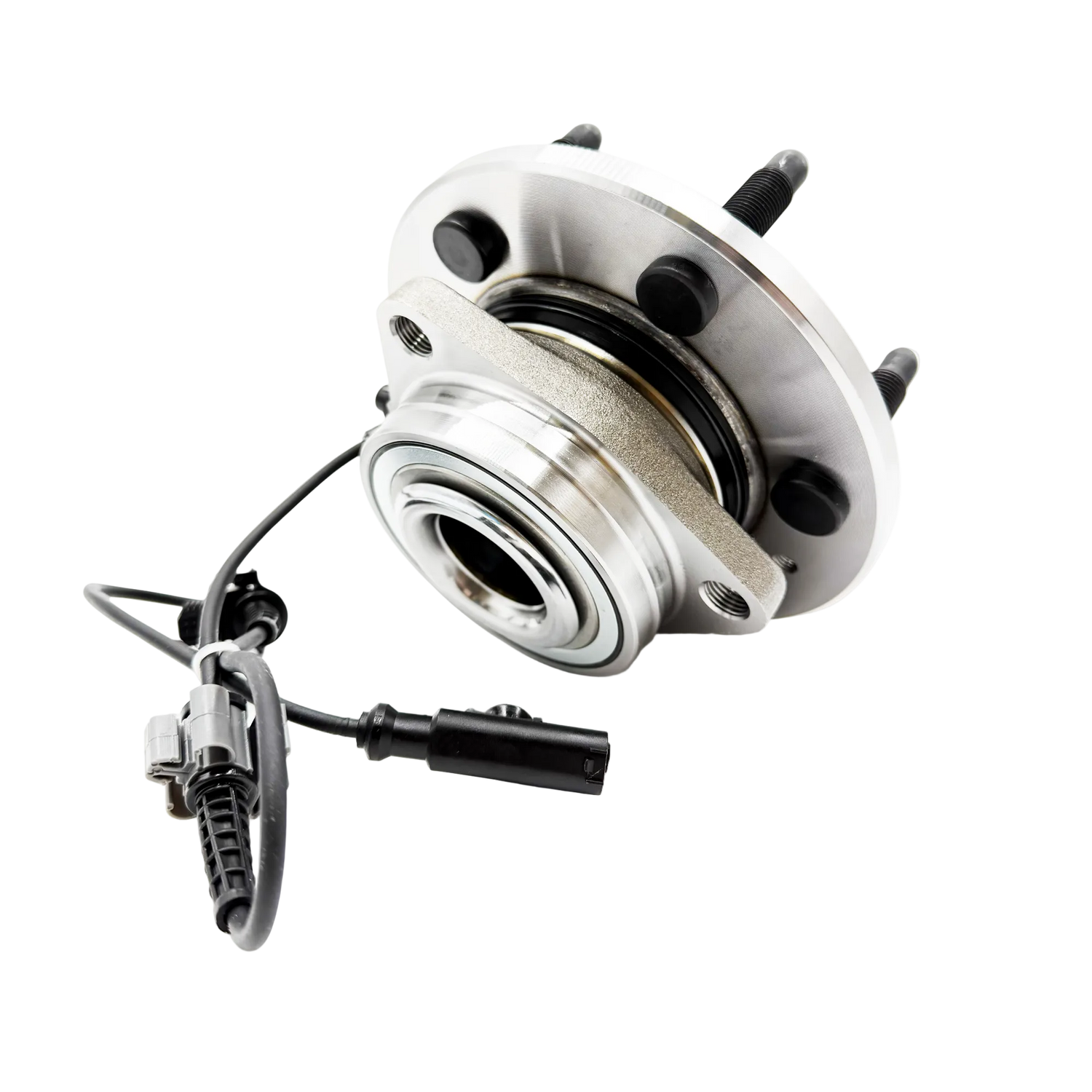

2007-2014 GM 1500 6-Lug Wheel Bearing Assembly (AX515096)

Fits

Note: Fits 6-Lug 1500 Platforms ONLY! Compatible with both 2WD and 4WD models.

The Axiom Supply Wheel Bearing and Hub Assembly is built for owners who demand more than an OEM-grade replacement. Developed with a proprietary bearing and hub structure, this assembly reduces hub-face deflection under load, delivering tighter steering response and improved braking stability. Whether your truck works hard on the job site or tackles rough terrain on weekends, Axiom provides the strength and precision that half-ton owners rely on. These units utilize precision tapered roller bearings packed with high-performance grease. Every assembly is outfitted with Grade 10.9 zinc-plated studs and a durable ABS sensor designed to survive heat, mud, and moisture.

Part Number: AX515096

• Precision tapered roller bearings for smooth, maintenance-free operation
• Minimized hub-face deflection for better steering and braking stability
• Premium Grade 10.9 cold-formed, zinc-plated wheel studs
• Integrated ABS sensor designed for harsh environmental resistance
• Rolled inner spindle design compatible with 2WD and 4WD models
• 6 x M14-1.50 lug configuration

• Axle Nut Torque: 177 lb-ft
• Spindle Bolt Torque: 133 lb-ft
• Main Caliper Bolt Torque: 125 lb-ft

• 1 x Wheel Bearing & Hub Assembly with integrated ABS wire

• Compatible with both 2WD and 4WD models.
• Recommended to replace in pairs for optimal performance.
• Replaces OEM Part Numbers: 10393171, 25918329, 25676819.
