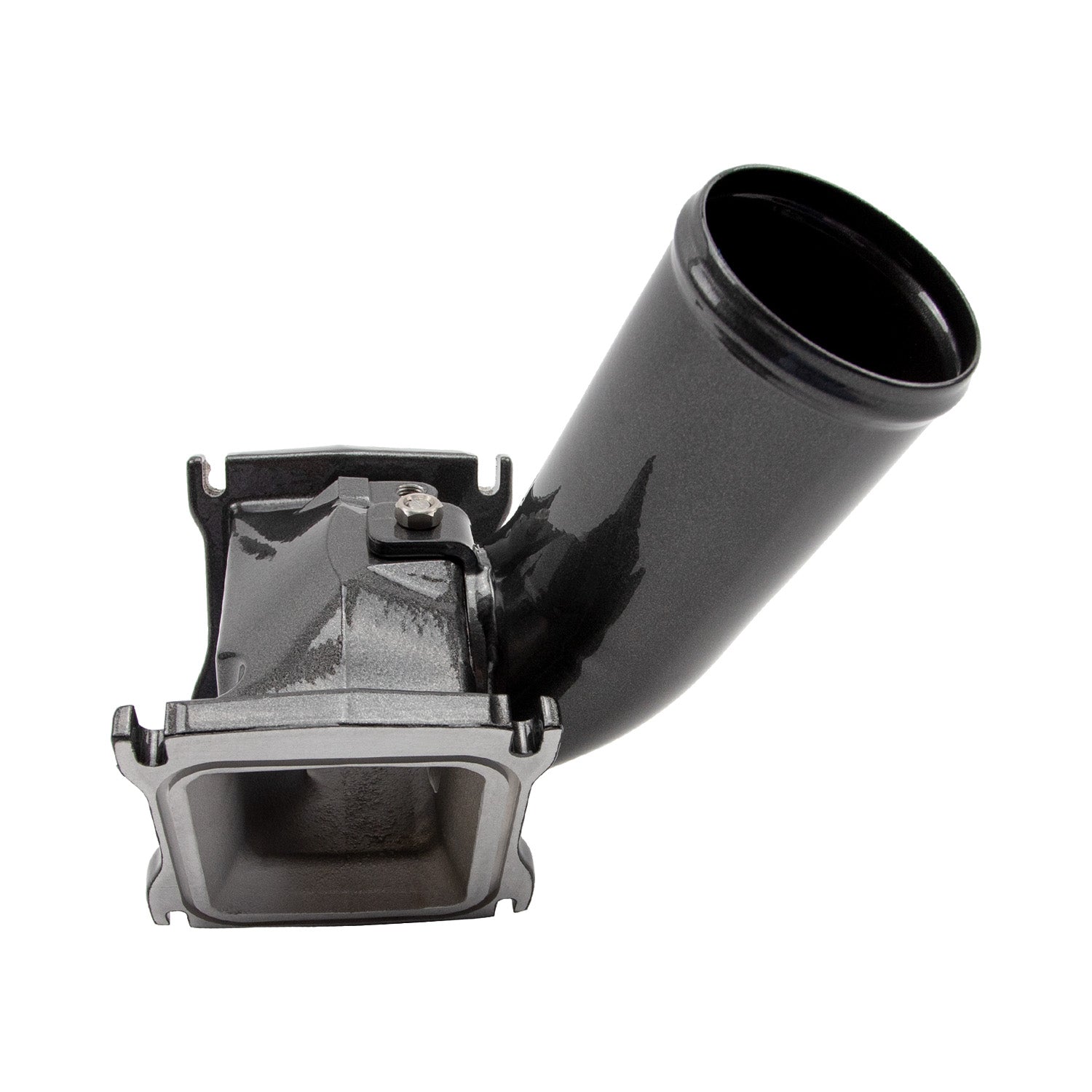

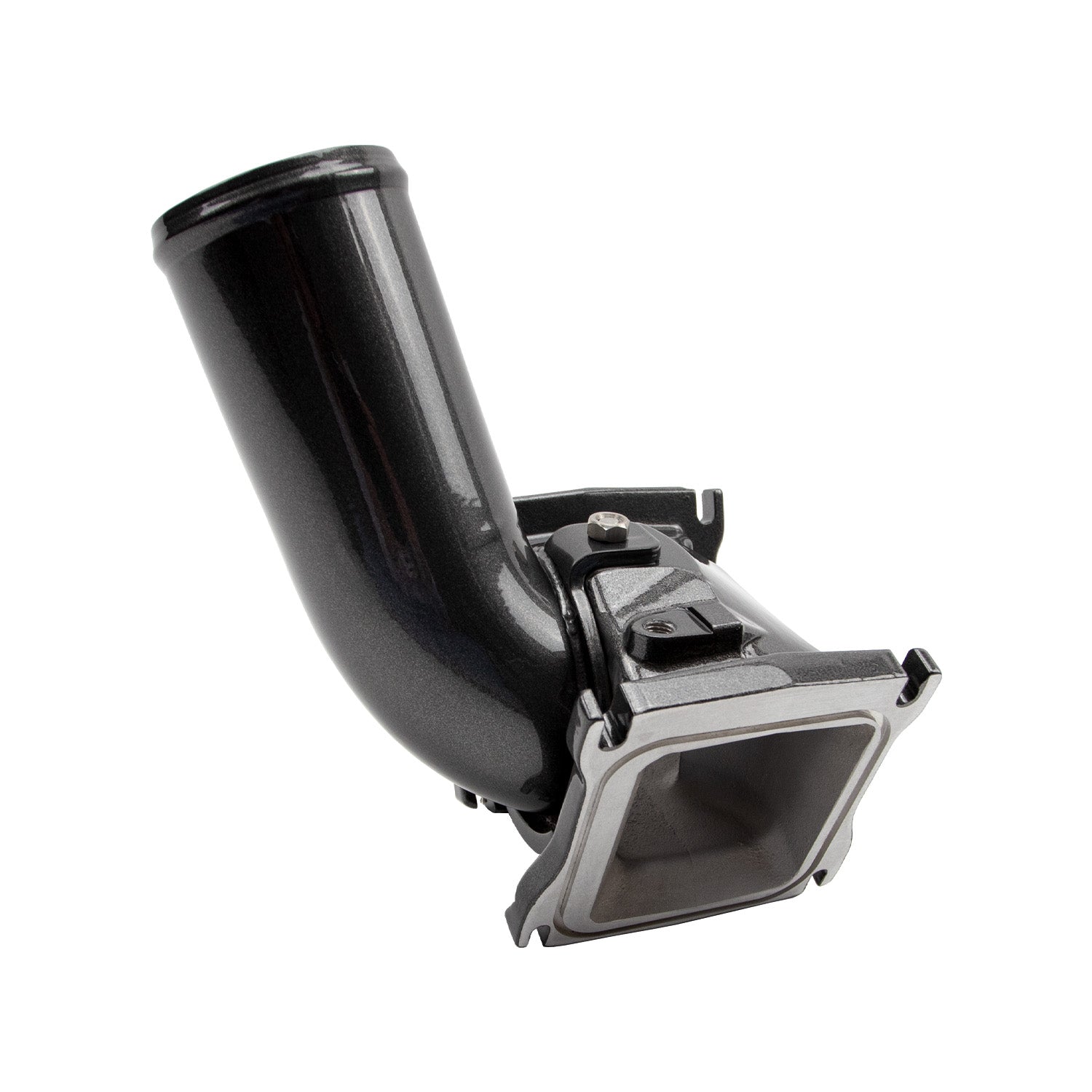

2006-2010 Duramax High Flow 3 In. Y-Bridge (Bridge Assembly Only), Raw (WCF100235-RAW)

Replacement 3" high-flow Y-bridge for the 2006-2010 LBZ and LMM Duramax, sold as the bridge assembly only. The factory slip-in two-piece bridge has almost no support and blows apart under boost; this is a bolt-together two-piece design that bolts to the OEM intake runners with a 3" bead-roll inlet, and it is the same bridge used in Wehrli's WCF100163 and WCF100164 kits.

Comes with O-ring seals for the bridge inlet and intake runners. Does not include the upper crossover or passenger side intercooler pipe. Available raw for polishing or paint, or powder coated.

Part Number: WCF100235-RAW

• 3" high-flow two-piece bolt-together Y-bridge, bridge assembly only
• Direct replacement for the bridge in kits WCF100163 and WCF100164
• Bolts to the OEM intake runners
• 3" bead-roll connection at the inlet
• Stops the bridge separating under high boost
• O-ring seals for the bridge inlet and intake runners included
• Made in USA
• Finish: Raw (unpainted)

• Bridge only. The upper crossover and passenger side intercooler pipes are not included.
