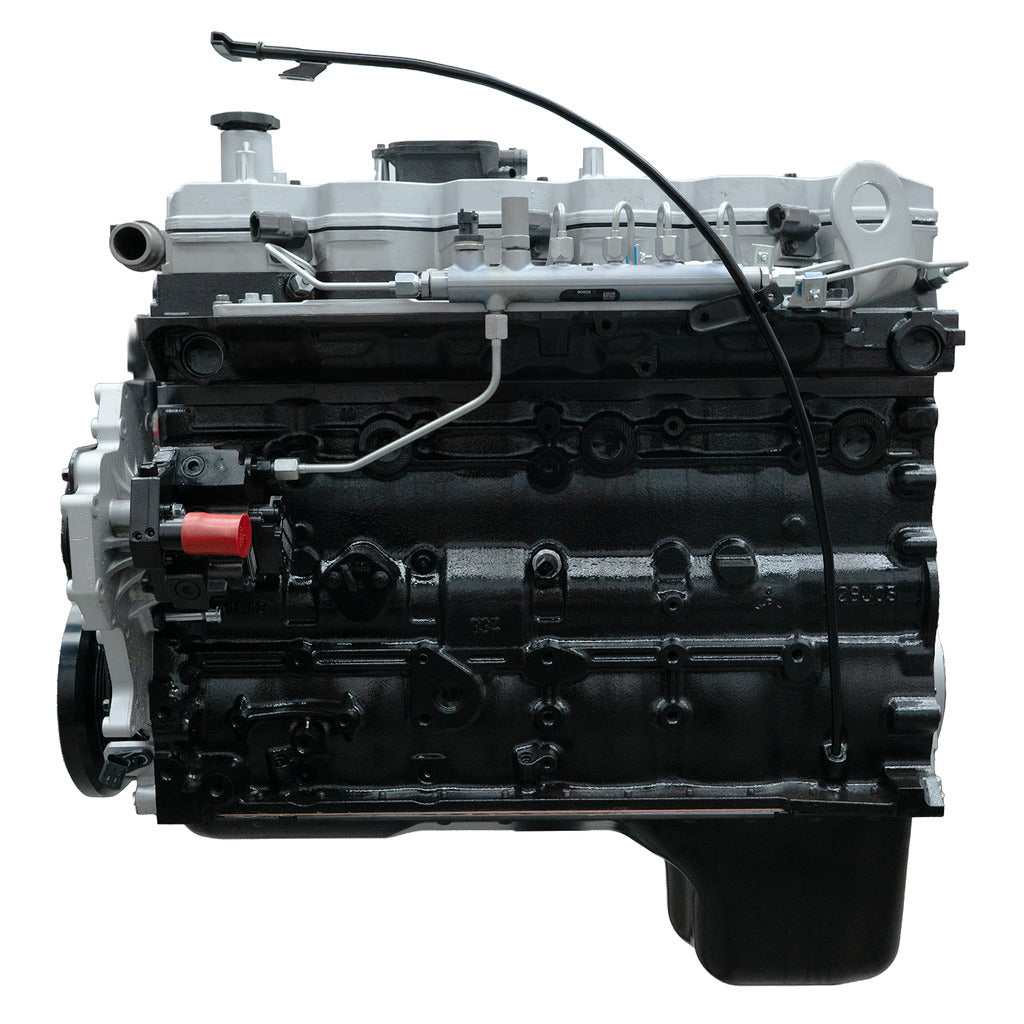

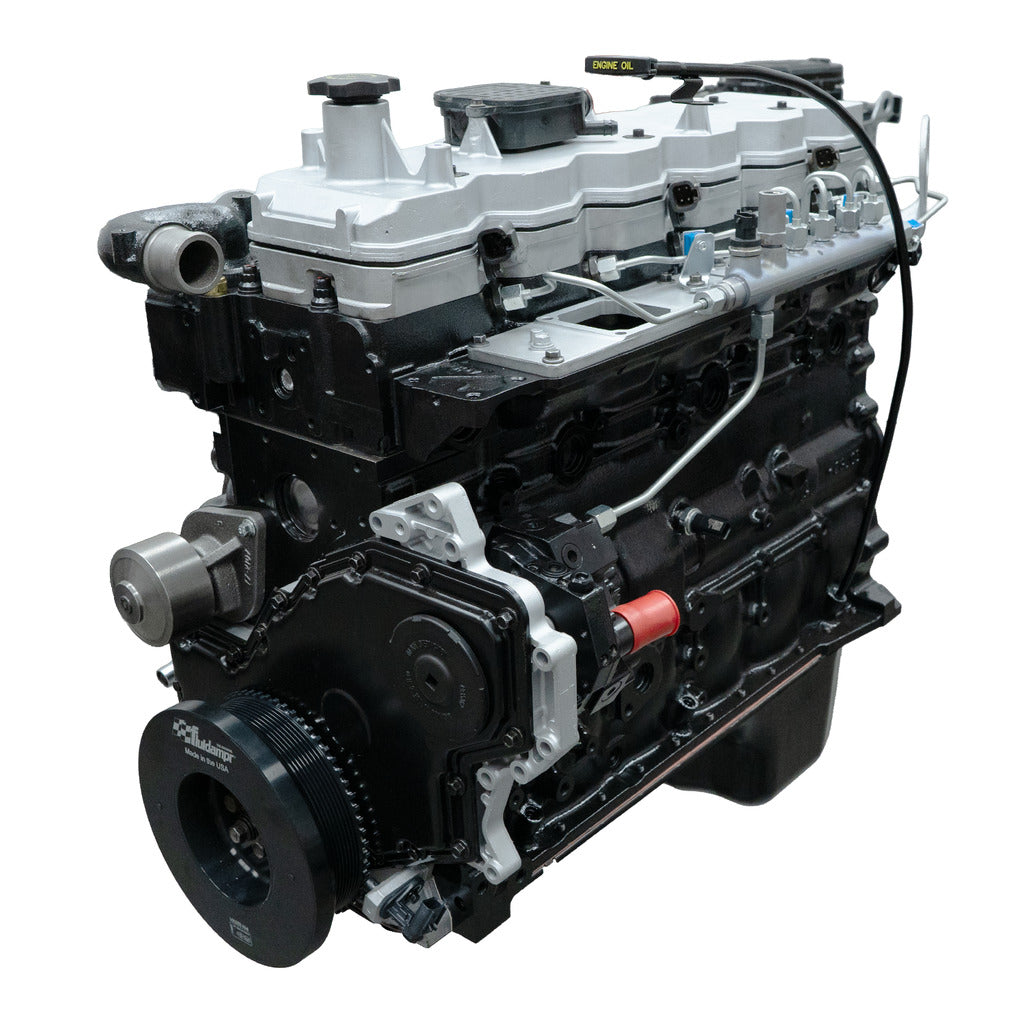

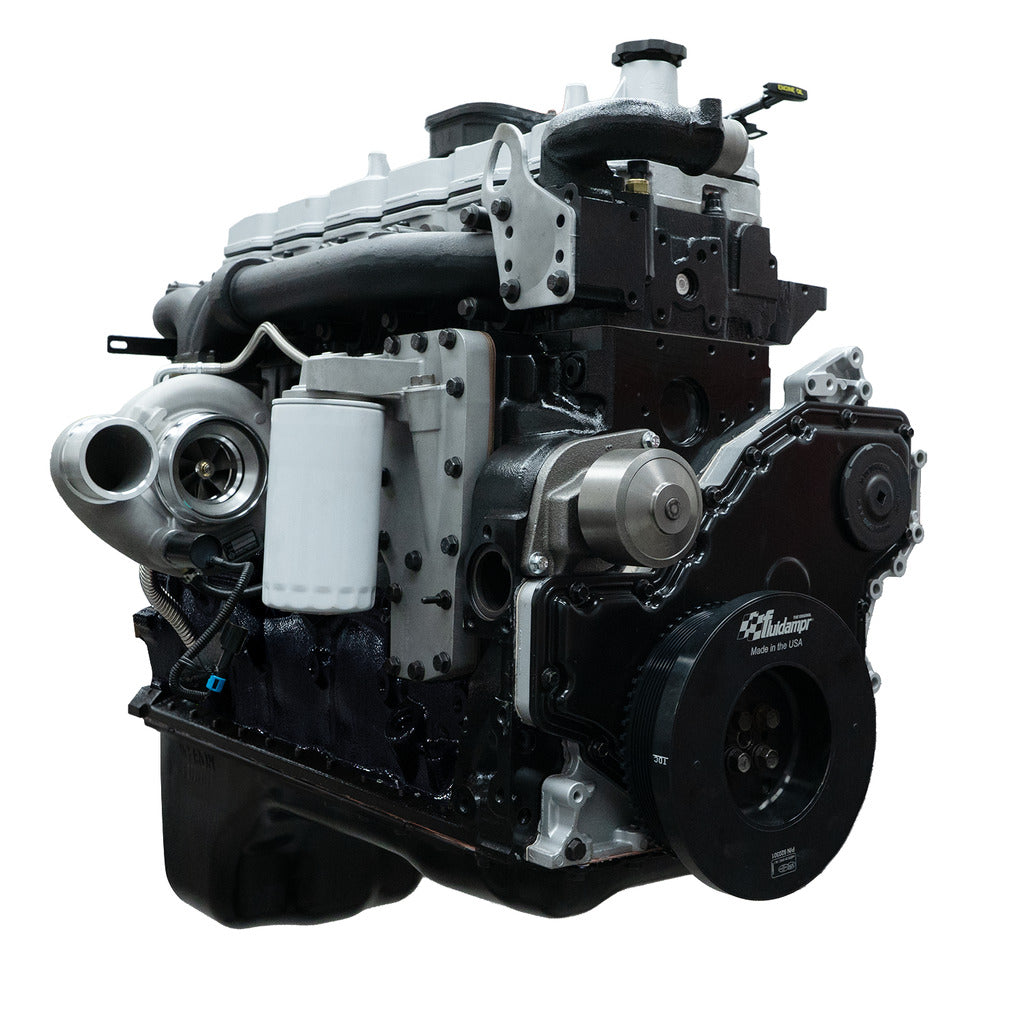

2006-2007 Cummins 5.9L Precision Plus Ready Run Engine (DJPLB100097)

The D&J Ready Run Engine is designed to provide reliable and efficient performance for your diesel engine needs. This engine begins with the Precision Plus Reman Long Block and adds a range of BD components to prepare it for installation. Including a complete high-pressure fuel system, from the CP3 pump to the injectors, as well as a turbo and manifold! A new water pump and valve cover complete the package. Each engine is meticulously built with precision and care, ensuring quality and peace of mind for those seeking exceptional performance.

Part Number: DJPLB100097

Long Block

• Comprehensive Inspection: Each engine is disassembled, crack checked, inspected, and all threaded holes are tapped, blasted, and cleaned before machining.
• Precision Machining: CNC blueprinted, bored, honed, and deck surfaced. Each crankshaft is checked for straightness and size and repaired as needed.
• Thorough Cleaning: Blocks are meticulously cleaned and inspected to ensure the highest quality. Bearing clearances, piston-to-wall clearance, piston protrusion, deck, and hone surfaces are all measured.
• Controlled Assembly: Assembled in a clean room by skilled technicians, ensuring top quality.
• High-Precision Cylinder Head: Disassembled, crack-checked, with stock seats replaced by heavy-duty valve seats. CNC high-precision valve job performed with Newen seat and guide machine. Cleaned, inspected, assembled, and pressure-checked.
• Every long block assembled with quality ARP 2000 studs for a reliable head to block seal.

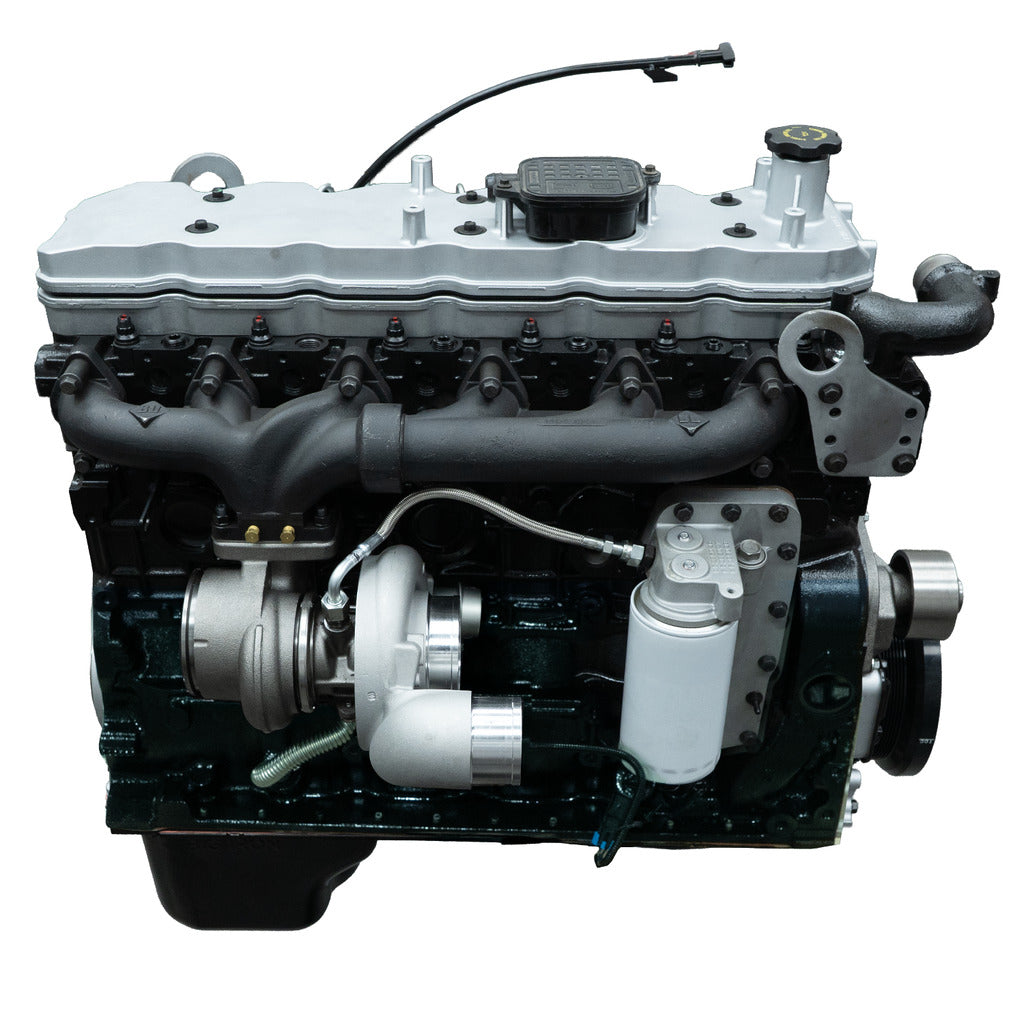

BD Manifold

• Two-piece high silicon ductile iron to withstand extreme exhaust gas temperatures.
• Grade 10.9, black oxide-coated bolts, and spacers.
• Pre-drilled for pyrometer probes.
• SEMA Certification No. SC-BDD01-0078

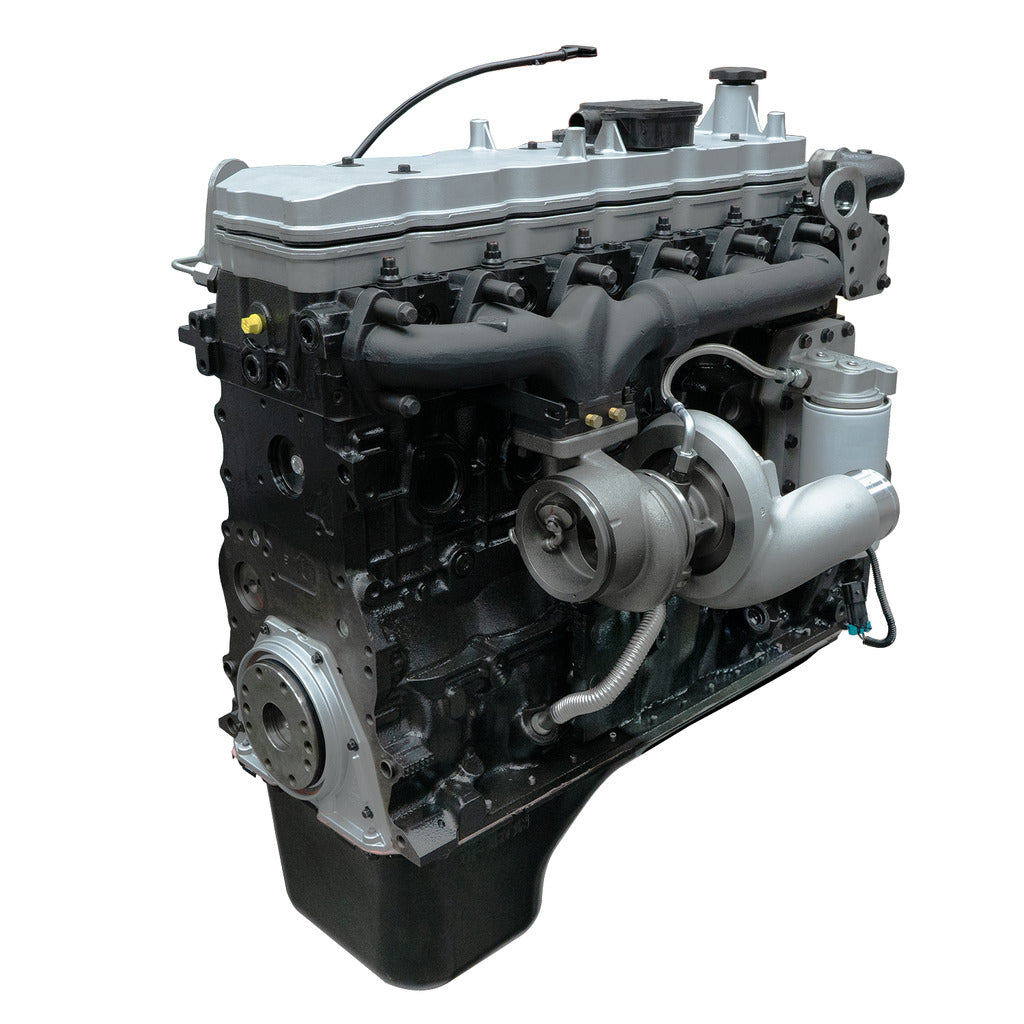

BD Turbocharger

• Wastegate preset for drop in functionality.
• Brand new and VSR high speed balanced for long term reliability.

BD High Pressure Fuel System

• Remanufactured by Bosch trained technicians for quality assurance.
• Remanufactured CP3 injection pump with new metering unit installed.
• Fuel injectors and CP3 pumps tested on a Bosch 815 test bench to ensure correct operation in all conditions.
• Includes BD's OEM fit fuel lines for easy fitment and install.
• High-quality gaskets.

• Fluidampr harmonic balancer
• Turbo oil feed line and drain tube
• New water pump and thermostat
• New coolant temp sensor
• New Bosch fuel rail including pressure sensor and relief valve
• New high pressure fuel lines and injector feed tubes
• New oil pressure switch/sensor
• Dipstick and tube

• Install Time: 14.5 hours
• Warranty: 24 months parts
• Manufactured By: D&J Precision Machine

A refundable core charge applies to this product. The core deposit will be refunded once a complete, rebuildable core is returned within 30 days of receipt. Cores must be complete and serviceable per D&J Precision Machine requirements.

• Freight charges apply; this item ships LTL.
• Made-to-order; lead times vary. Contact us for current ETA.
• Not for sale on California-licensed vehicles per BD Diesel / D&J Precision Machine policy.
