2005-2026 Powerstroke 2.5" Dual Rate Coil Spring Pair (AXFDC25)

These Axiom Supply dual rate front coil springs are built around the front axle weight of a diesel Super Duty, not adapted from a gas application. The dual rate design rides close to stock unloaded and stiffens as load comes on, so the truck stays composed with a camper, plow, or trailer on the pin. Expect roughly 2.5" of front lift on 2005-2019 trucks and roughly 3.5" on 2020+ trucks, since Ford dropped the factory front ride height about an inch in 2020. On 2020+ Tremor models that already carry a factory lift, figure on about 1.5" of additional front height.

Part Number: AXFDC25

• Dual rate spring design: compliant ride unloaded, added support as load increases
• Engineered specifically for the front axle weight of Powerstroke diesel Super Duty trucks
• Approximately 2.5" front lift on 2005-2019, approximately 3.5" on 2020+ (about 1.5" on 2020+ Tremor)
• Premium spring steel construction, built to resist sagging and hold ride height
• Shot-peened for fatigue resistance and long-term durability
• Black powder coat finish for corrosion resistance
• Direct bolt-in installation in the factory spring location, sold as a pair

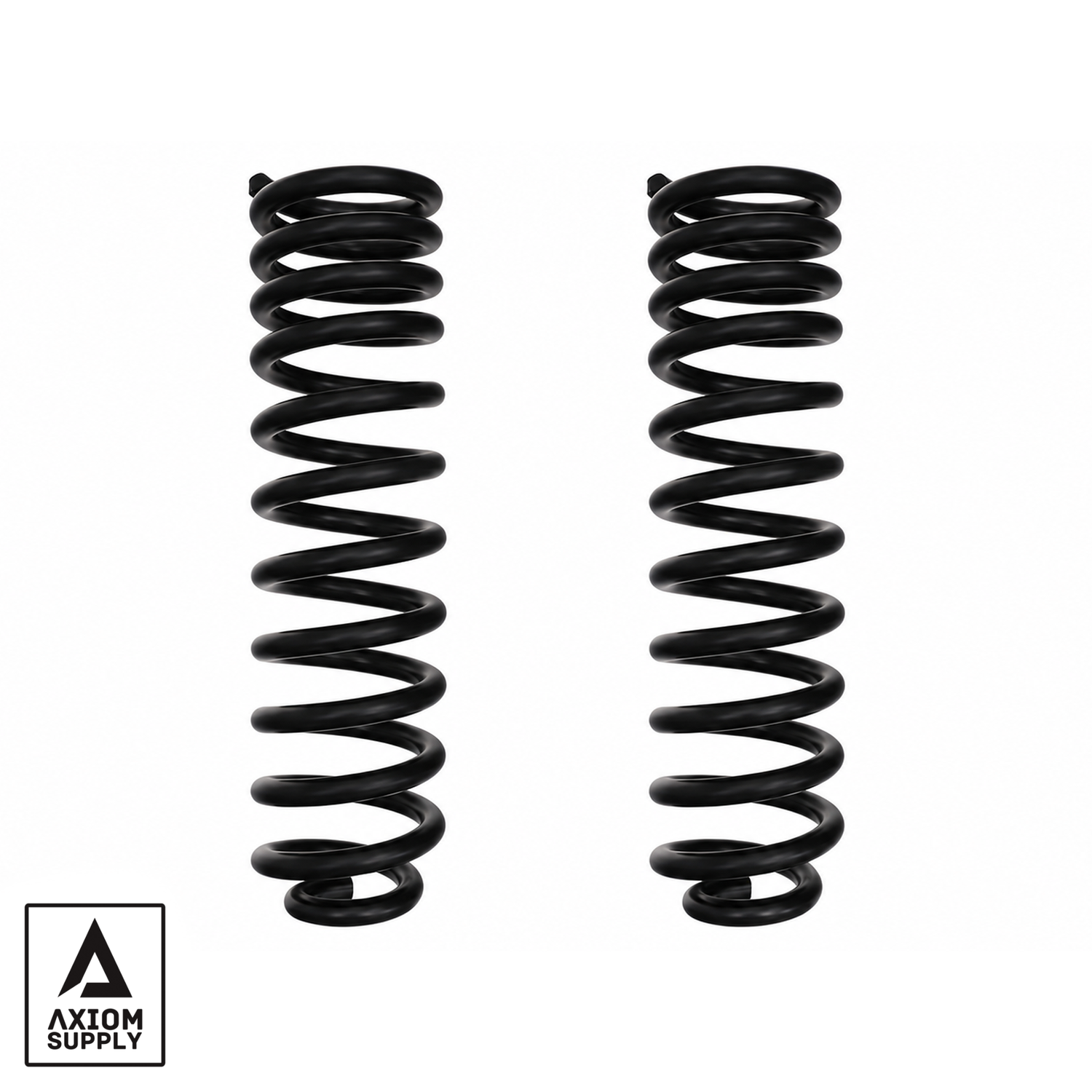

• 2 x Axiom Supply Dual Rate Front Coil Springs

• Diesel-powered trucks only, not compatible with gasoline Super Duty models
• Coil springs only, this is not a complete leveling kit
• Alignment correction components are strongly recommended: caster shims, aftermarket radius arms, or radius arm drop brackets may be required
• An adjustable track bar is recommended to recenter the front axle after the height change
• Front axle load ratings may be reduced on F-450 and F-550 applications
