2005-2026 Powerstroke 1"-3" Front Bump Stop Spacer Kit (AXFDB01)

Level a Super Duty and add longer front shocks, and the factory bump stop can stop doing its job: the shock bottoms out before the bump stop ever engages, turning the shock into the compression limiter and hammering its internals and mounts. This Axiom Supply spacer kit lowers the factory bump stop position by approximately 1.25" so it engages before the shock reaches full compression, restoring proper travel management on trucks leveled roughly 1" to 3". Unlike generic round spacers, each piece is machined from 6061 aluminum with a square profile that indexes directly into the factory bump stop cup and frame notches for a secure, factory-style fit.

Part Number: AXFDB01

• Repositions the factory bump stop approximately 1.25" lower for proper engagement
• Square profile indexes directly into the factory bump stop cup and frame indexing notches
• Precision machined from high-strength 6061 aluminum
• Black anodized finish for long-term corrosion resistance
• Prevents the shock from becoming the suspension compression limiter, protecting shock internals and mounts
• Engineered to complement longer-than-stock front shock configurations
• Includes Grade 10.9 mounting hardware
• Direct bolt-on install using factory mounting locations, no cutting, drilling, or welding

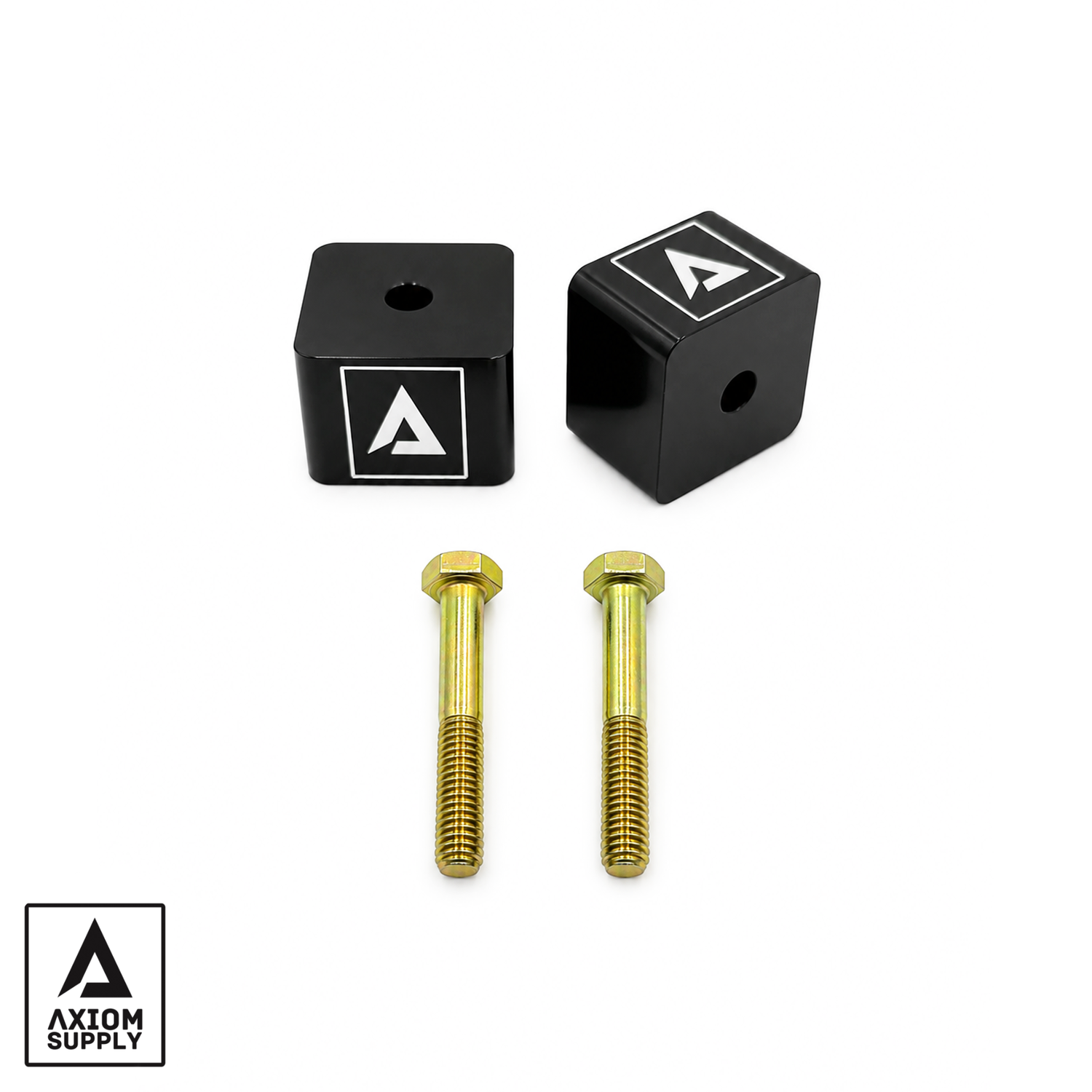

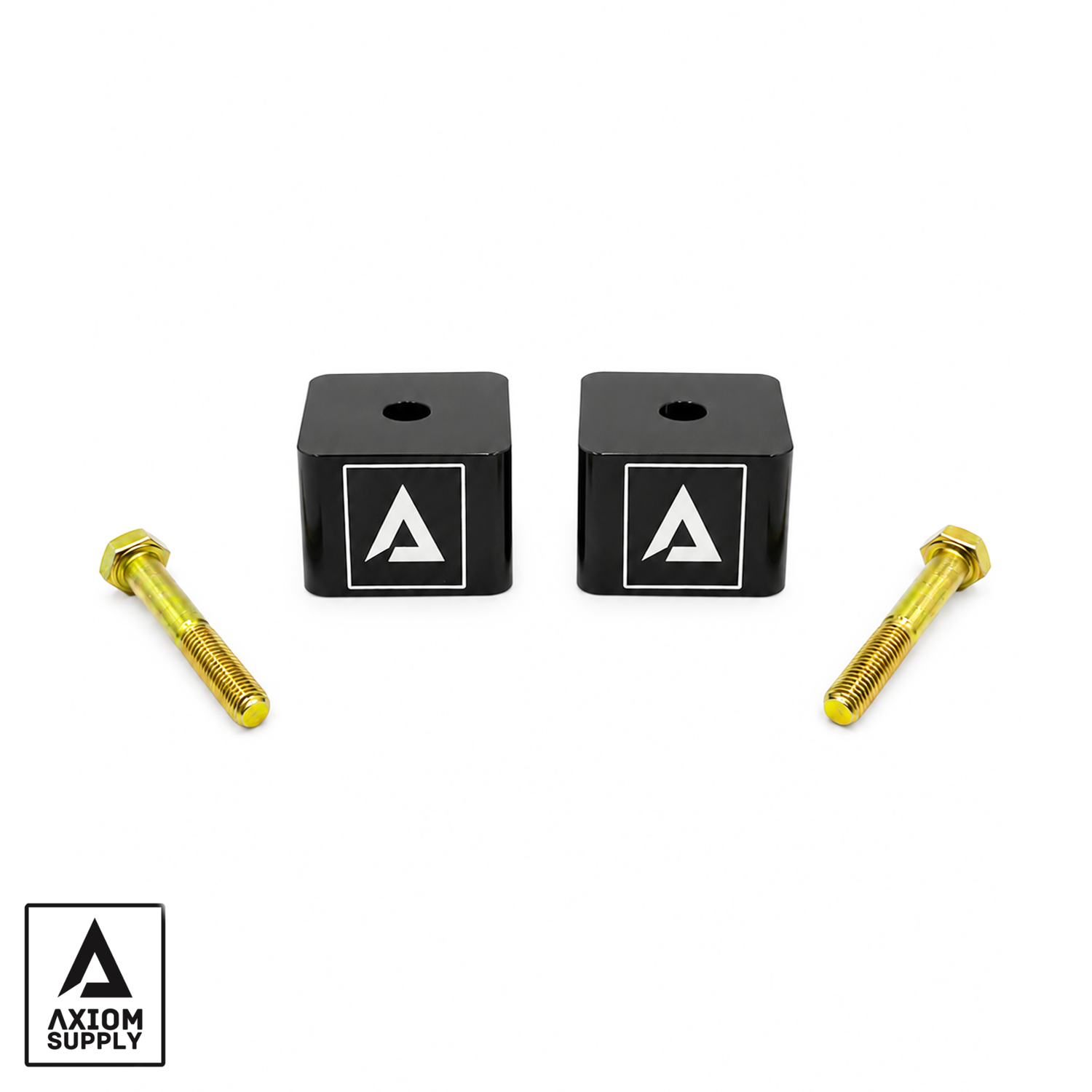

• 2 x Axiom Supply Front Bump Stop Spacers
• 2 x Grade 10.9 Mounting Bolts

• Designed for trucks leveled approximately 1" to 3" in the front
• Recommended for trucks running longer-than-stock front shock absorbers
• Reuses the factory bump stop components
• Compatible with most leveling kits and suspension systems in the 1" to 3" lift range
• Sold as a pair
