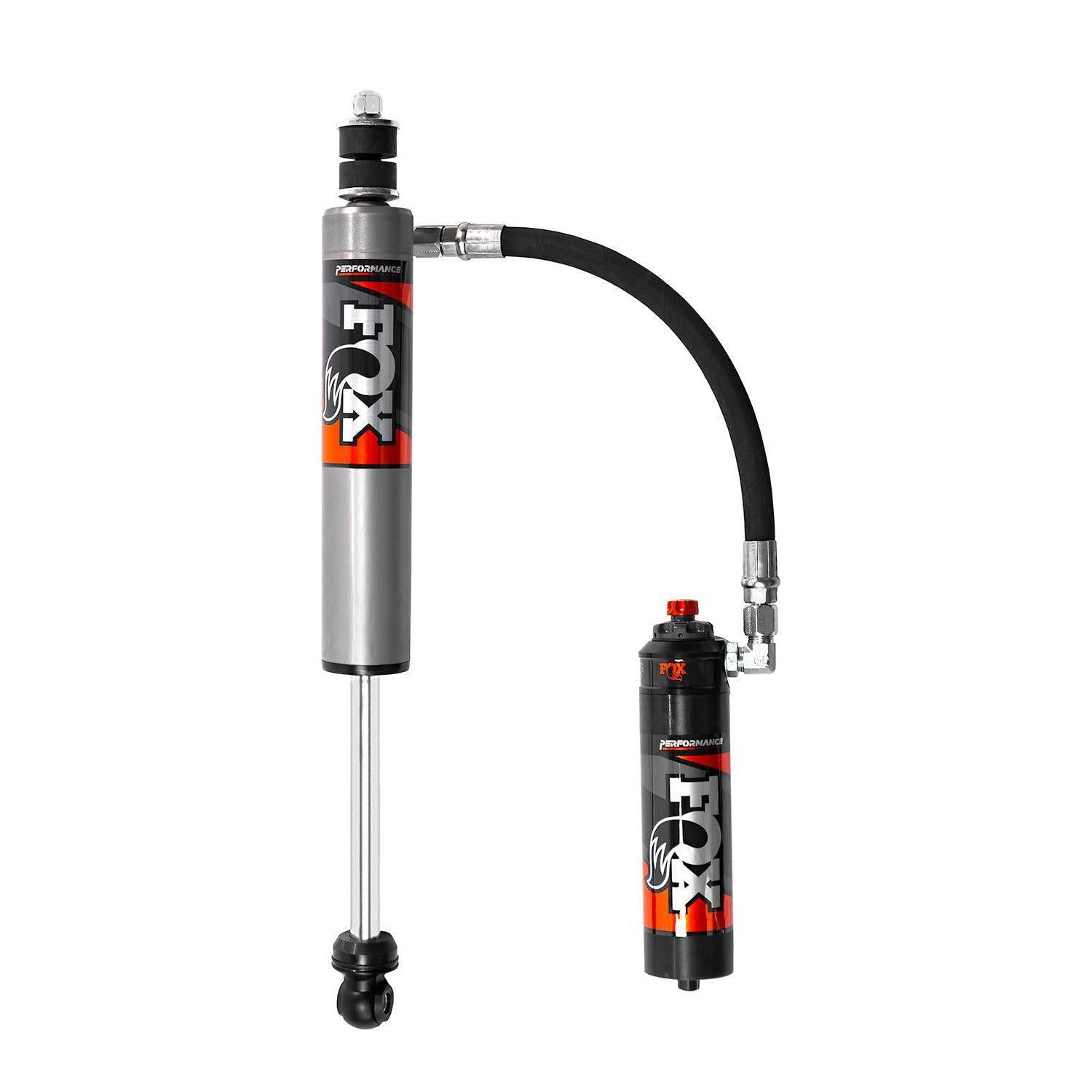

2005-2023 Tacoma Rear 2.5" Performance Elite Series 2.5 Reservoir Shock (883-26-112)

Performance Elite Series 2.5 Reservoir smooth Body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from the Off-Road race shocks and have been thoroughly perfected in the most brutal conditions. The external Reservoir allows for increased oil and nitrogen capacity while delivering a striking race look. Applications are available to fit most stock and lifted Trucks and SUVs.

Part Number: 883-26-112

• Aluminum Body & External Reservoir Dissipates Heat Faster Than Steel
• 2.5" impact-extruded and CNC machined 6061-T6 hard anodized aluminum Body resists rust over time
• Body Plating Hard-anodized for a durable finish
• Black-anodized CNC-machined 6061-T6 billet aluminum
• 7/8" hard chrome plated heat-treated alloy steel
• Race-developed high-flow Piston design
• Application specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• PTFE-lined, heat-treated, alloy steel spherical bearings

Specs:

• Extended Length 27.88
• Compressed Length 17.41
• Top Mount Eyelet
• Bottom Mount Eyelet
• Travel 10.47

• Rear Lift Height 2.5-4


• Trail Boss Models Fit 0-1" Lift Only
• Non-TB requires a minimum of 2" bump stop spacer and a 1" lift block
