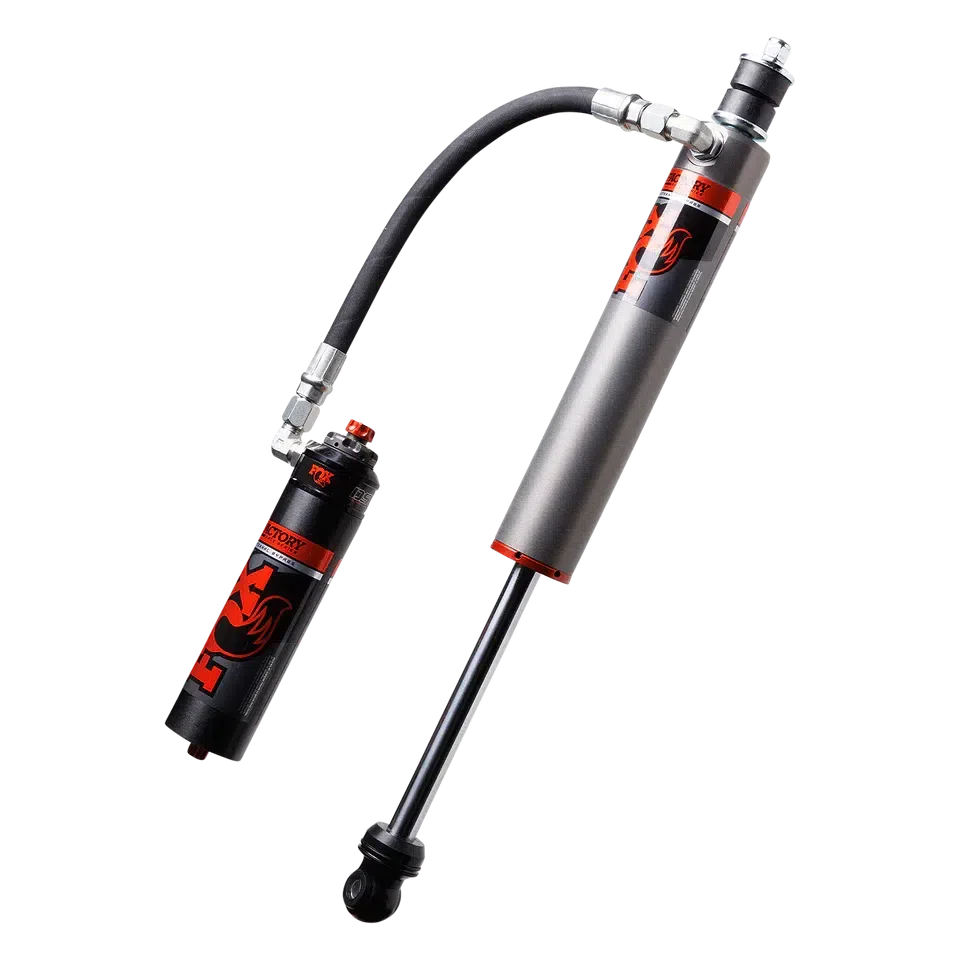

2005-2023 Tacoma 2.5 Series 2-3" Lift Internal Bypass Piggyback Rear Shock (883-26-124)

Patented Internal Bypass technology allows for multiple zones of damping control, resulting in a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.

Part Number: 883-26-124

• Finned External Reservoir System Dissipates Heat Fast

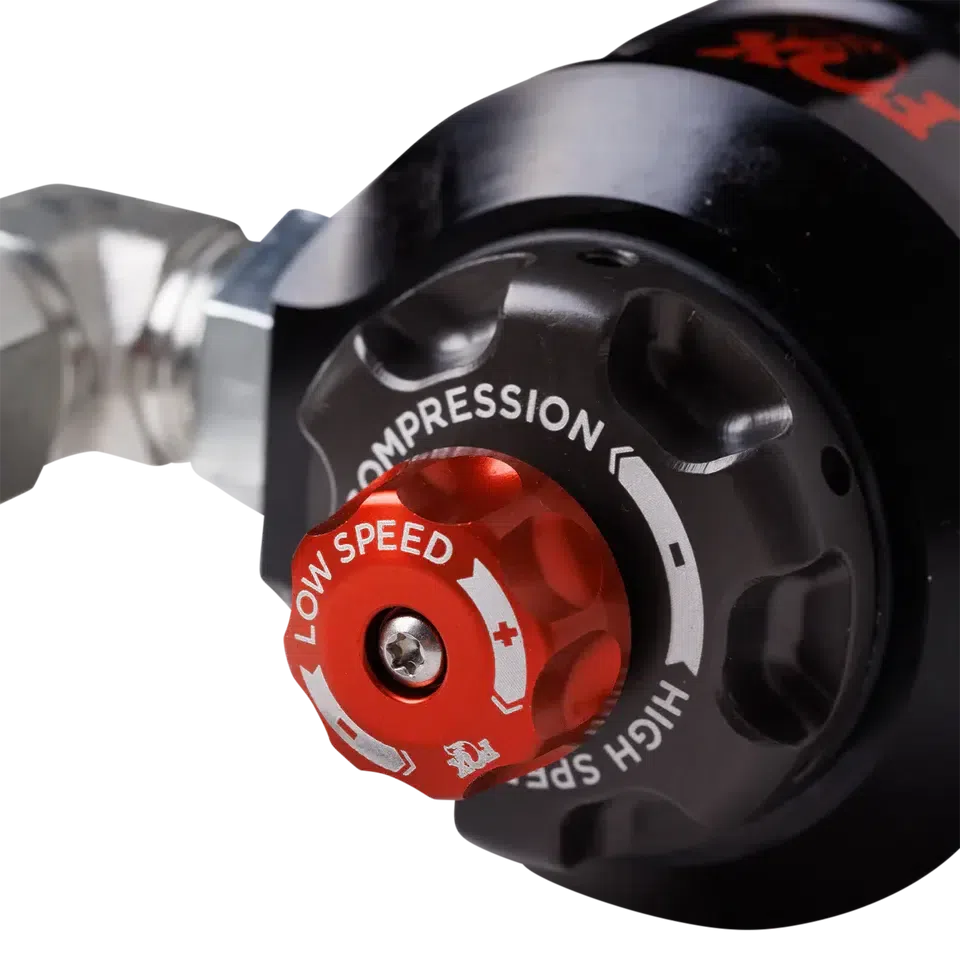

• Quick Switch Compression And Rebound Adjusters
• Black Anodized CNC Machined Aluminum Components

Specs:

• Extended Length: 24.65"
• Compressed Length: 15.36"
• Travel Length: 9.29"
• Top Mount: SM1
• Bottom Mount: ES5
