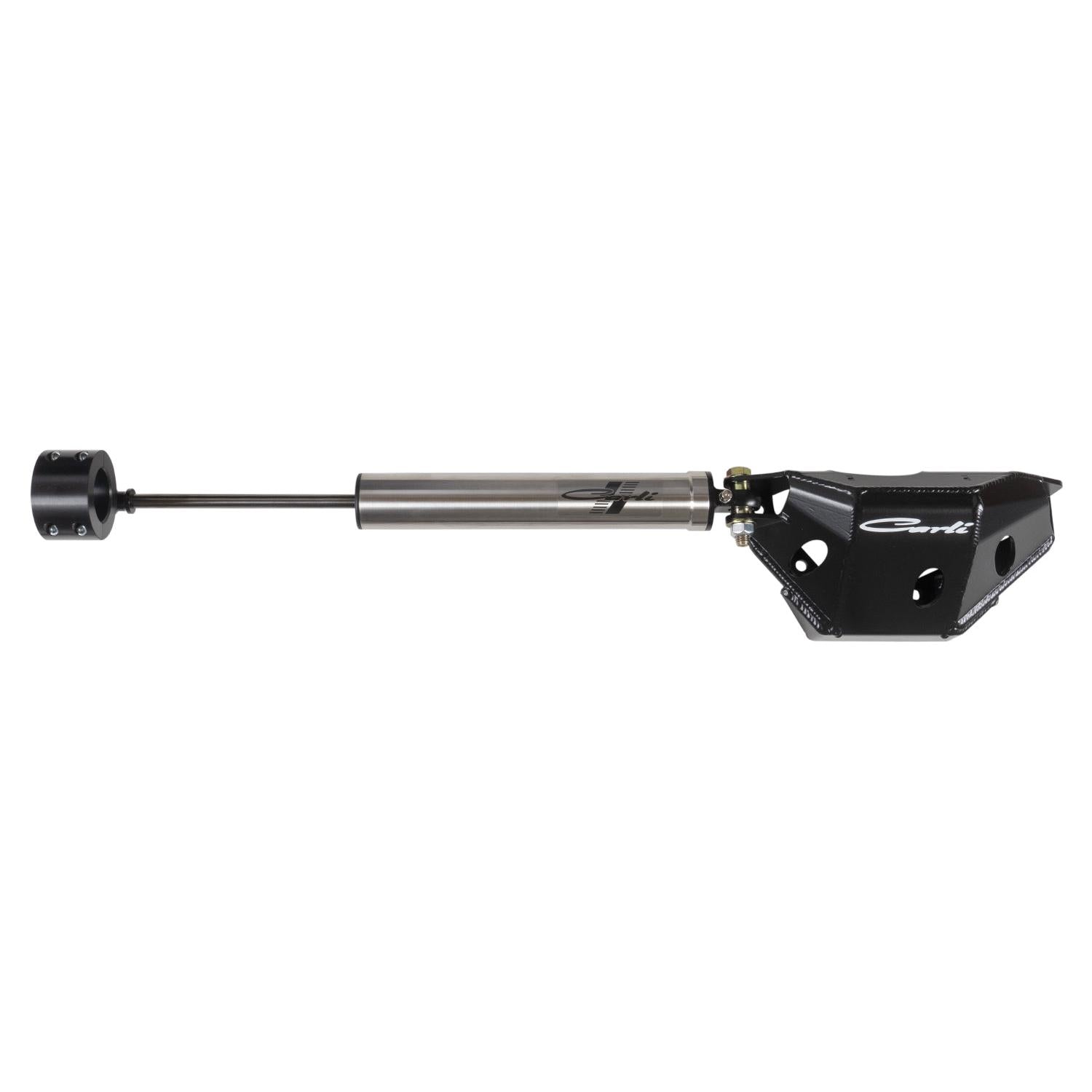

2005-2022 Powerstroke Low-Mount Steering Stabilizer w/ Differential Guard (CS-FLMSS-05)

Fits

When it comes to steering stabilizers, not all shocks provide adequate performance. There are 2 types, IFP and Emulsion, while Emulsion shocks may seem like a good play because they are cheap, however, they are NOT intended to be used on stabilizers because the oil and gas are mixed, having them mounted in a horizontal position allows the oil to settle on the bottom. This results in the piston being half-submerged in oil, thus reducing its life span, on top of their tiny pistons, creates a piss-poor ability to control your steering and suspension.

Enter Carli's High-Mount Steering Stabilizer, featuring an Internal Floating Piston. This secondary piston separates the nitrogen cavity, allowing you to run it horizontally or vertically. This ensures the nitrogen properly pressurizes the oil cavity, ensuring the piston is always submerged in oil. This increases heat tolerance while eliminating cavitation.

The integrity of your front differential is often something that gets overlooked or forgotten. The soft steel on the lip of the differential cover is vulnerable to impact; the last thing you want is to roll over a boulder and bash a hole in your cover. The Carli Front Differential Guard provides your ring and pinion with a solid steel shield should impact be imminent.

Part Number: CS-FLMSS-05

• Custom valving for larger, heavier tires
• Includes fabricated diff guard and billet clamp
• Can be combined with the Carli High Mount Stabilizer for an opposing setup
• Nitrogen pressure can be adjusted for more or less dampening
• Stainless stabilizer bodies offer a durable and long-lasting finish that will not rust over time

Low Mount Steering Stabilizer:

• Installs in place of the Factory stabilizer; all hardware is provided. A higher nitrogen charge pushes to the Right to counteract a left-hand tire pull

High Mount Steering Stabilizer:

• Installs up and out of the way with the provided frame bracket and steering clamp. This is an auxiliary stabilizer and should be used to complement the function of a factory or Carli Low-Mount Steering Damper. A higher nitrogen charge pushes to the left to counteract a Right tire Pull.
