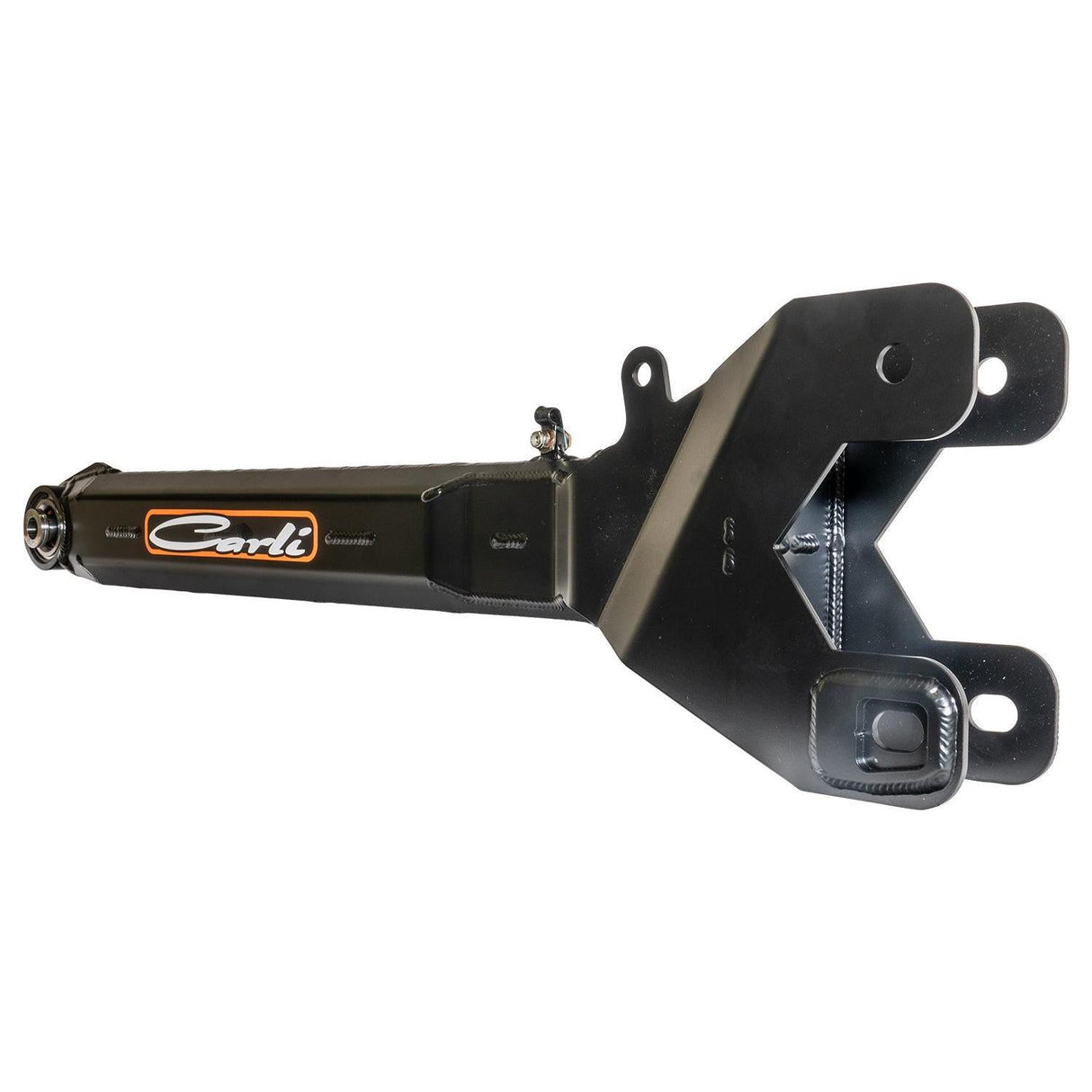

2005-2022 Powerstroke Fabricated Radius Arms w/ 2.5-3.5" Lift (CS-FARA-LVL-05)

When installing a lift or leveling kit, it is imperative to maintain the alignment and geometry of your truck, or you're going to end up wheel hopping or crab walking down the road and potentially replacing your tires a lot sooner than you think. Dont be that guy. These bolt-on Carli Radius Arms are built for trucks with 2.5-3.5" lift kits, and help keep your wheels & tires tilted to the appropriate degree through your suspension's longitudinal range of motion.

Part Number: CS-FARA-LVL-05

• Provides 0.5°-2.5° of adjustable caster correction
• 3/16" construction, fully internal gusseted with 1/2″ additional tire clearance

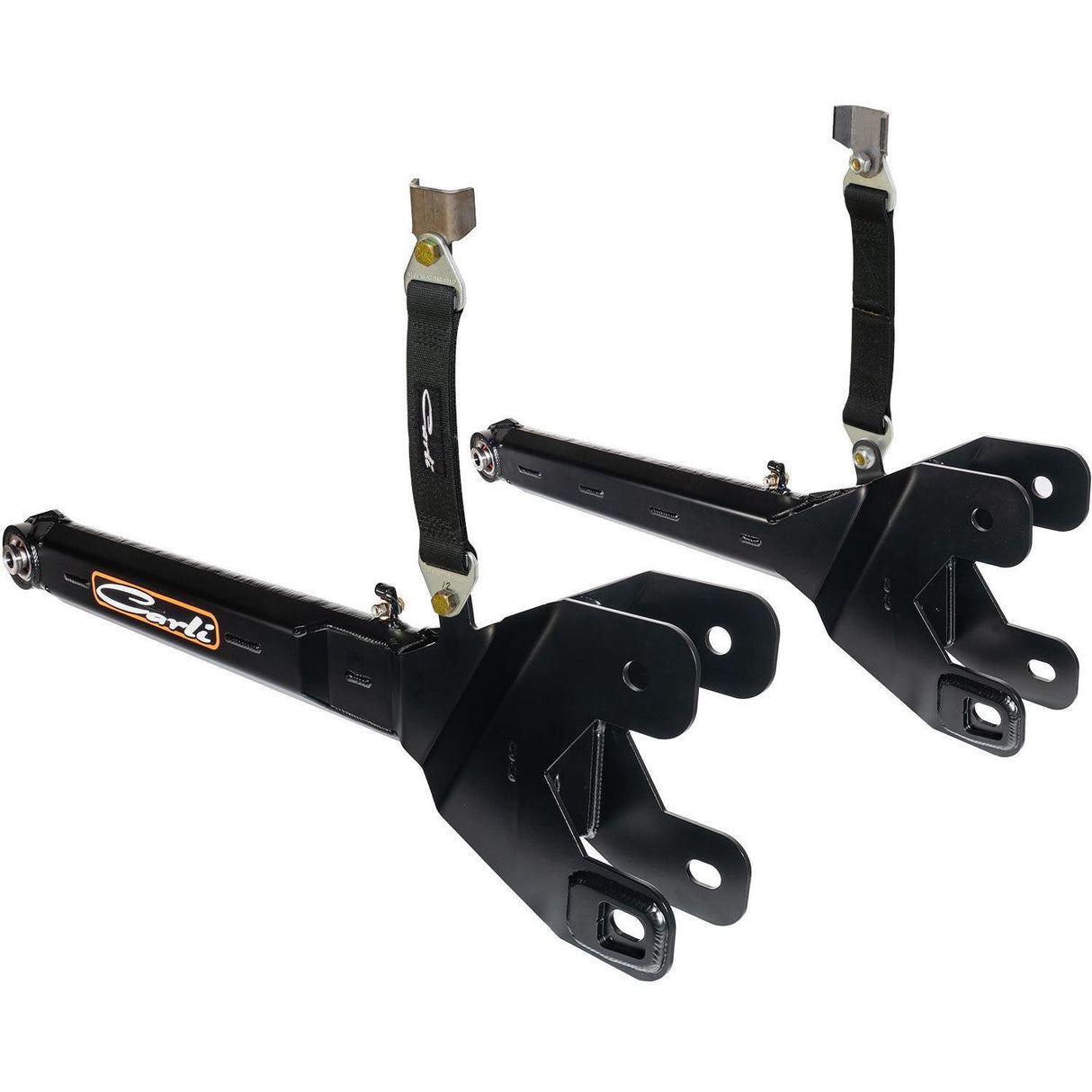

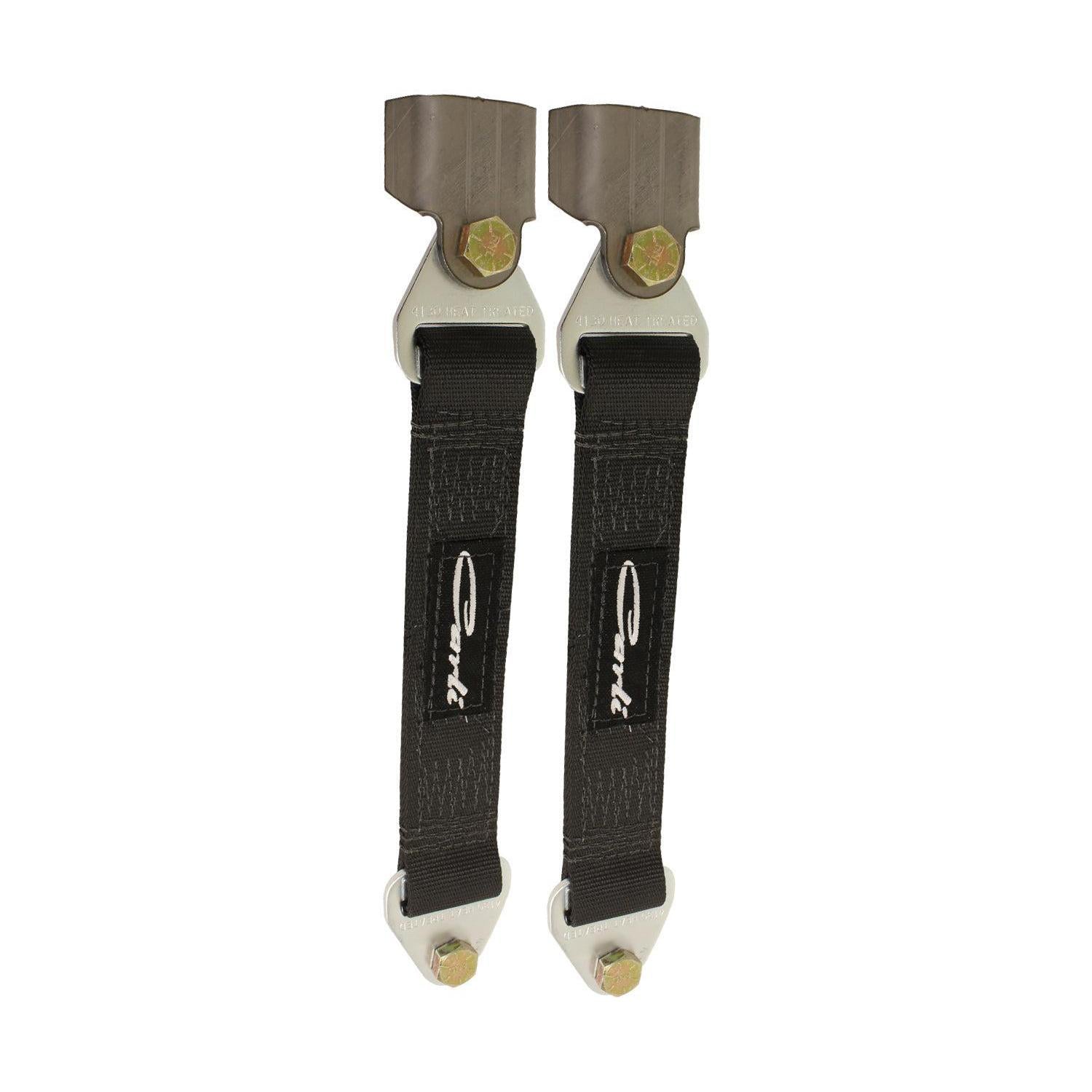

• Includes 12″ limit strap kit. Uses a 17-4 stainless spherical joint for longevity and bind-free cycling
• Fully boxed design
• Designed for trucks with 2.5-3.5" of lift

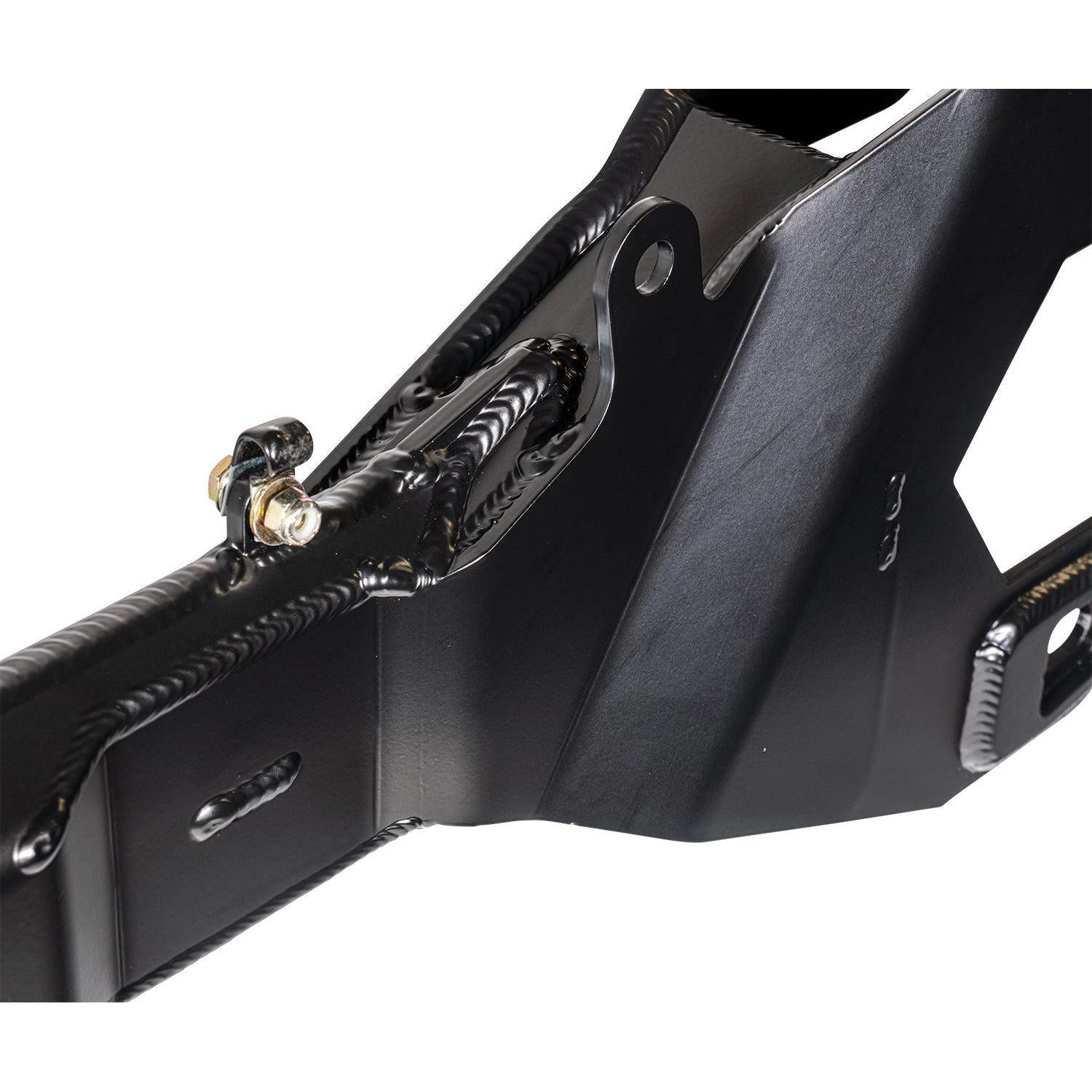

Fully Boxed Construction boasting full-length internal gusseting makes them bulletproof, 3″ Serviceable 17-4 Stainless Spherical Joint ensures they cycle with no bind in the pivot, an engineered high-clearance cutout allows 37″ tire fitment when running near-stock Backspacing (5.5″) to keep rocks off the paint while Limit Straps prevent the shocks from limiting down travel.

The Carli arms correct 0.5°-2.5° of caster at the axle mount ensuring ANY Carli customer can achieve death-wobble-preventing positive caster.
