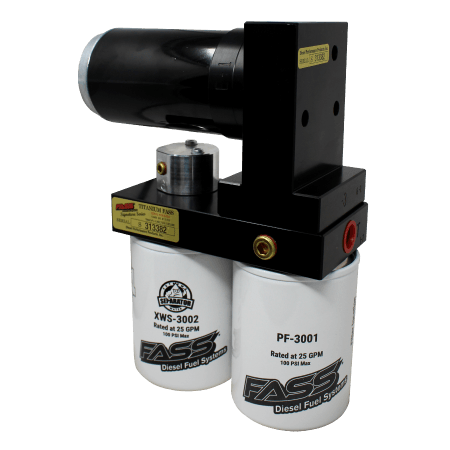

2005-2023 Cummins Titanium Signature Series 250GPH Lift Pump (TSD07250G)

Fits

Power Rating: 1000HP - 1200HP

Preset Fuel Pressure: 16-18PSI

Flow Rating: 250GPH

Filter Life Expectancy: 30,000 Miles

Filtration Rating: 2 Micron

Warranty: Limited Lifetime Warranty

The Titanium Series diesel fuel lift pump was engineered by FASS Fuel Systems to be the top-performing, longest-lasting, and most reliable aftermarket filtration system in the diesel industry. Rated at 250 gallons per hour and backed by a limited lifetime warranty this Titanium Series lift pump is capable of supporting your Dodge Cummins 5.9L and 6.7L diesel engine with enough fuel for multiple aggressive fueling upgrades commonly used in competition.

A Titanium Series lift pump also offers advanced filtration benefits that will help protect your injection systems, effectively extending the life of both your Bosch Injection Pump and Bosch Diesel Injectors. These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter, and FASS Fuel Systems patented air/vapor removal process. Aftermarket lift pumps are important for both daily drivers and high-performance applications when looking to improve either fuel economy or increase horsepower/torque.

This kit includes two FASS (Bulkhead and Suction Tube Kit). Machined from 6061 T-6 Billet Aluminum, the Bulkhead fittings function as both a suction and return tube. This new and improved version from FASS's previous Suction Tube Kit allows the user to plumb their FASS suction and return line directly to their bulkhead fitting which is mounted directly on the fuel tank module, eliminating all cutting of the filler neck, and significantly speeds up the installation process. The pickup tube is fabricated of PTFE Teflon which can be easily cut to adapt to different depths of fuel tanks. Properly installed, you can safely operate down to below 1/8 tank of fuel.

FASS has taken the time to perfect its System before letting it hit the market and because of this, they have less than a 2% failure rating with its motor and a design that implements unique design features you can only get with Fass Diesel Fuel Systems.

Part Number: TSD07250G

Superseded Part Number: TS D07 250G

• New Whisper Technology
• New Bolt On Bracket Installation

• Removes Water, Air, and Debris From Diesel Fuel
• Protects and Extends The Life Of Your Injectors
• Improved Cold Weather Starts
• ½ Inch Fuel Lines and Ports
• Fuel Mileage Improvement
• Improved Fuel Volume Delivery
• Smoother Engine Idle
• Quietest Motor On The Market
• Limited Lifetime Warranty
• 1,000,000 Mile Motor
• 30,000 Mile Filter Life Expectancy

FASS Whisper Technology (FWT) was engineered to meet the stringent demands of today’s quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System’s high quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Signature Series FASS Diesel Fuel System to a “whisper” while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates.

Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth-flowing cuts within the aluminum housing.  This prevents the reintroduction of air and vapor back into the fuel and prevents eddy currents from forming within the corner of a 90° sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90° fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.

Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that’s not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly “Polished” (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional FASS Fuel Heater options will help insure “EXTREME” cold weather operations!

Bolt-On Bracket Mounts are the latest update we have made to our Titanium Series lift pumps.  Old mounting styles required drilling or welding when mounting your new pump.  This has now been simplified with our new bolt-on brackets that utilize your Dodge Cummins factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Series lift pump takes only minutes and all brackets are made from machined steel for superior support and strength.

• For those with a 19-20 Cummins, D12RK1001 is necessary if you're truck has, or is going in for the CP3 recall. These fittings correctly plumb the Fass feed line.
