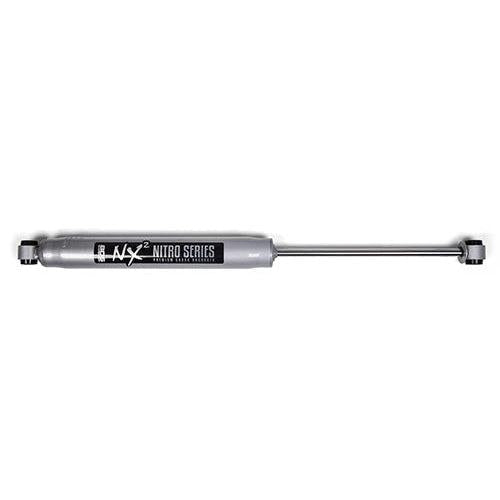

2005-2021 Powerstroke/Cummins 2-2.5" Lift NX2 Front Shock Absorber (BDS85713)
BDS
Part Number:
BDS85713
$71.89 CAD
Unit price
/
Unavailable
Product images may differ from exact product.
Purchase to earn 71 Dirty Dollars Learn More
Description
Description
Fits
| Year | Make | Model | Type | Lift | Location |
| 2014-2021 | Dodge / Ram | 2500 Truck | Diesel | 2" | Front |
| 2014-2021 | Dodge / Ram | 2500 Truck | Gas | 2" | Front |
| 2013-2018 | Dodge / Ram | 3500 Truck | Diesel | 2" | Front |
| 2013-2018 | Dodge / Ram | 3500 Truck | Gas | 2" | Front |
| 2005-2016 | Ford | F250/F350 Super Duty | 4WD | 2.5" | Front |
The BDS NX2 series premium nitrogen-charged twin-tube shocks can quickly adapt to any terrain with their 10-stage valving giving you better control. Get superior performance on and off-road without breaking the bank.
Part Number: BDS85713
Features
Features
- Metallic silver finish
- Vehicle specific 10-stage velocity-sensitive valving for better control
- Pressurized nitrogen with twin-tube design
- Fast adaptive dampening for any terrain
- 1-3/8" fluon banded piston
- Self-Lubricating
- 14mm hardened chrome shaft
- Dual welded ends
- Polyurethane bushings
Includes:
- One NX2 Premium Shock Absorber
Warranty
Warranty
- Supplemental Drivetrain Limited Protection provided by 560Plus.com - 5 Year/60,000 Miles on Ford, Nissan, & Toyota vehicles and 5 Year/100,000 Miles on Dodge/Ram, GMC, & Jeep vehicles.
- Free, no cost protection for BDS customers
- Could save thousands of dollars on possible repairs
- An easy online registration process
- Available for most late-model vehicles
Notes
Notes
- Specially designed for BDS lift systems
- Double-check if your truck has a dual or single shock application
Installation
Installation
Shock Specs
Shock Specs
| Raw Cylinder |
Extended Length |
Collapsed Length |
Body Diameter |
Top Mount |
Bottom Mount |
Available in 5500 series |
|---|---|---|---|---|---|---|
| 15342 | 23.5 | 14.2 | 2-3⁄8" | S50 | EB2 | Yes |
"S" Mounting Codes- Stem
| Code | A | B | C | D |
|---|---|---|---|---|
| S50 | 3.25 | 1.43 | 1/2 | 1/2-20 |
"EB" Mounting Codes
| Code | A | B | C | D |
|---|---|---|---|---|
| EB2 | 3/4 | 1.655 | 1.62 |
