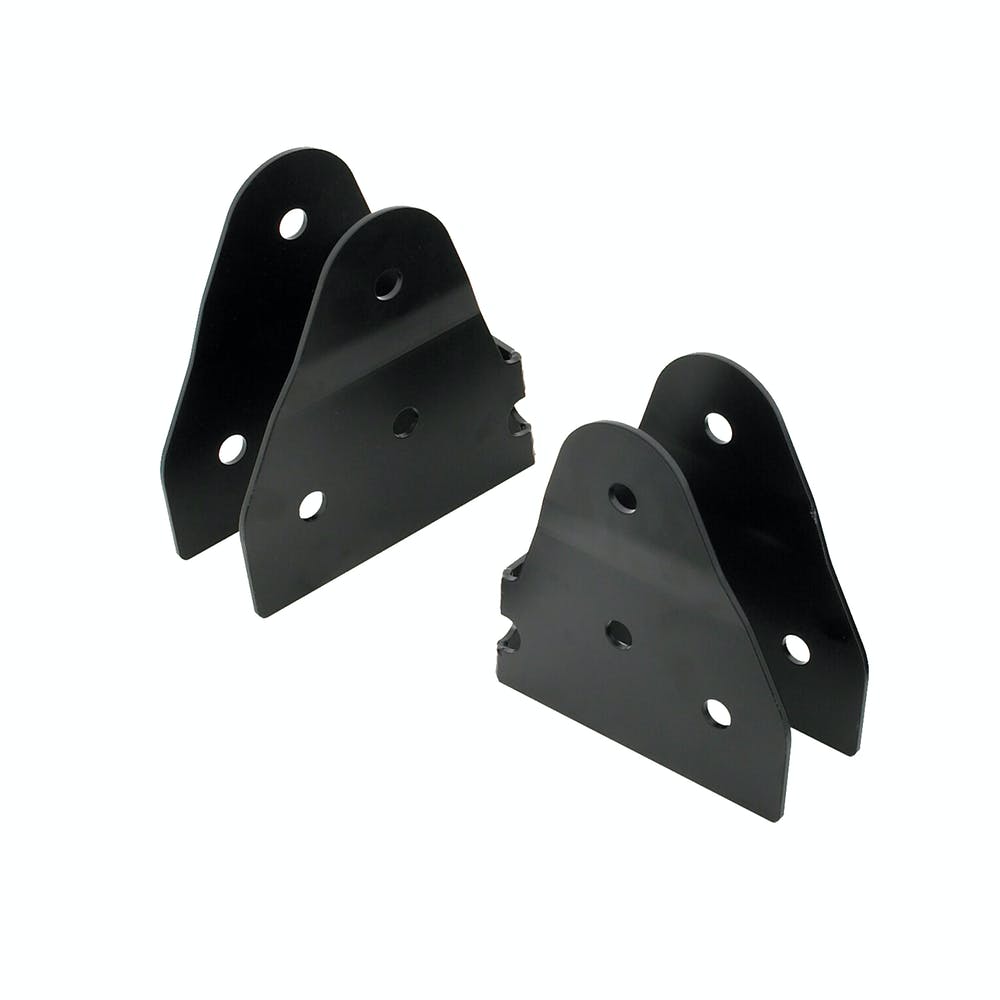

2005-2016 Powerstroke Radius Arm Drop Bracket Kit (67-2553)

Designed to reposition the factory radius arms in the stock position in order to retain OEM suspension geometry. This bracket is an integral part of achieving an increase in lift while retaining that geometry and factory ride. These Radius Arms mount between the axle pad and the bottom of the coil spring.

Part Number: 67-2553

• Retains OEM suspension geometry
• To work with trucks that have an upper coil spring spacer
• 6061-T6 Billet Aluminium

Includes:

• Comes with 1" lower spring spacers
• Included in 3.5" Series Lift Kit Systems

• Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. ReadyLIFT leveling kit, block kits, and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty. See the ReadyLIFT website for exceptions.
•  Warranty does not apply to discontinued, clearance, or outlet products.

• Wearable components including, but not limited to, shocks, ball joints, Heim joints, bushings, and steering extensions, are covered for up to 1-year.
• Free 5 Year/ 60,000 Mile Powertrain Warranty with qualifying suspensions.

Don't see your question? Ask us anything about this product.

• ?

  Will these work for a 3” lift

  Yes, they will work.

• ?

  Will this be enough for a 4.5” Carli spring?

  No, it will not be enough. The ReadyLIFT 67-2553 radius arm drop bracket kit is engineered specifically for a 3.5" lift height.

• ?

  Will these fit a 2020 f350?if not, do you carry any that will?

  Unfortunately these won't work on the 2020, at this time we don't have these brackets available separate from the lift kits.
