2005-2016 Powerstroke Carli Fabricated Coilover Mounts (CS-FCOMKIT-0508)

Fits

Designed specifically for Carli Spec Coilovers and constructed out of 1/4″ cold-rolled steel with 1/2" grade 8 fasteners for superior strength, these mounts sit atop the axle in place of the coil spring, and your upper mount is lifted as high as possible to allow maximum travel.

Part Number: CS-FCOMKIT-0508

• Constructed from 1/4" Fabricated cold-rolled steel for maximum strength
• Secondary shock mount allowing for the addition of a bypass shock at any time

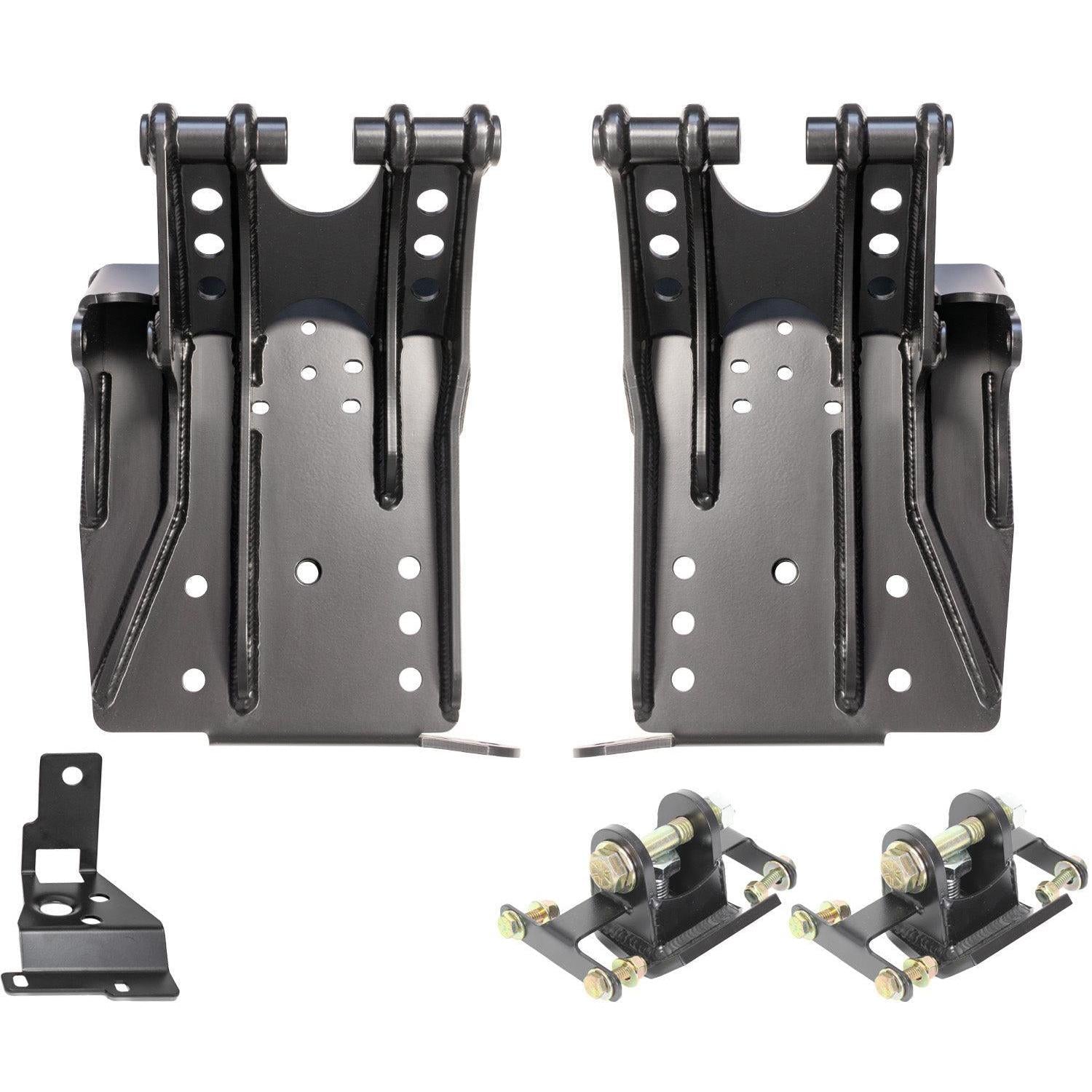

• Includes upper and lower mounts with all necessary hardware
• Completely bolt-on with no welding required
• Finished in durable black powder coat

• You will have to punch rivets and drill frame holes to 1/2" in order to install these mounts
• Bypass shock mounts are also incorporated into the brackets (positioned in the factory shock location) should go-fast desert shenanigans be in store

The 05-16 Super Duty Platform has a riveted coil bucket from the factory. Punch these rivets, drill the frame holes to 1/2″ and bolt in a custom-spec Carli Coilover to allow for and amazing ride and infinite adjustability.

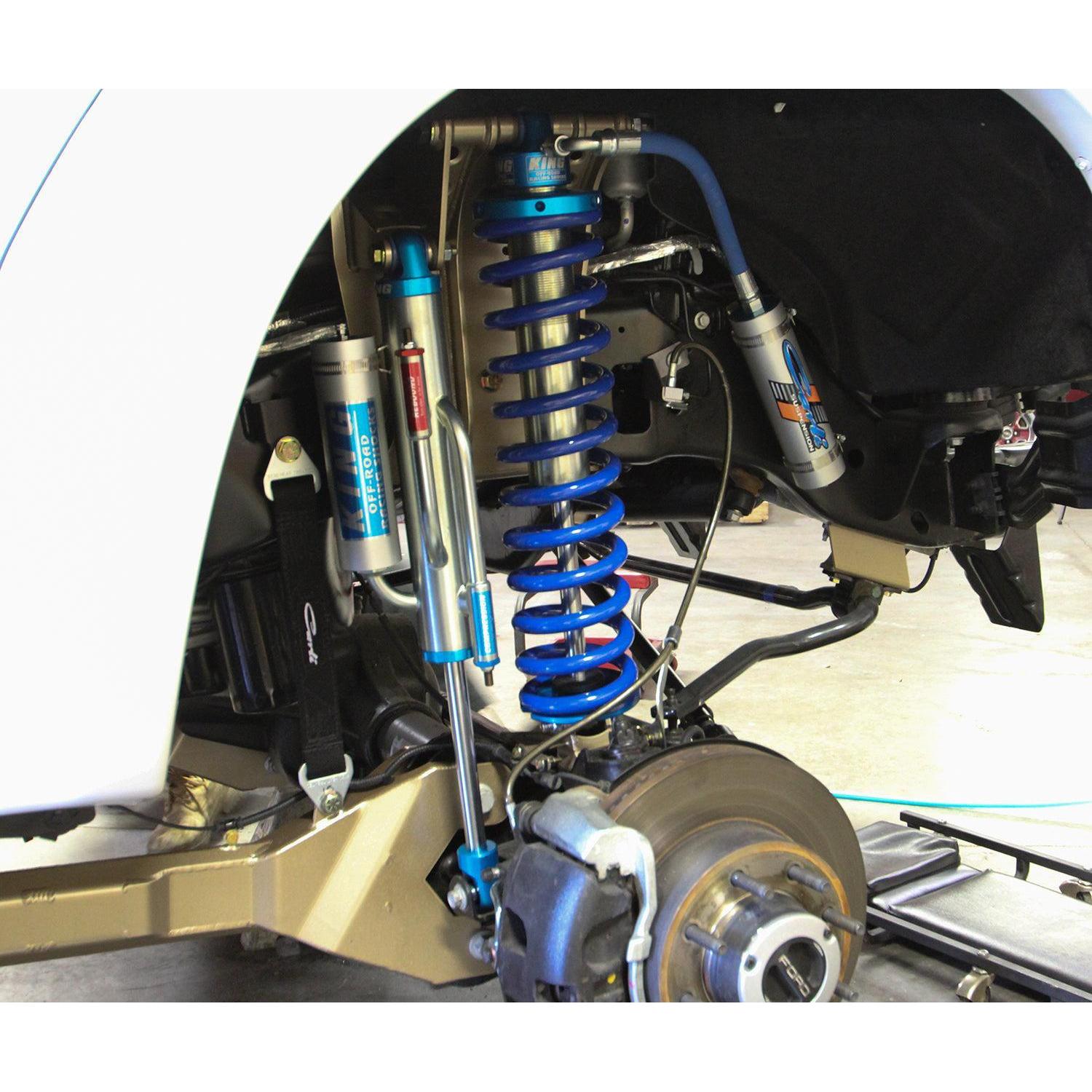

Each mount is constructed out of 1/4″ cold rolled steel for superior strength. These mounts bolt in place of the existing riveted coil bucket using 1/2″ Grade 8 fasteners. The coilover sits atop the axle in place of the coil-spring. The upper mount is lifted as high as possible to maximize travel length.

Bypass shock mounts are also incorporated into the brackets (positioned in the factory shock location) should go-fast desert shenanigans be in store.
