2005-2016 Powerstroke Adjustable Front Track Bar w/ 2.5"-4.5" Lift (CS-FPRB-05)

Note: NOT for use on stock height trucks

There's a wide variety of track bars on the market, but are they competent in their intended purpose? If you feel any deflection in the bar or wear in your bushings, you'll feel your front end floating, wandering, and worst case, death wobble. When you lift your truck, you increase the load while pulling the axle off-center, which is why it is important to upgrade your track bar, among other suspension components.

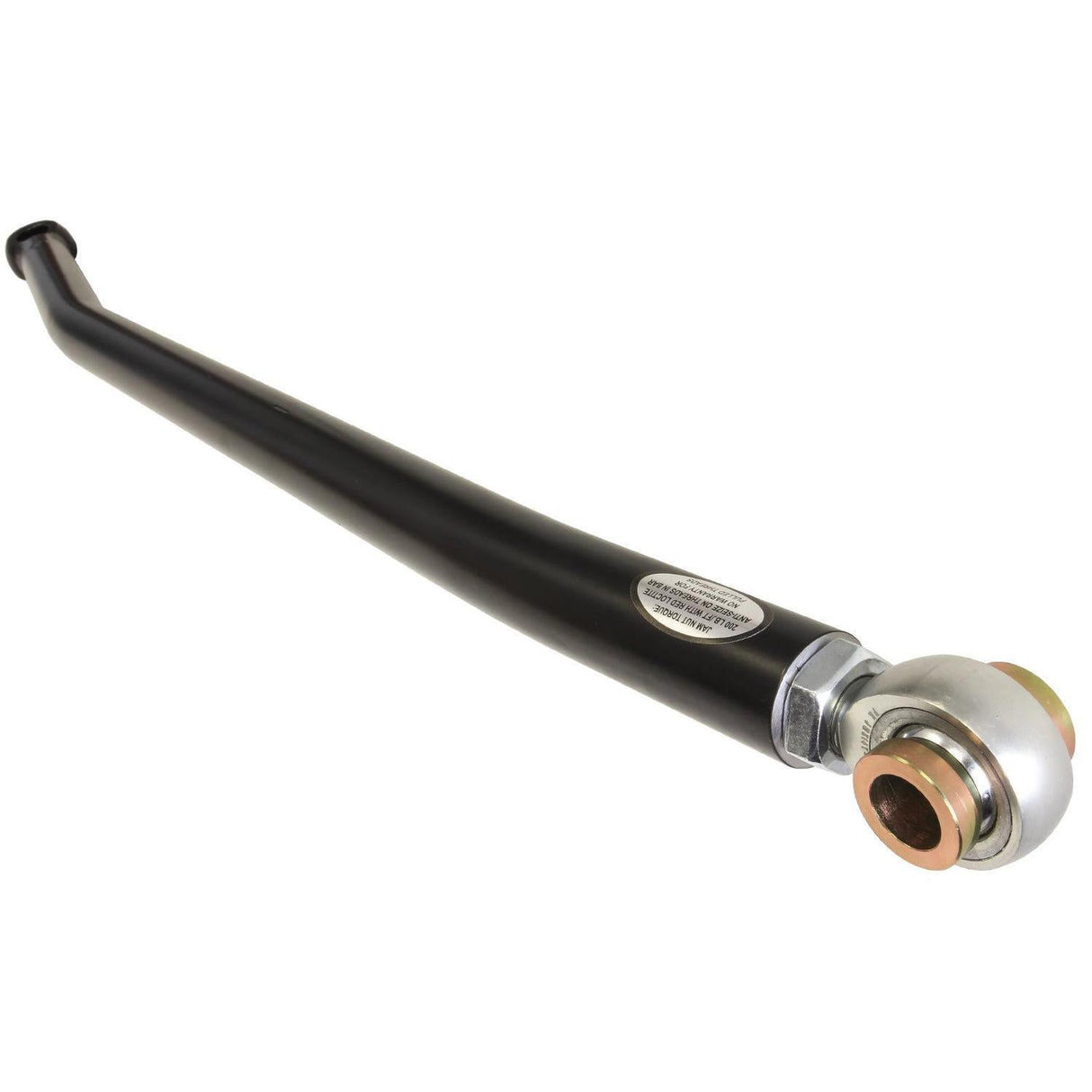

Enter the Carli Adjustable Front Track Bar, with significantly less deflection than OEM, excels in dampening vibrations without compromising handling. It features a 1.50 x 3/8″ Wall Tube, FK Race Heim Frame Connection, and a Machined Tapered Rod End to ensure optimal centering of the joint and provides 100% more surface area than a standard Jam Nut.

Part Number: CS-FPRB-05

• Engineered for 2.5"-4.5" front lift height
• Frame side features FK heim joint and custom machined spacers for maximum articulation and perfect fitment
• Offset machined tapered end re-aligns factory axle ball joint for lifted applications
• All components can be replaced individually for easy, cost-friendly maintenance

• This track bar will only fit Super Duties with 2.5″-4.5″ of Suspension Lift without the use of a track bar drop bracket.

Laser-sharp steering, zero slop, corrected geometry for 2.5 and 4.5″ lifts without travel-limiting drop brackets and maximum life from the factory axle ball joint. What more could you ask for?

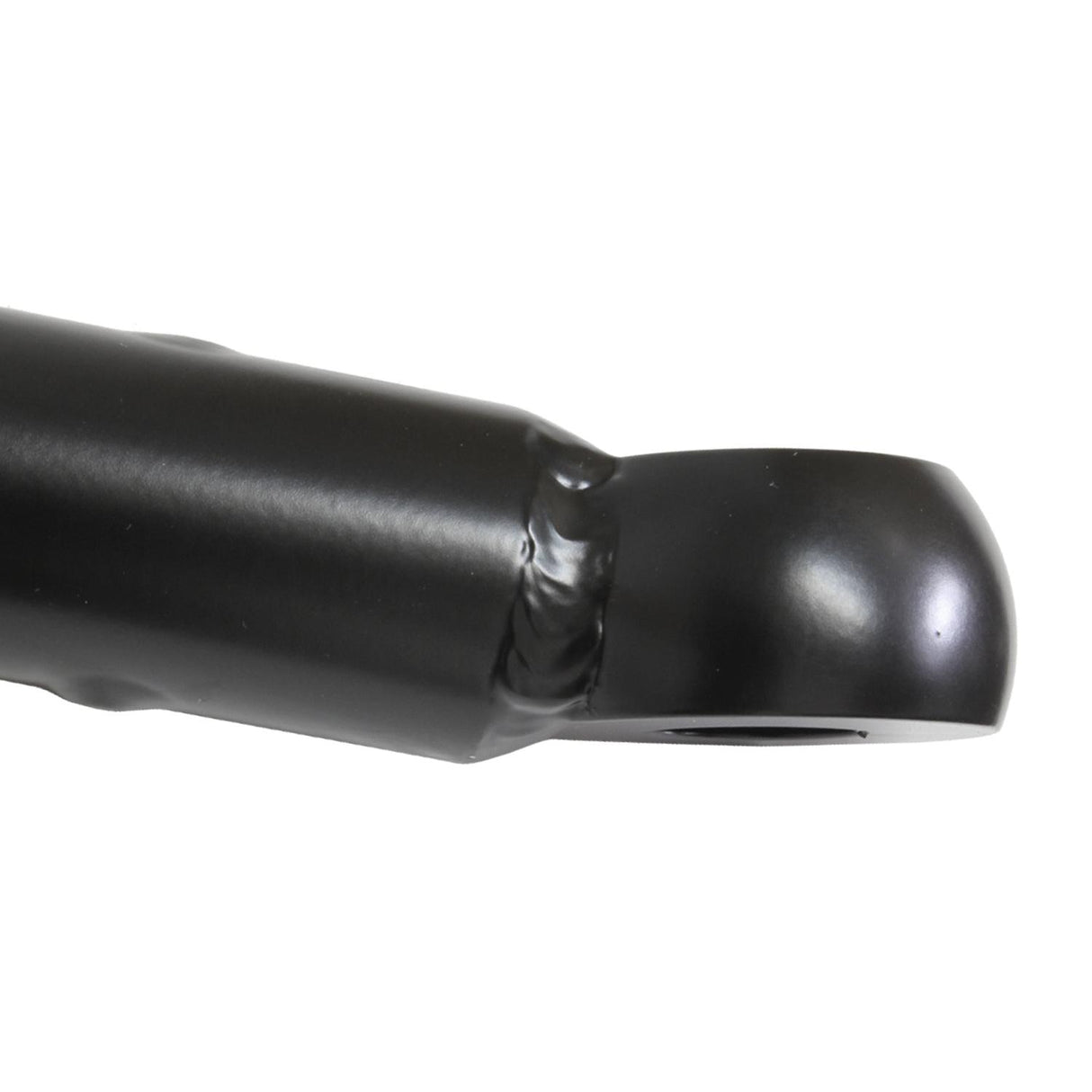

We designed our Adjustable Track Bar with a machined tapered rod end with a custom angle offset to increase ball joint life. This design puts less stress on the ball joint at full droop and keeps the ball joint pin vertical at ride height, prolonging the life of wear items. A big 7/8″ heim joint is used on the frame side and it comes with custom machined misalignment spacers. Constructed out of heavy wall mild-steel tube.

Please Note: This track bar will only fit SuperDuties with 2.5″-4.5″ of Suspension Lift without the use of a track bar drop bracket.
