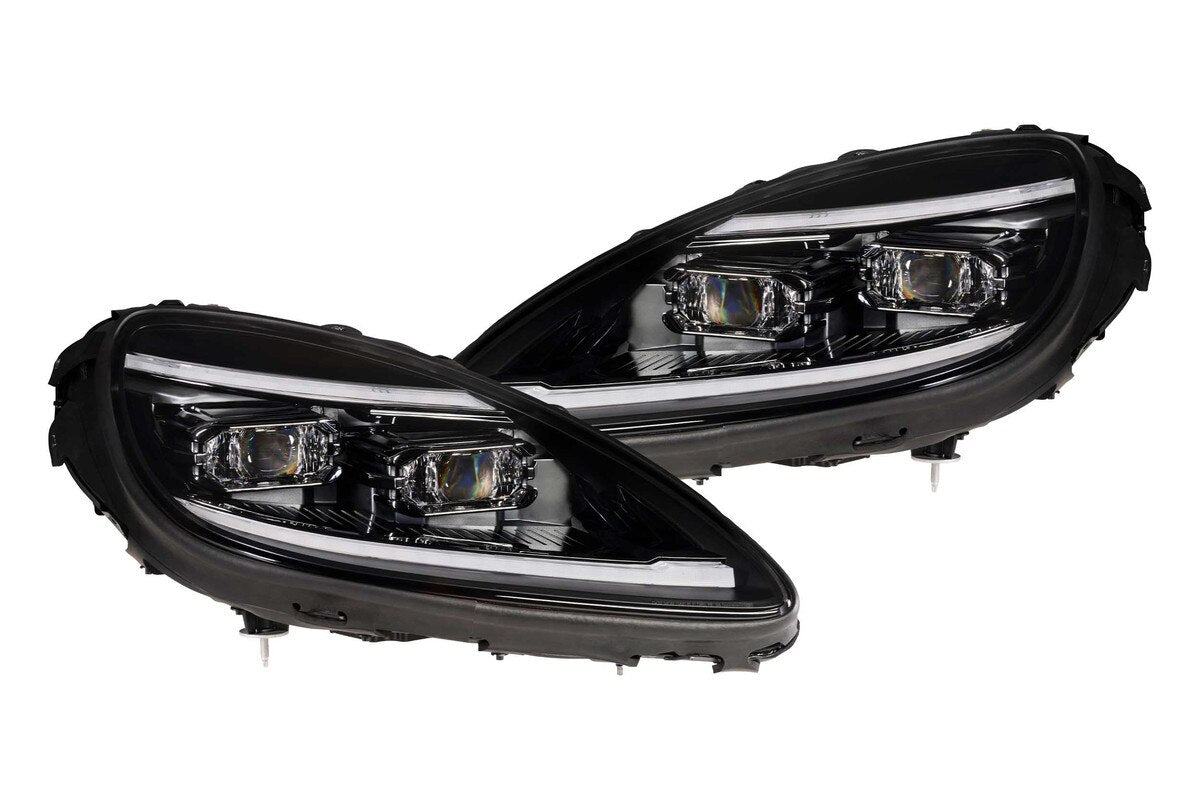

2005-2013 Corvette XB Evo LED Headlights (LF2-460)

Fits

Ditch the dated, hazy factory housings for a massive leap in nighttime visibility and modern Corvette styling. These Morimoto XB Evo units don't just look the part; they outshine modern luxury cars with Bi-LED projectors and unique "side shooter" optics designed to dominate the dark. Built for the C6 owner who demands elite performance and a perfect fit, these headlights are the ultimate upgrade for your American icon.

Part Number: LF2-460

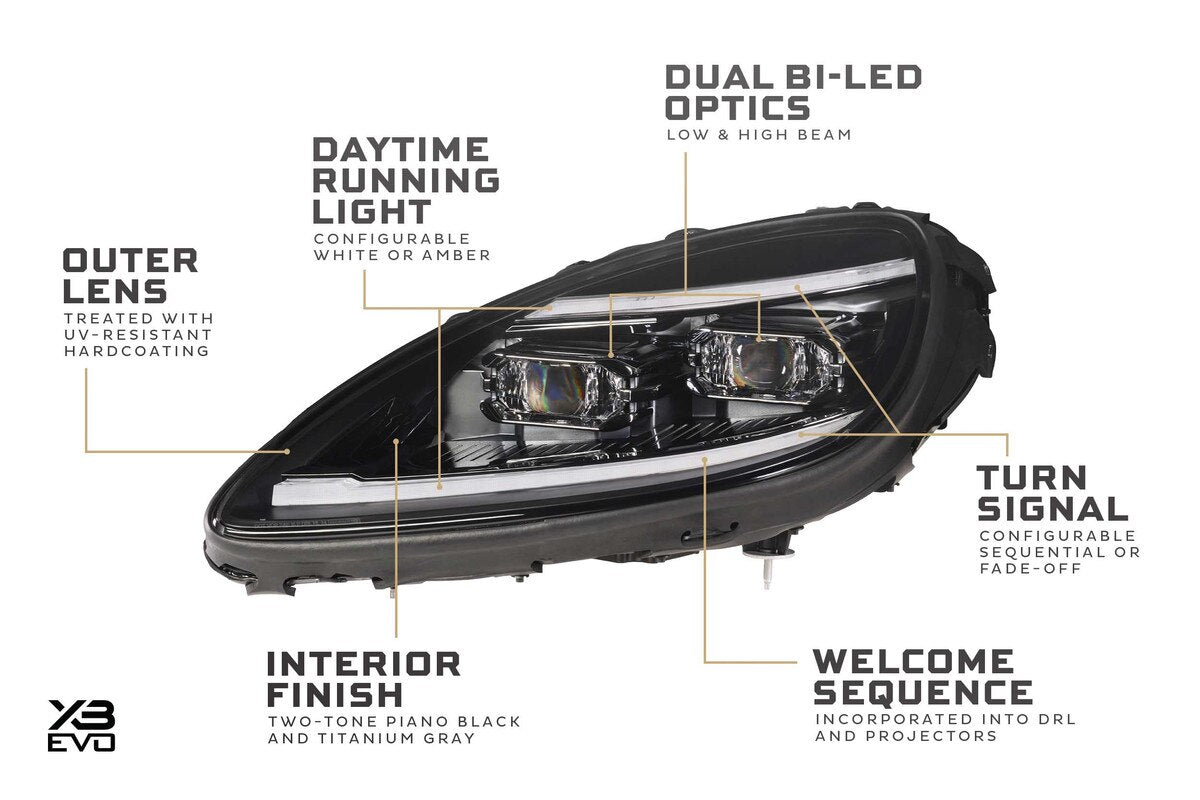

• Dual Bi-LED Projector Power
• Ultra-Wide Side Shooter Optics
• Customizable Amber/White DRLs
• Sequential or Fade-Off Signals
• UV-Shield Hard Coated Lenses
• Full DOT/SAE Compliance
• Plug-and-Play Factory Integration

• Traffic Pattern: LHD / Right Hand Traffic Only

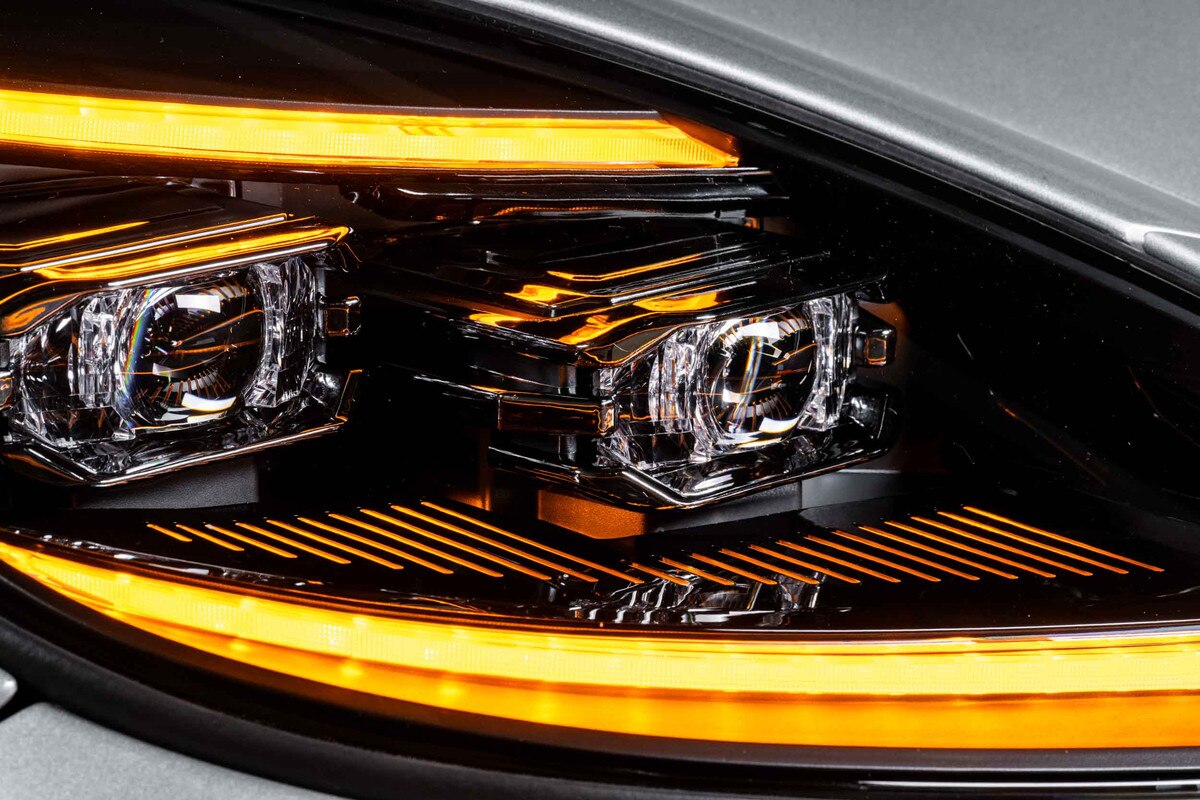

• Main Optics: 2x Type 2 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)

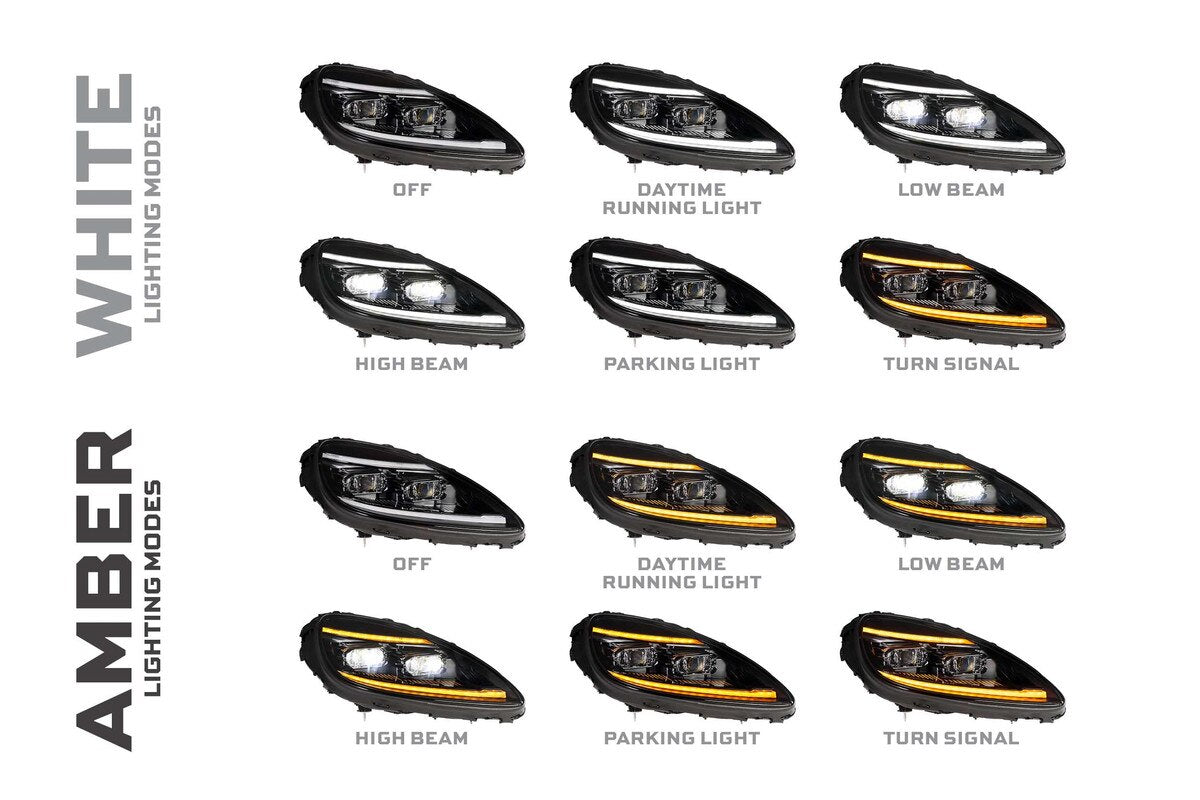

• Functions: Low Beam, High Beam, Parking Light, Turn Signal, Welcome Sequence, Daytime Running Light (DRL)

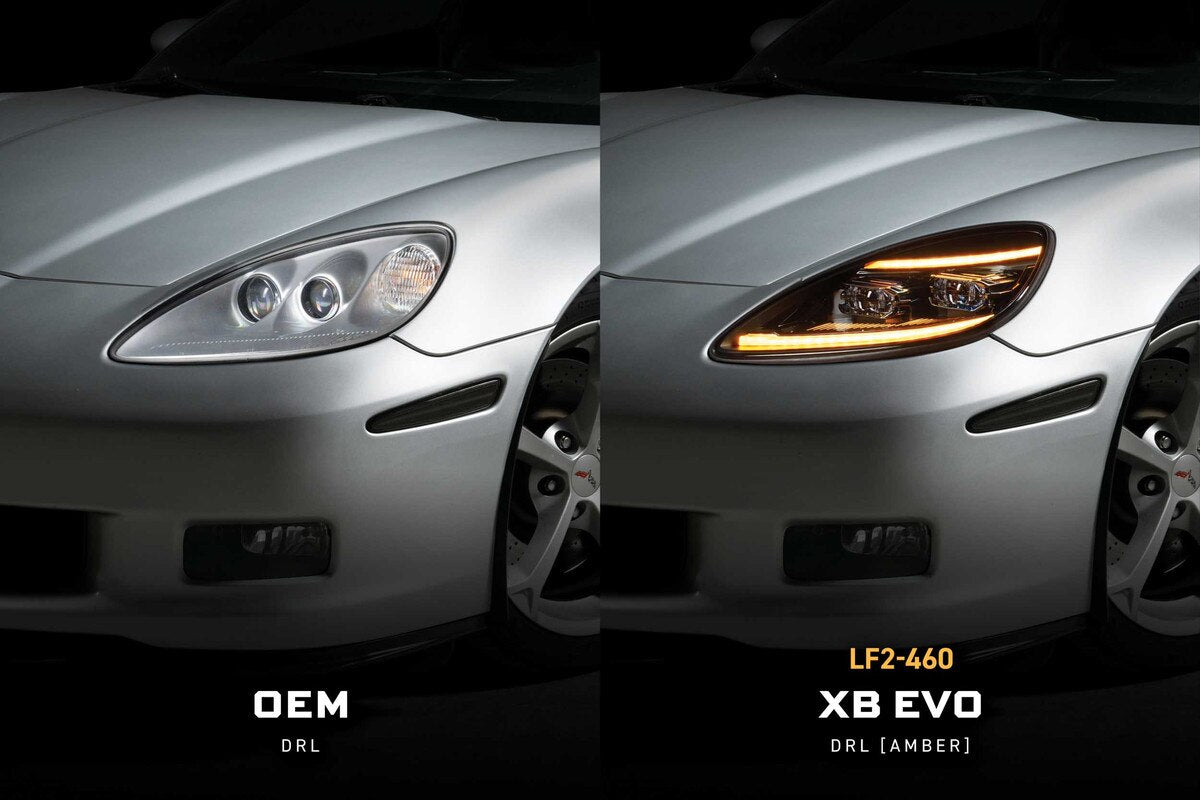

• DRL Color: White or Amber (Configurable)
• Turn Signal: Sequential or Fade-Off (Configurable)
• Internal Bezel Finish: Black and Titanium

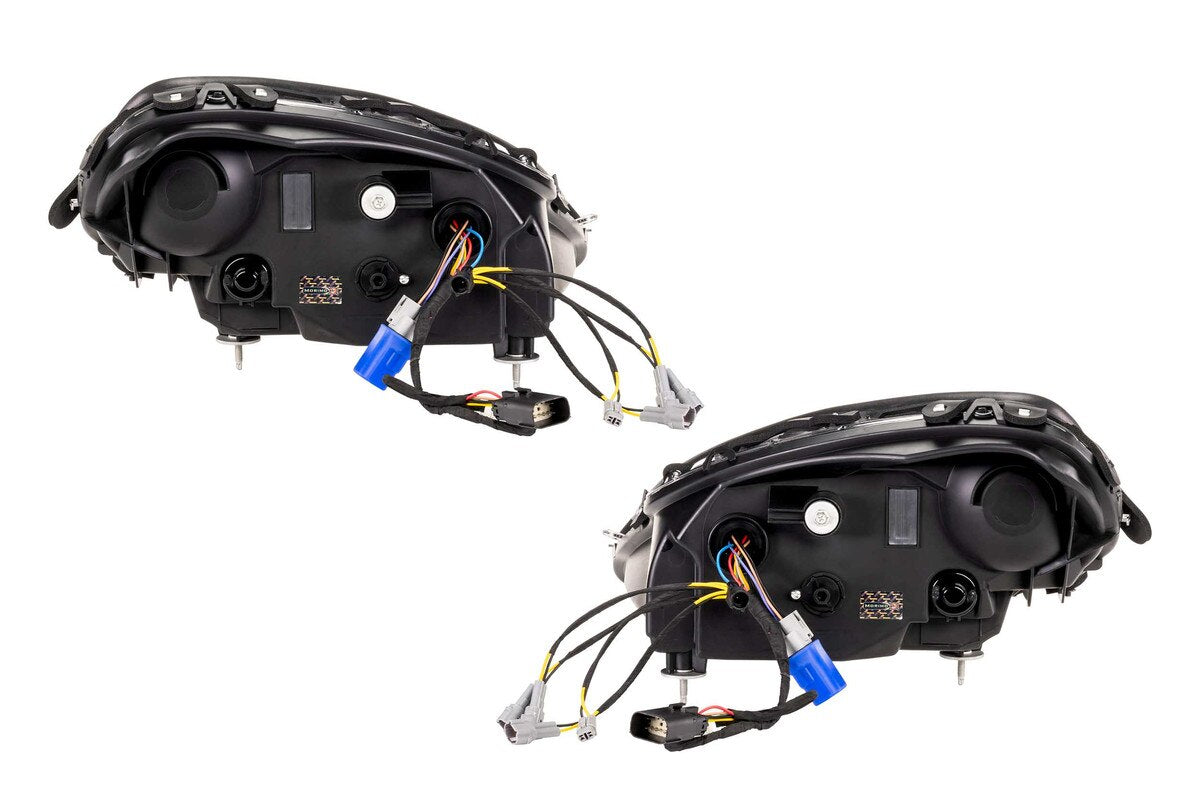

• Wiring: Plug and Play for all trim levels
• Lens: Polycarbonate with UV-Shield Hard coating

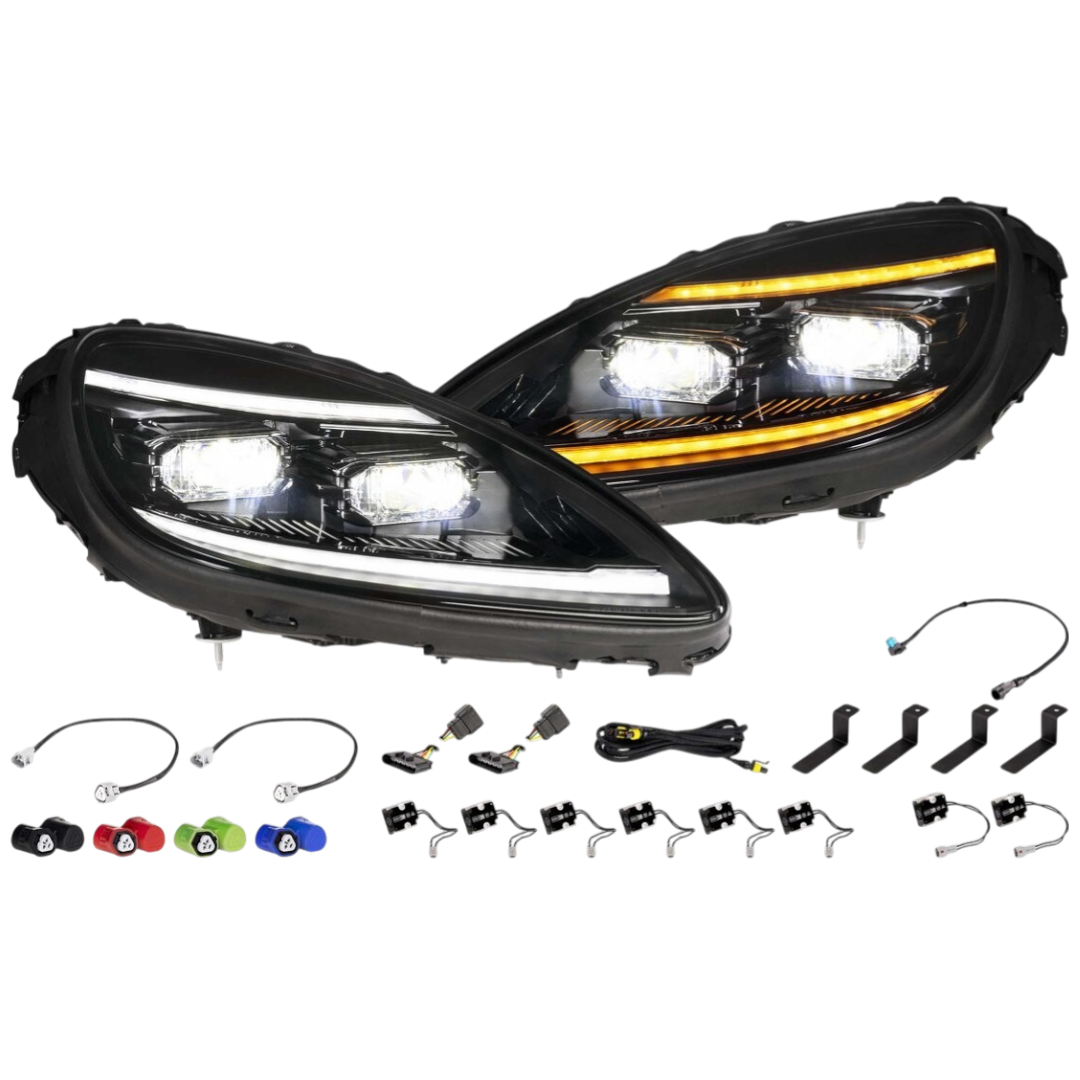

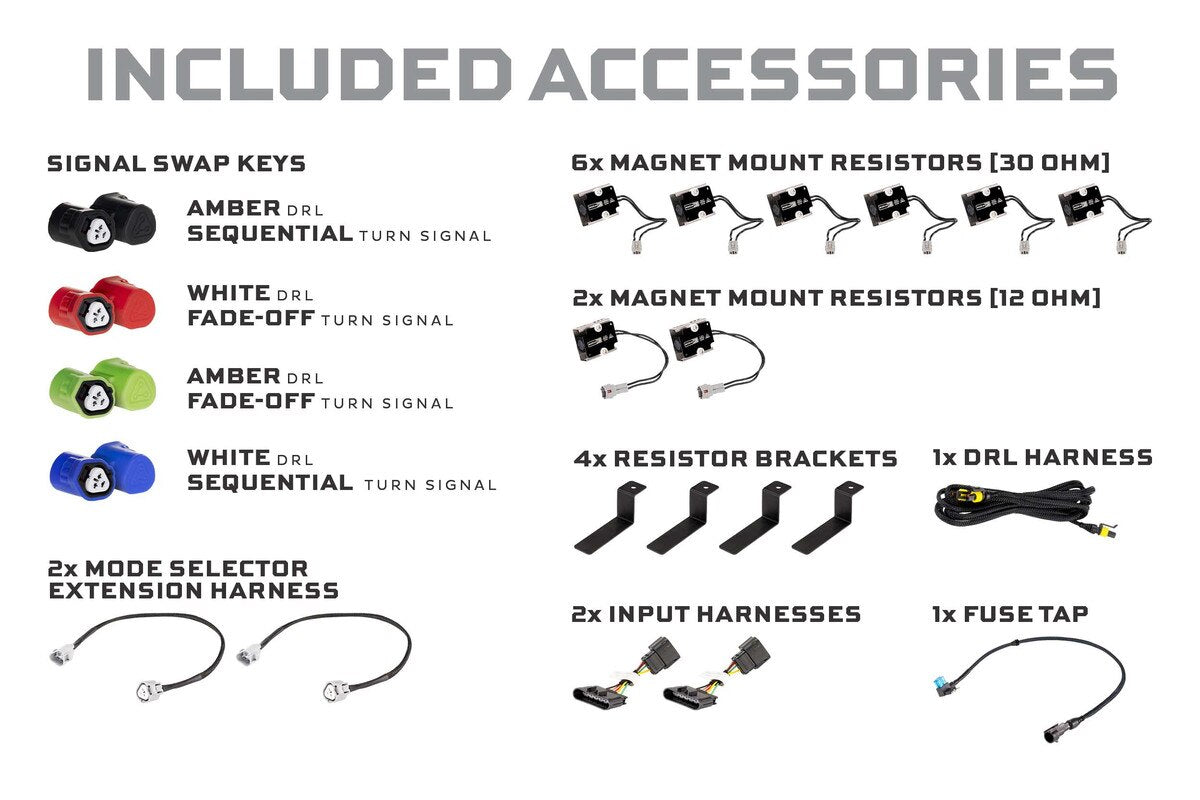

• 1 x Right Hand / Passenger Side Headlight
• 1 x Left Hand / Driver Side Headlight
• 8 x Mode Selectors (Four Pairs)
• 8 x Magnet-Mount Resistors
• 4 x Resistor Brackets
• 2 x Mode Selector Extensions
• 2 x Input Harnesses
• 1 x DRL Harness
• 1 x Fuse Tap

• Replaces GM Part Numbers: 20789679, 20789680, 25867785, 25867786, 20936420, 20789706, 15849088, 15875917, 15237568, 15237578, 20832116, 20832118, 20909411, 20909412, 19371153, 19371151
• These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility with cars outside of North America.
• Integrated vertical adjusters allow for precise aiming on lowered or stock-height vehicles.

• Designed to meet all DOT, SAE, and FMVSS108 Standards.

Click Here For Instructions

This Morimoto product includes a Five (5) Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
