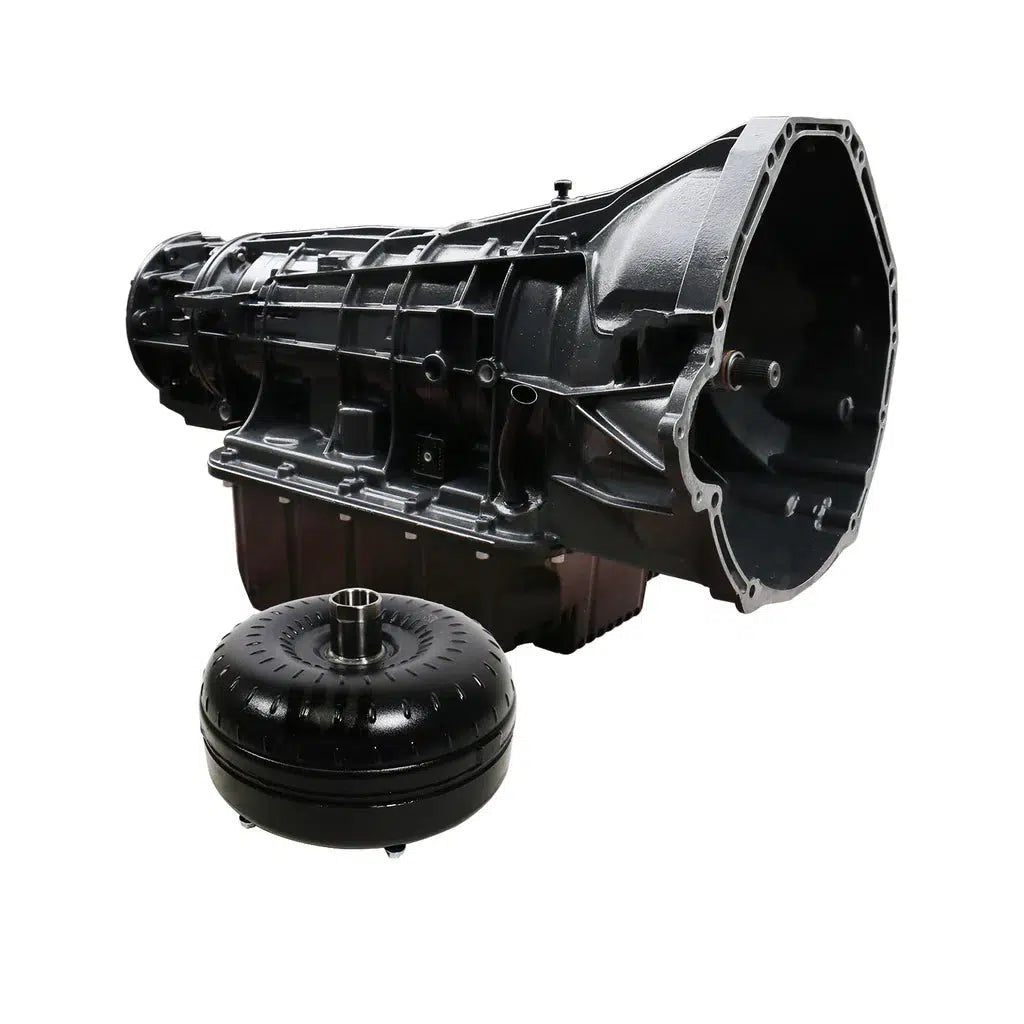

2005-2007 Powerstroke TowMaster 5R110 Transmission & Converter (4WD) (1064484SM)

BD Diesel Part Number: 1064484SM
$7,079.00 CAD

Additional Refundable Core Deposit Required of $2,400.00 CAD.

Purchase to earn 7079 Dirty Dollars Learn More

Description

Fits

 Year Make Model Engine
2005-2007 Ford F-Series & E-350/E-450 Superduty 2WD/4WD w/ Flange Drivetrain 6.0L Powerstroke
2005 Ford E-350 Club Wagon 2WD/4WD w/ Flange Drivetrain 6.0L Powerstroke
2007 Ford E-350 Econoline 2WD/4WD w/ Flange Drivetrain 6.0L Powerstroke

 Dyno tested together to guarantee performance and reliability that will meet your Powerstrokes power & torque demands whether you're on the street, track, or towing, BD is an ideal choice; and every BD Diesel transmission includes an HD pan for increased fluid capacity

Part Number: 1064484SM

Features

Transmission:

  • Increase the durability of your drivetrain
  • BD aluminum HD deep pan, increases oil capacity by 6qt
  • Upgraded sump filter
  • Replace plastic pressure plugs in valve body with aluminum
  • HD snap ring and blow-off valve to prevent runaway pressure from damaging the case
  • Reworked front pump
  • Clutch Count: COAST CLUTCH 3
  • Clutch Count: FORWARD 4
  • Clutch Count: LOW REVERSE 6
  • Clutch Count: INTERMEDIATE 5 (67% increase over stock)
  • Clutch Count: DIRECT 6 (20% increase over stock)
  • Clutch Count: OVERDRIVE 5 (67% increase over stock)
  • Each transmission is dyno tested

Torque Converter:

  • Enhanced Stall - Street/Towing applications
  • Torque multiplying cast aluminum stators
  • Lower rpm response than the stock converter
  • More efficient operation
  • Less heat and better fuel economy
  • Stamp-forged steel front cover
  • Furnace-brazed fins
  • Up to triple the amount of lock-up clutch material

Installation

Warranty

Parts Only - No Race or Sled Pull abuse covered.

  • 36-Months
  • 150,000 Miles
  • Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
