2005-2007 Powerstroke Backcountry 2.5-3.5" Lift Kit (CS-FLVL-BC-CS-05)

Carli Suspension
$3,862.08 CAD
Notices

This item may have additional freight costs. Learn More

Build Your Kit

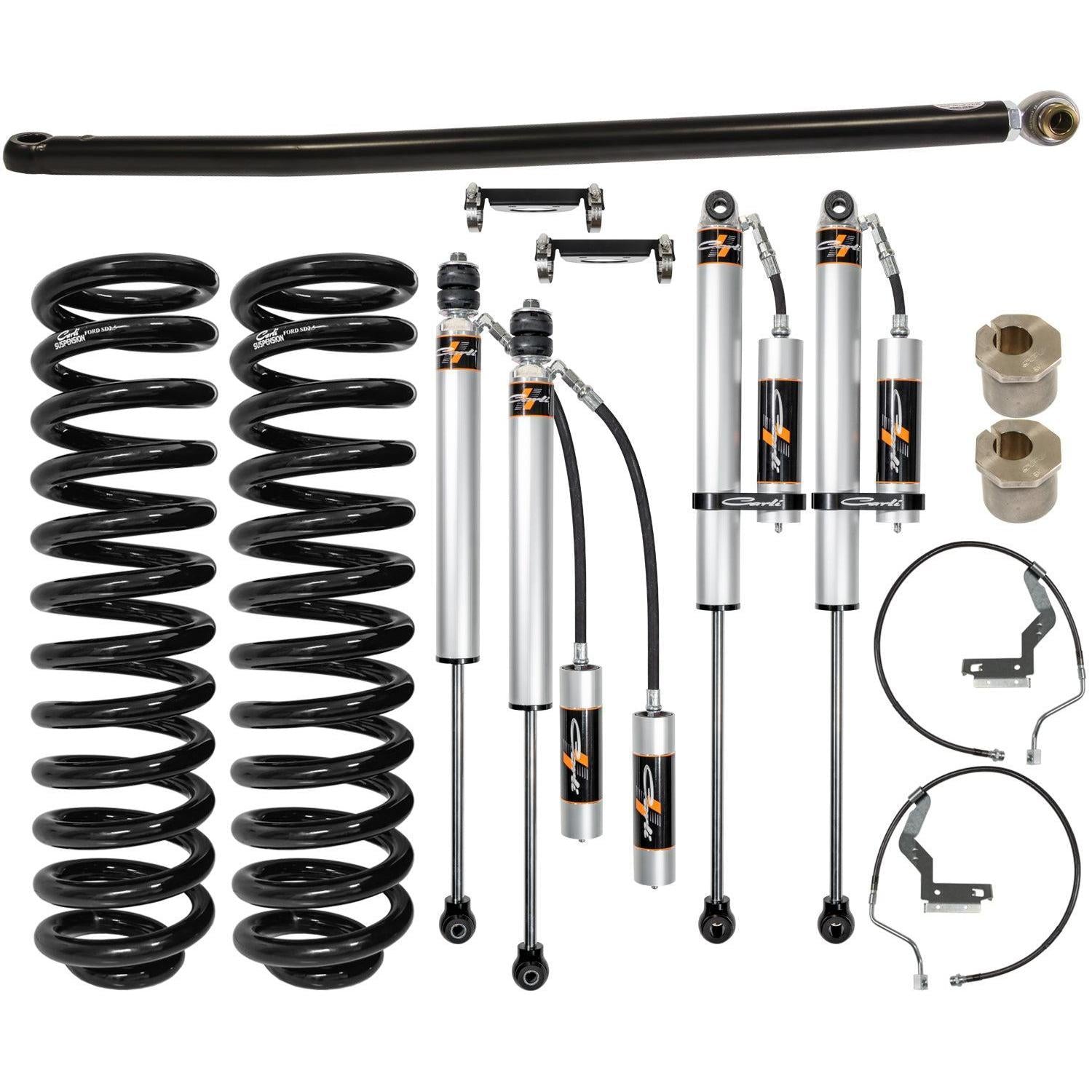

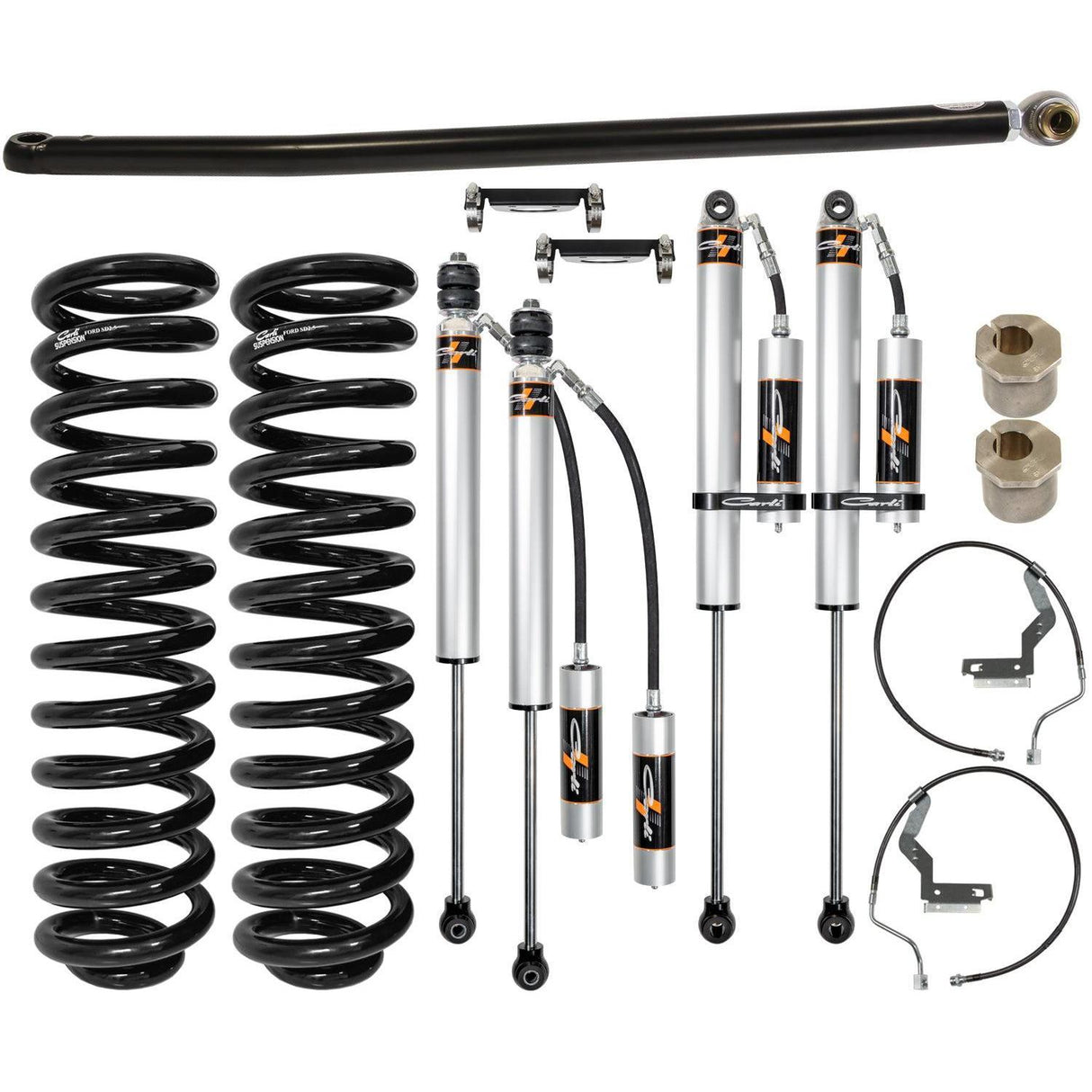

The perfect lift kit for those wanting optimal performance on highways and off-road, this Backcountry lift kit includes Carli custom-tuned 2.0 remote reservoir shocks built with 6063 Aluminum, 5/8″ hardened steel chrome plated shaft, and 6061 billet rod ends. Linear-Rate Coil Springs are also included to maintain a smooth and comfortable ride; they are tighter when cornering and react consistently throughout any compression range, making them more responsive and predictable.

Step 1 of 4 · Optional

Leaf Spring Options

Step 2 of 4 · Optional

Leaf Spring Shackle

The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Step 3 of 4 · Optional

Radius Arms

Icing on the cake, these arms add Additional Tire Clearance, Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Constructions, Serviceable 17-4 Stainless Spherical Bearings and Adjustable Caster Correction up to 3.5° over stock specs to leave Death-Wobble in the rear-view.

Step 4 of 4 · Optional

Low Mount Steering Stabilizer

Bolt in steering stabilizer which compliments a Carli, or factory, high mount stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers.
Your Build
2005-2007 Powerstroke Backcountry 2.5-3.5" Lift Kit (CS-FLVL-BC-CS-05)
$3,862.08

Purchase to earn 3862  Dirty Dollars Learn More

Truck Fitment

Description

The perfect lift kit for those wanting optimal performance on highways and off-road, this Backcountry lift kit includes Carli custom-tuned 2.0 remote reservoir shocks built with 6063 Aluminum, 5/8″ hardened steel chrome plated shaft, and 6061 billet rod ends. Linear-Rate Coil Springs are also included to maintain a smooth and comfortable ride; they are tighter when cornering and react consistently throughout any compression range, making them more responsive and predictable.

Part Number: CS-FLVL-BC-CS-05

Features
  • Carli-Tuned remote reservoir 2.0 shocks, which provide a more comfortable on-road feel and better off-road performance
  • Corrosion-resistant aluminum bodies provide a long-lasting finish
  • Linear rate coil springs, front and rear shock package, brake line kit, bump stop drops, caster correction shims, and adjustable track bar
  • Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance
  • Increases wheel travel to 9" front and 13.8" rear
