2005-2007 Powerstroke 4" Radius Arm Lift Kit (BDS1931H)

Fits

Click here to Customize this Kit

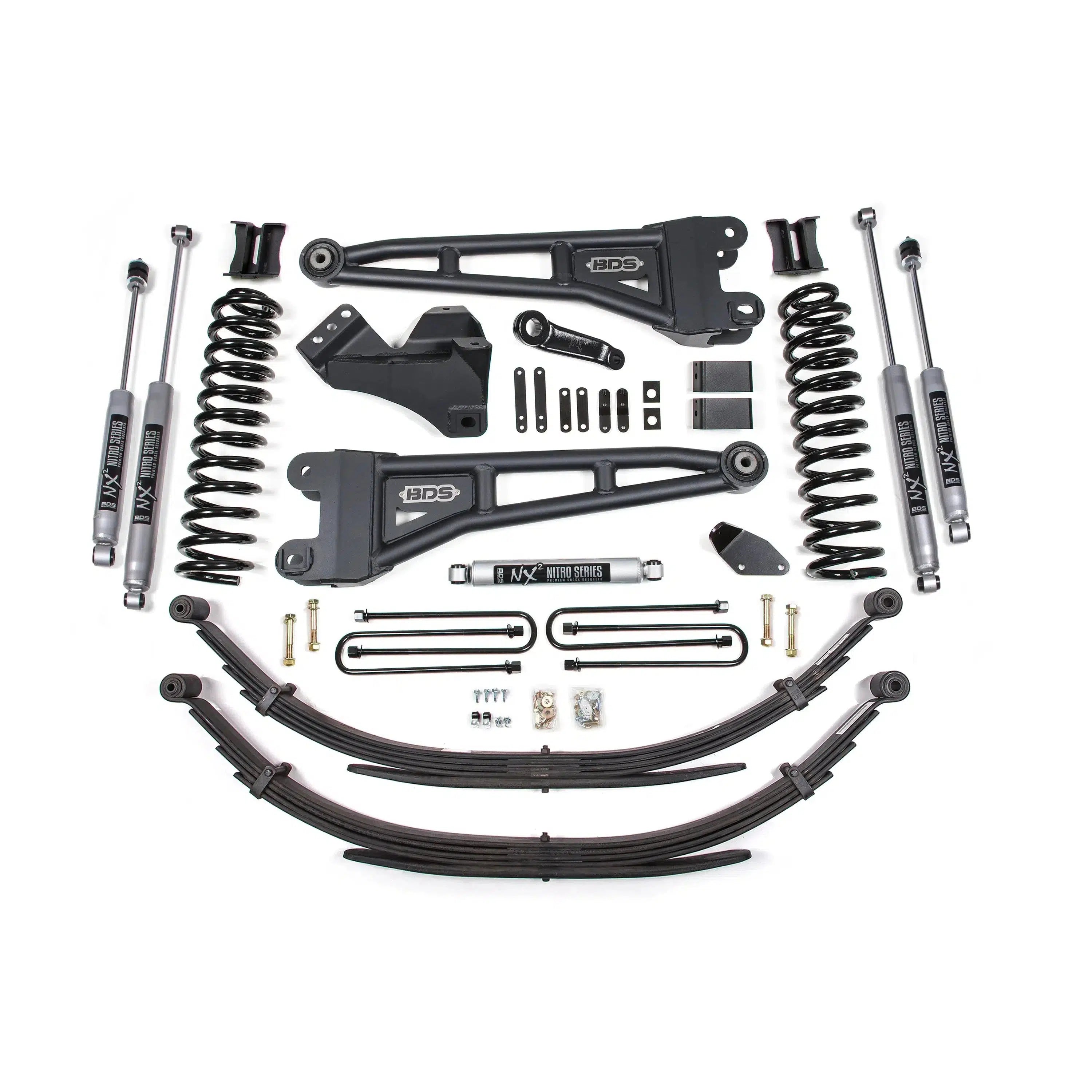

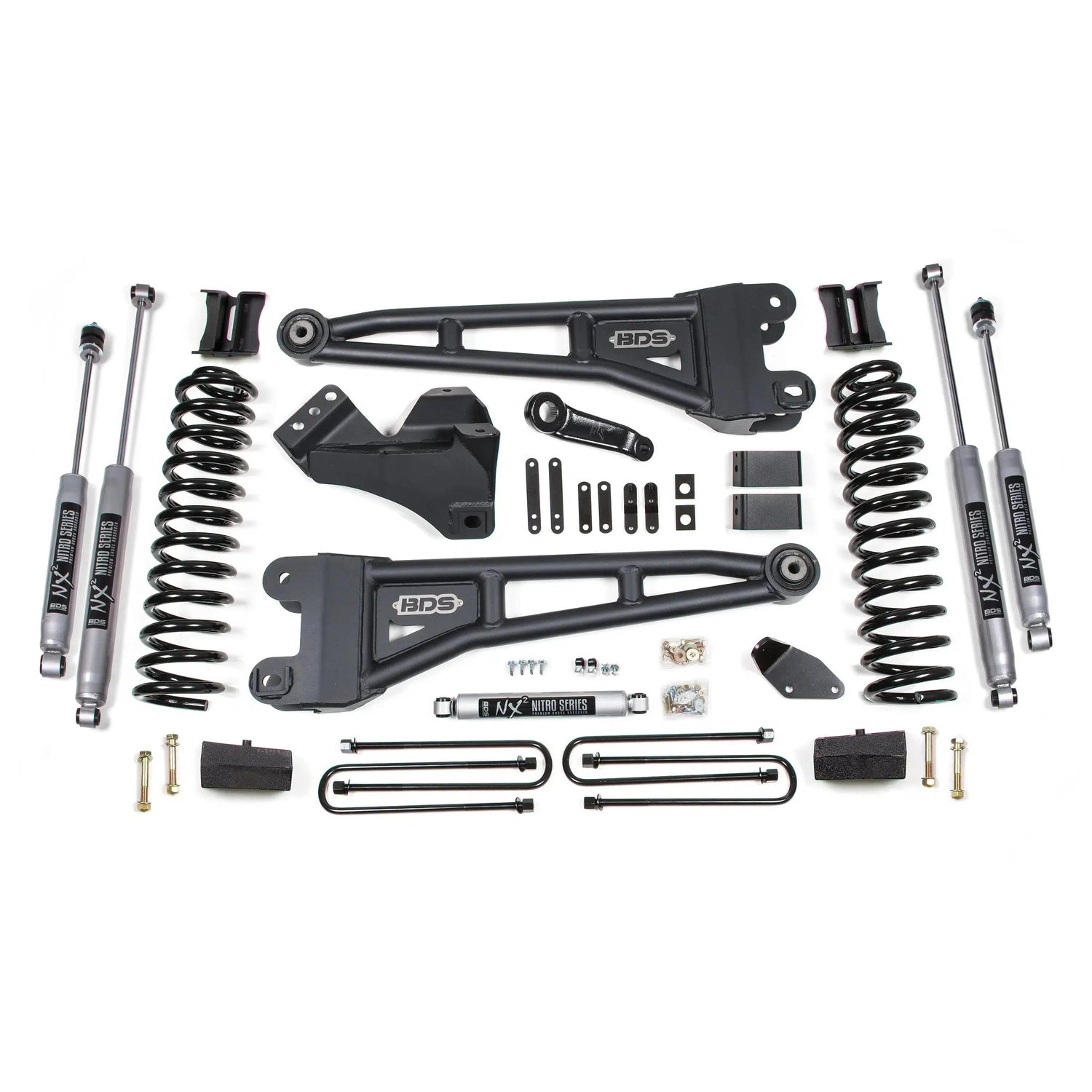

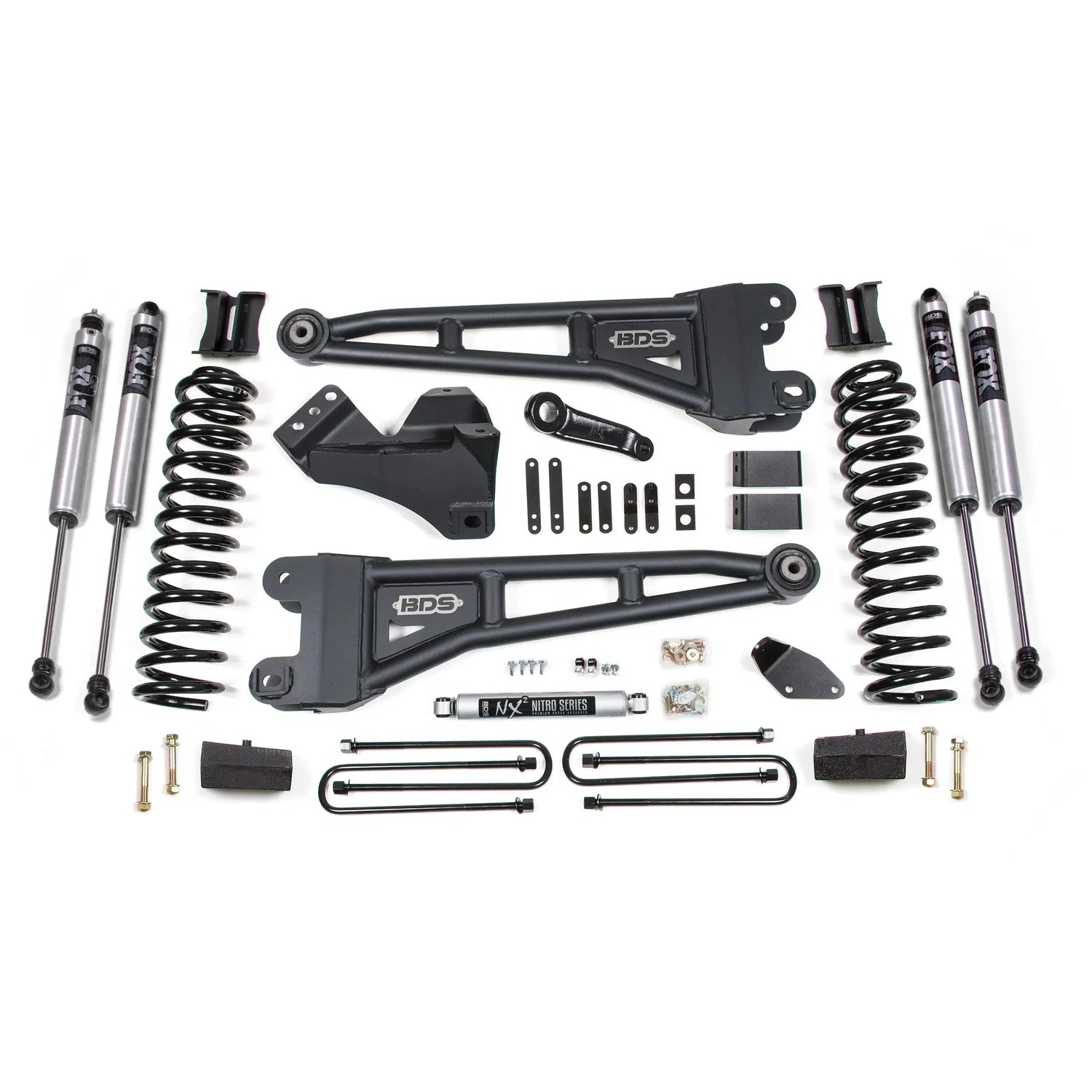

Take your Powerstrokes performance, capability, and stance to the next level with this modest, 4" Radius Arm Lift Kit from BDS, Pro-Ride coil springs, HD replacement radius arms, forged drop pitman arm, and track bar bracket for steering correction, sway bar relocation, brake line brackets, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

Part Number: BDS1931H

• Easy, 100% Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• HD tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• NX2 Nitro shocks or Fox 2.0 Performance shocks


Tire Fitment:

• 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Rear Lift Option

Block Kit

• Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
• Blocks made of steel for high strength.
• Designed to provide correct pinion angles.

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

• These trucks were manufactured with and without top-mounted overload springs on the rear leaf springs. A top-mounted overload is an extra leaf separate from the pack that is set above the main leaf. You will need to identify which you have before ordering.
• If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the accessories section.
