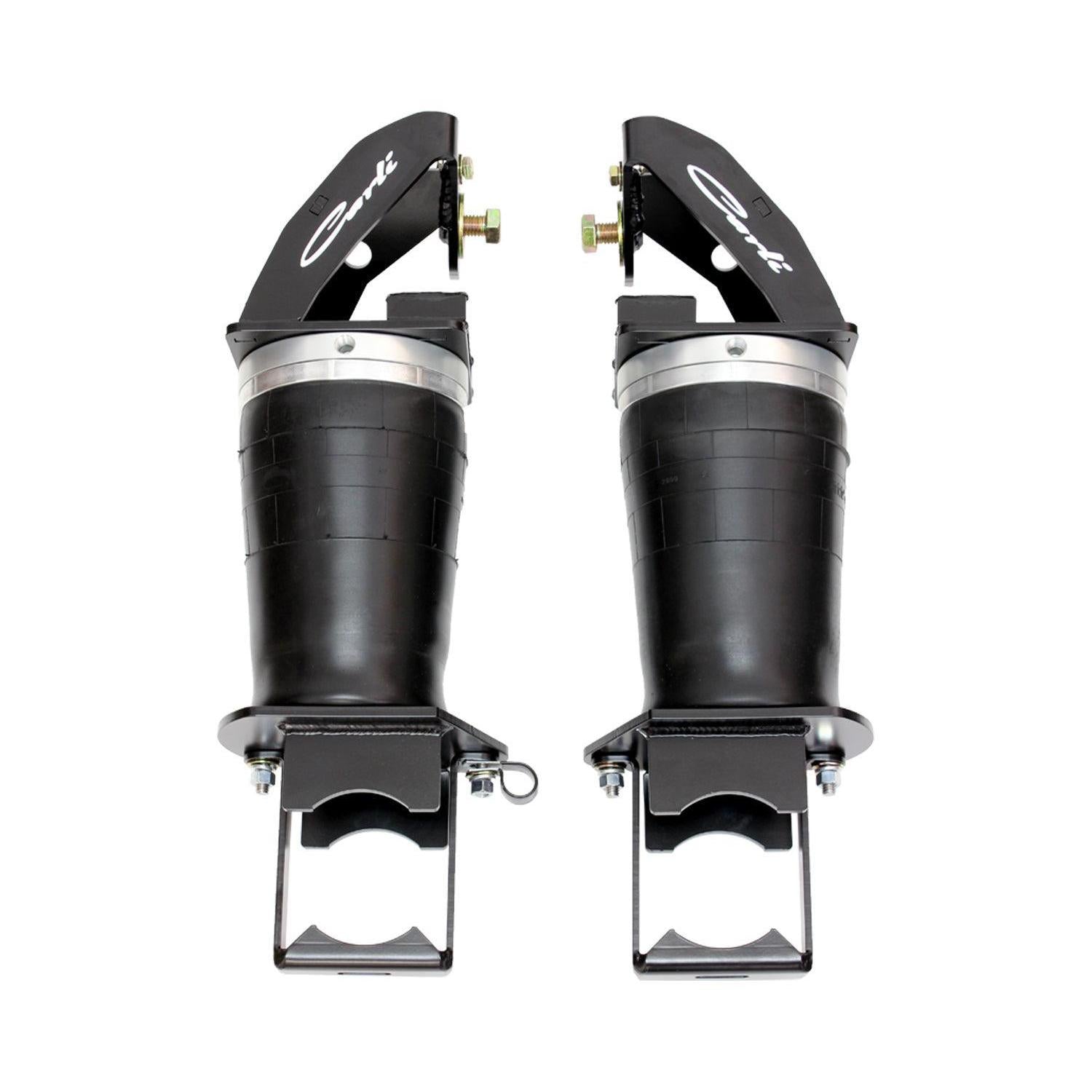

2005-2007 Powerstroke Long Travel Rear Air Bag Kit w/ 4.5" Lift (CS-FLTB-05)

These Long Travel Air Bags are perfect for those who still run the factory leaf springs and want improved ride quality without swapping springs or compromising payload capacity. Featuring a tapered piston and a folding sleeve bag to avoid any interference when deflated. Perfect for those who haul 5th wheels, campers, boats, and so on, these bags have an operating range of 0 to 100 psi (bags are rated to 2,000 lbs./ea. at 100psi).

Part Number: CS-FLTB-05

• Supports up to 12" of rear travel
• 2,000lb capacity per bag at max 100psi
• Restores Factory payload to full progressive spring pack
• Can be used as a manual fill or with onboard air systems

Increase the load capacity and towing capability of your Super Duty without sacrificing ride quality and comfort. Our airbags work with up to 12″ of suspension travel and are 100% bolt-on DIY. You can install onboard air or use them manually. These are heavy-duty and rated up to 100 psi with a normal operating range of 5 to 75 psi, suitable for big 5th wheels, work trucks, campers, boats, bumper pull trailers and hauling.

NOTE: Ford Long travel airbags will ONLY work with 2″ of rear lift on an F350 or 3″ on an F250! These cannot be used on a stock height truck!

* Carli Ford Super Duty Airbag Kits will only fit 2005-2016 SuperDuties with the 3.5″ axle tube.
