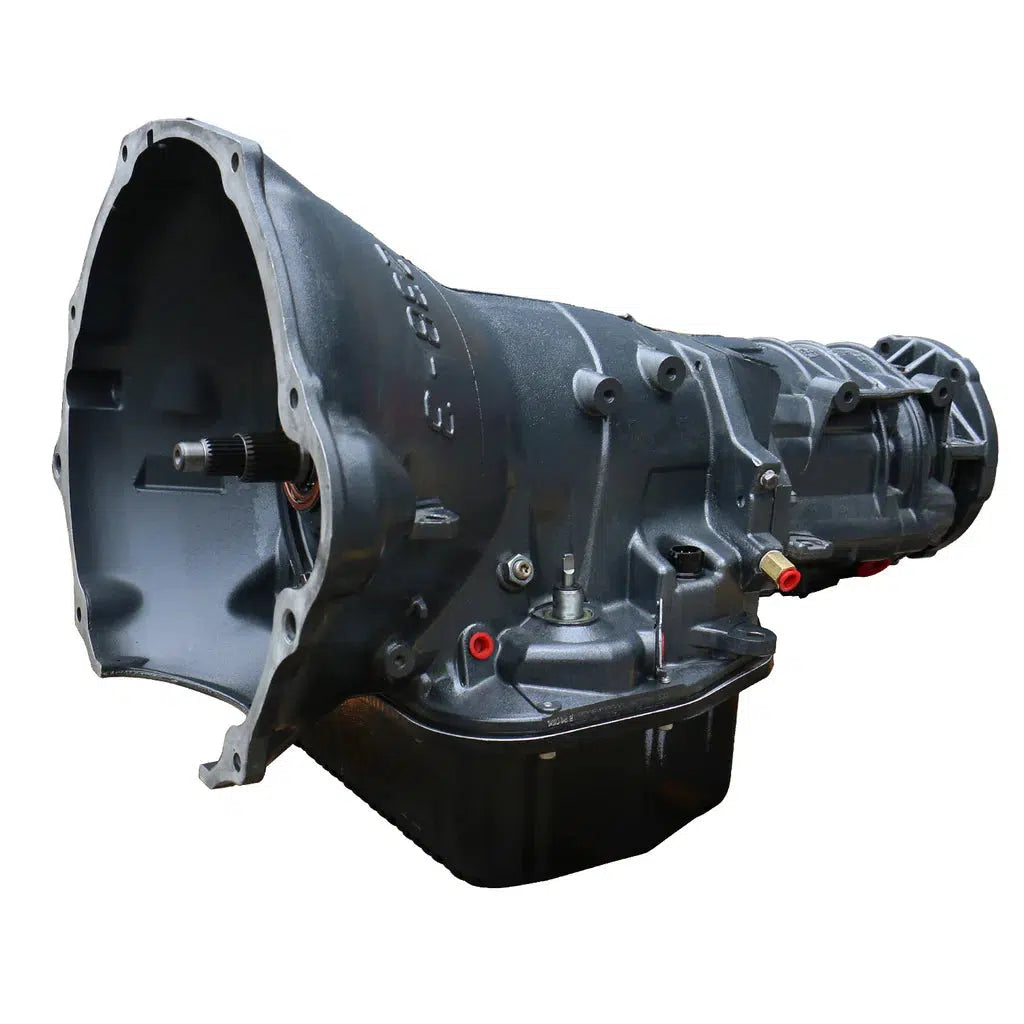

2005-2007 Cummins Towmaster 48RE Transmission W/ TVV Stepper Motor (4WD) (1064234F)

Fits

Increase your drivetrain and take it to the next level with a BD transmission. Designed to handle the stock engine's output and then some, this transmission will give your ride some serious durability. Each transmission also includes BD's own heavy-duty pan for added fluid space. And most come with an auxiliary transmission filter kit for added protection!

Part Number: 1064234F

• Increase the durability of your drivetrain
• Stock thrust bushings replaced with roller Torrington bearings
• Every transmission is tested on a dyno
• Upgraded Valvebody

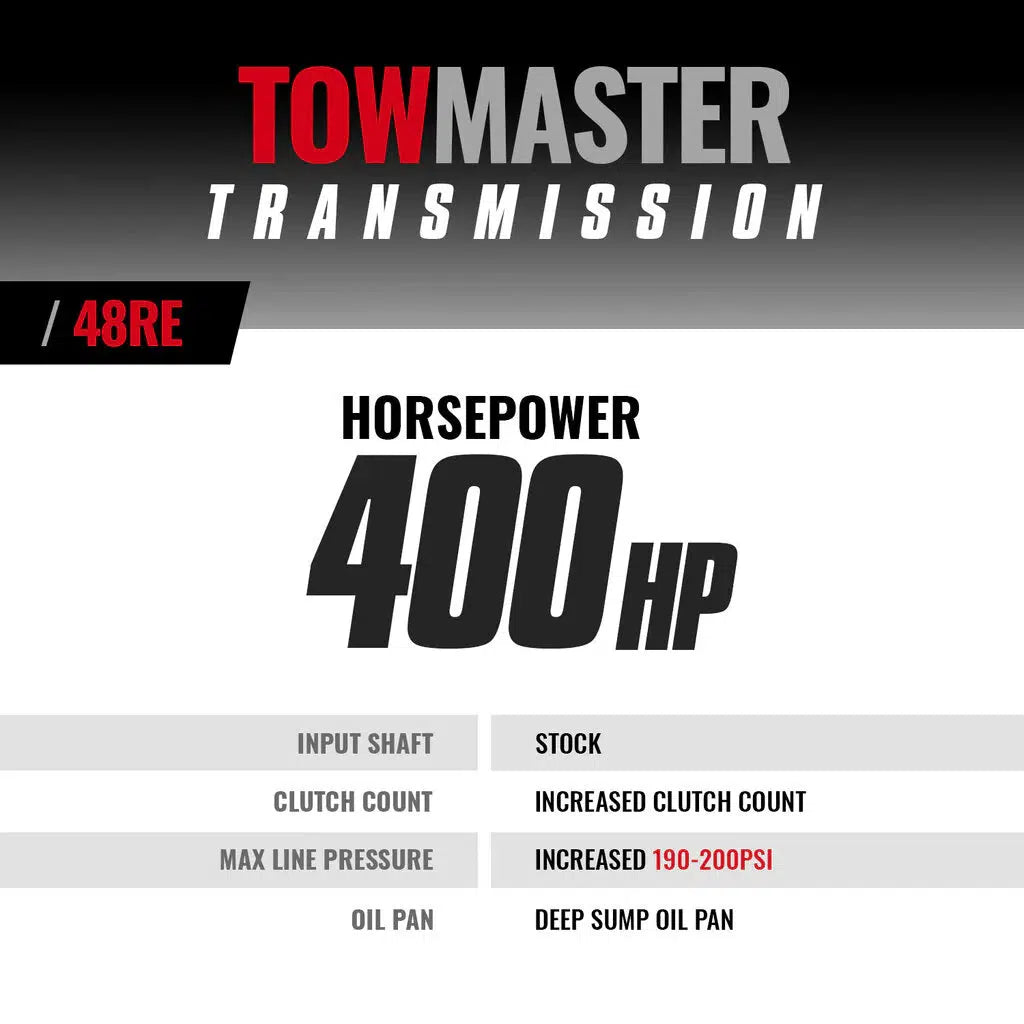

• Increased line pressure to 190-200psi
• No shuttle shifting problems
• Drilled intermediate shaft for increased lubrication
• Modified manual valve for lube in all positions
• Billet band strut
• Billet band lever
• Clutch Count: OD 6
• Clutch Count: OD DIRECT 10
• Clutch Count: FORWARD 5
• Clutch Count: DIRECT 6
• High temp/energy Raybestos band
• Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock
• Upgraded governor solenoid
• Cooler line case saver in every transmission

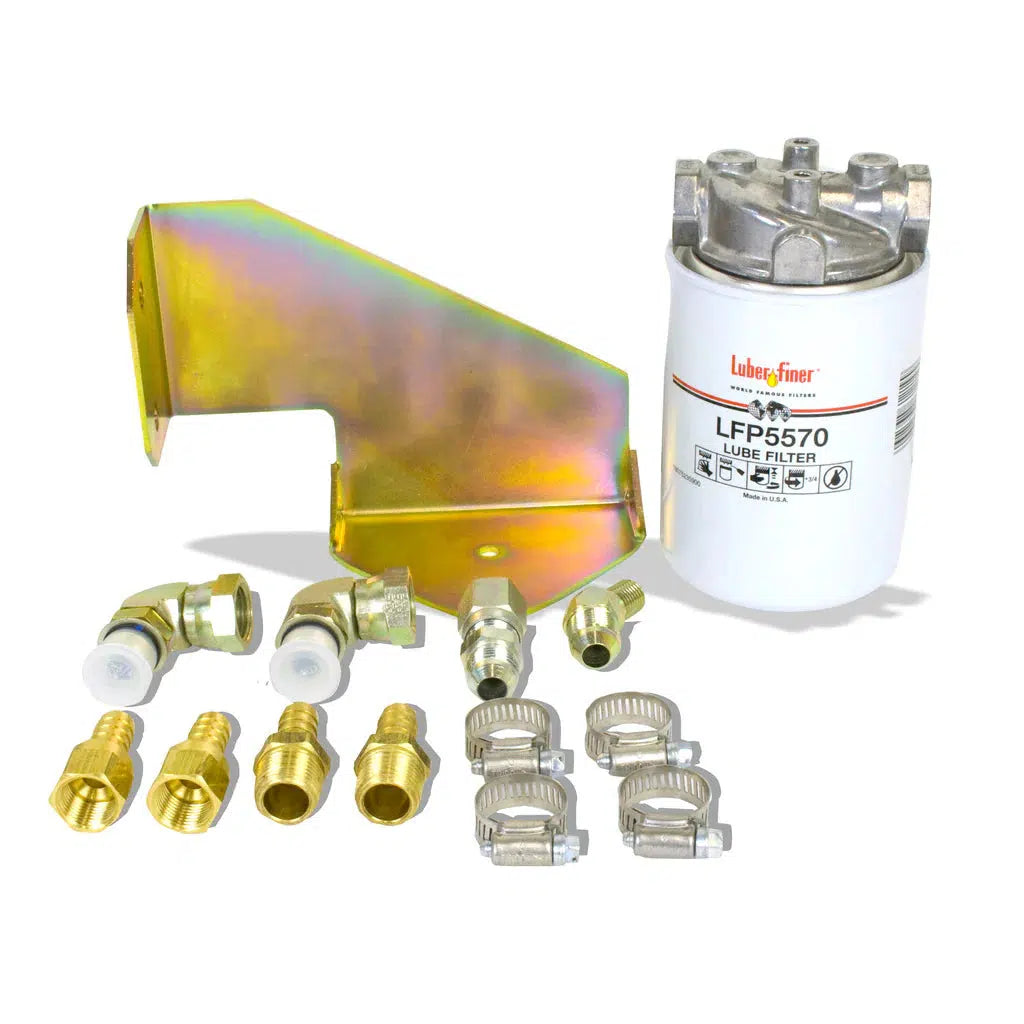

• BD auxiliary full flow filter kit for extra protection
• BD rigid aluminum heavy duty transmission pan
• Pan heat-dissipating fins keep temperature down
• Magnetic drain plug
• Pan adds 2qt extra oil capacity


• 7.5 Hours (Includes swapping of sensors and cooler flush)
• Install - Click Here
• Auxiliary Filter Kit - Click Here

Parts Only - No Race or Sled Pull abuse covered.

• 36 Months
• 150,000 Miles
• Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
• BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty
