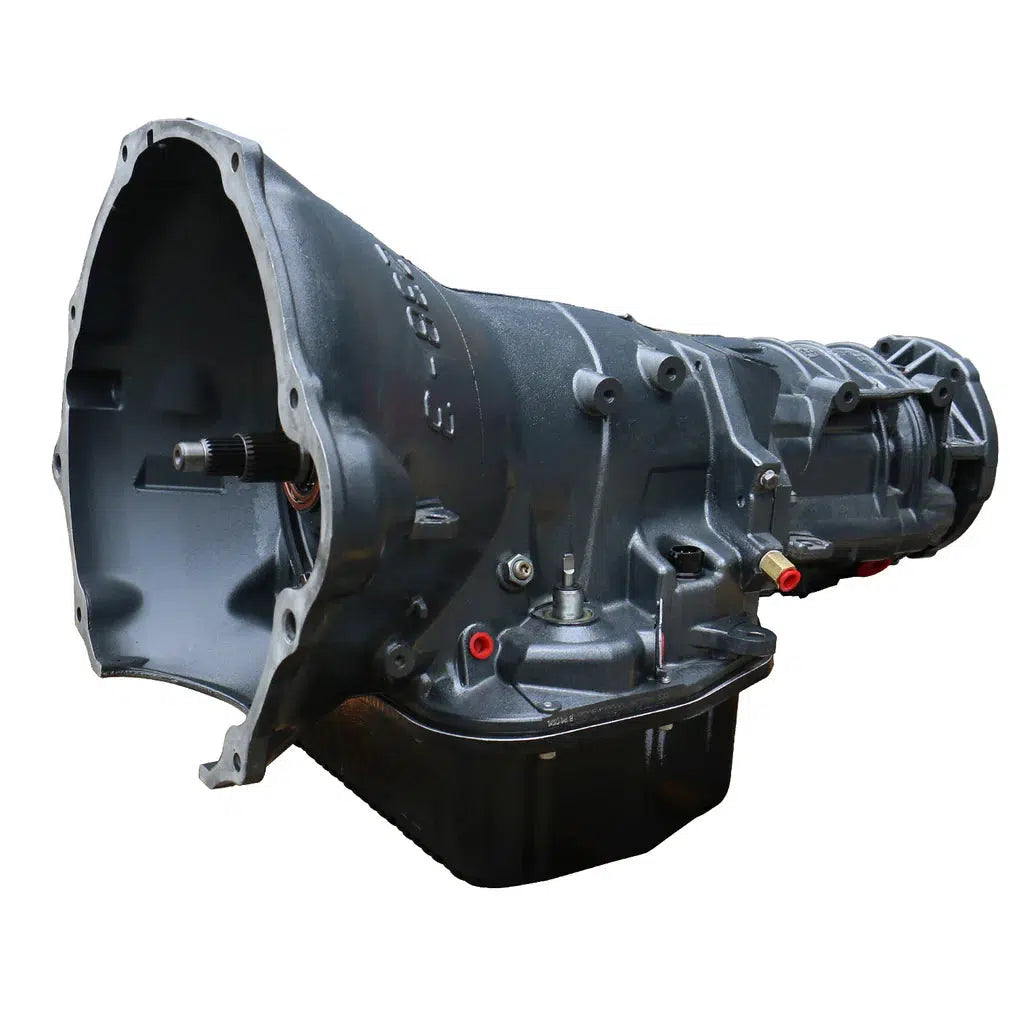

2005-2007 Cummins Torquemaster 48RE Transmission W/ TVV Stepper Motor W/ Auxiliary Filter Kit & Billet Input (4WD) (1064234BF)

BD Diesel Part Number: 1064234BF
$7,233.00 CAD

Additional Refundable Core Deposit Required of $2,400.00 CAD.

Purchase to earn 7233 Dirty Dollars Learn More

Description

Fits

 Year Make Model Engine
2005-2007
Dodge Ram
2500/3500 4WD
5.9L Cummins & 48RE Trans.

When you purchase a BD transmission and torque converter package, you're snagging a perfectly matched set! Each transmission also includes BD's own heavy-duty pan for added fluid space. Most packages includ a auxiliary transmission filter kit for added protection. Featuring a durable Billet Input Shaft that can handle the intense power of rapid acceleration and high torque, this is the perfect match for the ProForce 3 or Hi5 torque converter.

Part Number: 1064234BF

Features

  • Increase the durability of your drivetrain
  • Stock thrust bushings replaced with roller Torrington bearings
  • Every transmission is tested on a dyno
  • Upgraded Valvebody
  • Increased line pressure to 190-200psi
  • No shuttle shifting problems
  • Drilled intermediate shaft for increased lubrication
  • Modified manual valve for lube in all positions
  • Billet band strut
  • Billet band lever
  • Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
  • Billet "Big" fine spline input shaft
  • Clutch Count: OD 6
  • Clutch Count: OD DIRECT 10
  • Clutch Count: FORWARD 5
  • Clutch Count: DIRECT 6
  • High temp/energy Raybestos band
  • Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock
  • Upgraded governor solenoid
  • Cooler line case saver in every transmission

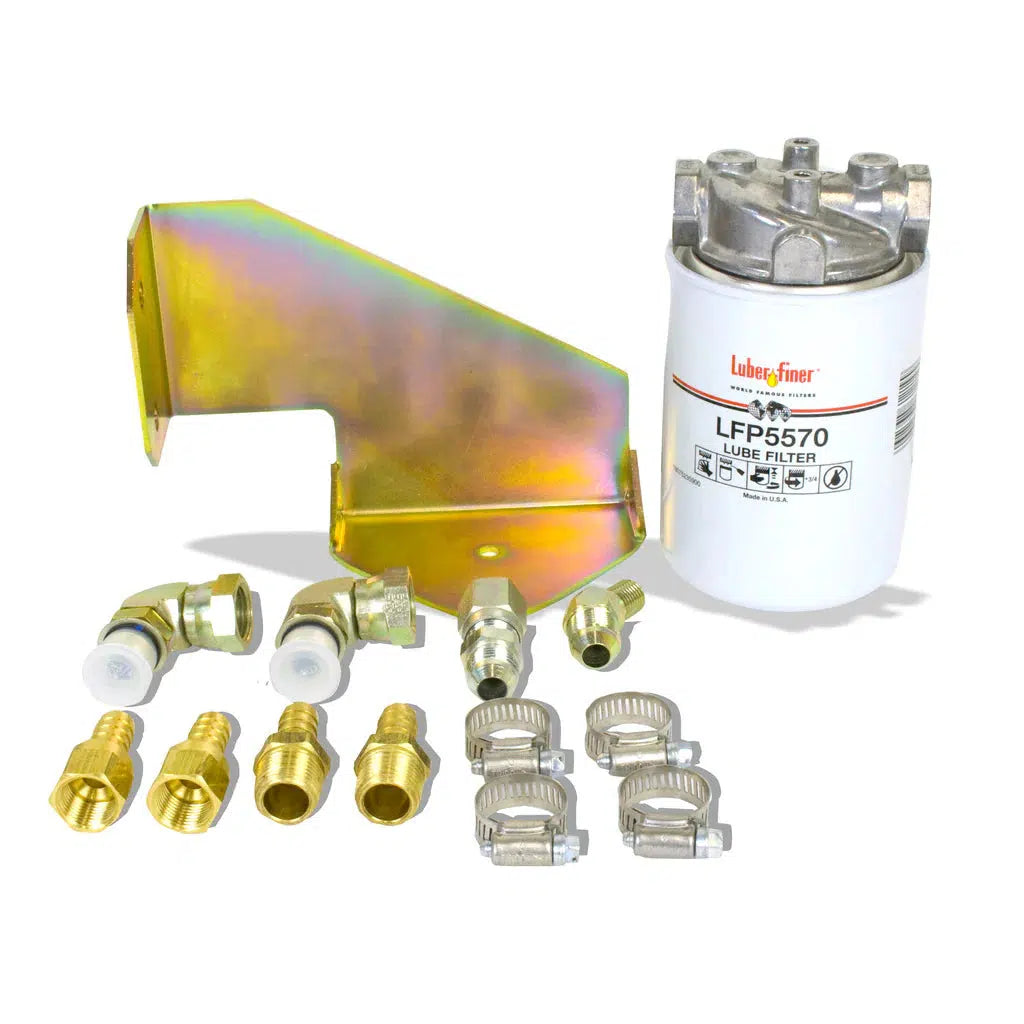

  • BD auxiliary full flow filter kit for extra protection
  • BD rigid aluminum heavy duty transmission pan
  • Pan heat-dissipating fins keep temperature down
  • Magnetic drain plug
  • Pan adds 2qt extra oil capacity

    Installation

    Warranty

    Parts Only - No Race or Sled Pull abuse covered.

    • 36 Months
    • 150,000 Miles
    • Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
    • BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty
