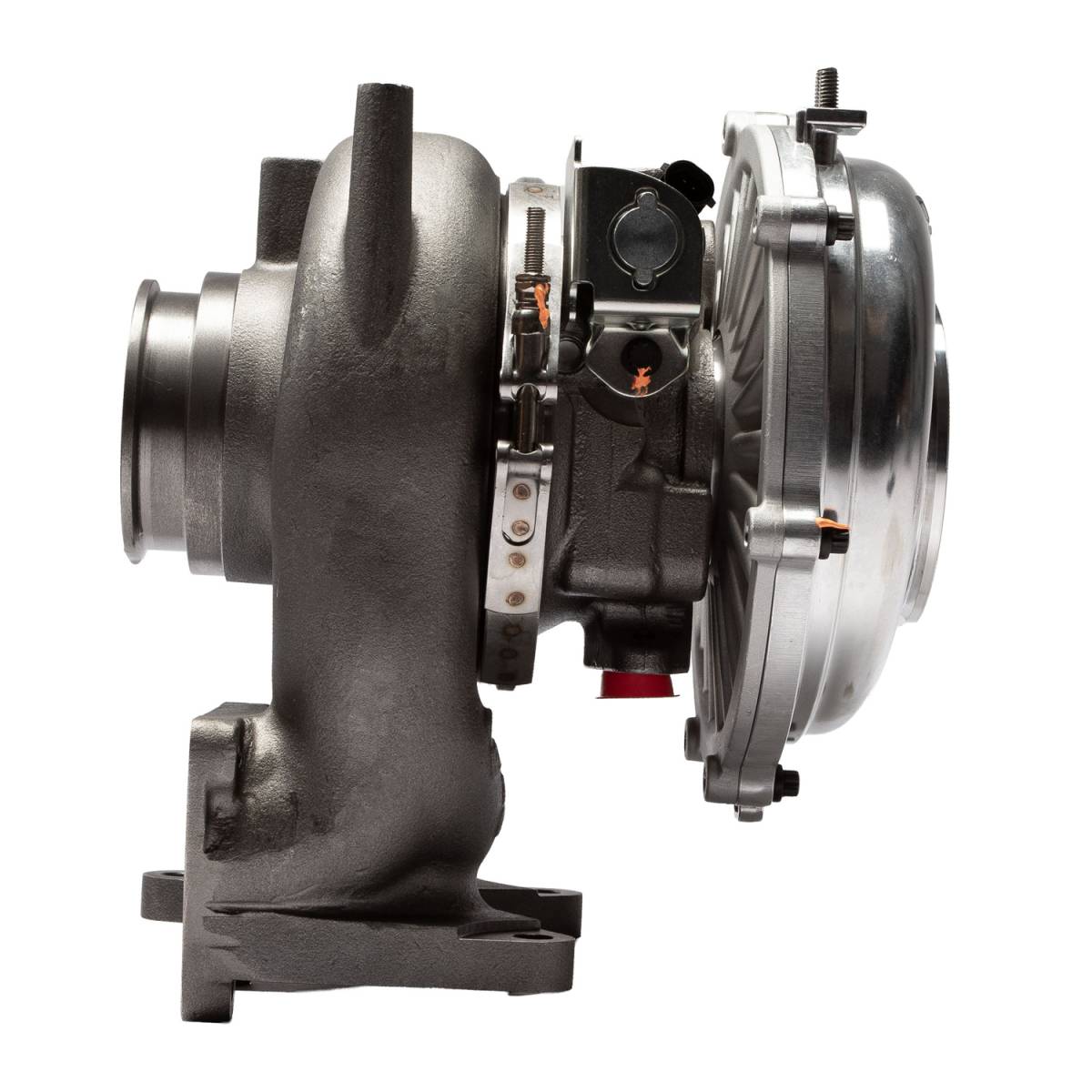

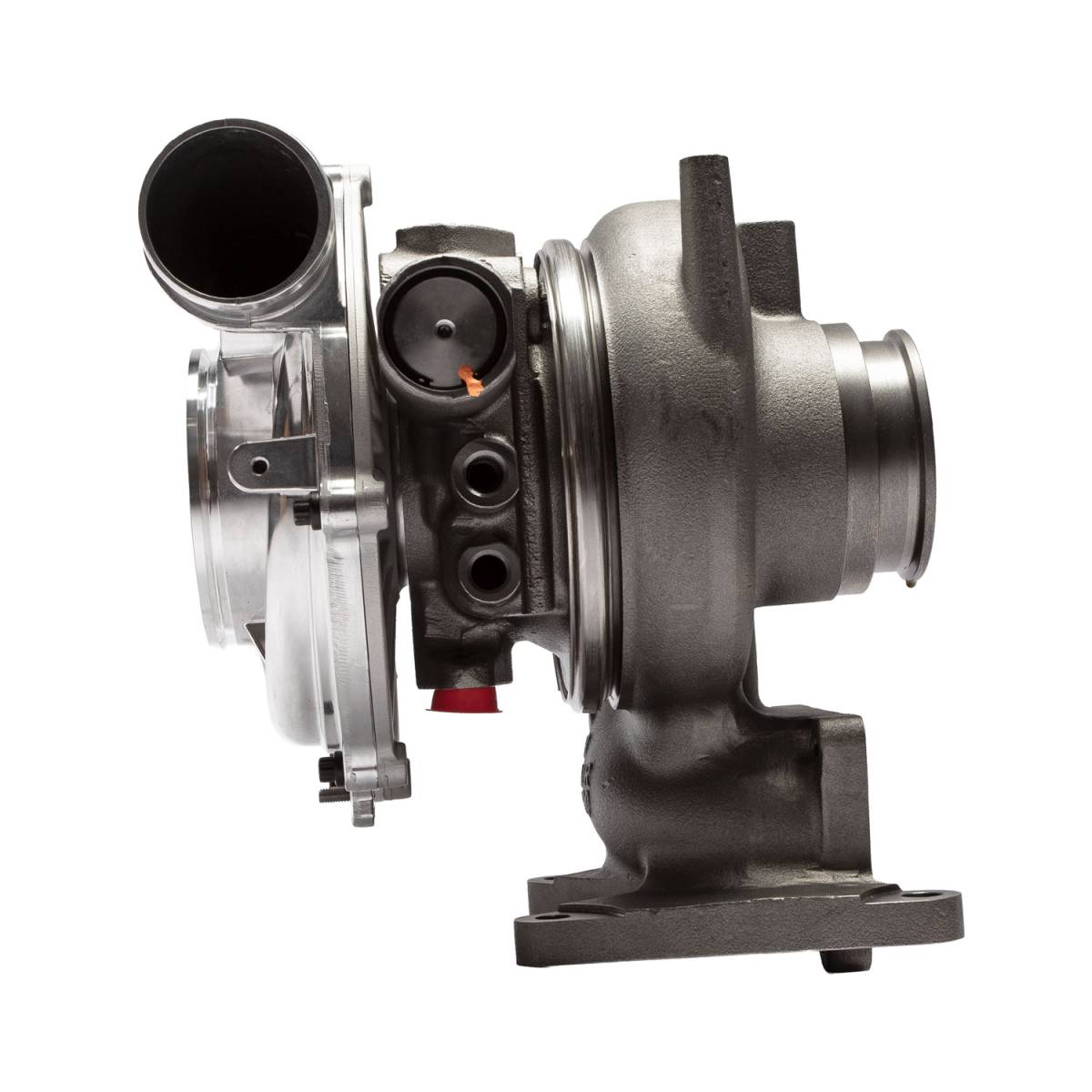

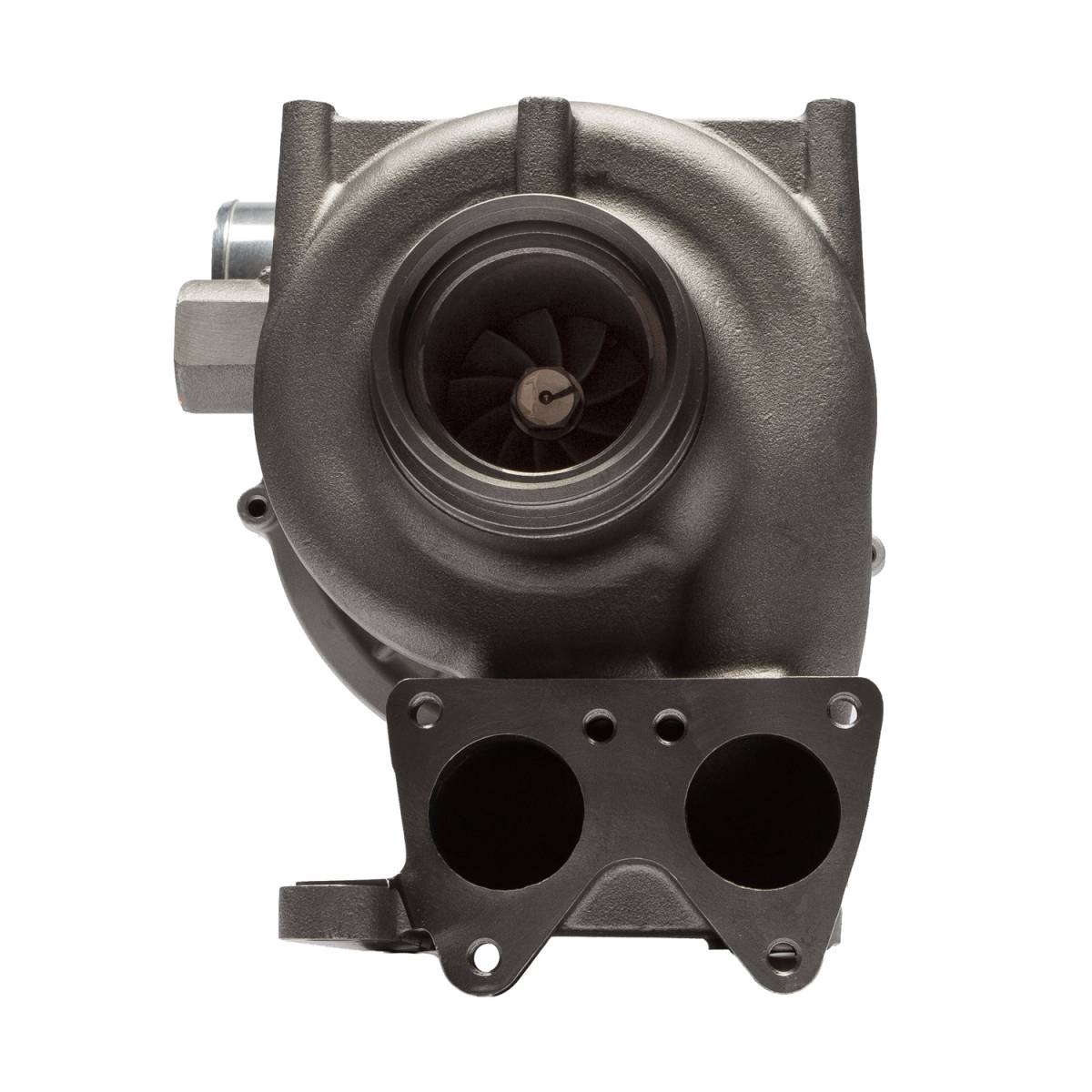

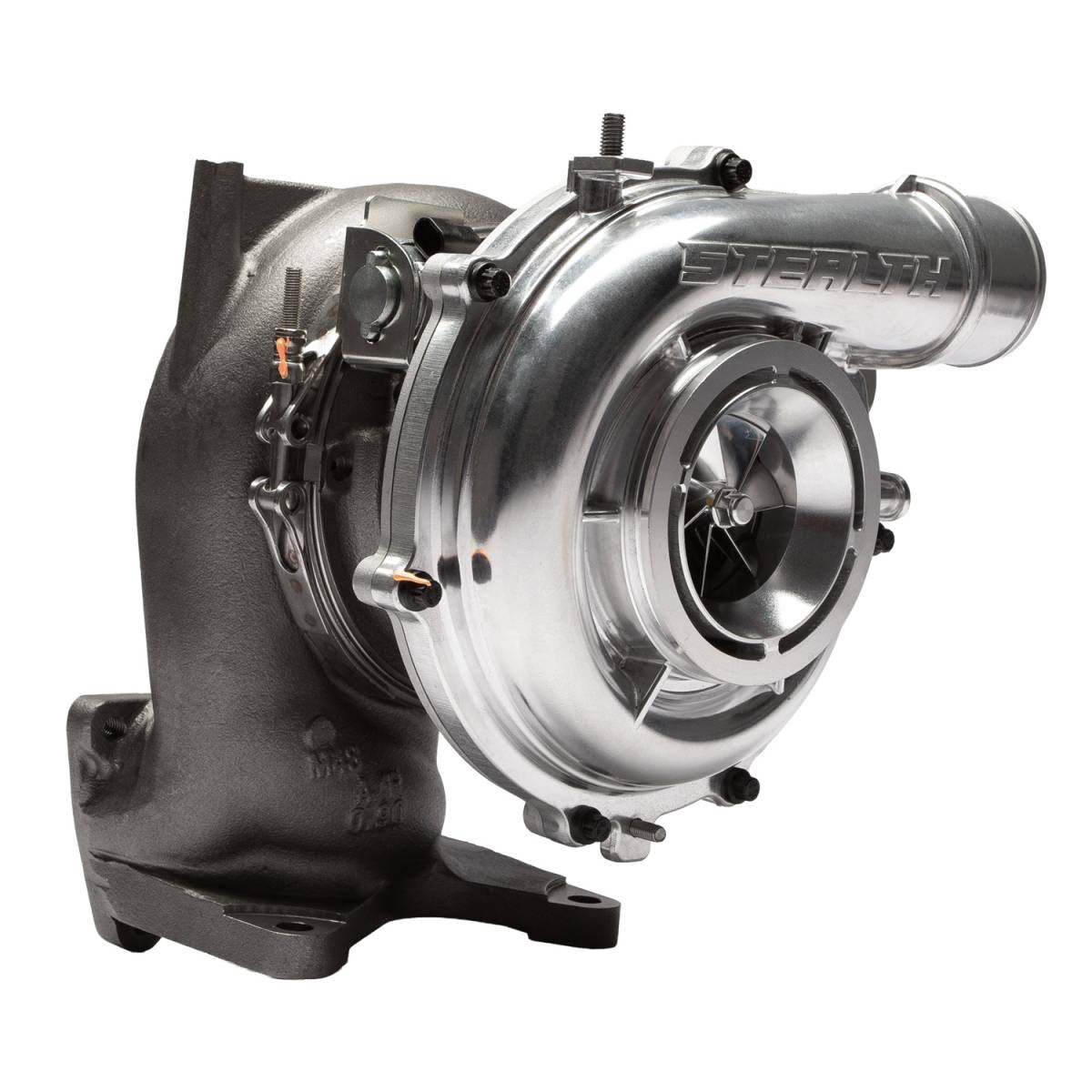

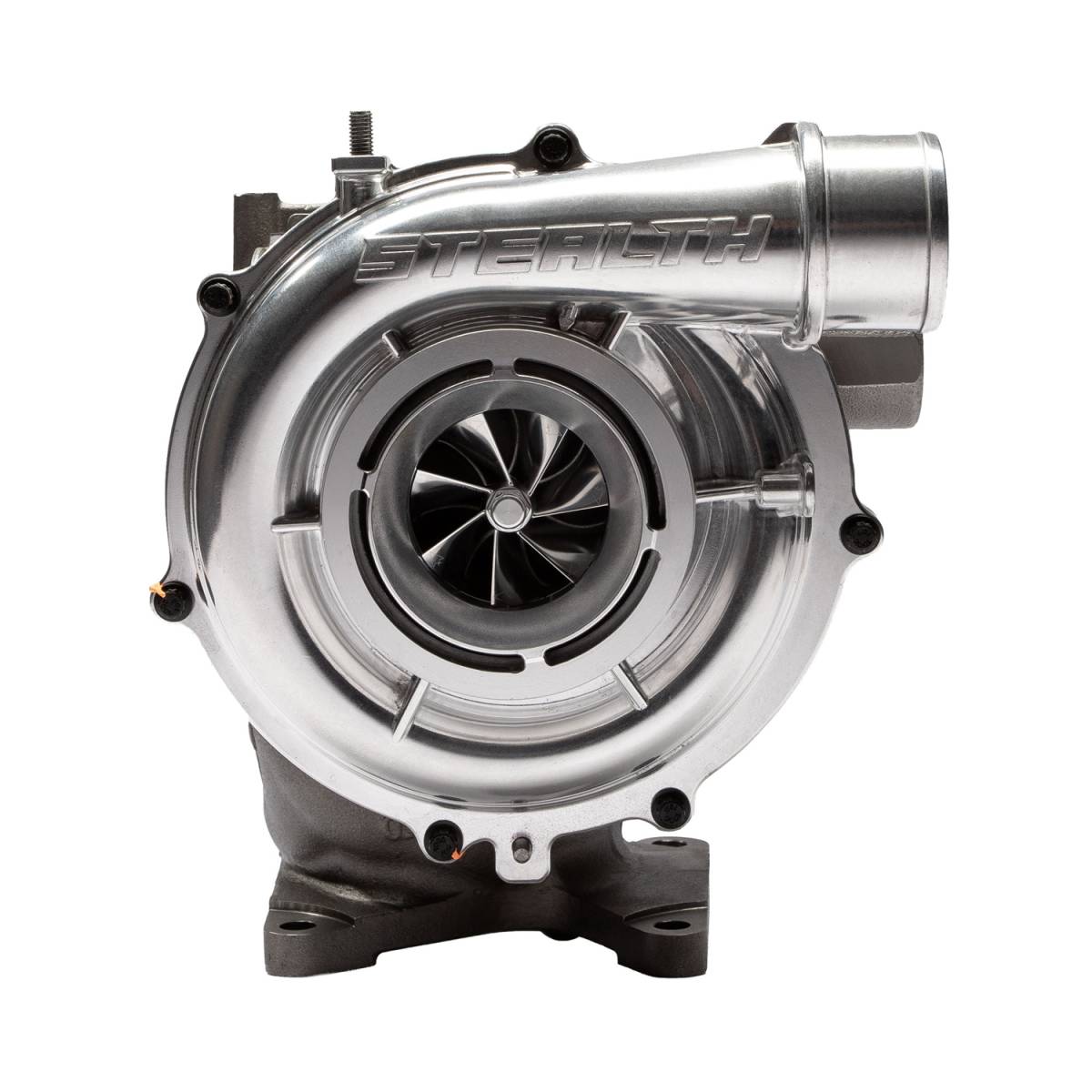

2004.5-2010 Duramax Stealth STR Turbocharger (CPS200130)
If your order ships from the USA, Canada charges an import tariff on US-made turbos. It's added at checkout as its own line, not built into the price.
Purchase to earn 3094 Dirty Dollars Learn More
Description
Description
The Stealth STR Turbo is an upgraded direct replacement turbocharger for 2004.5-2010 Chevrolet Silverado and GMC Sierra 2500HD/3500HD trucks with the 6.6L Duramax diesel engine. Designed as an affordable and reliable factory turbo replacement, it delivers noticeable improvements in performance, EGT control, and overall drivability.
This turbo is a direct drop-in replacement, meaning no custom modifications or tuning are required. Whether you are towing, daily driving, or looking for a stronger replacement for the stock turbo, the Stealth STR is engineered to provide quick response, improved airflow, and dependable performance.
Part Number: CPS200130
Supersedes: DM16B1070103000
Features
Features
- Proven to support up to 650 RWHP
- Billet aluminum 7x7-blade extended tip compressor wheel
- Custom 10-blade turbine with thicker blades for upgraded durability over stock
- Lower average EGTs and better overall EGT control
- Designed to prevent turbo surge, even when towing heavy loads
- No tuning required and works with stock trucks, box tuners, or custom tuning
- Lightweight rotating assembly provides stock-feeling spool-up and immediate throttle response
- Brand new parts with no core charge
Additional Info
Additional Info
Airflow And Power Potential
- Airflow to support up to 650HP
- Supports up to 650 RWHP with stock emissions equipment and basic supporting modifications
- Provides 67 lbs/min mass airflow compared to 59 lbs/min stock
Upgraded Turbine Vanes
- 11mm tall vanes
- Optimized for ideal boost to drive pressure ratios
- Retains factory exhaust brake function
- Supports quicker throttle response
Custom Billet Compressor Wheel
- 7x7-blade extended tip wheel provides increased airflow and a wide efficiency range
- Designed to tow without the risk of turbo surge, even while lugging
- Lightweight, high-strength billet aluminum construction
Oversized Custom Turbine Wheel
- Custom high-flow design for peak efficiency
- Thicker, more durable, and temperature-resistant turbine blades
- Lowers drive pressure under high-load conditions
- Provides better EGT control than stock
- 10-blade design produces a distinctive exhaust sound
Warranty
Warranty
- One Year Limited
OE Replacement Part Numbers
OE Replacement Part Numbers
- 736554-5014
- 736554-0011
- 736554-5011
- 736554-9011
- 736554-0001
- 736554-5001
- 736554-9001
- 736554-0002
- 736554-5002
- 736554-9002
- 736554-0003
- 736554-5003
- 736554-9007
- 736554-9008
- 736554-9014
- 736554-9003
- 736554-0004
- 736554-5004
- 736554-9004
- 736554-0005
- 736554-5005
- 736554-9005
- 736554-0006
- 736554-5006
- 736554-9006
- 736554-0007
- 736554-0008
- 736554-0014
- 790032-9003
- 7900329003
- 19329915
- 97387896
- 98011735
- 98021617
- 98065854
- 12639460
- 736554-5015
- 736554-9015
- 759622-5005
- 759622-9005
- 763333-5005
- 763333-9005
- 790032-5004
- 790032-9004
- 848212-5001
- 8482125001
- 848212-9001
- 8482129001
- 19329916
- 8980033661
- 8980033662
- 8980117351
- 98003366
- 759622-5006
- 759622-9006
- 759622-5
- 759622-0002
- 759622-5002
- 759622-9002
- 759622-0005
- R759622-5005
- R759622-9005
