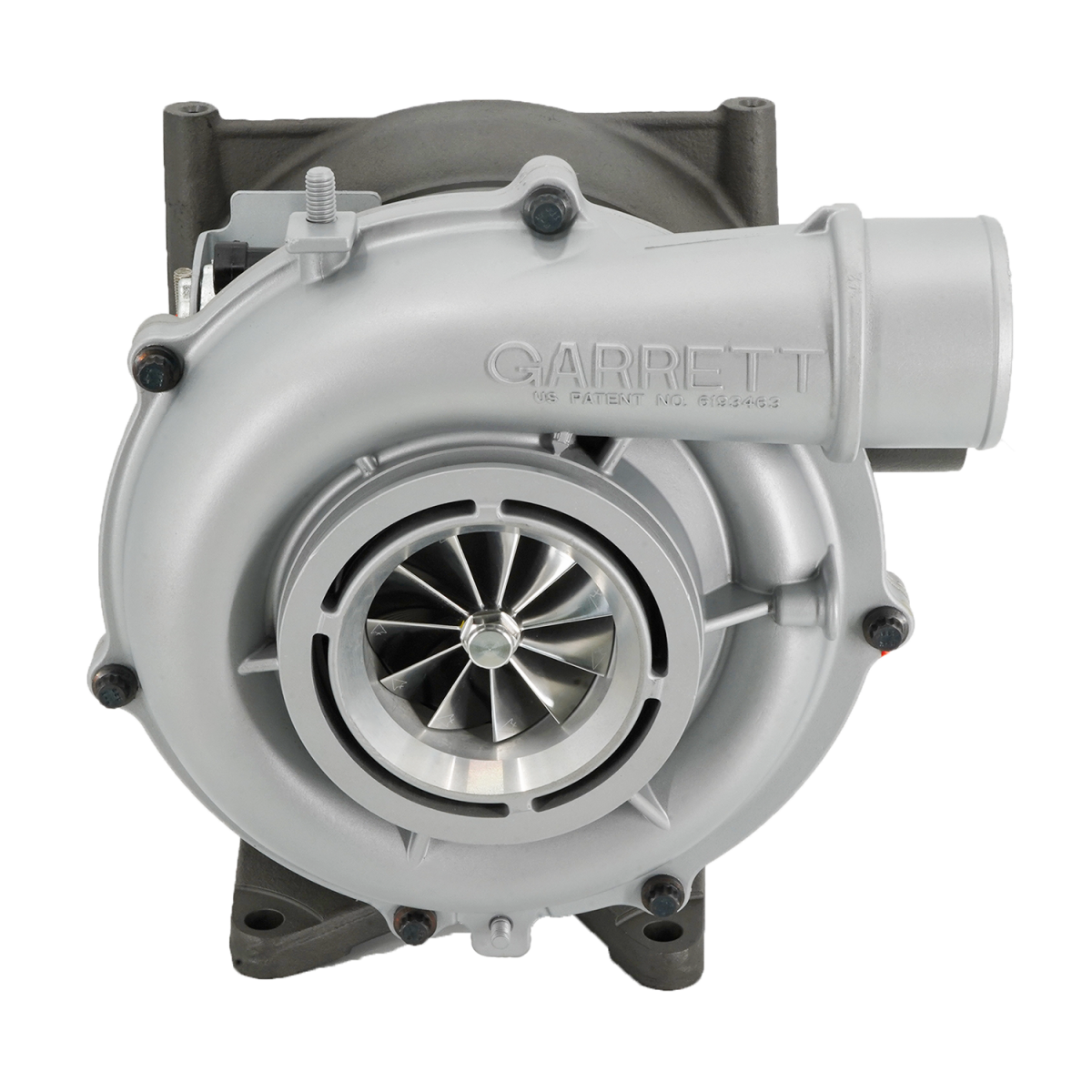

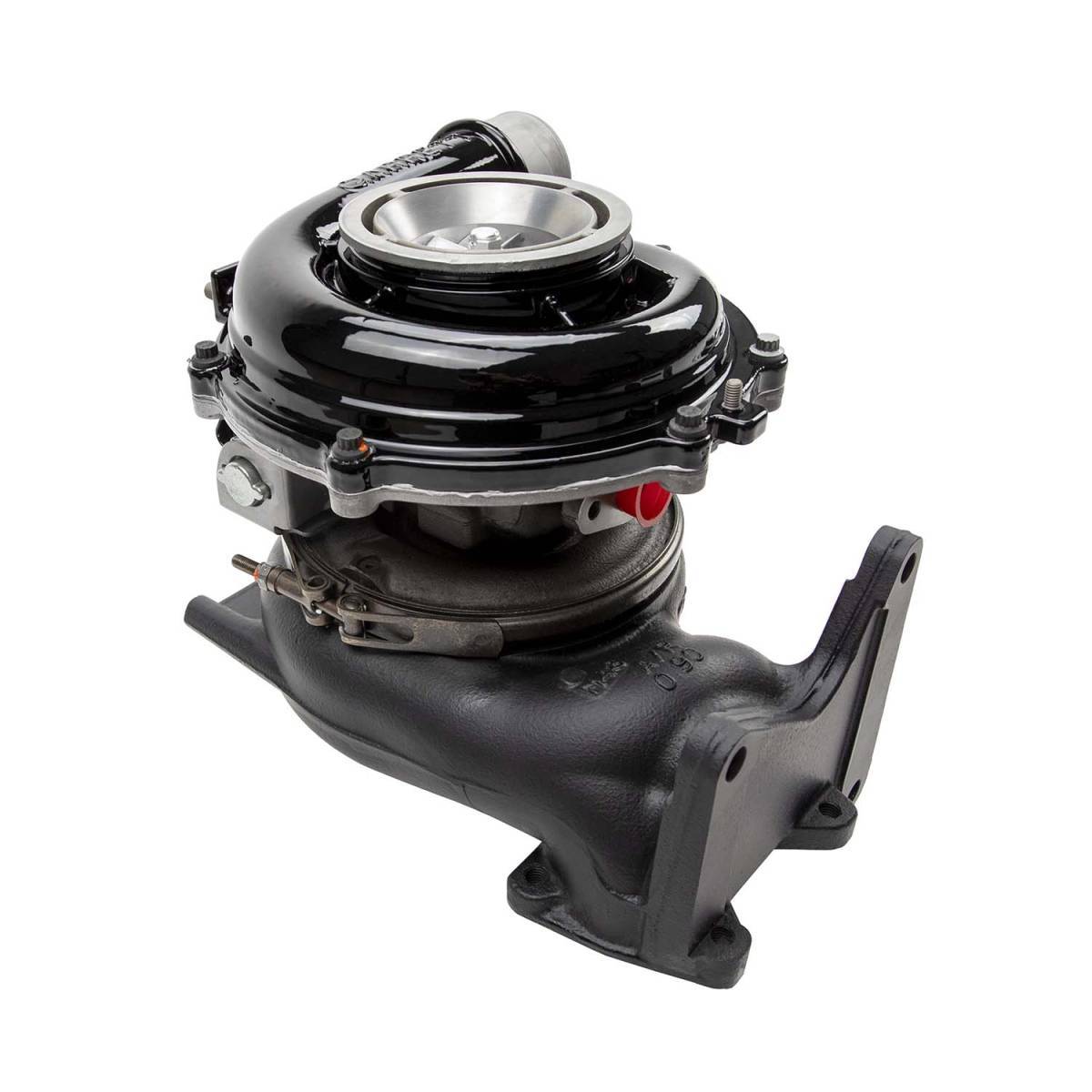

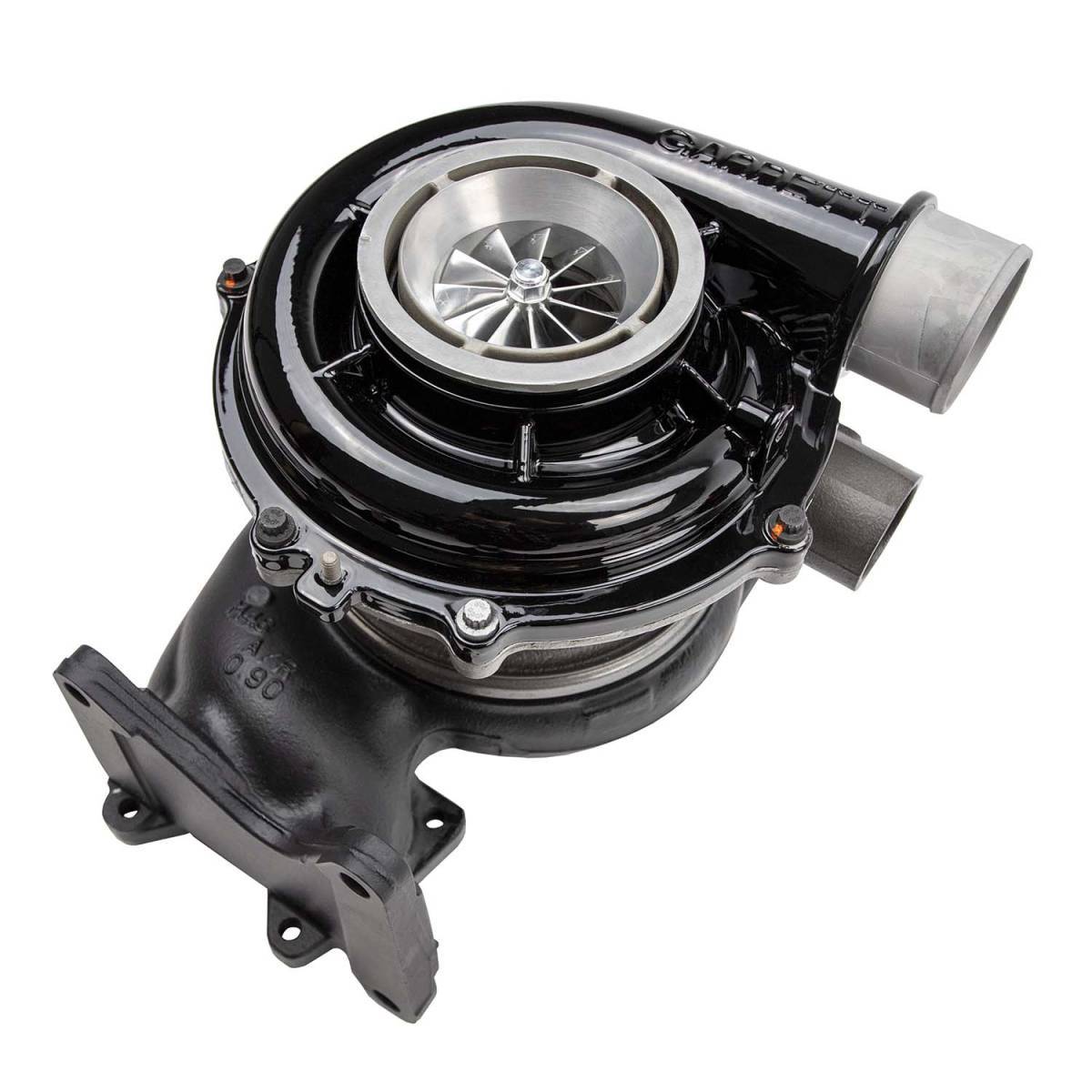

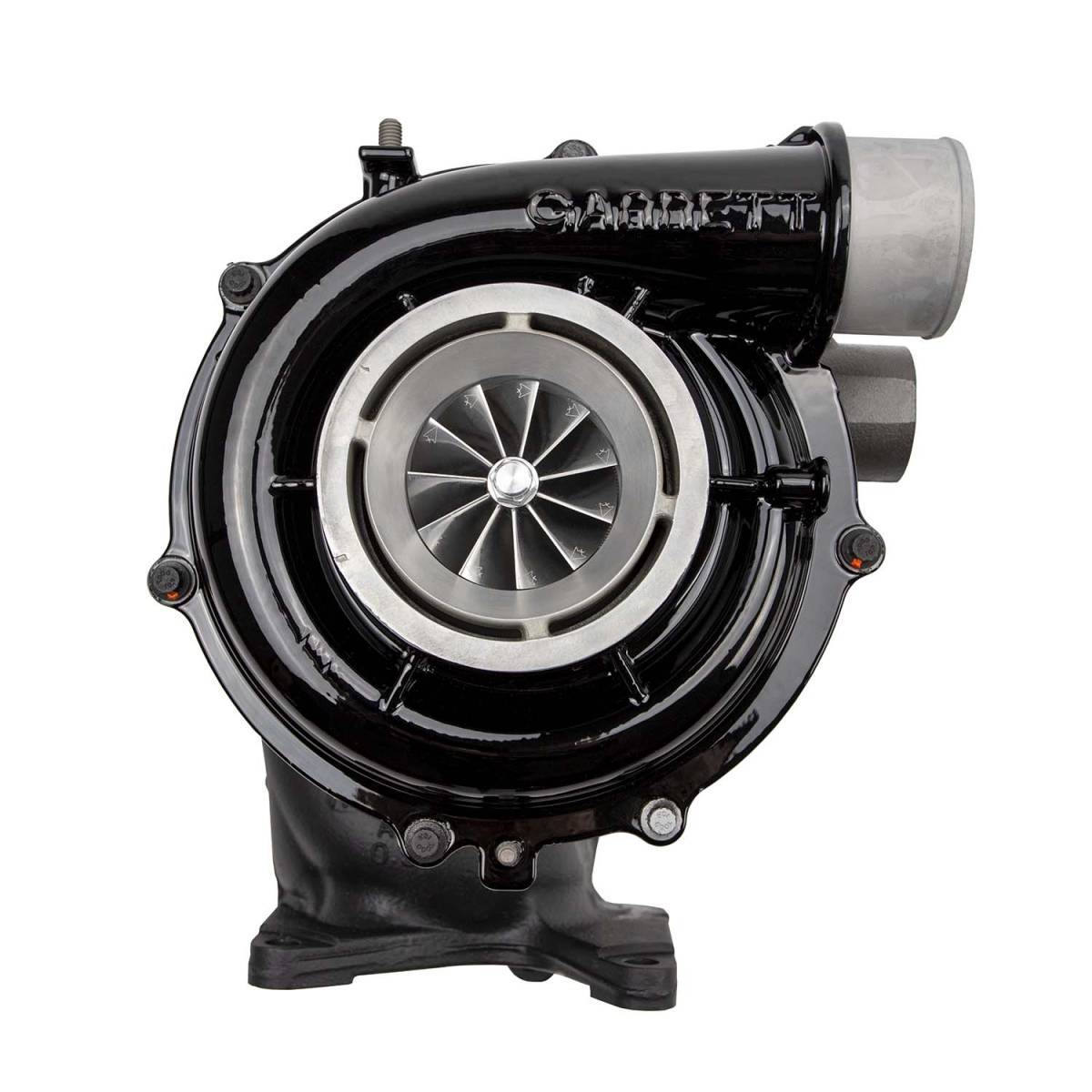

2004.5-2010 Duramax Stealth Mach 2 Turbocharger (CPS200340)

Fits

The Stealth Mach 2 Turbo is an upgraded stock-appearing VVT turbocharger for 2004.5-2010 Chevrolet Silverado and GMC Sierra HD trucks with the 6.6L Duramax diesel engine. Designed for LLY, LBZ, and LMM applications, this turbo is built to spool quickly, feel responsive, and move significantly more air than the factory turbocharger.

With HFV High Flow Vane technology, a custom billet compressor wheel, oversized custom turbine wheel, and 360-degree thrust bearing, the Stealth Mach 2 is designed for strong street manners, towing performance, and competition-level power potential while maintaining drop-in fitment.

Part Number: CPS200340

Supersedes: DM16B1070303000

• Airflow to support 800HP
• Tested in competition setups with extensive supporting modifications to make 800+ RWHP
• Up to 650 RWHP with stock emissions equipment and basic supporting modifications
• HFV High Flow Vane technology
• Custom 11-blade extended tip billet compressor wheel
• Provides 81 lbs/min mass airflow compared to 60 lbs/min stock
• Oversized custom turbine wheel
• 360-degree thrust bearing
• Direct bolt-on installation

• No core charge
• Higher power levels require proper supporting modifications
• Recommended supporting upgrades include a high-flow intake bundle, upgraded intercooler piping, and emissions compliant performance tuning

HFV High Flow Vane Technology

• Custom vane and nozzle ring assembly
• Exclusive in-house design built specifically for this application
• Taller and wider vanes match the larger turbine for superior high-load efficiency
• Retains factory exhaust brake function and quicker throttle response

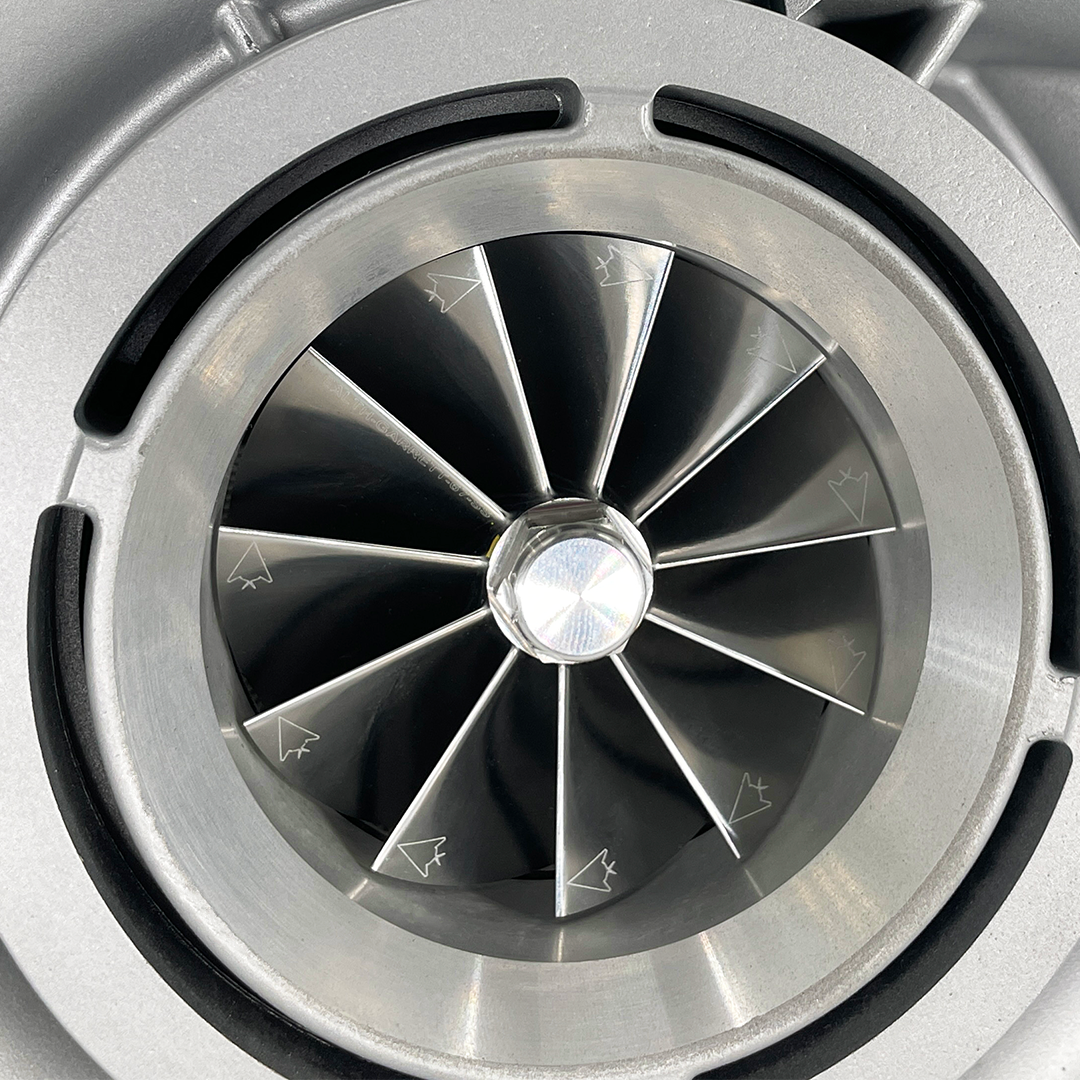

Billet Compressor Wheel

• 11-blade extended tip wheel provides increased airflow and a wide efficiency range
• Designed to tow without the risk of surge, even while lugging
• Lightweight and high-strength construction
• Provides 81 lbs/min mass airflow compared to 60 lbs/min stock

Oversized Turbine Wheel

• Lowers drive pressure under high-load conditions
• Improves efficiency for better EGT control
• 10-blade design produces a distinctive exhaust sound
• Designed to work with the HFV vane assembly for improved high-load performance

Durability And Fitment

• 360-degree thrust bearing supports added durability
• Direct bolt-on design fits in place of the factory turbocharger
• Built for daily driving, towing, and competition-focused Duramax setups

• One Year Limited

• 736554-5014
• 736554-0011
• 736554-5011
• 736554-9011
• 736554-0001
• 736554-5001
• 736554-9001
• 736554-0002
• 736554-5002
• 736554-9002
• 736554-0003
• 736554-5003
• 736554-9007
• 736554-9008
• 736554-9014
• 736554-9003
• 736554-0004
• 736554-5004
• 736554-9004
• 736554-0005
• 736554-5005
• 736554-9005
• 736554-0006
• 736554-5006
• 736554-9006
• 736554-0007
• 736554-0008
• 736554-0014
• 790032-9003
• 7900329003
• 19329915
• 97387896
• 98011735
• 98021617
• 98065854
• 12639460
• 736554-5015
• 736554-9015
• 759622-5005
• 759622-9005
• 763333-5005
• 763333-9005
• 790032-5004
• 790032-9004
• 848212-5001
• 8482125001
• 848212-9001
• 8482129001
• 19329916
• 8980033661
• 8980033662
• 8980117351
• 98003366
• 759622-5006
• 759622-9006
• 759622-5
• 759622-0002
• 759622-5002
• 759622-9002
• 759622-0005
• R759622-5005
• R759622-9005
