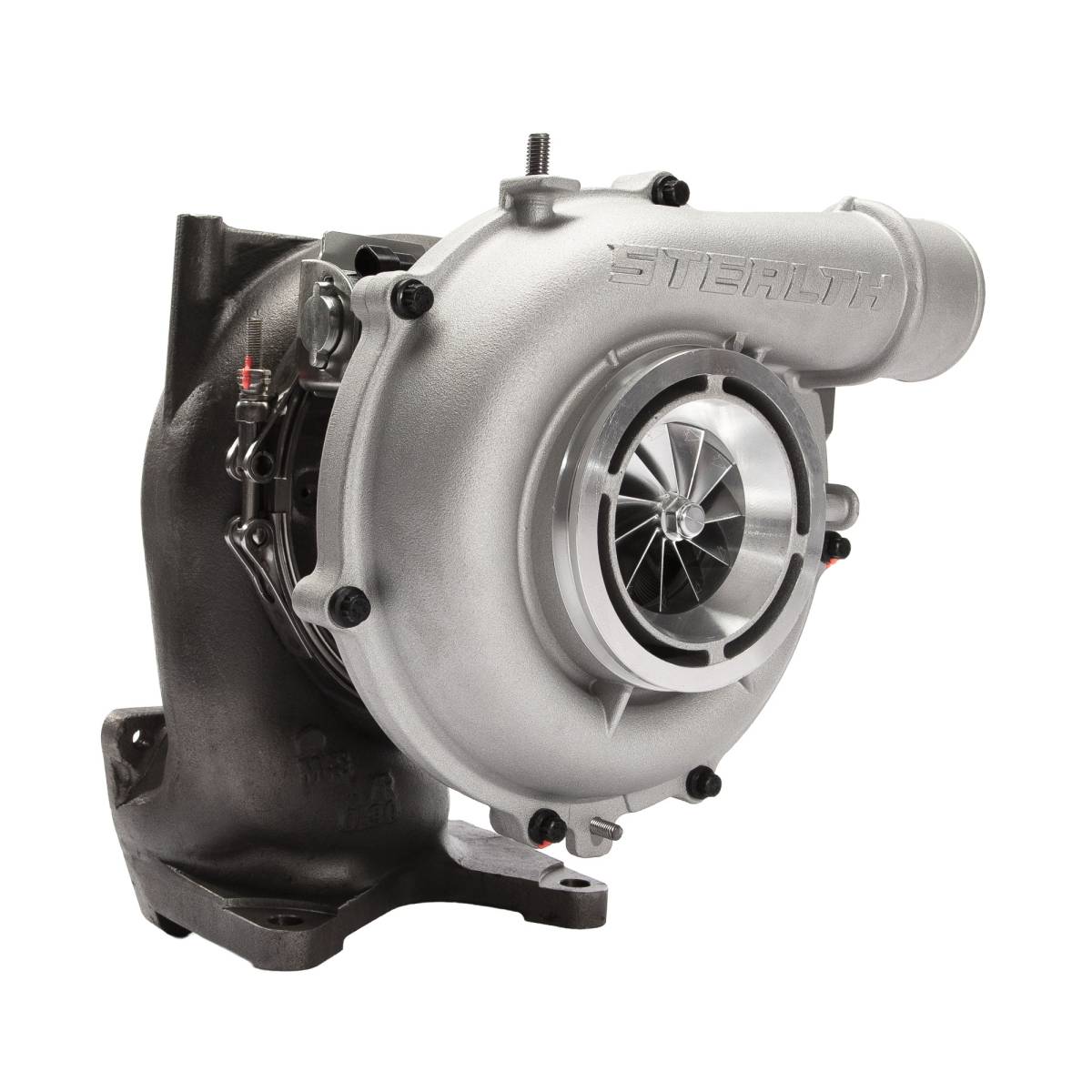

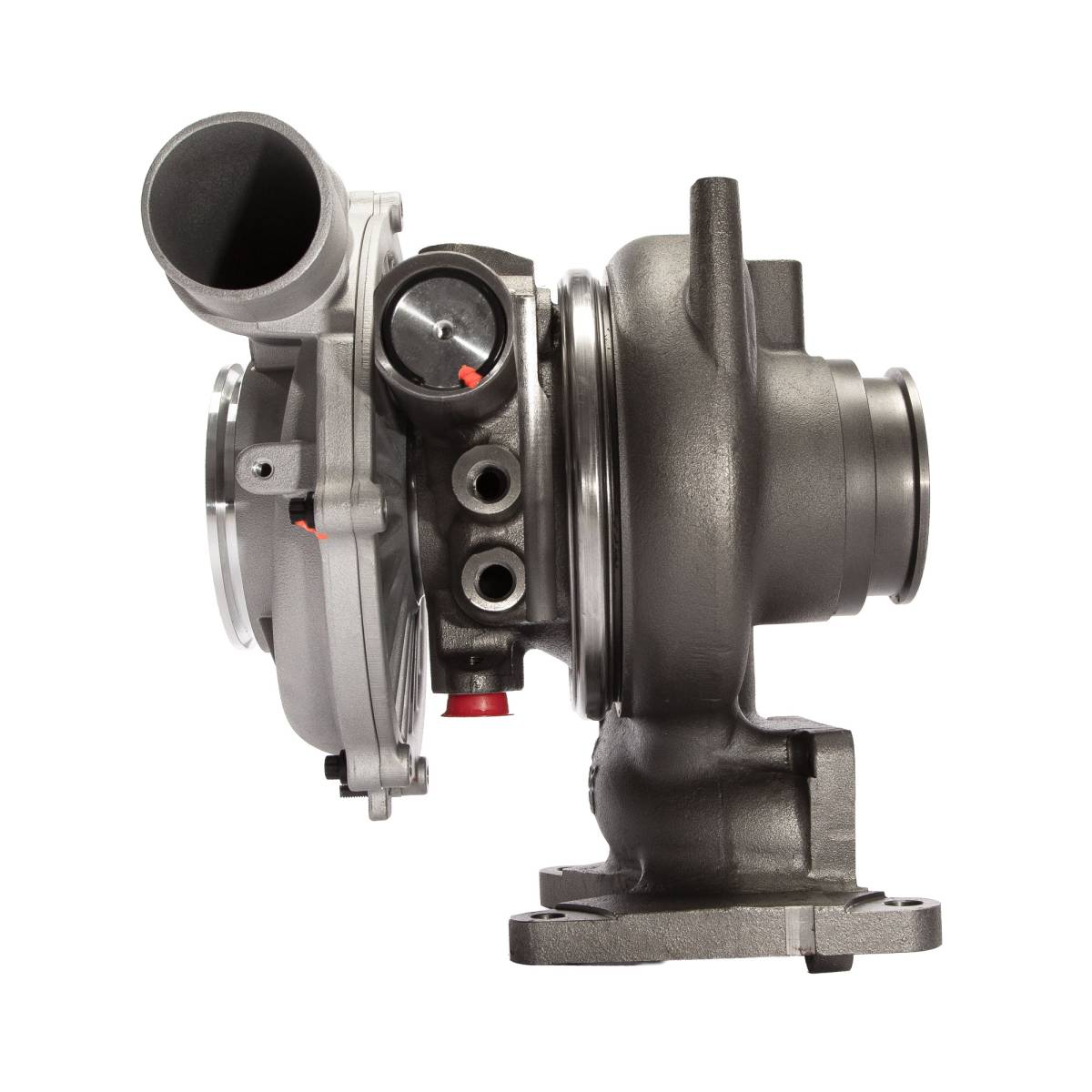

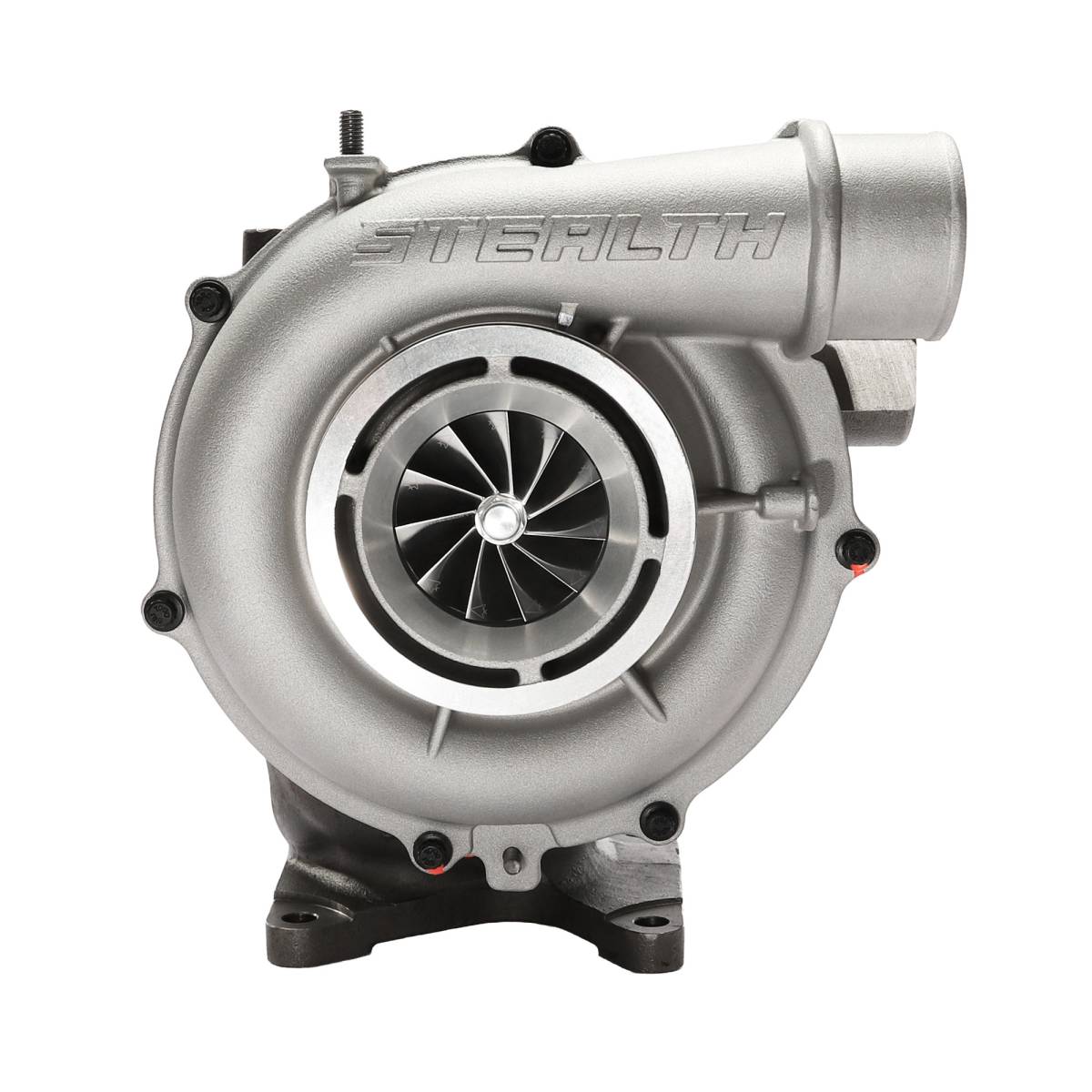

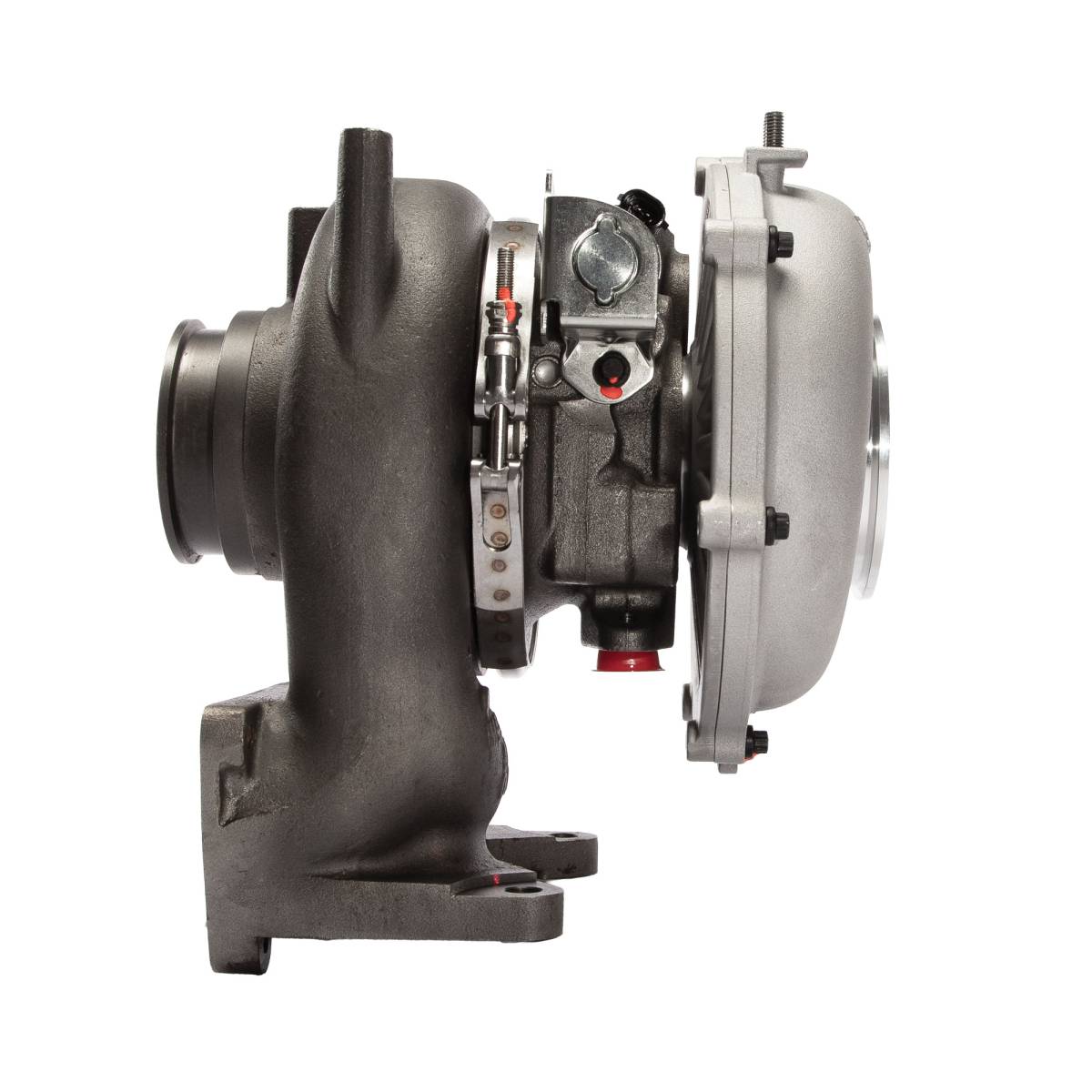

2004.5-2010 Duramax Stealth Mach 1 Turbocharger (CPS200281)

Fits

The Stealth Mach 1 64 VVT Turbo is an upgraded direct replacement turbocharger for 2004.5-2010 Chevrolet Silverado and GMC Sierra 2500HD/3500HD trucks with the 6.6L Duramax diesel engine. Designed for LLY, LBZ, and LMM applications, this turbo offers quick spool-up, strong EGT control, turbine braking capability, and excellent towing performance.

The stock LLY, LBZ, and LMM turbocharger can run out of airflow around higher power levels and may struggle with EGT control during extended pulls. The Stealth Mach 1 64 VVT extends the useful power curve with a specially designed billet compressor wheel matched to a higher-flowing turbine assembly, delivering a strong balance of response, drivability, and peak power.

Part Number: CPS200281

Supersedes: DM16B1070202000

• 650+ RWHP peak power potential
• 63mm billet compressor and turbine wheel
• 360-degree thrust bearing
• Quick spool-up
• Direct bolt-on installation
• Great for daily driving and towing

• Proper tuning is required to reach peak power potential
• Recommended supporting upgrades include air intake kits, upgraded intercooler piping, and emissions compliant performance tuning
• Higher power levels require proper supporting modifications

Billet Compressor Wheel

• Specially designed billet compressor wheel improves airflow over the stock turbocharger
• Matched to the higher-flowing turbine assembly for strong response and peak power
• Supports up to 650 RWHP with proper tuning and supporting modifications

Turbine Assembly

• Higher-flowing turbine assembly improves exhaust flow under load
• Helps control EGTs during towing and extended high-load pulls
• Allows turbine braking during towing scenarios

Direct Replacement Design

• Easy-to-install direct replacement for the factory VVT turbocharger
• Designed for quick spool-up and strong street drivability
• Built for daily driving, towing, and performance-focused Duramax applications

Durability Upgrades

• 360-degree thrust bearing supports added durability
• Designed to handle higher airflow and increased power demand
• Built for real-world towing and sustained load performance

• One Year Limited

• 736554-5014
• 736554-0011
• 736554-5011
• 736554-9011
• 736554-0001
• 736554-5001
• 736554-9001
• 736554-0002
• 736554-5002
• 736554-9002
• 736554-0003
• 736554-5003
• 736554-9007
• 736554-9008
• 736554-9014
• 736554-9003
• 736554-0004
• 736554-5004
• 736554-9004
• 736554-0005
• 736554-5005
• 736554-9005
• 736554-0006
• 736554-5006
• 736554-9006
• 736554-0007
• 736554-0008
• 736554-0014
• 790032-9003
• 7900329003
• 19329915
• 97387896
• 98011735
• 98021617
• 98065854
• 12639460
• 736554-5015
• 736554-9015
• 759622-5005
• 759622-9005
• 763333-5005
• 763333-9005
• 790032-5004
• 790032-9004
• 848212-5001
• 8482125001
• 848212-9001
• 8482129001
• 19329916
• 8980033661
• 8980033662
• 8980117351
• 98003366
• 759622-5006
• 759622-9006
• 759622-5
• 759622-0002
• 759622-5002
• 759622-9002
• 759622-0005
• R759622-5005
• R759622-9005
