2004-2020 Ford F-150 Leveling/ Big Lift Upper Control Arms (67-21640)

ReadyLift Part Number: 67-21640
$844.94 CAD

Purchase to earn 844 Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Description

Fits

Year Make Model
2004-2020 Ford F-150

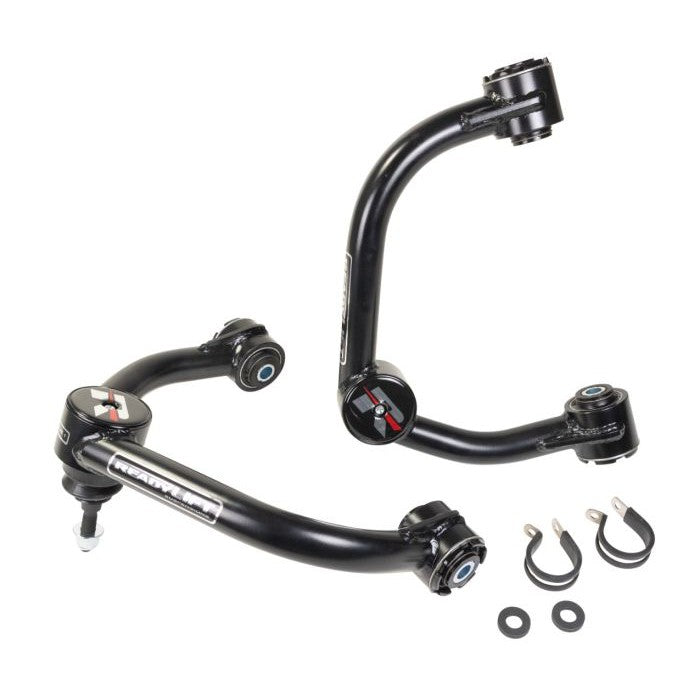

ReadyLIFT's latest Upper Control Arms combine the strength of a race-style uni-ball arm with the smooth ride and features of factory parts by incorporating their proprietary high-angle ball joint. These innovative arms offer improved durability, suspension travel, corrected geometry, and alignment.
Engineered to ride just like OEM, without the usual noise associated with traditional uni-ball arms and feature pivot bushings inside the control arm pocket with Terrain Control Technology guarantees quiet, smooth, stable performance.

Part Number: 67-21640

Features

  • Includes DOM tube steel upper control arms
  • Designed for lift height of 0-3", & 6"
  • Compatible with stock wheels and tires
  • Terrain Control Technology maintenance-free pivot bushings
  • Stock/Leveled & Big Lift trucks

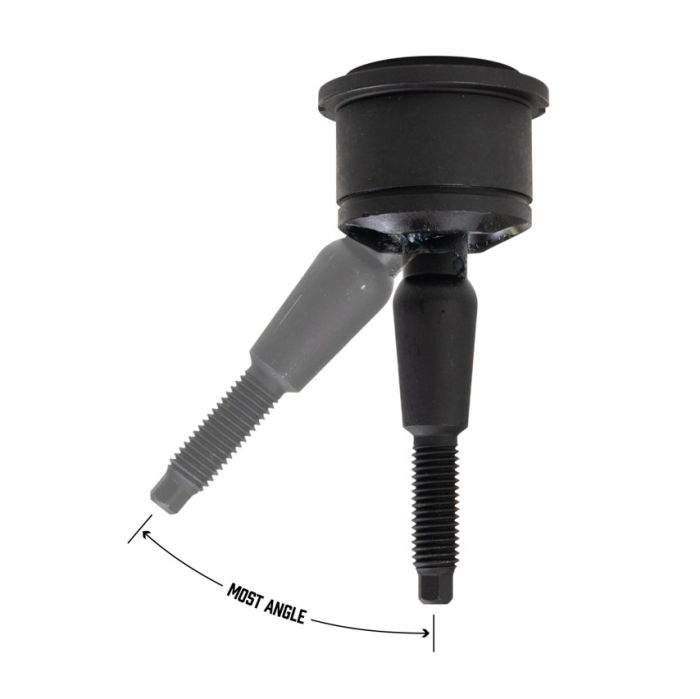

  • Proprietary HD High-Angle Ball Joints
  • Allows for increased strength and angle for greater wheel travel for lifted applications without sacrificing ride quality
  • Billet O-Ring Dust Cap and Sealed Ball Joint Assembly protect the ball joint assembly from corrosion, dirt, and debris
  • Gusseted Pivot and Ball Joint Housings designed for maximum clearance & strength
  • Super-durable polyester Black Powder Coat Finish

Includes:

  • HD DOM tube steel control arms with corrected ball joint angles
  • HD ball joints
  • Terrain Control Technology maintenance-free, self-lubricating pivot bushings

Notes

  • Do NOT exceed an assembled coilover length of 22.5" for years 2004-2014 and 23" for years 2014-2021, or binding will occur.
  • If using on a 6" kit, do NOT exceed length 27.75" extended length or binding will occur.
  • If using 67-21640 with a non-approved kit, you must cycle to verify that nothing will bind. ReadyLIFT will not warranty any non-approved kit combination.
