2004-2012 Colorado/Canyon 2.25" SST Lift Kit (69-3075)

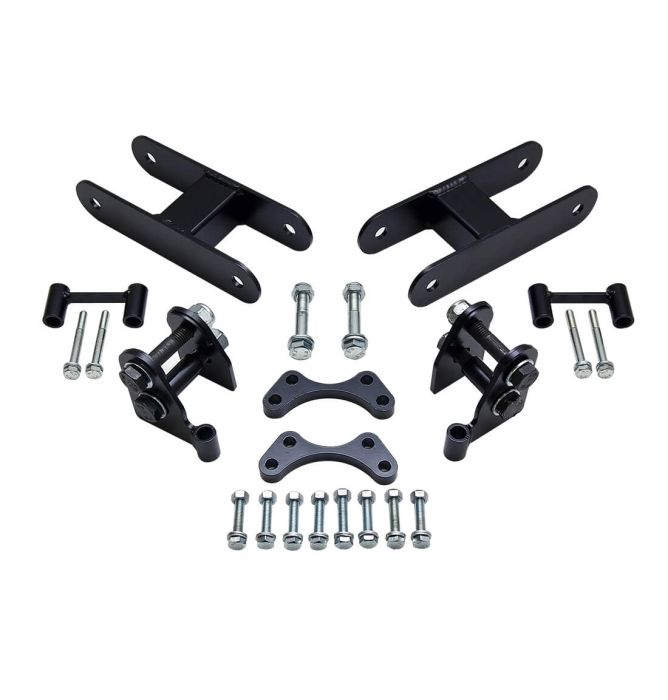

The safest, easiest, fastest way to get a modest 2.25" of front lift and 1.5" in the rear of your pickup; ReadyLift engineers completely bolt-on lift kits; no drilling, cutting, or welding required. Featuring 1/2" plate steel upper ball joint spacers that install between the upper ball joint and the inside of the control arm to eliminate upper arm to coil spring contact during suspension cycling. All components in this kit were carefully engineered to provide a proper lift without compromising factory ride quality or geometry.

Part Number: 69-3075

• 2WD coil spring suspension trucks ONLY
• Lower front strut extensions
• Rear shackles & shock extensions
• 1/2" plate steel upper ball joint spacers
• No need to buy new shocks
• 10.9 class zinc-plated hardware
• 2.5" in front and 1.5" in the rear for a mild lifted stance

Tire Fitment:

• 31" Maximum tire diameter
• 31x10.50 for no rub on an 8" wide wheel with 0 offset
• 17" - 255/70R17
• 18" - 265/65R18 - 275/60R18
• 20" - 255/55R20

• This kit is designed for use on 2WD coil spring suspension trucks only

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click here to view installation instructions
