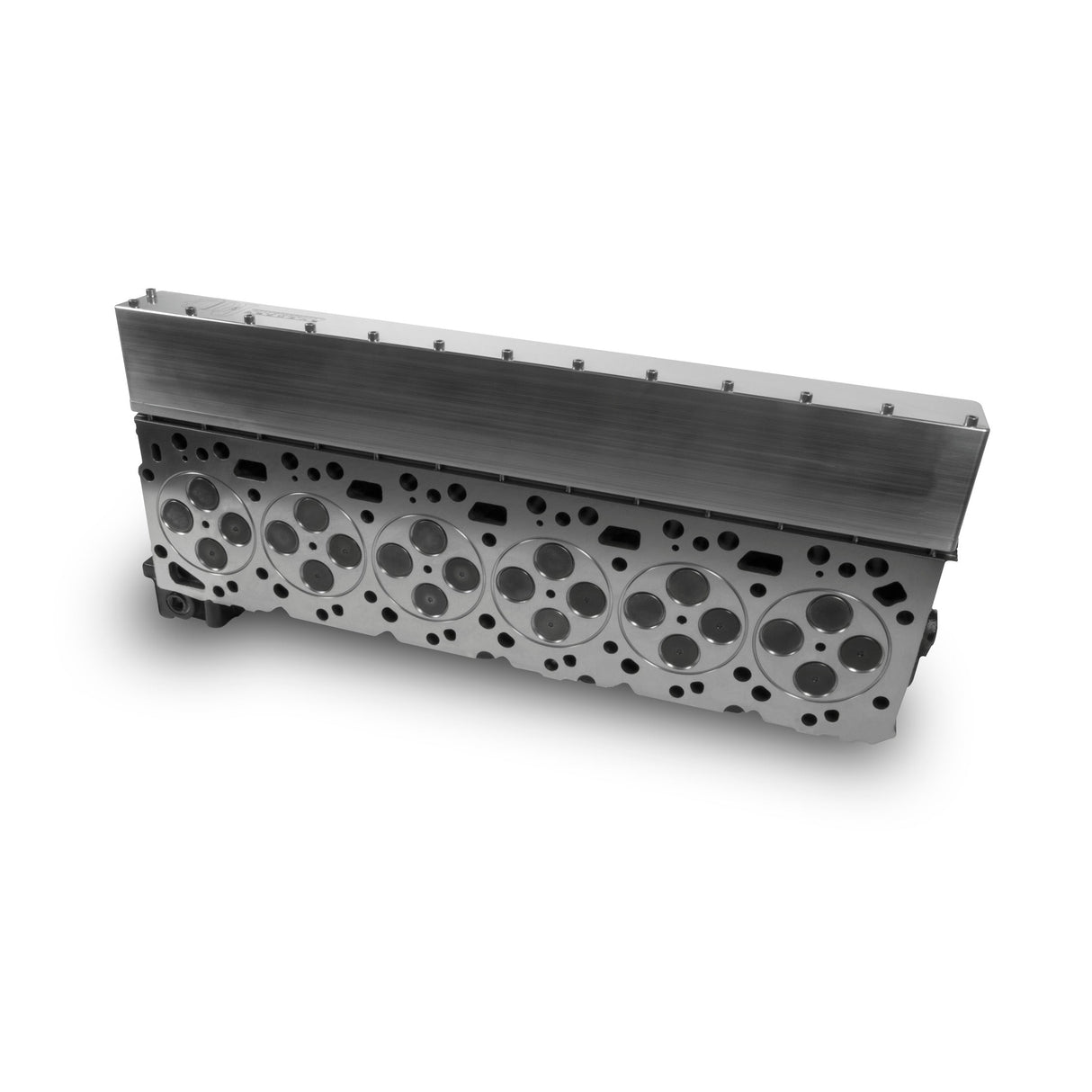

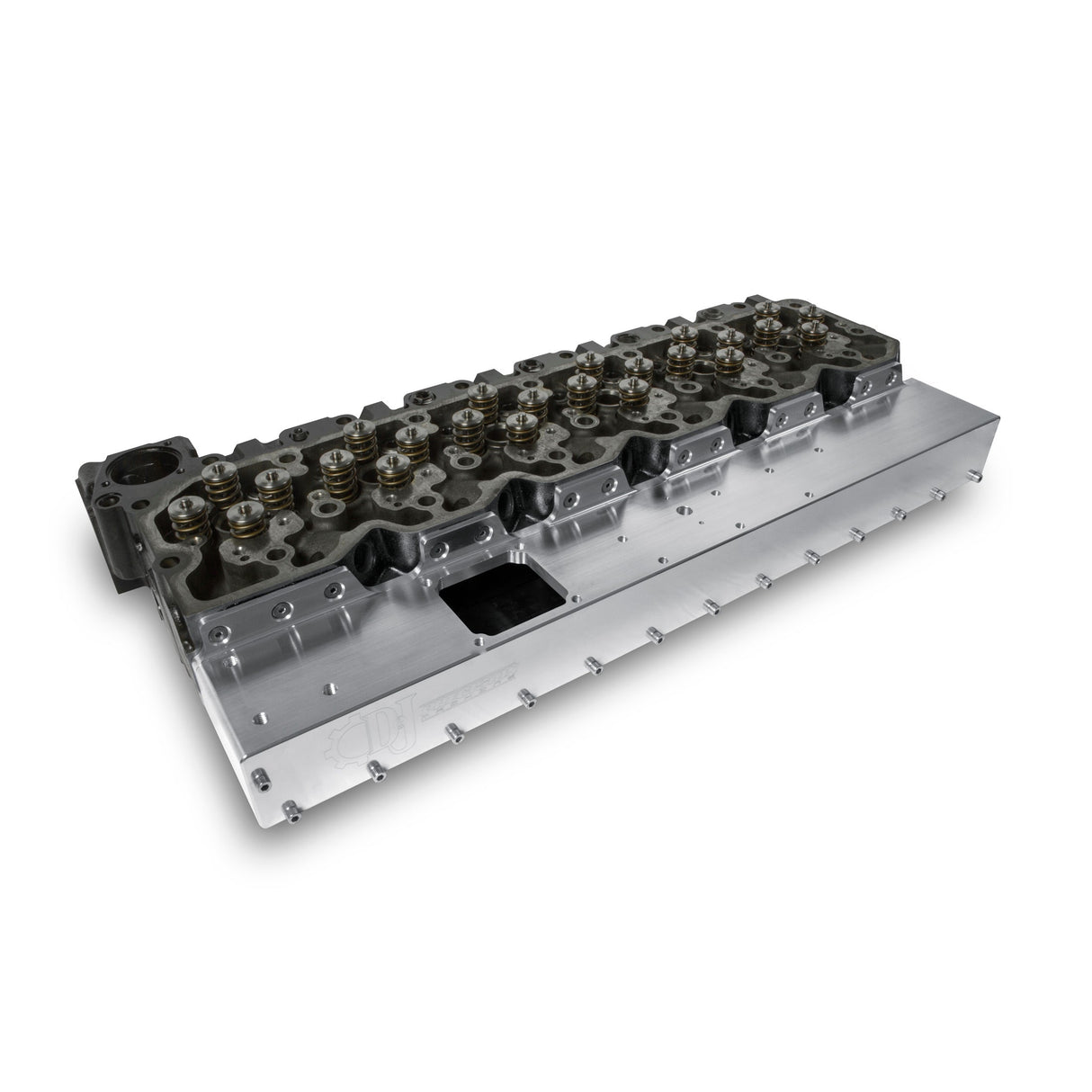

2003-2018 Cummins CR Stage 2 Performance Head (DJPCH100051)

D&J Precision Machine
Regular price $8,693.98 CAD

Notices

This item may have additional freight costs. Learn More

The Details

* Asterisks indicate a required selection.

Year *

This product will automatically bundle the following item:

Purchase to earn 8693  Dirty Dollars Learn More

Description

Fits

 Year Make Engine
2003-2018 Dodge Ram 5.9L & 6.7L Cummins

Crafted carefully for the power seeker; these Stage 2 Billet heads exceed expectations, featuring thread-in soft plugs in the head, titanium valve spring retainers, and HD extra-large intake seats. These heads eliminate common issues seen in high-performance trucks; from stock seats falling out (in 1000HP applications), to soft plugs under the valve cover coming out filling the crankcase with coolant.

Part Number: DJPCH100051

Features

  • Designed for the performance enthusiast.
  • Stage 2 Billet Intake Manifold
  • Thread in soft plugs in the head
  • Titanium valve spring retainers
  • HD extra large intake seats
  • Billet replacement style intake manifold
  • Designed to keep the factory air horn and throttle position sensor
  • Utilizes the factory air intake mounting allows the air to disperse more equally throughout the entire intake manifold.
  • Saves time and money by utilizing their current intake horn
  • Intake flow up to 250 CFM and is the biggest head D&J has available for a 5.9 bore engine (stock is 165 CFM).

Additional Info

  • Stage 2 comes with a replacement style billet intake
  • Disassembled and all soft plugs removed
  • Head is cleaned and blasted
  • Crack check performed on head (If it checks out okay we proceed with this head)
  • All new bronze guides and heavy duty extra large seats installed on the exhaust side
  • HD extra large intake seats
  • 5 axis CNC port job
  • Billet replacement style intake
  • Thread in soft plugs under the valve cover
  • High performance CNC valve job performed
  • Resurfaced
  • Head cleaned
  • Painted
  • Assembled with all new valve seals and thread in soft plugs
  • 115# springs
  • Titanium retainers
