2011-2026 Cummins SES Rear Severe Service Kit (DRTT3500D)
Timbren
Part Number:
DRTT3500D
Regular price
$434.60 CAD
Unit price
Purchase to earn 434 Dirty Dollars Learn More
Description
Description
| Year | Make | Model |
|---|---|---|
| 2003-2013 | Dodge/Ram | Ram 2500 (2WD/4WD, All Cabs) |
| 2003-2026 | Dodge/Ram | Ram 3500 (2WD/4WD, All Cabs) |
Hauling top-heavy loads like truck campers or salt spreaders demands maximum stability. This Timbren SES Severe Service Kit uses a single-convoluted Aeon® spring that resists weight more aggressively than classic kits. The result is a safe, stable ride that eliminates white-knuckle highway driving by drastically reducing sag, sway, and roll in top-heavy applications.
Part Number: DRTT3500D
Features
Features
- Made exclusively for top-heavy applications requiring maximum stability.
- Uses a single-convoluted Aeon® spring
- Reduces sag, sway, and roll when hauling top-heavy loads.
- Provides a comfortable unloaded ride due to the intended gap (½” to 1 ½”) to the frame.
- Zero post-installation maintenance.
- DIY installation.

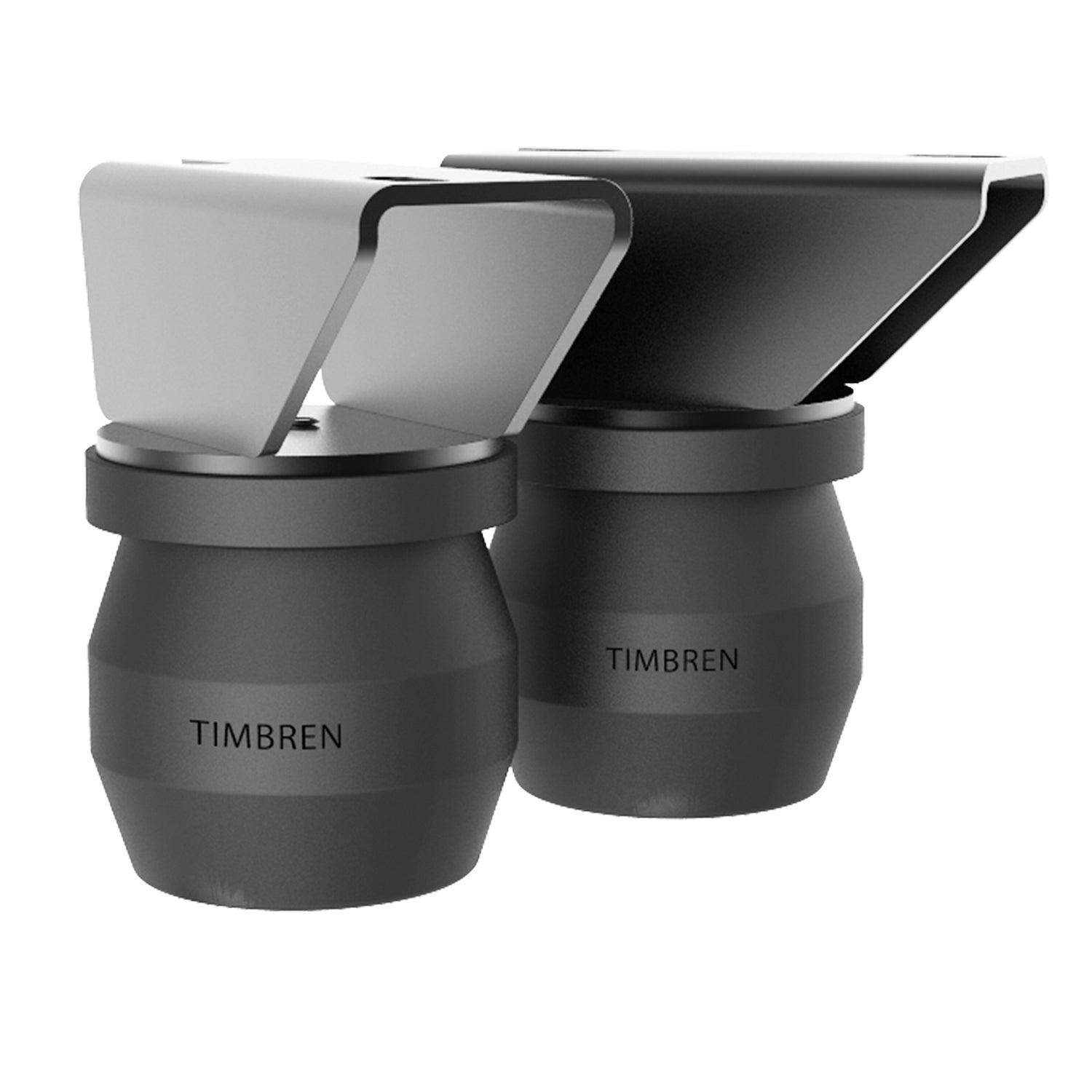

- Includes 2 patented Aeon® SES hollow rubber springs, 2 one-inch rubber spacers, 2 steel mounting brackets, and all necessary hardware.
- Rated Capacity: 8,000 lbs.
Notes
Notes
- Location: Rear Suspension.
- Kit Height: 6.25” without the spacer, 7.25” with the 1” spacer installed.
- Ram 2500 applications end at 2013 — 2014 and newer Ram 2500 models use a rear coil-spring suspension that this leaf-spring kit does not fit.
- Important Warning: Even though you’re increasing the spring rate by adding this upgrade, this does not increase the GVWR (Gross Vehicle Weight Rating). Please make sure that the load does not exceed the GVWR set by the manufacturer.
