2003-2024 Tacoma 2.5 Series 0-3" Lift Front Coilover (883-02-025)

FOX Part Number: 883-02-025
$2,494.97 CAD

Purchase to earn 2494 Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Description

Fits

Year Make Model
2003 - 2009 Toyota Land Cruiser Prado 120
2003 - 2024 Toyota 4Runner
2005 - 2023 Toyota Tacoma
2007 - 2021 Toyota FJ Cruiser

Note: Requires Upper Control Arm

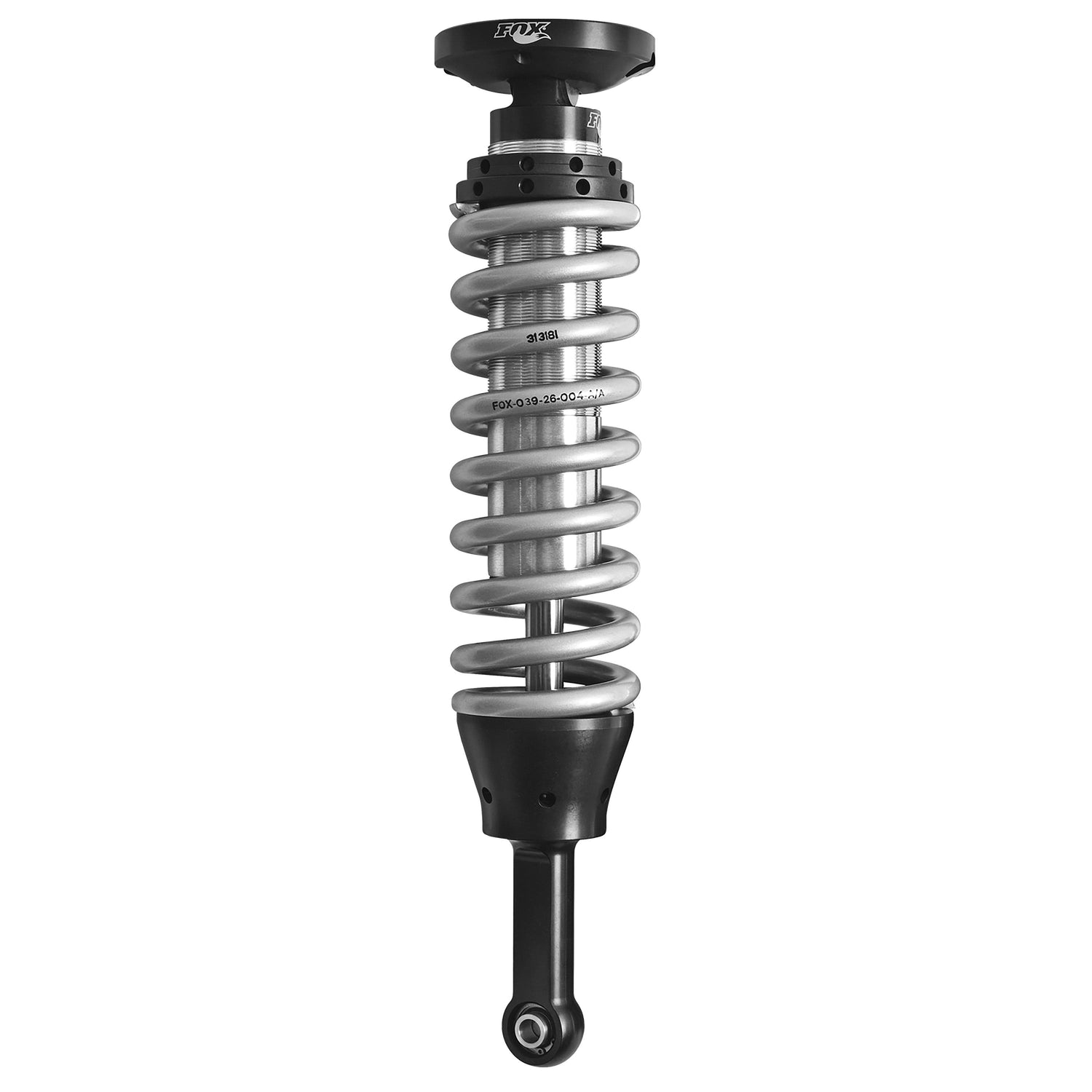

These bolt-on Factory Race Series Coil-over Reservoir shocks provide improved damping in any terrain and suspend the vehicle's weight. The integrated coil spring can be adjusted for preload and ride height and comes pre-set to level your vehicle right out of the box. Experience the incredible performance and precise control that Factory Series Coil-over Reservoir shocks deliver.

Part Number: 883-02-025

Features

  • Requires Upper Control Arm
  • Performance Tuned For Vehicle Specific Application
  • IFP Separates Oil From High-Pressure Nitrogen Gas
  •  Zinc-plated and double-clear coated for a long-lasting finish
  • Reservoir Internal IFP mono-tube Reservoir design separates shock oil from the high-pressure nitrogen
  • Black-anodized CNC-machined 6061-T6 billet aluminum
  • 7/8" hardened NitroSteel Steel Carbon Shafts
  • 6061-T6 hard-anodized, high-flow aluminum Piston
  • Application specific Valving to maximize performance
  • Redundant sealing pack system main seal, wiper seal, scraper seal
  • PTFE-lined, heat-treated, alloy steel spherical bearings

Specs:

  • Extended Length: 22.93"
  • Compressed Length: 18.04"
  • Top Mount: TM
  • Bottom Mount: Eyelet
  • Travel: 4.89"
  • Front Lift Height: 0-3"
