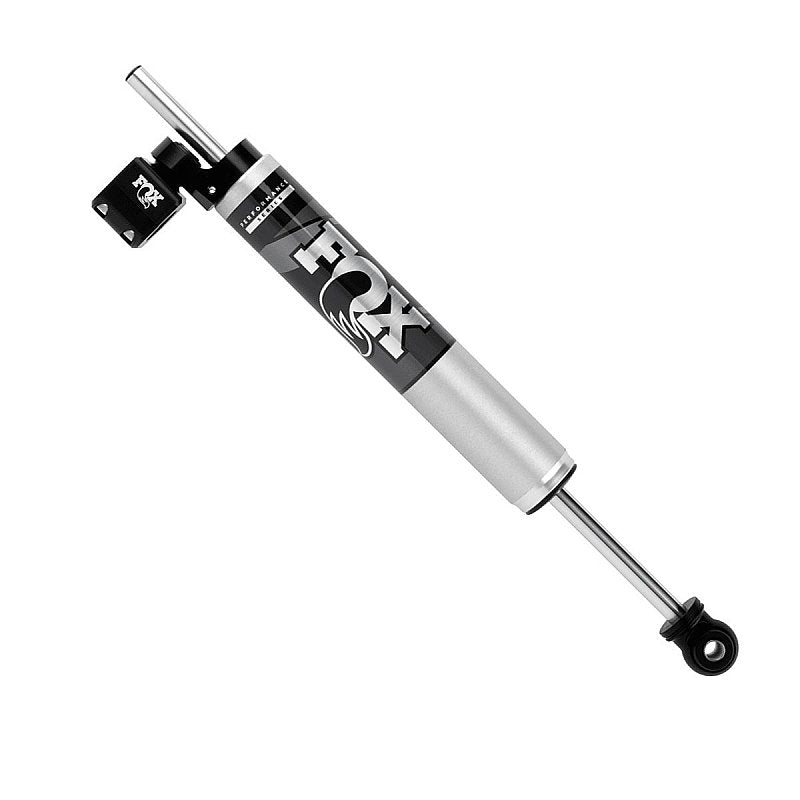

2003-2024+ Powerstroke/Cummins Synergy Tuned FOX TS 2.0 Steering Stabilizer (6402-XX)

The Synergy tuned FOX TS stabilizers use a Through Shaft architecture that eliminates shaft fluid displacement across the entire stroke in both directions. A conventional stabilizer builds pressure as the shaft occupies more volume in the body, which the driver feels as a push or pull as it returns to neutral. By removing that displacement the TS delivers neutral, consistent damping of unwanted steering feedback from a single bolt on unit, with no second stabilizer or extra mounting hardware required.

Part Numbers Included:

• 6402-01 17+ Ford Super Duty, 1-1/8" Clamp
• 6402-03 1-1/2" Clamp
• 6402-04 1-5/8" Clamp
• 6402-11 13-24 Ram, Axle Mount

• Through Shaft design eliminates shaft fluid displacement, delivering neutral damping in both directions.
• Removes the need for dual opposing stabilizers and the extra mounting hardware they require.
• Shares the load when running oversized tires, keeping the tires tracking true and preventing premature steering wear.
• Synergy specific valving tuned for heavy duty truck weight and steering geometry.

• Verify your tie rod outer diameter before selecting a clamp size.
• For 2003-2013 dual steering stabilizer configurations use part number 8510-01; for 2014+ use 8710-01.
• For 2005+ Ford Super Duty low mount single stabilizer configurations use part number 8603-02 or 8604-02.
