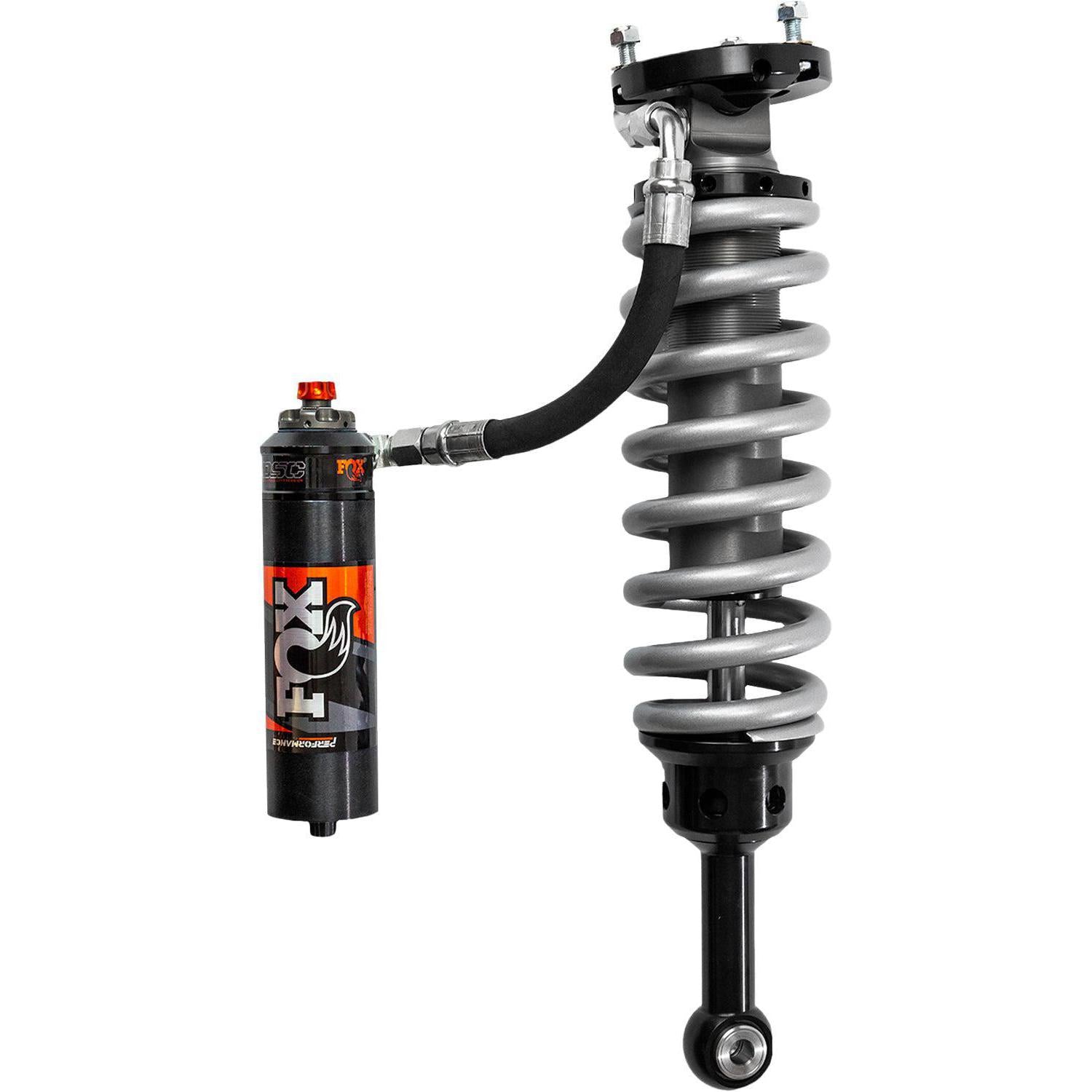

2003-2023 4Runner/FJ Cruiser 2.5 Elite Series 2-3" Lift Front RR Coilovers w/ DSC (883-06-185)

Fits

FOX Factory Race Series 2.5 Internal Bypass shocks for the Toyota deliver velocity and position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.

Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.

Part Number: 883-06-185

• Durable Zinc Plated Seamless Alloy Body
• External Reservoir System Dissipates Heat Fast

• Body Plating Hard-anodized for a durable finish
• Black-anodized CNC-machined 6061-T6 billet aluminum
• 7/8" hard chrome plated steel Shafts
• 6061-T6 hard-anodized, high flow aluminum Piston
• Application specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• PTFE-lined, heat-treated, alloy steel spherical bearings


Specs:

• Extended Length: 22.41"
• Compressed Length: 16.64"
• Travel Length: 5.23"
• Top Mount: OEM
• Bottom Mount: Eyelet
