2003-2018 Cummins Auxiliary Heated fuel Filter Kit (FPE-CUMM-HFFBA-0318)

Introducing the all-new full-featured auxiliary fuel filter kit for the 2003-2018 Dodge Cummins.  This kit builds off our standard auxiliary kit with the addition of an integral high-flow fuel heating element and Water-In-Fuel (WIF) sensor. The kit includes everything you need to properly route, plumb and filter fuel for your Cummins engine from a Fleece Performance lift pump to the injection pump.  This kit improves accessibility to the fuel filter as well as reduces your ongoing maintenance cost with a lower-cost Donaldson filter.

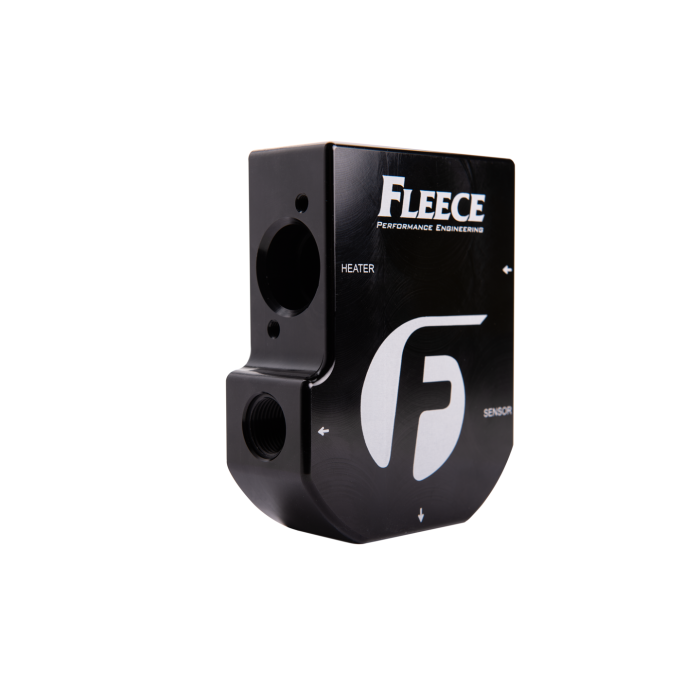

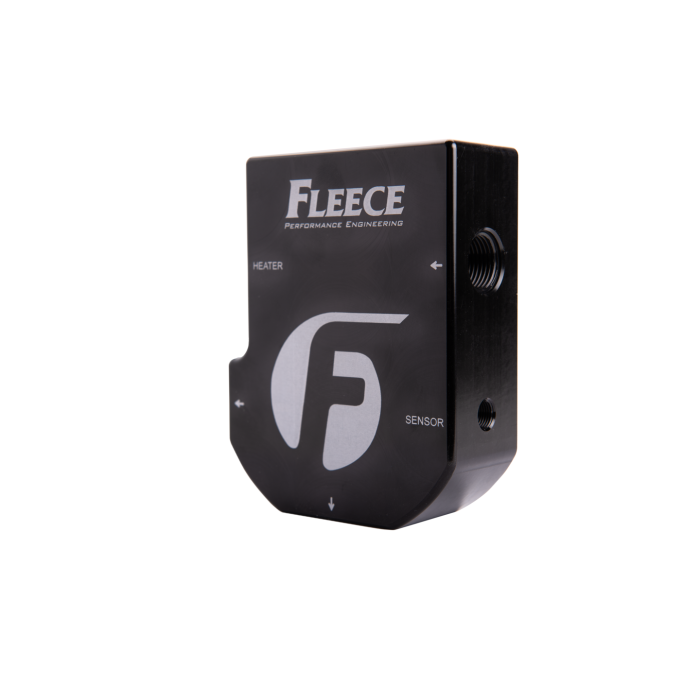

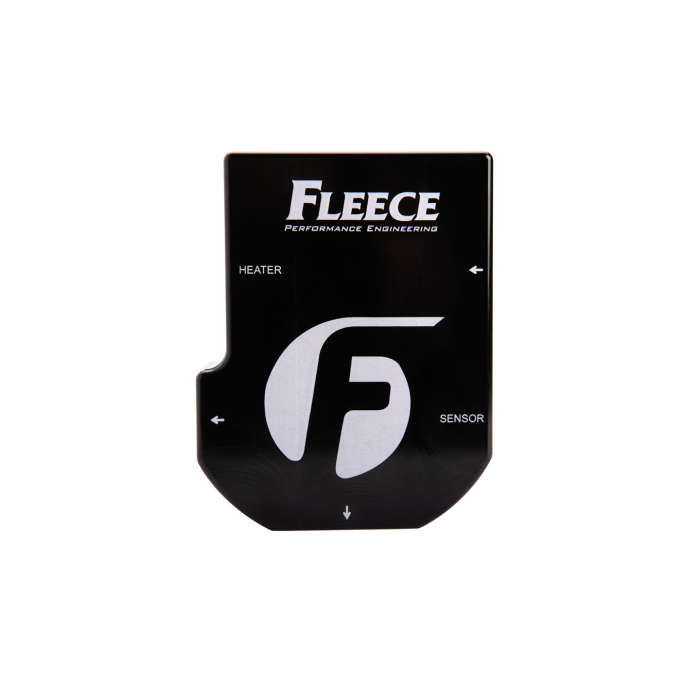

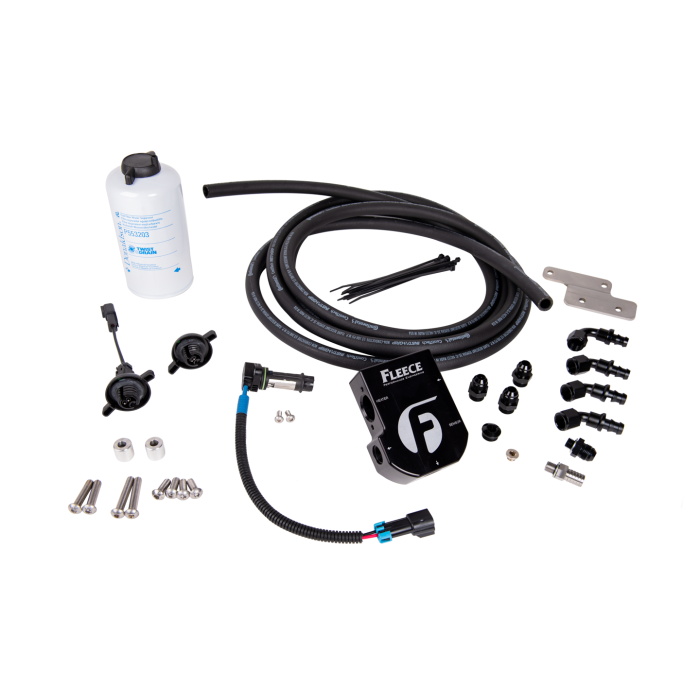

This kit includes a Fuel filter base with integral heater and mounting hardware, Donaldson 3 micron fuel filter and water separator, Push Lock hose and all necessary AN and barb fittings, CP3 Feed fittings for 5.9L and 6.7L CP3 pumps, Water-In-Fuel (WIF) sensor and adaptation harness.

Part Number: FPE-CUMM-HFFBA-0318

• Includes everything for install
• Improves accessibility to the fuel filter as well as reduces your ongoing maintenance cost.
• Temperature switching points: ON: 28.4F +/-5.4F,  OFF: 48.2F +/- 5.4F
• At typical fuel flow rates a temperature increase of between 4-8F will occur across the heating element

• A Fleece Performance fuel filter delete is required for use with this product and must already be installed or purchased separately.
• This kit does not include a quick disconnect fitting to adapt to the OE lift pump. If you are running this kit with a stock OE sending unit on the fuel tank use Part Number: FPE-QUCON-OE-38 to allow for an AN connection to the stock quick disconnect style fitting.

• Click Here

• 1 Year Limited (parts only)
