2003-2013 Cummins Unchained Shock Package w/ 6" Lift (CS-DUC35SPKG-6-03-D)

Fits

Note: Compatible ONLY with Carli 6" front springs, Radius Arm System, and 4" rear spring pack

The most advanced off-road shocks Carli has to offer. This Unchained 3.0 bypass shock kit offers the softest ride on paved roads while still providing superior control and response. However, the off-road capability is unmatched in every way, with massive 3.5" long-travel King Shocks for the front and 3.0" 4-tube rear bypass shocks that give you more bottom-out resistance, external tubes with one-way check valves that are fully adjustable to allow users to tailor the amount of fluid that bypasses the piston/valving on either the compression or rebound stroke within the effective range of the bypass tube.

Part Number: CS-DUC35SPKG-6-03-D

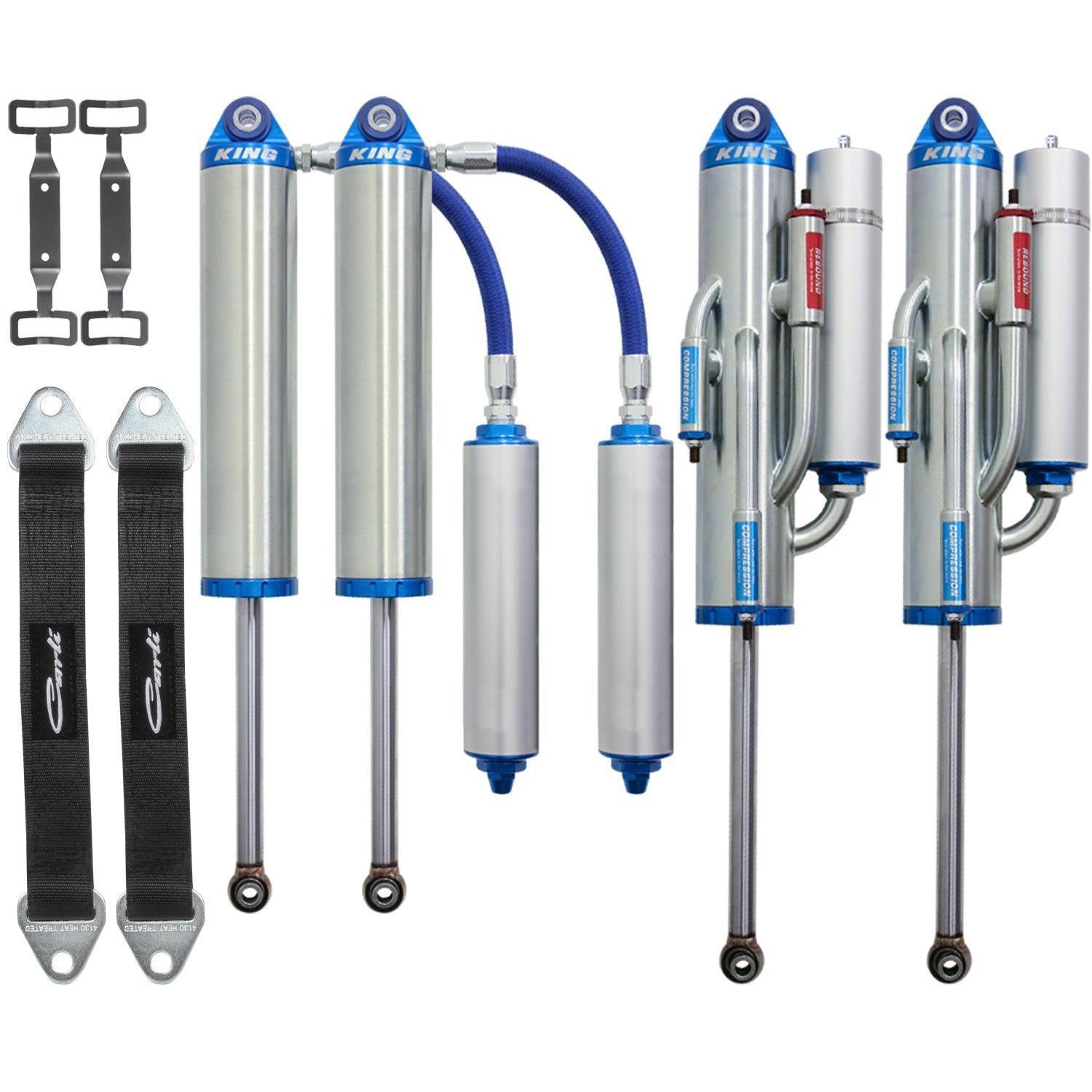

• King 3.5" remote reservoir front shocks and 3.0" 4-tube piggyback bypass rear shocks
• Includes reservoir mounts and limiting straps
• Features 17-4 stainless shafts for durability and longevity
• 4-tube bypass will have far more bottom-out resistance
• Tunable to achieve the exact ride desired by the purchaser

• Required and Optional Parts to support this system:
  • Fabricated Shock Towers (REQUIRED): 94-12 RAM 2500/3500 FABRICATED SHOCK TOWER - 5.25" TALL (UNCHAINED ONLY) CS-DFST525
  • Gusset Kit (REQUIRED): 03-12 RAM 2500/3500 4X4 DOMINATOR REAR CROSSMEMBER GUSSET KIT - WELD IN CS-D30GUSSET
  • Rear Shock Mounts: 03-12 RAM 2500/3500 4X4 WELD-IN REAR SHOCK MOUNT, PASSENGER CS-DRSMP and DRIVER CS-DRSMD
  • Reservoir Rock Guard: UNIVERSAL - 2.5" DIAMETER SHOCK RESERVOIR GUARD CS-RRG
  • Hole Saw/Arbor: 4" HOLE SAW AND ARBOR CS-HOLESAWKIT-4

• A “Base Kit” SKU must be accompanied by the SKU of a Shock Tower and Gusset Kit to form a complete system.
• Compatible ONLY with Carli 6" front springs and 4" rear lift
• Coil Buckets must be bored to 4.5" (upper and lower) for shock clearance
• Rear shock mounts are HIGHLY recommended for bypass clearance
