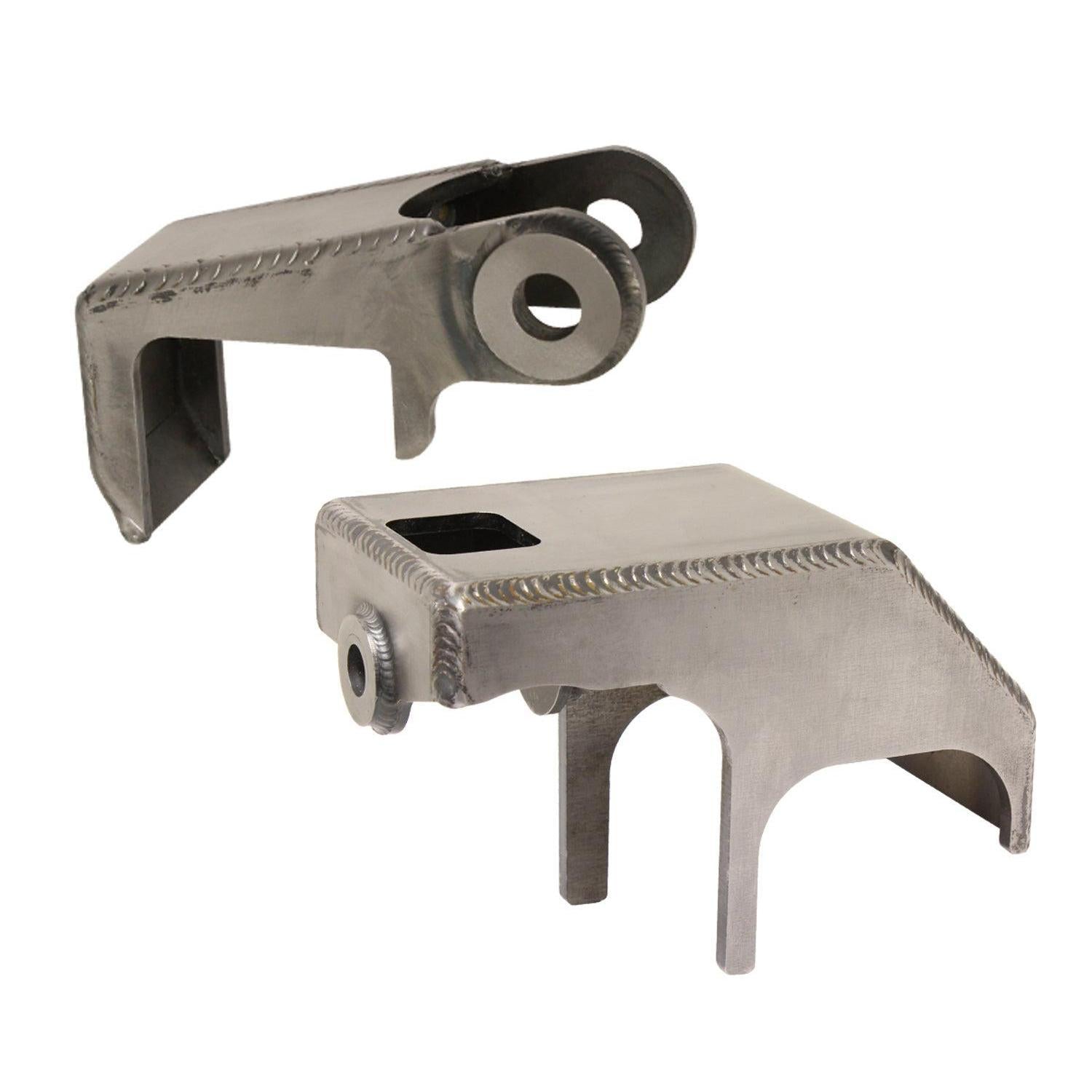

2003-2013 Cummins Rear Shock Mount Kit (CS-DRSMKIT-03)

Note: Requires welding

If you want a serious shock/ suspension setup on your truck, the last thing you should cheap out on is shock mounts. Half-welded, thin-gauge do not offer enough support for larger, more heavy-duty shock setups. These Carli Steel Weld-on mounts are a no-brainer if you want to upgrade to some big boy shocks!

Part Number: CS-DRSMKIT-03

• Complete kit replaces both the driver and passenger side factory shock mounts, which are prone to failure
• Necessary when running 3.0" shocks
• Requires welding


The factory rear shock mounts are sufficient to 2.5″ remote reservoir shocks. Once valving starts to stack up or larger than 2.5″ shocks are installed, the driver’s side upper, rear shock mount’s inability to take a beating should be addressed. Fully Boxed and welded 3/16″ Cold-Rolled Steel Construction ensures the mount is stronger than the cross member to which you’ll be welding it. That said, triangulation of the Carli Driver shock mount/crossmember/frame rail is also recommended.

The passenger side shock mount has always proved sufficient but, removing the bed and prepping for weld is such a process, we designed and fabricated a matching mount to weld in on the passenger side for cheap insurance. This mount requires no additional triangulation or gusseting.
