2003-2013 Ram HD HEMI Pintop 3” Lift Kit (CS-DPT25-03-H)

Fits

Note: NOT compatible with diesel applications

Review 'Additional Info' for required and optional components

One of the best off-road suspension systems Carli offers, the Pintop 3" leveling kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5” shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, which results in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Part Number: CS-DPT25-03-H

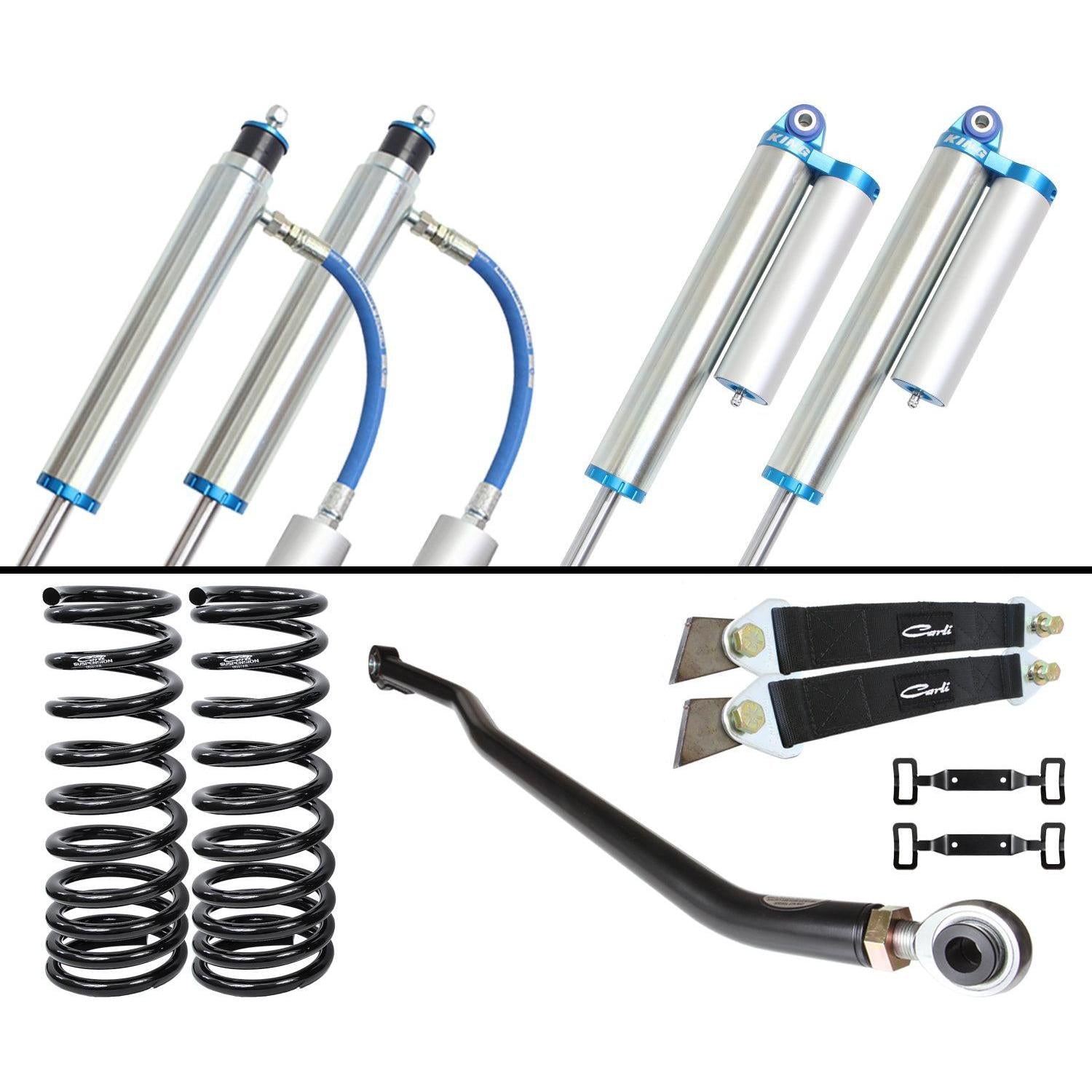

• Multi-rate front coil springs, front and rear shock package, and adjustable track bar
• The truck will sit 2.5-3" higher (year/cab configuration dependent), and wheel travel will be increased by 50% thanks to the taller, lighter-rate coil springs.
• Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance

• Specifically tuned shocks for Rams equipped with the GAS Hemi engine

• Optional Parts to support this system:
  • Sway Bar Options: CS-DTSB3-03 or CS-DEL-10-12MM or CS-DEL-10 or CS-DEL-985
  • Control Arms: CS-DBCA-10 or CS-CA-MS-10 or CS-DBCA-03 or CS-CA-MS-03
  • Leaf Spring Options: CS-DFSP-03-H or CS-DFSP-10-H or CS-DFSP-03-H-HD or CS-DFSP-10-H-HD
  • Rear Shock Mount - Driver: CS-DRSMD
  • Rear Shock Mount - Passenger: CS-DRSMP
  • Long Travel Bags: CS-DLTB-03-H
  • Steering Stabilizer: CS-DLMSS-Y or CS-DLMSS-T or CS-DHMSS-03-Y or CS-DHMSS-03-T or CS-DSSOSK-Y or CS-DSSOSK-T
  • Axle Truss: CS-AAMTRUSS
