Description
Fits
Year |
Make |
Model
|
2006-2008 |
Dodge Ram |
1500 Megacab 4x4 |
2003-2013 |
Dodge Ram |
2500 4x4 |
2003-2013.5 |
Dodge Ram |
3500 4x4 |
Note: 2013 Dodge Ram 3500's were a split year for production. If your truck has radius arms use Dodge Ram 2014+ pages

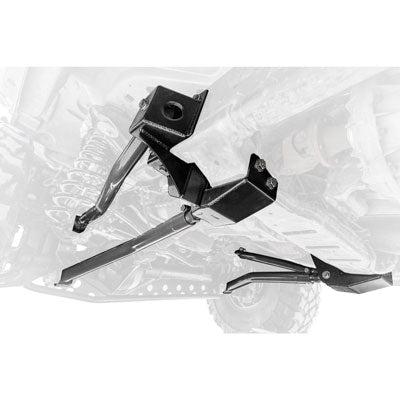

Synergy has designed & engineered these brackets to maximize your Rams off-road performance utilizing OEM CAD files for impeccable fitment. When you have shorter control arm angles this puts a lot of strain on your truck's suspension components, which also leads to poor handling, choppy movements & limits your suspension travel over bumpy/ rough roads.
Part Number: 8581
Features
- Laser cut & CNC formed from high-strength 3/16" steel
- Brackets are designed to optimize ground clearance.
- Integrated removable skid plate assemblies protect control arm joints and allow for easy removal of factory transmission cross member.
- Engineered to provide maximum articulation and improved vehicle dynamics.
- Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
- 100% bolt-on components assures an easy, trouble-free installation with the use of basic hand tools

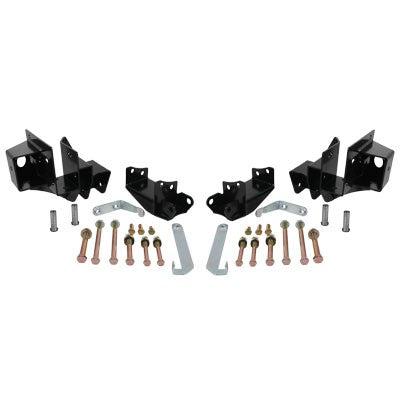

Includes:

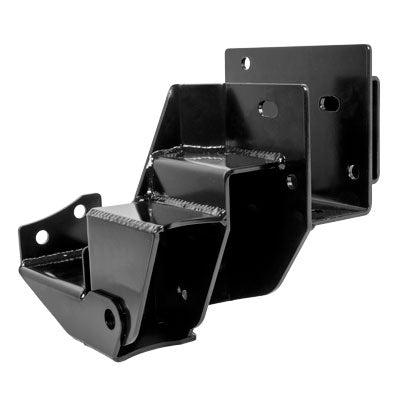

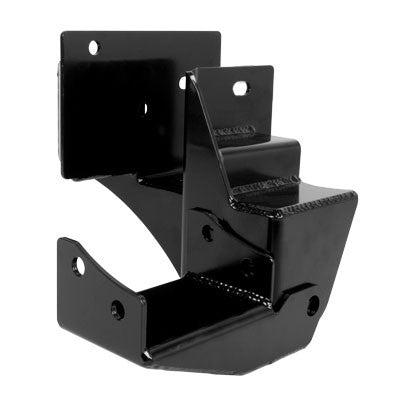

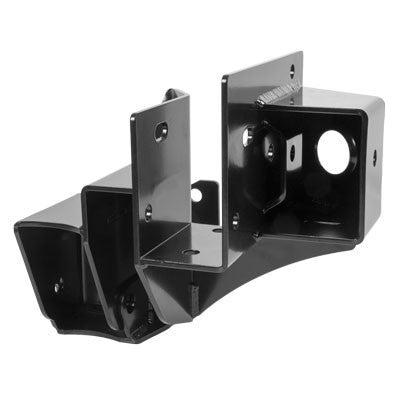

- (1) 858101-L Dodge Long Arm Bracket, LH side (2003-2012)
- (1) 858101-R Dodge Long Arm Bracket, RH side (2003-2012)
- (1) 858104-L Dodge Long Arm, Transmission Skid Bracket, LH Side (2003-2012)
- (1) 858104-R Dodge Long Arm, Transmission Skid Bracket, RH Side (2003-2012)
- (1) 858101-HDW Dodge Long Arm Hardware Kit (2003-2012)
- (4) 858105-01 Stainless Frame Spacer Sleeve
- (2) 858102 Bottom Nut Tab
- (2) 858103 Side Nut Tab
- (2) 858101-08 Spacer Tab
Installation
Notes
- Designed to be used in conjunction with 8585 Dodge 03-13 Front High Clearance Upper Long Arm and 8583 Dodge 03-13 Front High Clearance Lower Long Arm
- Kit can be installed on anything from a completely stock truck to a 6" lift and 12" stroke 3.0" diameter shocks
