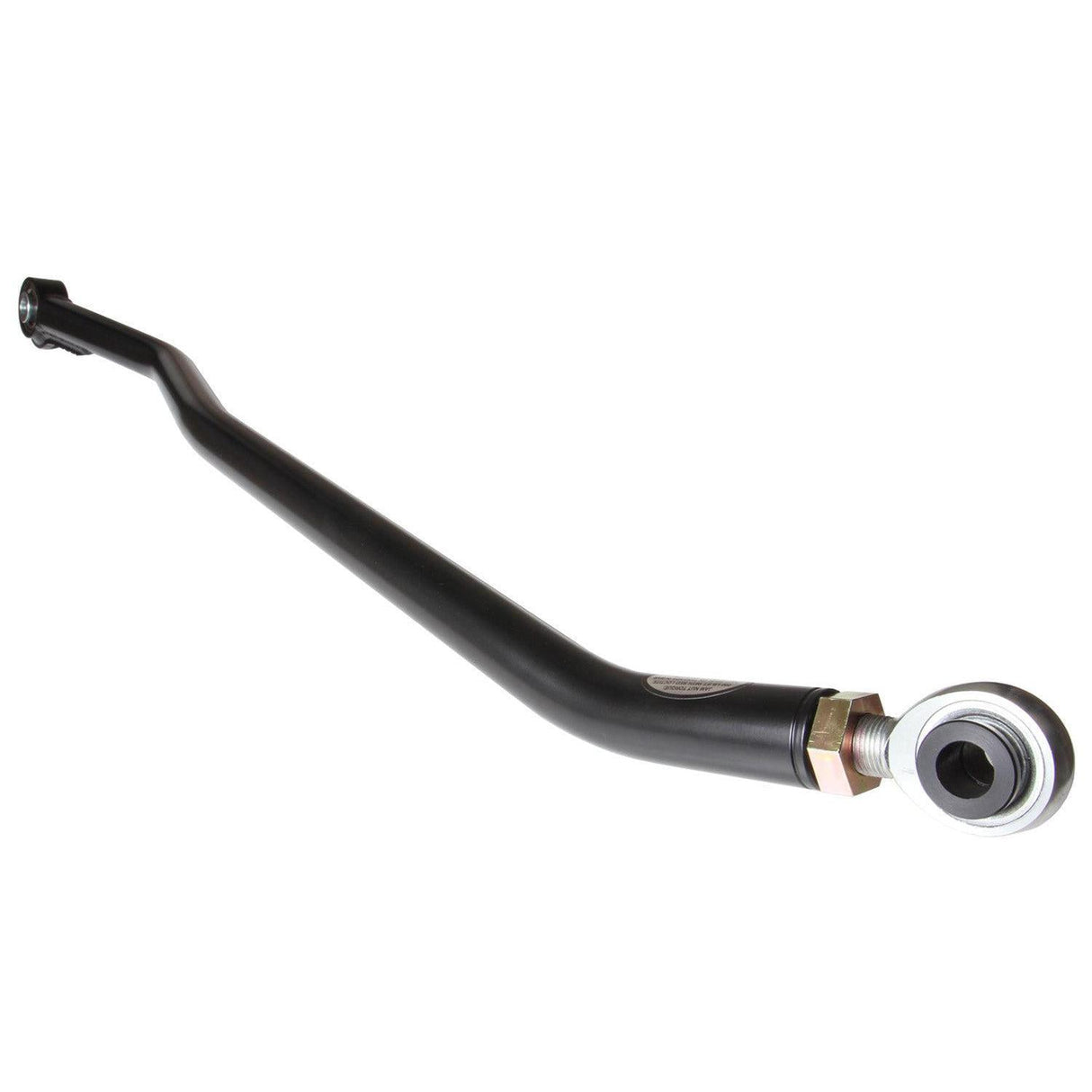

2003-2013 Cummins Front Adjustable Track Bar w/ 0-3" Lift (CS-DATB-03)

There's a wide variety of track bars on the market, but are they competent in their intended purpose? If you feel any deflection in the bar or wear in your bushings, you'll feel your front end floating, wandering, and worst case, death wobble. When you lift your truck, you increase the load while pulling the axle off-center, which is why it is important to upgrade your track bar, among other suspension components.

Enter the Carli Adjustable Front Track Bar, with significantly less deflection than OEM, excels in dampening vibrations without compromising handling. It features a 3/8″ wall DOM construction, 7/8″ x 7/8″ FK Bearing Chromoly Heim Joint, and a Tapered Jam Nut to ensure optimal centering of the joint and provides 100% more surface area than a standard Jam Nut.

Part Number: CS-DATB-03

• Adjustable track bar allows axle centering up to 3″ of front lift
• Features stout 3/8″ wall DOM construction
• Carli’s CUB Frame Joint combines with a 7/8″ FK axle Heim to dampen vibration
• Carli's proprietary Jammit nut boasts 100% more surface area than a standard jam nut

The track bar is the most important link under the front end of a straight axle, heavy-duty truck. It's both a suspension and steering component and any deflection in the bar or wear in the bushings are immediately felt by the driver in the form of excessive steering input, floating front end, wandering, and last but certainly not least, the dreaded death wobble. Exacerbate the bar's susceptibility to the above by lifting the truck and increasing the load while pulling the axle off-center and so completes the recipe for disaster.

Enter the Carli Adjustable Track Bar. The goal, a link that deflects less than the stock bar, dampens vibrations without causing the sloppy handling associated with the stock bar, ensure service life far in excess of a factory unit while being rebuildable (vs. replaceable like the factory bar) all while being adjustable to center the axle on leveled vehicles. Many years have seen many iterations but we've landed on a design we feel impervious to future improvement.

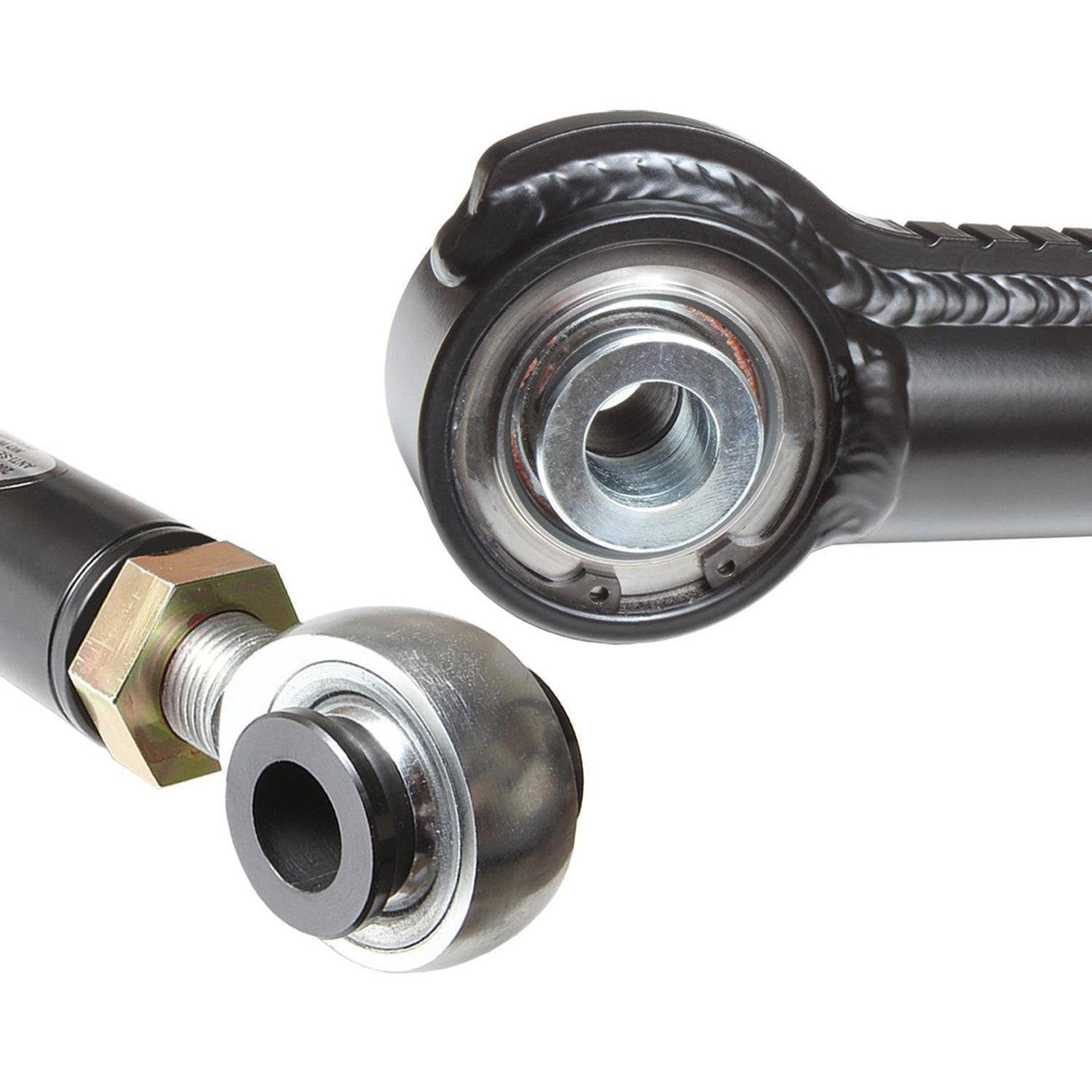

The DATB Track Bars are 3/8″ wall DOM construction, FAR stronger than the brackets to which they're bolted. This wall-thickness allows the end of the bar to be threaded to accept our 7/8″ x 7/8″ FK Bearing Chromoly Heim Joint. You'll see many manufacturers running thinner wall and weld-in bungs as our previous generations did; running the thicker wall bar allows for more strength and one less welded joint – a potential point of failure. In place of a standard Jam-Nut, we've developed a tapered jam nut (mating surface similar to a lug nut) to ensure perfect centering of the joint while providing 100% more surface area than a standard Jam-Nut. We've taken a design used in off-road racing (Tube with weld-in bungs and jam nuts) and improved it to be FAR more reliable.

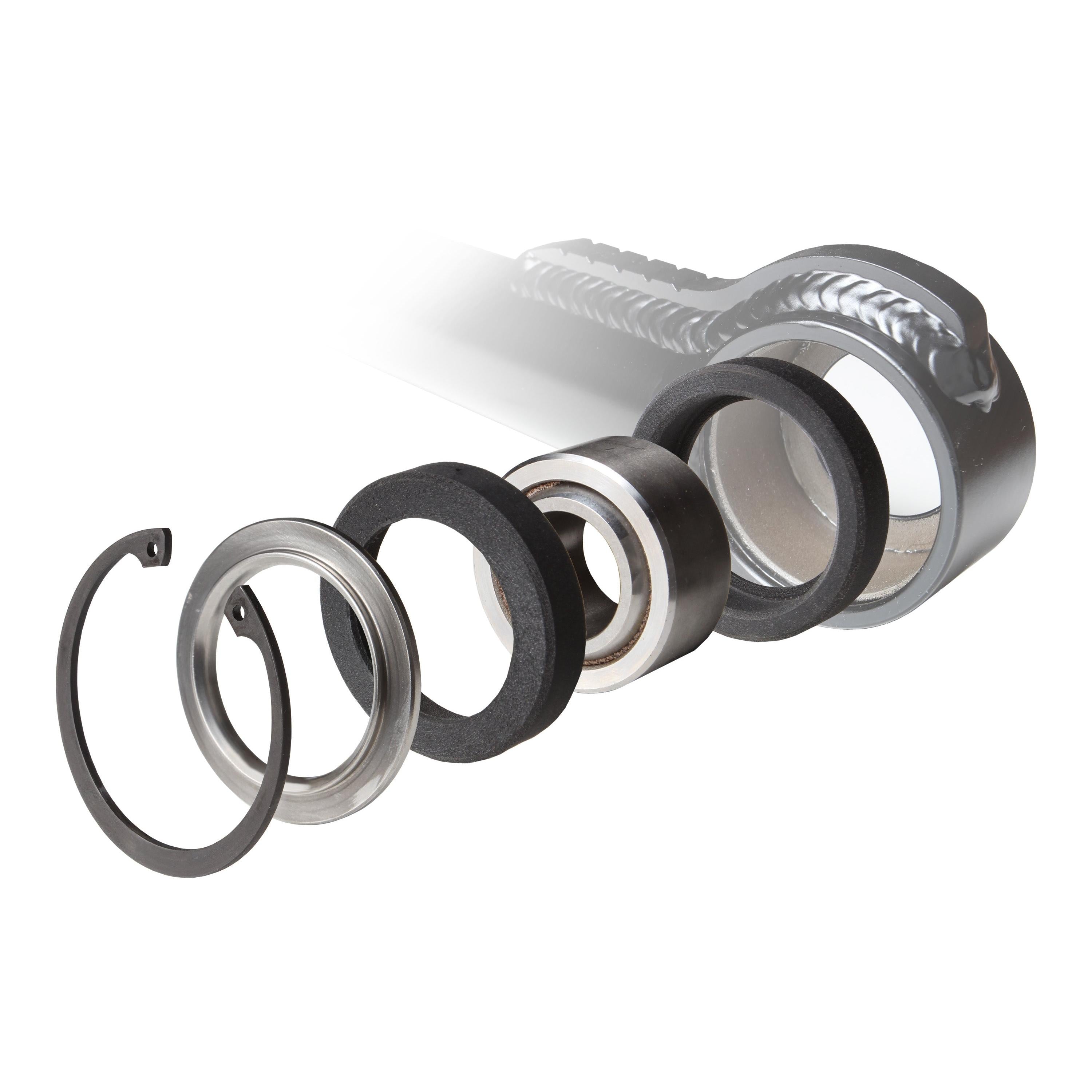

The frame end of the track bar saw a massive improvement in the DATB generation, as well. Our "CUB" joint starts with a proven FK Bearing 7/8″ Uniball at its center. Custom molded bushings are pressed on to encapsulate this Uniball then the assembly is pressed into the huge, gusseted frame-end housing of the track bar with a Stainless safety washer and retained with a snap ring. Custom Misalignment spacers center the joint in frame bracket and ensure full fore and aft movement of the track bar to be possible without bind or excessive bushing deflection.

Why is this new bar such an improvement? Previous generations of our track bars relied on a 2 piece hat-bushing and crush sleeve at the frame, weld in bung at the axle with a standard jam-nut and a .250″ wall main tube. Truth be told, there was nothing wrong with this design and we ran it through some of the most treacherous terrain Baja had to offer for many years. Product improvements each came with justification. The hat bushings in the frame end of the bar were VERY sensitive to installation error. If a person purchased our track bar and paid a mechanic to install it who did so using a standard pneumatic impact gun, the factory torque to yield hardware wouldn't see it's factory torque value, the bushing would wear out as you're running an 8,000lb. truck on an un-preloaded piece of urethane and the customer would have nearly immediate handling issues. The customer isn't a mechanic; all they know is they paid a premium price for a product and a pro to install it and it wore out in no time flat. No one wins, here. With the preloaded CUB bushing, there's no fear of prematurely wearing the bushing due to a lack of preload as the pre-load is set by us in assembly and held by a snap ring so an impact gun installation is no longer an issue.

The axle end, again, weld-in bungs and standard jam-nuts have been used for MANY years. Like the hat bushings, they can be finicky to install as not everyone has the tools to yield the shank of a 7/8″ heim to its 660lb/ft. spec. Ensuring clamping force and thread interference was sufficient at a lower torque spec achievable by the weekend wrench, we increased the surface area to ensure we get the most clamping force possible.
