2003-2009 Cummins Unchained 6” Lift Kit (CS-DUC35-6-03)

Fits

Note: Review 'Additional Info' for required and optional components

The most advanced off-road lift kit Carli has to offer. This Unchained 6" long arm suspension system rides stiff on paved roads but still provides superior control and response. However, the off-road capability is unmatched in every way, with massive 3.5 long-travel, tuneable King Shocks. These shocks feature a 4-tube bypass system that gives you more bottom-out resistance, external tubes with one-way check valves that are fully adjustable to allow users to tailor the amount of fluid that bypasses the piston/valving on either the compression or rebound stroke within the effective range of the bypass tube.

This is just one of many benefits to this kit; there is no room for error or compromises, so you experience the very pinnacle of performance, control, damping, and off-road capability over any terrain at whatever speed!

Part Number: CS-DUC35-6-03

• HUGE remote reservoir 3.5" front shocks and 3.0 4-tube bypass rear shocks, this system is ready to soak up high-speed hits
• The fabricated radius arm system included allows for huge improvements in articulation over factory, and will withstand any abuse you throw at it

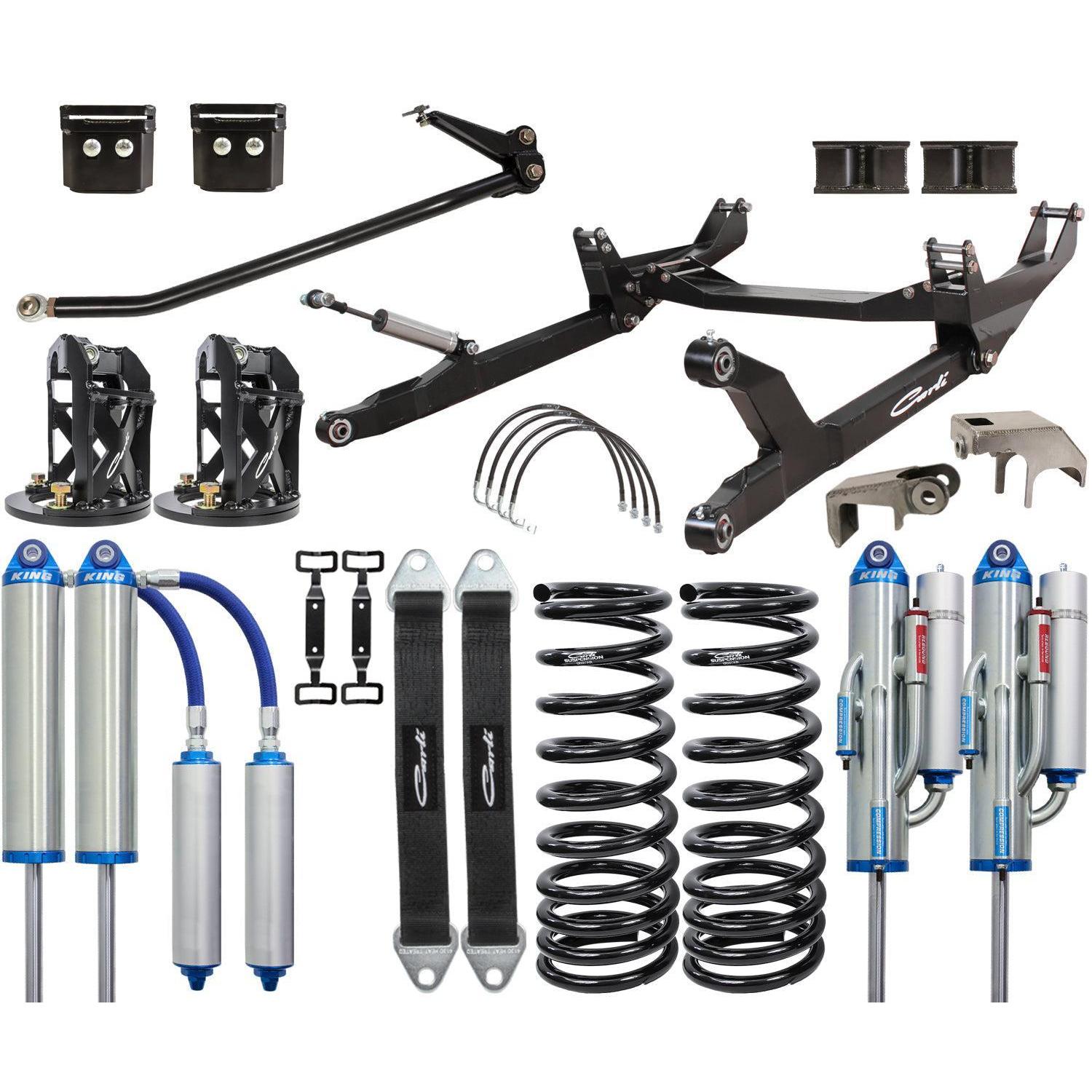

• System includes multi-rate coil springs, front and rear shock package, fabricated shock towers, fabricated radius arm system, rear shock mounts, brake line kit, front and rear bump brops, adjustable track bar, and track bar drop bracket
• This system requires a Torsion Sway Bar and Full Progressive Leaf Springs to properly function
• Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance

• Optional Parts to support this system:
  • Sway Bar Options: CS-DTSB6-03 or CS-DEL6-12 or CS-DEL6-10,
  • Pittman Arm: FTS-93012,
  • Leaf Spring Options: CS-DFSP-6-10-D
  • Rear Shock Mount - Driver: CS-DRSMD
  • Rear Shock Mount - Passenger: CS-DRSMP
  • Long Travel Bags: CS-DLTB-03-4.0 or CS-DLTB-12-D
  • Airbag Spacer: CS-AIRBAGSPCR
  • Hydro Bump Kit - Front: CS-DHYDRO-F-6
  • Steering Stabilizer: CS-DSSOSK-T or CS-DHMSS-03-T or CS-DLMSS-T
  • Carrier Bearing Drop: CS-CARRIERDROP-D
  • Axle Truss: CS-AAMTRUSS

• 2003-07 Rams MUST convert to factory “T-Style” steering
• Carli recommends installing a cage as the off-road capability of this kit far exceeds the performance of the truck itself.
